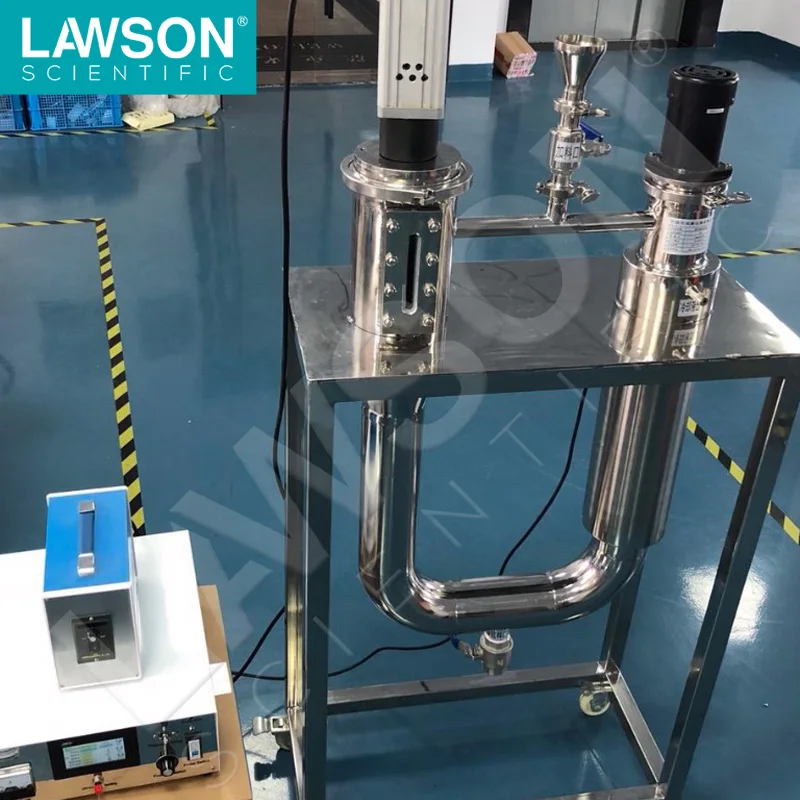

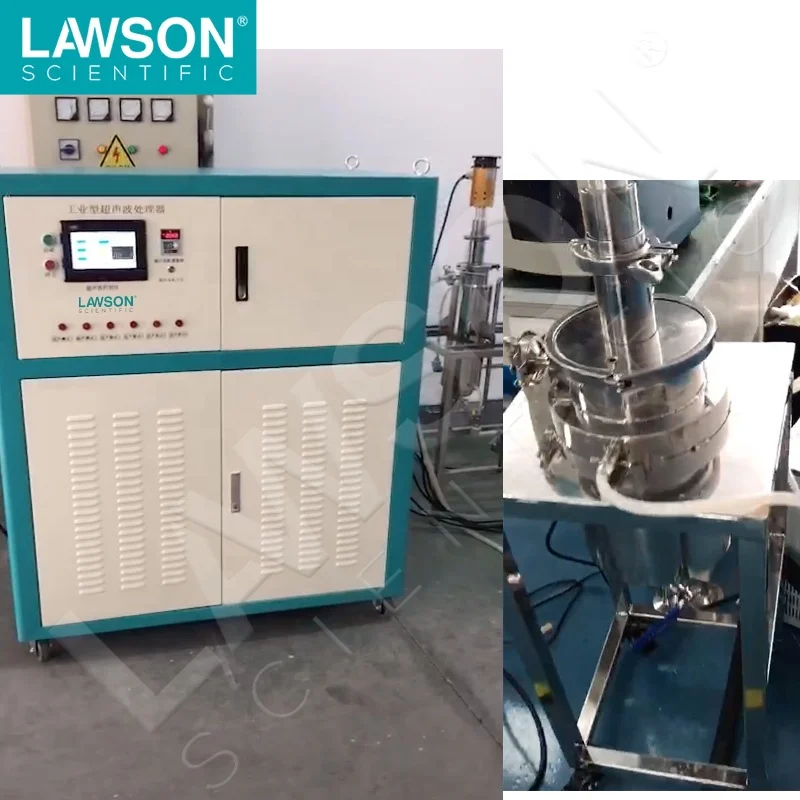

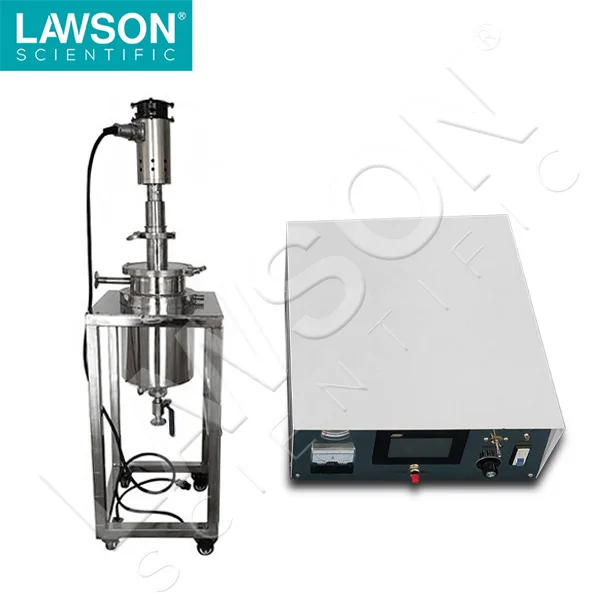

Industrial Ultrasonic transducer factory DH 4000W II Ultrasonic nano material dispersing machine herbal extration emulsification

Product Overview

Description



Ultrasonic dispersion of nano material machine DH-4000W-II has constant temperature, temperature control and selection of continuous feeding and other functions, strong expansibility, the wall is also suitable for the extraction of Chinese herbal medicine, cells, bacteria and emulsifying chemical nanometer material, suitable for small batch production or to provide accurate technical parameters for the future industrial production.



Uses for ultrasonic milling particle size reduction of herbs and for ultrasonic emulsification.



The core content such as ultrasonic nanotechnology is how to solve the problem of agglomeration of nanoparticles, the nanoparticles itself is easy to agglomerate, very difficult to get the single dispersed nanoparticles, how to make the nanoparticles were uniformly dispersed in the matrix is the key technology to nanotechnology. Our company's series of ultrasonic products are dispersed by ultrasonic cavitation. It is the suspension will be required for processing (liquid) into the super sound field, processed by proper ultrasonic amplitude. Because of the inherent characteristics of powder particles dispersed in the medium, for some bad powder, adding appropriate dispersant to maintain stable dispersion state, generally up to tens of nanometers, or even smaller. The product is especially used for dispersing nano materials (such as carbon nanotubes, graphene, silica, etc.) good The effect is being noticed by all parties.



Multi-frequency Ultrasonic transducer is also called ultrasonic continuous flow crusher. Its function is full, appearance is beautiful, and performance is reliable. The instrument adopts a large-screen display with central microcomputer centralized control. The ultrasonic gap time is adjustable and the power is 1-99%. Can set the sample temperature, frequency automatic tracking, fault automatic alarm, the instrument in order to adapt to industrial production and standardized teaching, in maintaining the original ultrasonic function, performance and stability, based on the increase of multi-machine joint control function. Really achieved the operation of multiple ultrasounds under the same parameters. The control machine may be an industrial control computer, a server, a notebook computer, or a desktop computer. With flexible control and networking capabilities, production statistics and economic accounting can also be achieved with the cooperation of dedicated software. And set up a continuous production management system interface, so that ultrasound can be well integrated into your production and teaching.

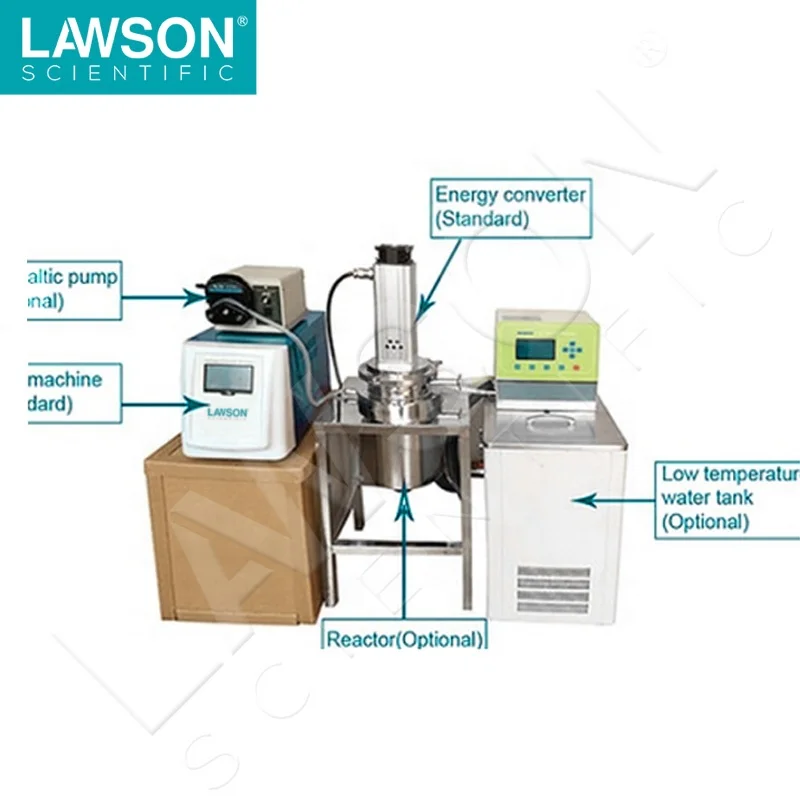

Double material cup design, with inlet and outlet material and coolant inlet and outlet, can be used in conjunction with the thermostatic bath, the material cup and the horn rod are used for live connection, convenient loading and unloading, the processing capacity is small, the material cup can be removed as a conventional ultrasonic crusher Instrument use.

*It can be used to break the efficient cell wall of plant cell tissue and extract more specific substances.

It has been widely used in crushing and extraction of 420.





model(Ultrasonic transducer)	DH-4000W-II
Extraction method	Cycle agitation ultrasonic extraction
Effective volume	50-5000ml(optional borosilicate glass or 316 stainless steel)
Continuous processing capacity	50~100L/day
Ultrasound	Energy gathering
Ultrasonic power	400-4000W adjustable
Stirring method	Motor stirring
Ultrasonic frequency	20±1KHz (frequency automatic tracking)
Control temperature	-20-100°C (Need to choose matching cryostat)

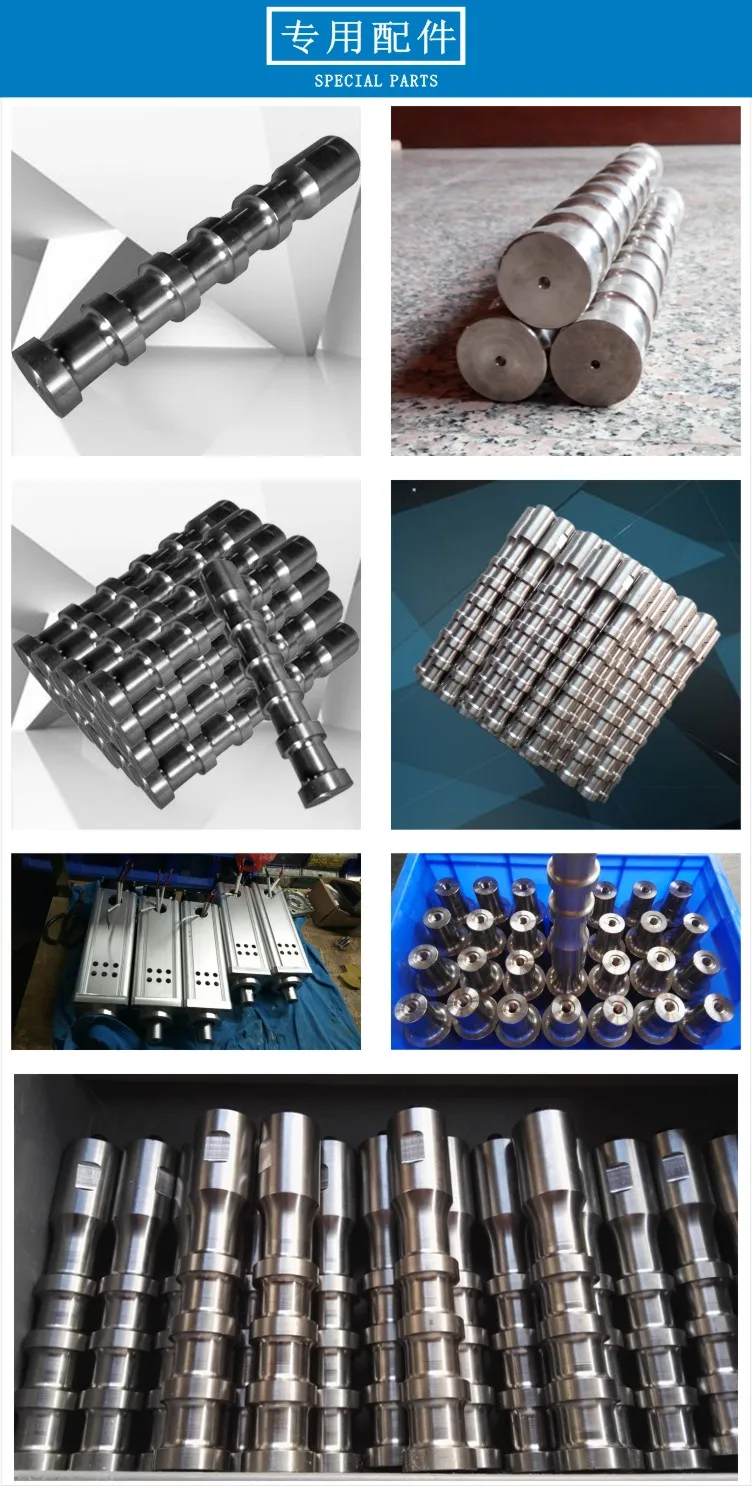

Standard ultrasonic horn	40mm, optional 20, 30, 38, 50,60mm
Main control method	PLC or SCM control (optional laptop)
Ultrasonic Generator and Transducer 1:1 Configuration	PLC control
Operation method	7 inch true color touch screen or computer
Fault protection	Have
Temperature protection	Have
Transducer sealed	Optional
Suitable medium	Volatile or non-volatile
Data storage	20 groups
Operating Voltage	AC220V/110V 50Hz/60Hz

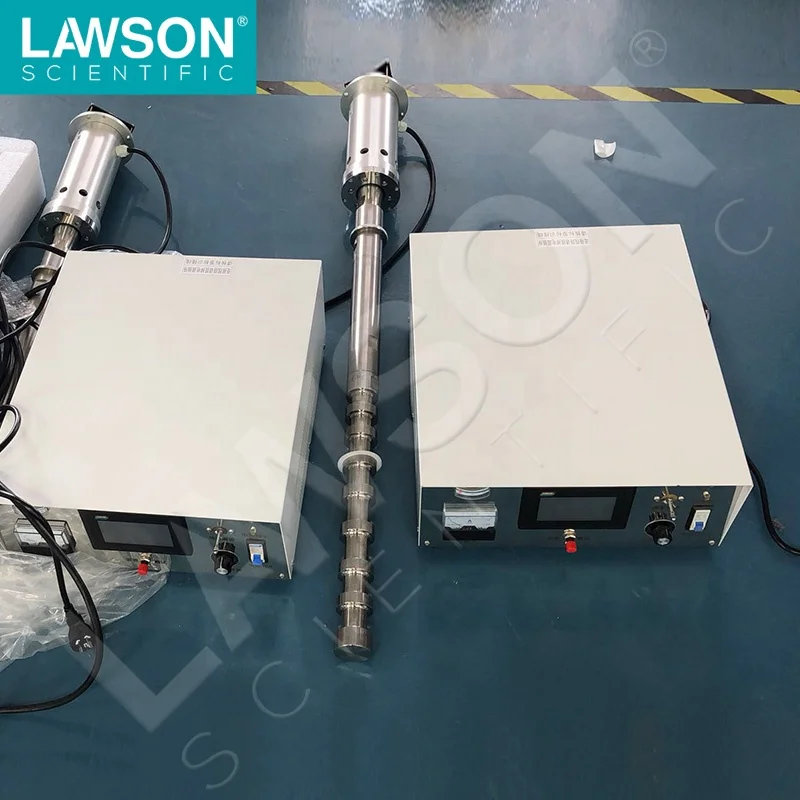

Ultrasonic generator(3000W)	one
Vibration System (Transducer Assembly 40mm)	one set

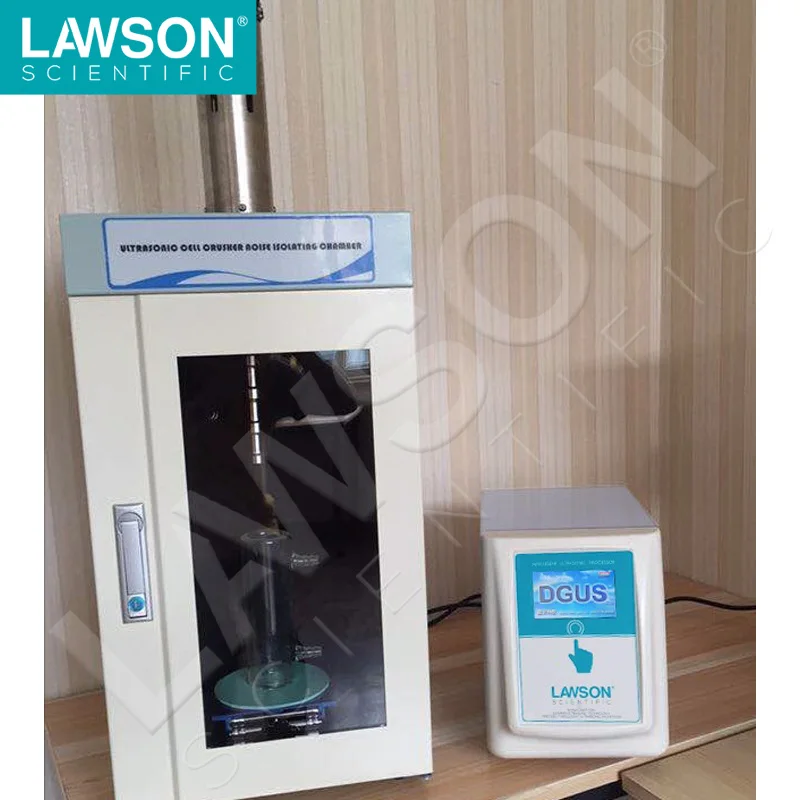

Soundproof box	/
5L Borosilicate glass reactor	Optional
316 stainless steel double deck reactor (with sealed jacket)	Optional
Power cable	One root
Special wrench (for disassembling the horn)	set
Fuse	8A and 5A double
User's Guide	a part
Certification	a part
Warranty Card	a part

Preparing Laboratory Samples:
Cell disruption (lysis) breaks open cell walls for study of cell contents
Power can be controlled precisely for disrupting more delicate cells/subcellular membranes



Destroying Pathogens on Medical Equipment:
cell disruption and heat destroy bacteria and other pathogens for safe, sterile medical equipment

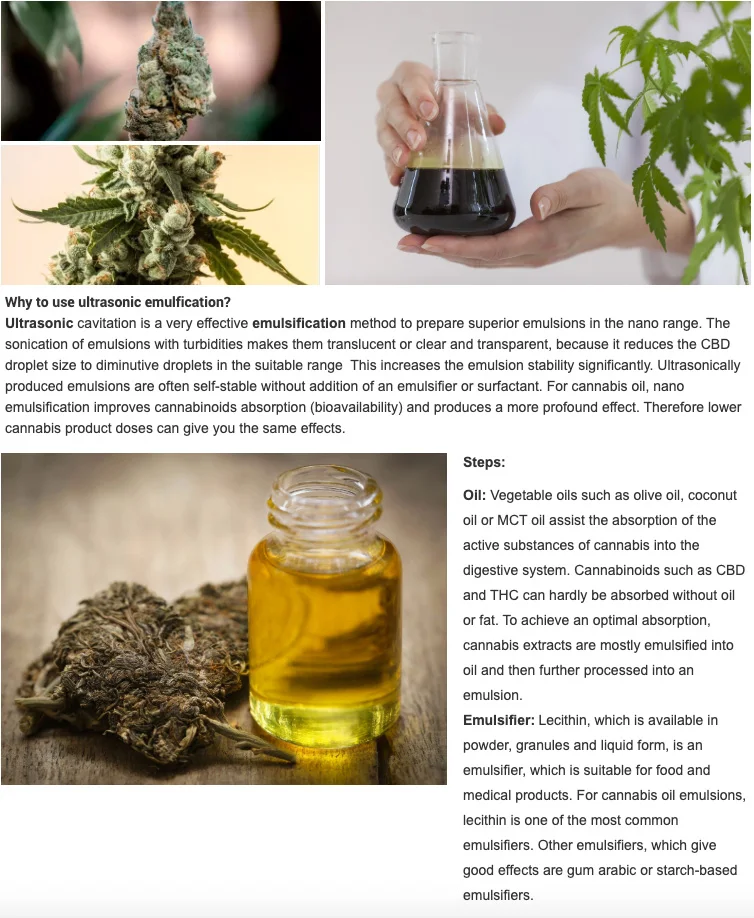

Emulsifying and Homogenizing Solutions of Insoluble Liquids:
powerful ultrasonic waves achieve very small particle size



Creating and Homogenizing Solutions and Suspensions:
Very powerful cell dispersion and deagglomeration ensures that the suspension will not settle out for a long time



And many other applications involving cell disruption, dispersion, deagglomeration, homogenization, or emulsification in many different fields such as biology, physics, pharmaceutics, zoology and many others
