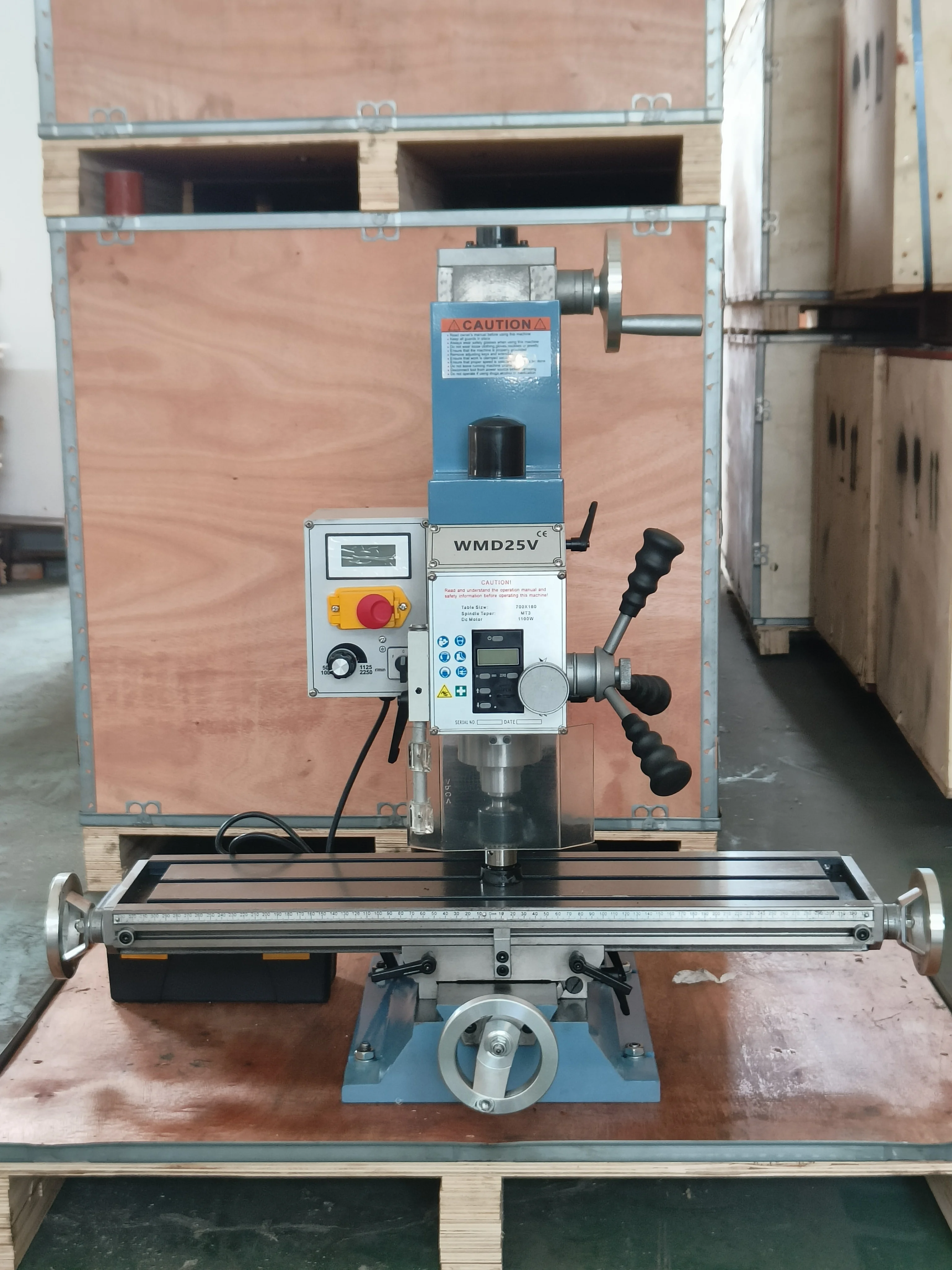

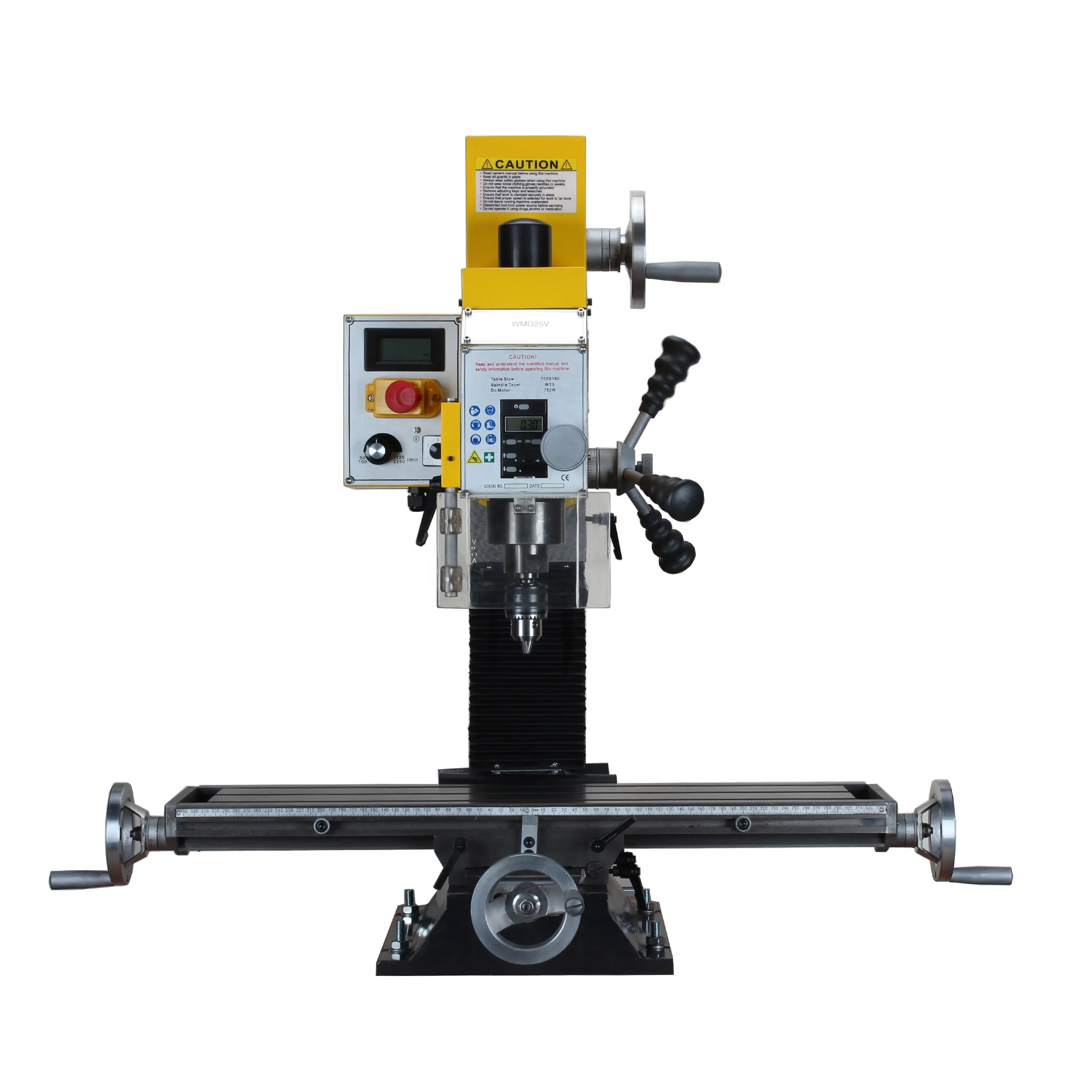

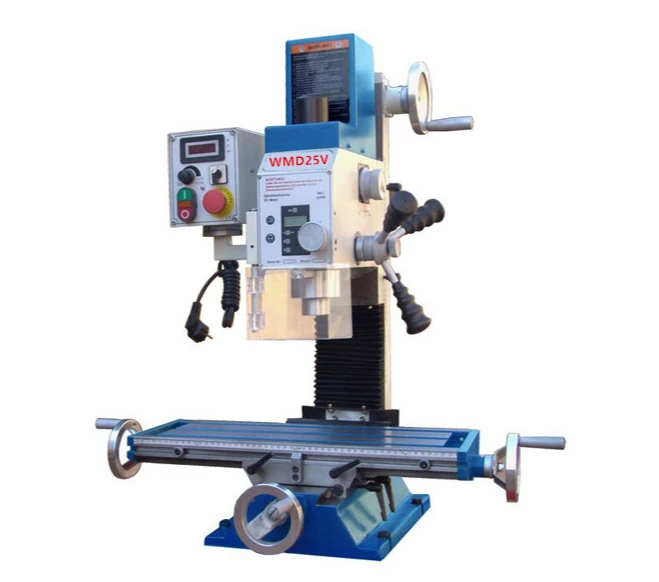

Small drilling and milling machine WMD25VL drill mill machine tool
Small drilling and milling machine WMD25VL drill mill machine tool
Small drilling and milling machine WMD25VL drill mill machine tool
Small drilling and milling machine WMD25VL drill mill machine tool

Small drilling and milling machine WMD25VL drill mill machine tool

Share on (62432381182):


Price:$786.00 - $886.00

Quantity:


Product Overview

Description



Product Description


Features

Have speed dispaly

High precision bored and honed milling head

Precision ground worktable

Tilting and swiveling head

Adjustable gibs on table

Adjustable stop on table

Accurate presition, strong rigidity, strong cutting power

Gear drive, lower noise



Specifications for WMD25VL
Maximum Drilling Capacity
25mm
Maximum End Capacity
25mm
Maximum Face Capacity
63mm
Spindle travel
50mm
X-axis Travel
480mm
Y-axis Travel
175mm
Z-axis Travel
270mm
Spindle Speed
50-2250 r.p.m
T-slot Size
12mm
Spindle Taper
MT3
Motor Power
750W
Head Rotation
±45°
Table Size
700×180mm
Packing Size
670×550×860mm
N.W./G.W
113/138kgs





Standard accessiories:

● Speed display
● Depth ruler
● Arbor
● Drawbar
● Operating tools

Optional accessories:

● Stand & chip tray
● Keyless drill chuck 3-16mm
● ER25/6pcs collet chuck (4-16mm)
● End mill 7pcs (4-16mm)
● 58pcs of clamping kits
● X-axis power feed
● Digital readout
