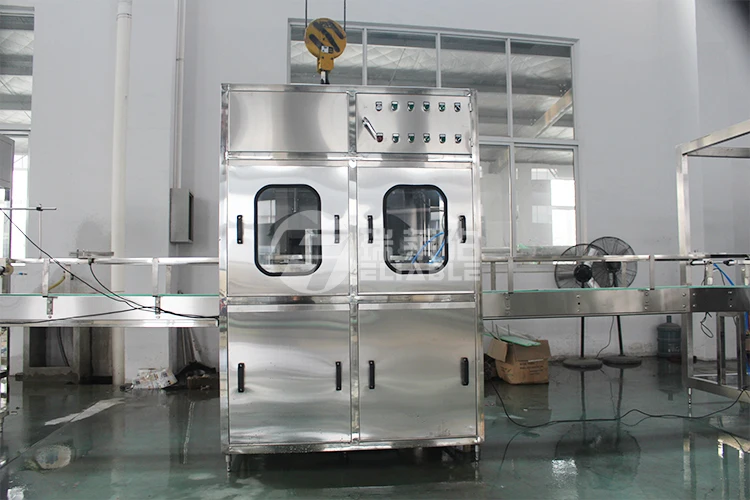

5 Gallon Bottle Water Filling Machine

Introduction

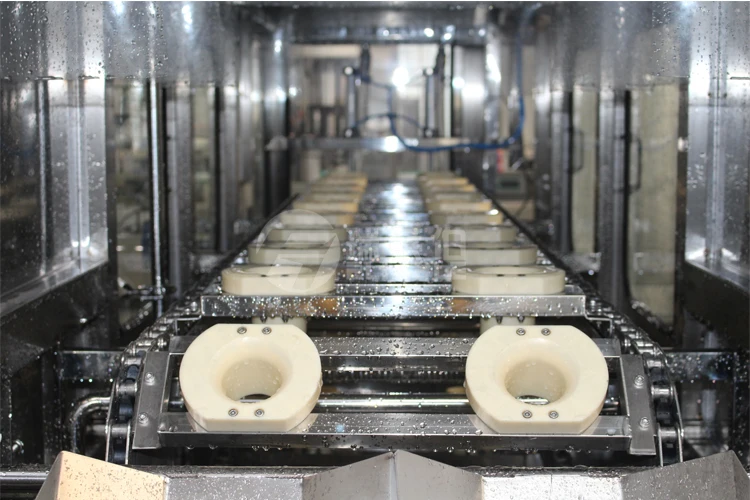

The machine has the function of rinsing the barrel, filling the barrel with water, and adding a cap after filling water. Barrel packaging is different from small PET bottle packaging. Barrels are usually recycled and reused. Therefore, barrel cleaning is very important as a first step. In our rinse machines, barrels are washed with a variety of liquids, from alkaline water to disinfected water to purified water to ensure that each barrel can be completely cleaned. The filler and capper will then start working automatically.

>>Click here>> We not only have 250-300BPH model,but also have other capacities.

Technology Parameter
Model
QGF-100
QGF-300
QGF-450
QGF-600
QGF-800
QGF-1200
Filling heads
1
2
3
4
6
12
Volume (Gallon)
3&5
3&5
3&5
3&5
3&5
3&5
Barrel size(mm)
270*490
270*490
270*490
270*490
270*490
270*490
Capacity (BPH)
60-100
250-300
400-450
600-800
800-900
1000-1200
Gas pressure(Mpa)
0.4-0.6
0.4-0.6
0.4-0.6

0.6
0.6
0.6
Gas consumption
(m³/min)
0.37
0.6
0.8
1
1.5
1.8
Motor power(kw)
1.38
3.8
3.8
7.5
9.75
13.5
Related Voltage(V)
380v/HZ
380v/HZ
380v/HZ
380v/HZ
380v/HZ
380v/HZ
Weight(kg)
680
1500
2100
3000
3500
4500
