double shaft coal mixer
US $7999-$8699
China manufacturer JS500 series horizontal concrete mixer vertical mixer for construction work
- Category: >>>
- Supplier: Zhengzhou Sanqgroup Machinery And Equipment Co. Ltd
Share on (62432448454):
Product Overview
Description

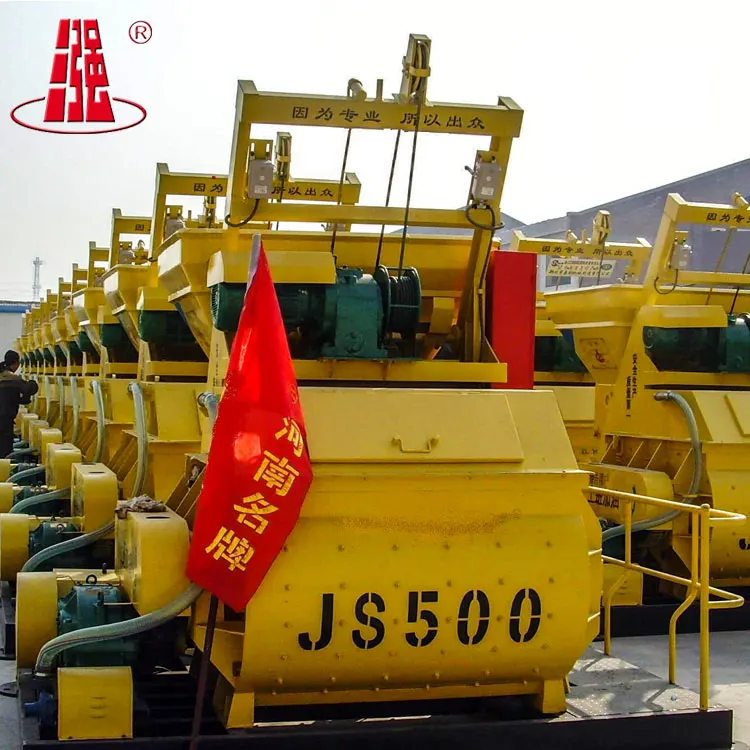

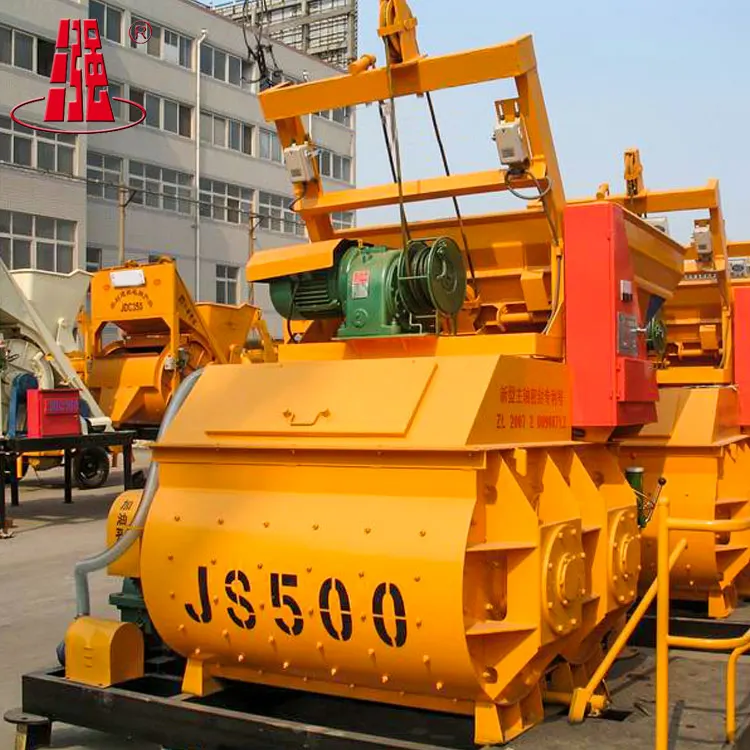

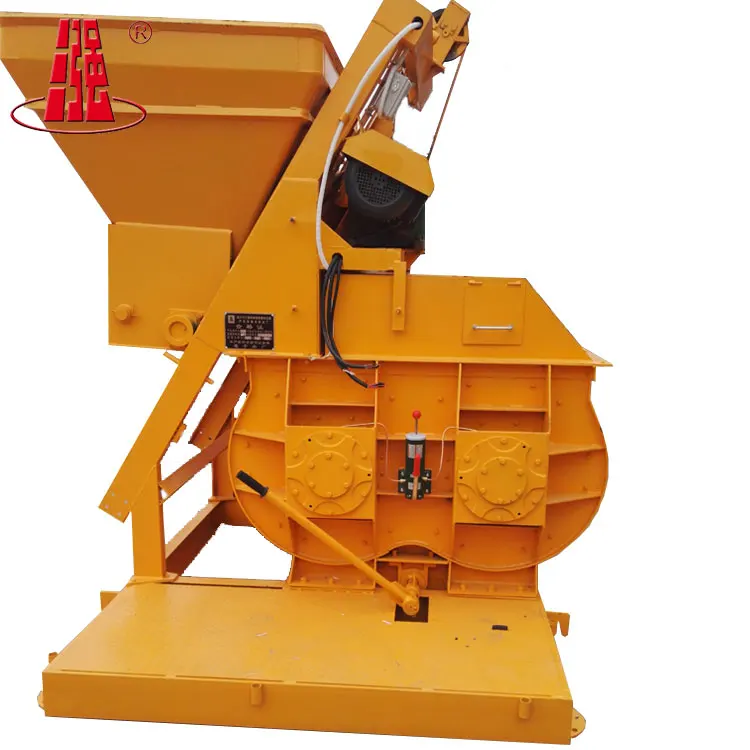

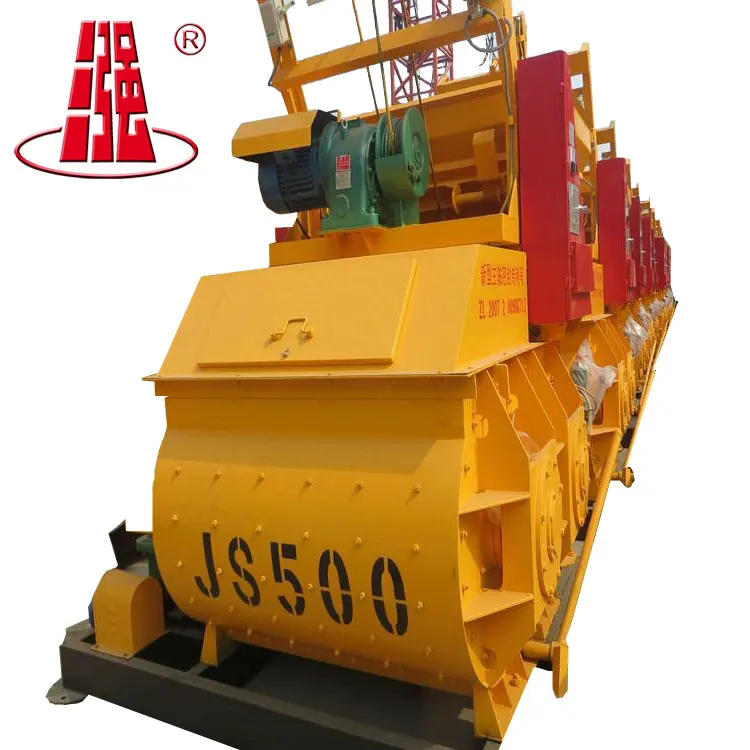

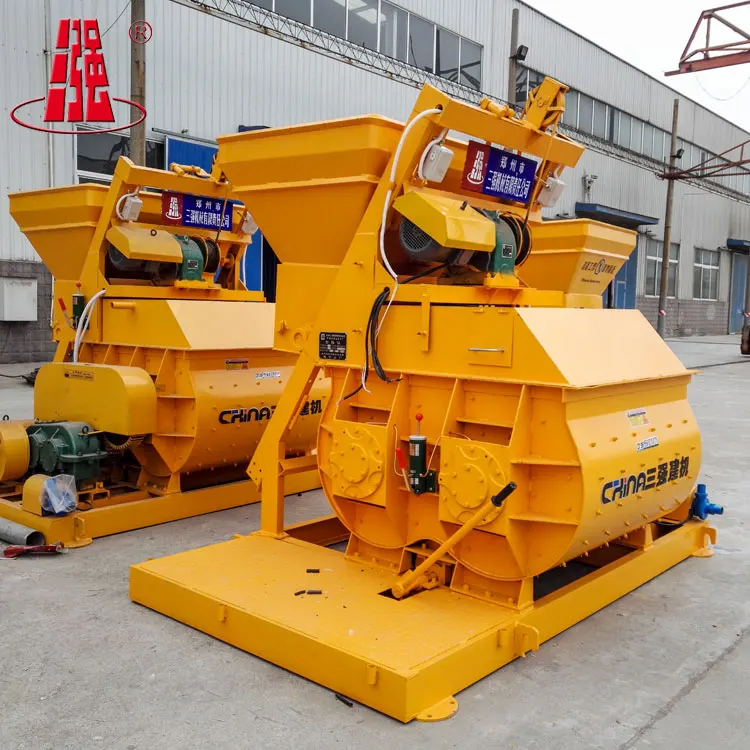

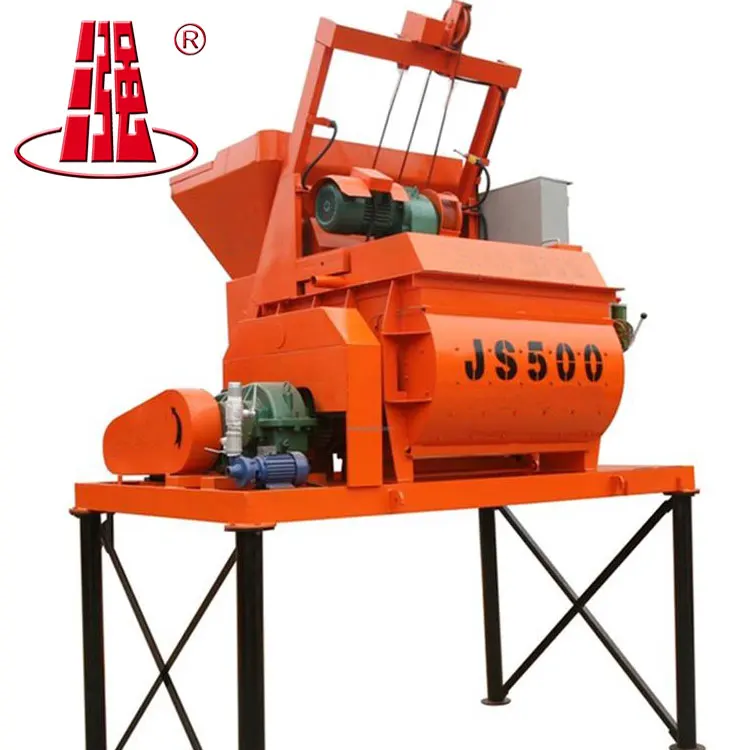

China manufacturer JS500 series horizontal concrete mixer vertical mixer for construction work
Product Description
Parameter
| MODEL | JS500 diesel portable concrete mixer |
| Capacity | 25-30m³/h |
| Discharge Volume | 500L |
| Charge Volume | 800L |
| Mixing blade speed | 35.5r/min |
| Number of mixing blade | 6×2 |
| Mixer motor power | 18.5kw |
| Hoist Electromotor power | 5.5kw |
| Water pump power | 0.75kw |
| Lifting speed of hopper | 18m/min |
| Max aggregate size | 60mm |
| Discharge height | 1500mm |
| Overall weight: | 4070Kg |
| Overall dimensional(L*W * H) | 2900*2150*2580mm |
Working Principle
- Mixing system is composed of electric motor, reducer, exposed gear, and lubrication system.There are two horizontal mixing shafts in the mixing drum, and the mixing blades are fixed at the two mixing shafts.
- The reducer with double gear is driven by electric motor, and the two shafts driven by exposed gear are rotating in the opposite direction at the same speed.
- There is one discharge gate at the bottom of the mixing drum, discharging by manual handle or pneumatic device.
Details

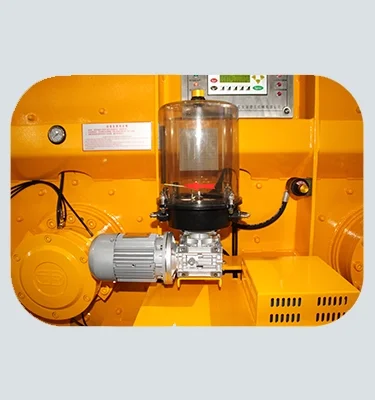

Electric lubricating pump
National patent host monitoring system can monitor hydraulic pump ,retarder oil temperature, oil level. Users could discover and deal with faults in time, which could improve the service life.

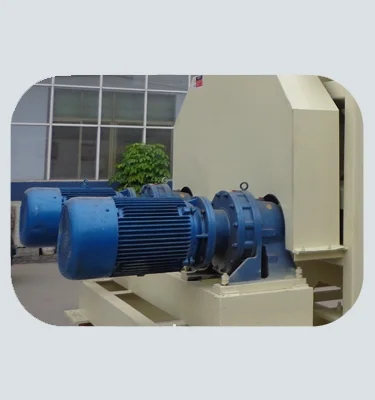

Decelerator
High performance angular transmission decelerator and motor bring the whole machine stable running with low noise, large output torque and durability.

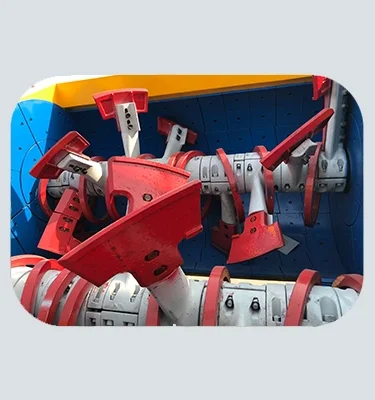

Mixingblades
The mixing system adopt the design of multi mixing blades, free of dead corner, which enables to have the perfect mixing efficiency in a short time.
Discharging system
Advanced hydraulic discharging door . In condition of sudden power outage ,the discharging door can be opened by hand, prevent concrete from lumping in the mixer.
Company Information
Zhengzhou Sanqgroup Machinery and Equipment Co., Ltd are professional manufacturer which specialize in R&D, production, distribution and services of concrete equipment. Sanqgroup are located in west of Zhengzhou, the capital city of Henan Province, covers an area of 45000 square meters with more than 8000 square meters of modern workshop.
Sanqgroup has absorted Europe, Japan, the United States and other international advanced technology, with the world’s leading batching plant electrical control system we are dedicate to manufacturing high quality, high efficiency and high environmental protection products.
Our main products are concrete mixing plant, JS series twin shaft mixer, concrete pump,concrete trailer pump and asphalt mixing plant. our products have been exported to Vietnam, Indonesia, Malaysia, India, UAE, Saudi Arabia, Yemen, Algeria, Nigeria, Togo, Benin, Russian, KZ, Mongolia, Chile and Peru etc.have owned favourable reputation in the international market.

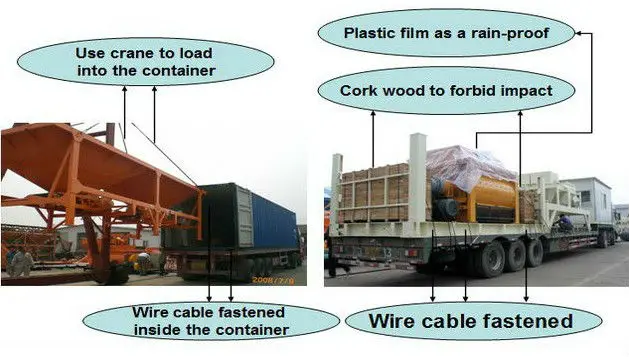

Packaging & Shipping
Export standard container-20GP or 40GP, 40HQ,FR container in bulk, the spare parts in wooden or iron case according to the size and weight.
]
