Изоляционный модуль из керамического волокна для туннельной отожженной печи

Product Overview

Description

China manufacture HP 300mm ceramic fiber module



Product Series:

1.1050 Ceramic Fiber Module YXTX-189

2.1260 Ceramic Fiber Module YXTX-289

3.1260 Ceramic Fiber Module YXTX-389

4.1400 Ceramic Fiber Module YXTX-489

5.1400 Ceramic Fiber Module YXTX-589



Description:

1.A series of ceramic fiber folded module was processed according the fiber module structure,

size by special machine on the ceramic fiber needle blanket which was corresponding material.

In the course of processing, they should be maintained a certain proportional reduction,

 to ensure that compressed to form a integer set without joint between ceramic fiber folded blanket

after ceramic fiber folded module have been built. Owing to the ceramic fiber folded module expand differently.

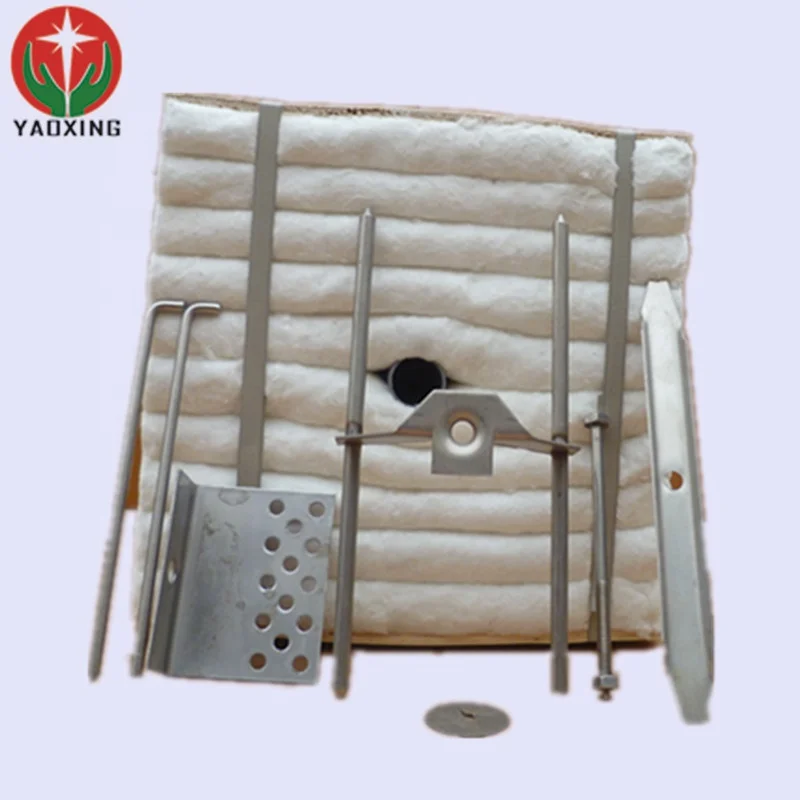

Ceramic fiber folded module could be fixed to the stud which in the steel board of industrial furnace by series of anchors.





Classification Temperature	1050	1260		1400
Code	YXTX-189	YXTX-289	YXTX-389	TXTX-489	TXTX-589
Shrinkage on Heating (%)	950℃×24h≤-3	1000℃×24h≤-3	1100℃×24h≤-3	1200℃×24h≤-3	1350℃×24h≤-3
Theoretical Density (kg/m3)	200±10
Shot Content (φ≥0.25mm)(%)	≤15
Theoretical Thermal Conductivity (W/m·k)	0.050-0.060(200℃)
	0.095-0.120(400℃)
	0.160-0.195(600℃)
Al2O3 (%)	≥44	≥45	≥45	52-55	38-40
Al2O3+SiO2 (%)	≥96	≥97	≥99	≥99	-
ZrO2 (%)	-	-	-	-	15-17
Al2O3+SiO2+ ZrO2 (%)	-	-	-	-	≥99
Fe2O3 (%)	≤1.2	≤1.0	≤0.2	≤0.2	≤0.2
K2O+Na2O (%)	≤0.5	≤0.5	≤0.2	≤0.2	≤0.2
Specification (mm)	300×300×200,According to your requirements

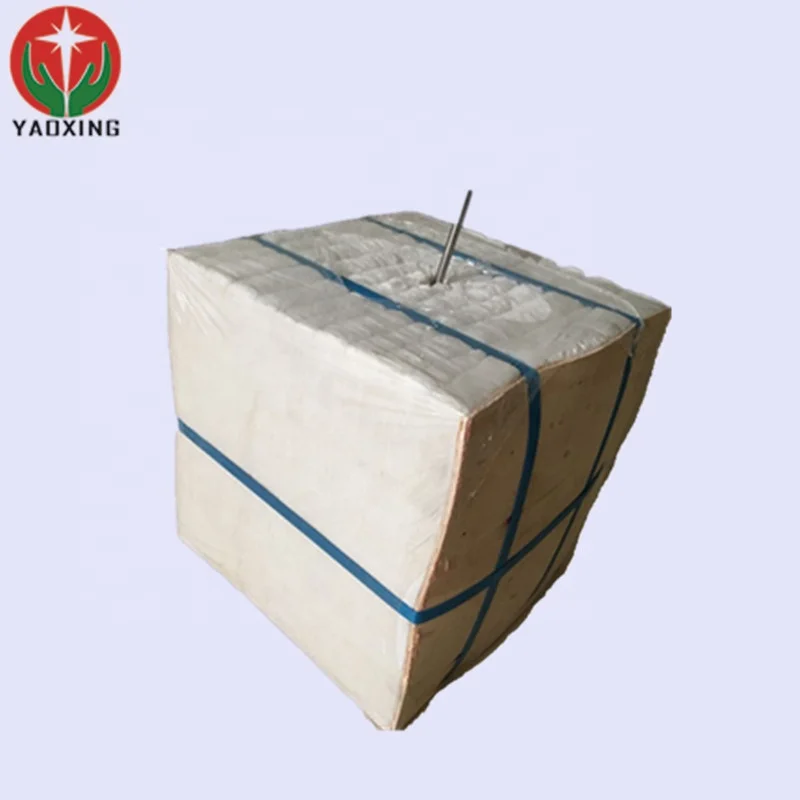

Package	Woven Bag/Carton
Quality Control System	ISO9001-2000 ,ISO14001-1996
