Crawler Solar Pile Driver Attachment Deep Hole Hammer Pile Driver Machine for Sale
$15,999.00-18,999.00
Model HW7/350 drill depth 700m deep water well drilling rig machine price
- Category: >>>
- Supplier: Jining Luheng Machinery Equipment Co. Ltd.
Share on (62432678657):
Product Overview
Description
Product Description

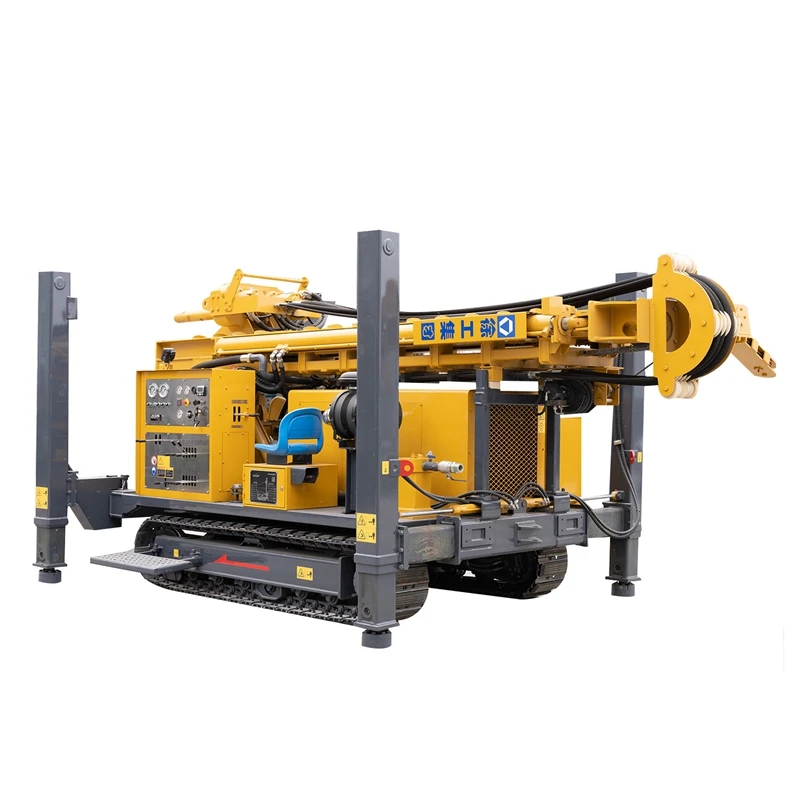

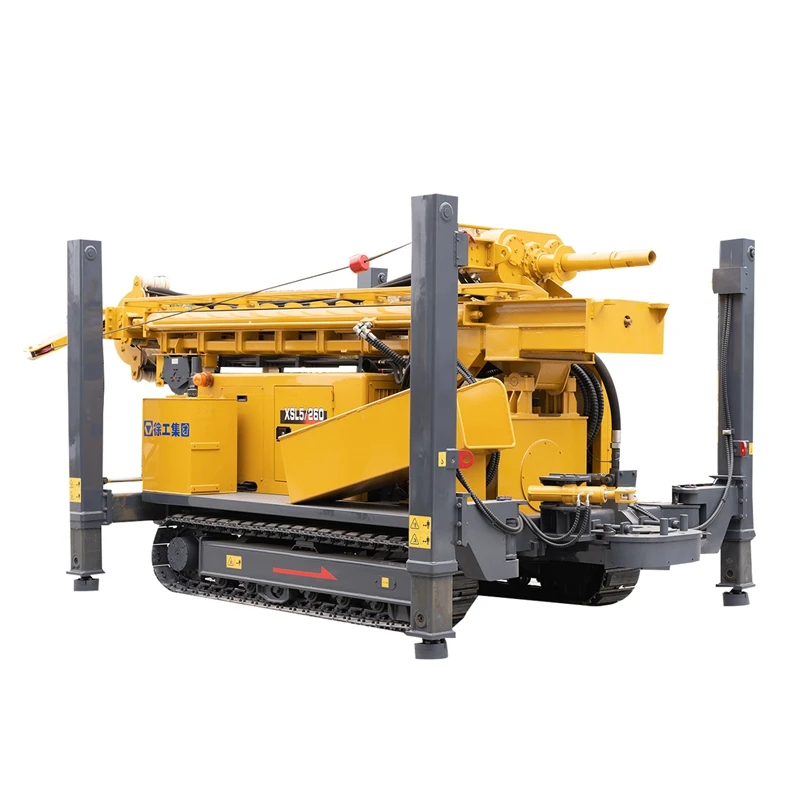

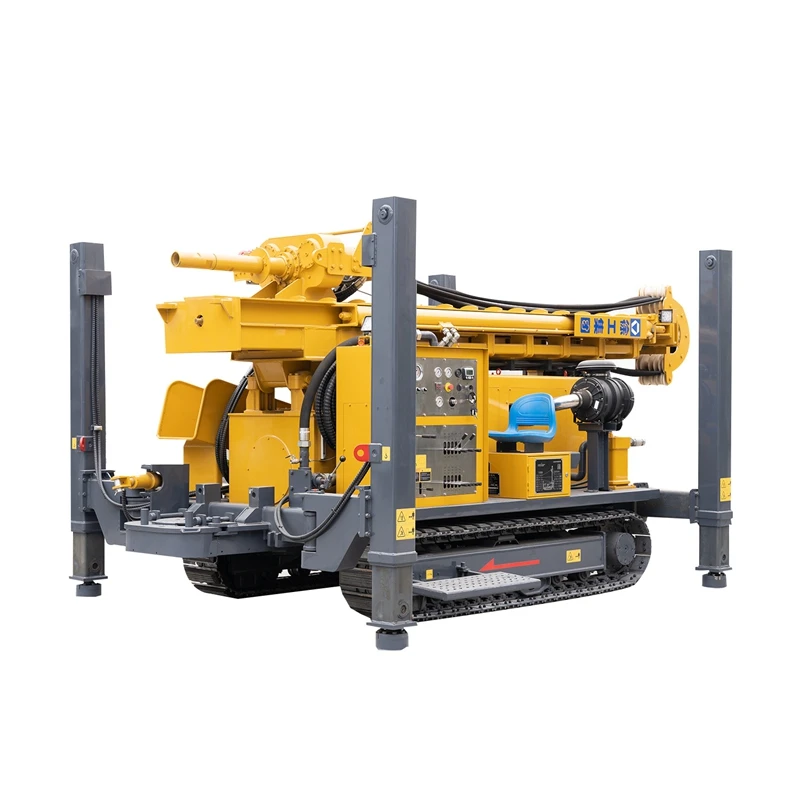

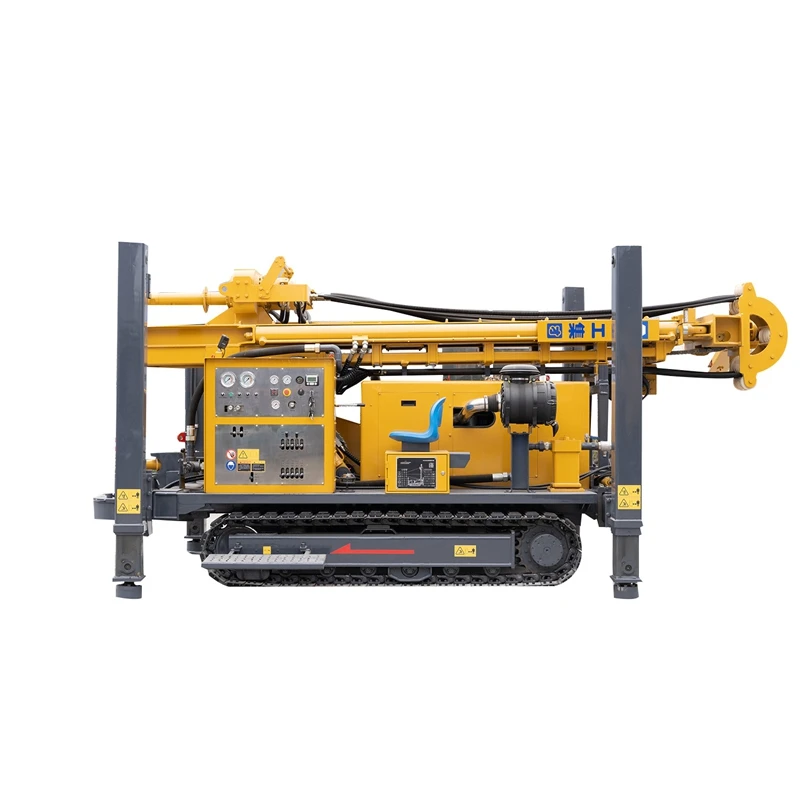

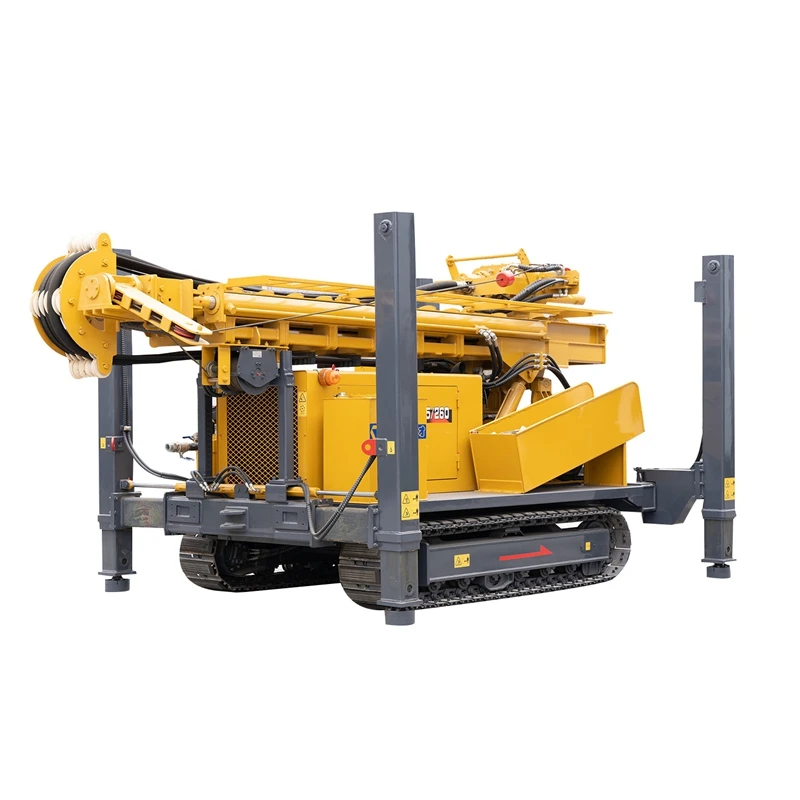

Model HW7/350 drill depth 700m deep water well drilling rig machine price
HW PNEUMATIC AIR COMPRESSOR DRILL RIG

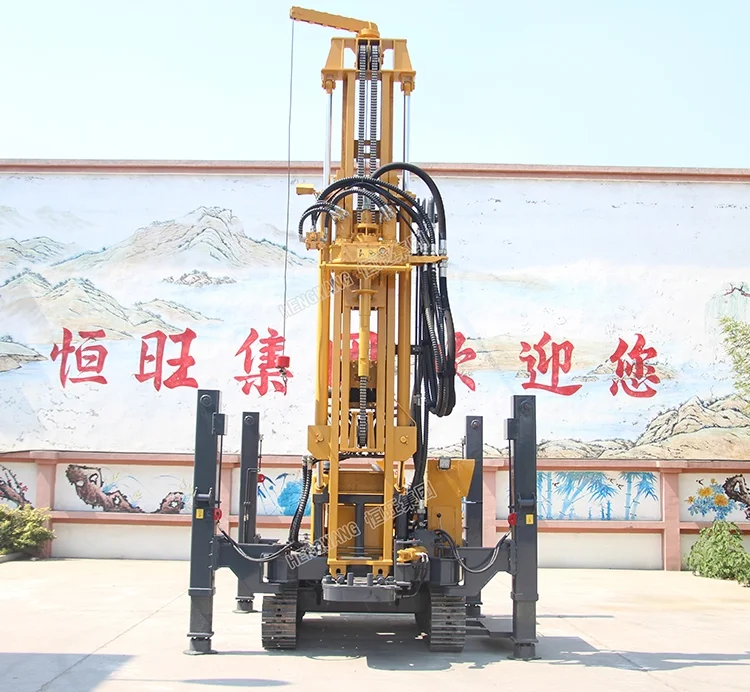

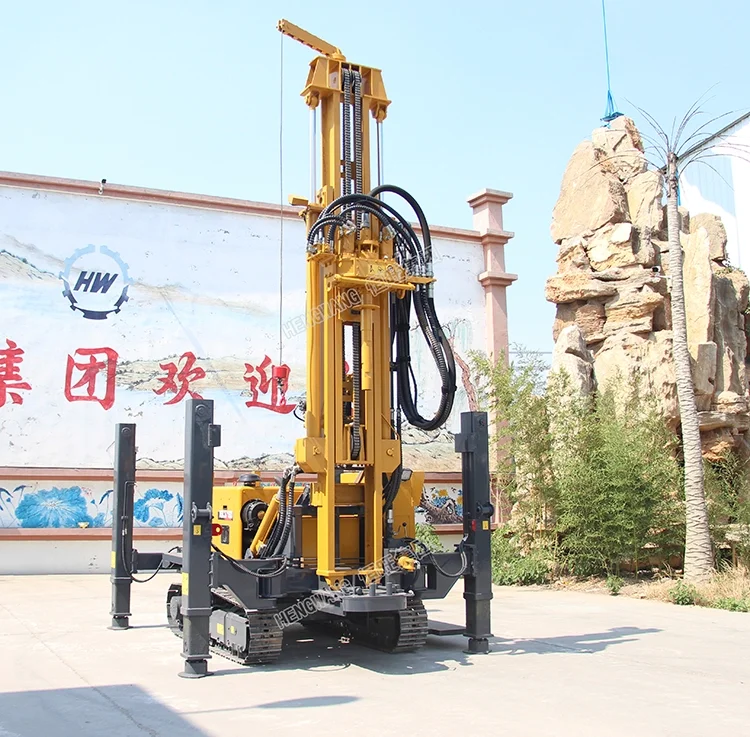

HW7/350 (CRAWLER TYPE)
HW7/350 (CRAWLER TYPE)
With 1800mm length hydraulic landing leg,easy to move
Super hydraulic transmission, CNC control, automatic drilling experience
Well rig Drilling Rock:20M~40M/Hour
Super hydraulic transmission, CNC control, automatic drilling experience
Well rig Drilling Rock:20M~40M/Hour

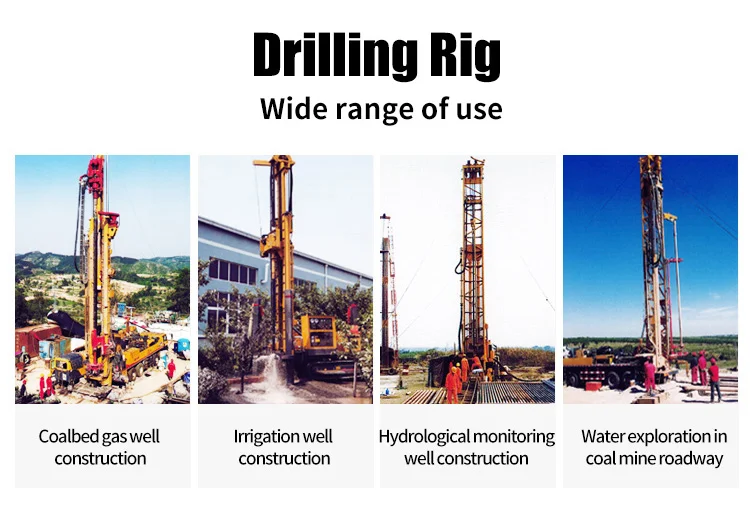

Hengwang series of well drilling rig machine is a lightweight, efficient, versatile drilling hole equipment, which is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The pneumatic drill machine can work on different formations, drilling diameter up to 245mm. The deepwell drill equipment adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. The down the hole hammer drill rig with unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate.
Product Paramenters
Model HW7/350 drill depth 700m deep water well drilling rig machine price Parameter | ||
Well driling rig machine model | HW7/350 | |
Drilling diameter | Ø102- Ø500mm | |
Drilling depth | ≤700m | |
Drill rod diameter | Ø76,Ø89, Ø102mm | |
Rated power | 154kw | |
Max. lifting capacity | 350KN | |
Max.feeding capacity | 150KN | |
Stroke | 7000mm | |
Winch lifting capacity | 30KN | |
Drilling head Max.torque | 12200/6100N.m | |
Max. speed | 180/90r/min | |
Max. dismantle torque | 36000N.m | |
Max.pressure | 8Mpa | |
Walking speed | 3km/h | |
Max. climbing gradient | 39% | |
Drill rig working dimension | 5150*3250*10500mm | |
Drill machine Transport dimension | 6400*2250*2860mm | |
Model HW7/350 drill depth 700m deep water well drilling rig machine price
1.Well drilling rig with hydraulic system
2. The air drill machine with large rotary torque
3.Deep well Drilling machine integrated automation equipment,All terrain moves by itself
4.The drill equipment with 2 speed reversal, easy and fast to handle accidents.
5.The drilling rig adopts self loading and unloading,Easy to operating
2. The air drill machine with large rotary torque
3.Deep well Drilling machine integrated automation equipment,All terrain moves by itself
4.The drill equipment with 2 speed reversal, easy and fast to handle accidents.
5.The drilling rig adopts self loading and unloading,Easy to operating
Detailed Images
Working case

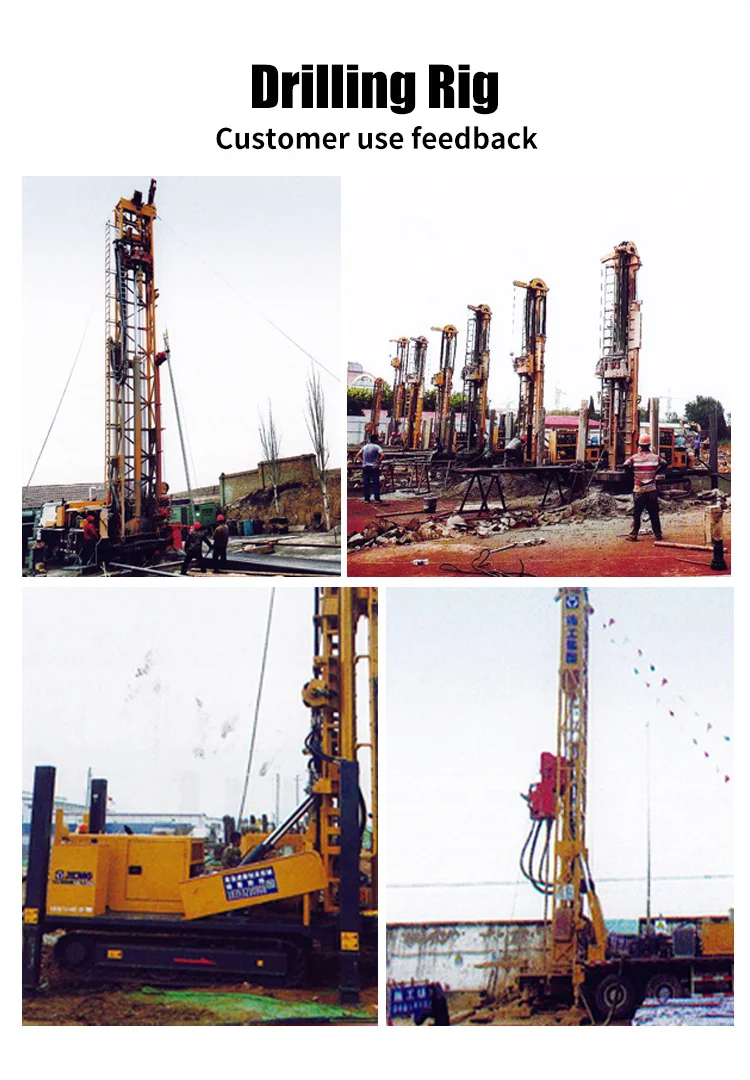

Hengwang drill machine has been exported many times to lots of countries which get a very good feedback. And the following is the pictures from our customer:
Hengwang well drilling rig machine Engineer in Ukraine for training
Hengwang deep water well drill rig in Malaysia
Well Drill machine work site in Russia
Well Drill Machine working case in Uzbekistan
water well drill rig working in Philippines
deep Drill machine working site in Italy
Packing&Shipping
model HW7/350 drill depth 700m deep water well drilling rig machine package as follows: Generally, we use standard exported wooden case for LCL drill equipment, and fixed well for FCL drill rig and air compressor.
Related Products
Company Introduction
Jining Luheng Machinery Equipment Co., Ltd. as one of the seven branches of head office Shandong Hengwang Group Co., Ltd. is a professional company engaged in research , development, production, sales, application and service of rock drill machines and pile driver machines. With more than 400 workers and 25 senior engineers, high quality products and best after sales service can both be guaranteed. Hengwang is eyeing the global market with world class products and services and is working hard and moving forward to help the rise of China national machinery and equipment manufacture industry.
FAQ
Q1.What is the main function of our drill rig?
Ans.: It has different models used for water well drill rig,mine blast hole drill,underground drill project,,etc
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.
Q6. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q7. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q8.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
Q9: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend
and we sincerely do business and make friends with them,
no matter where they come from.
Q10.Do you have any certificates for your machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001
Ans.: It has different models used for water well drill rig,mine blast hole drill,underground drill project,,etc
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.
Q6. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q7. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q8.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
Q9: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend
and we sincerely do business and make friends with them,
no matter where they come from.
Q10.Do you have any certificates for your machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001
