S5 anchors block wedges anchor head for 15.24mm strand
US $11.50-$12.50
Домашний заземляющий винт, Китай, недорогой заземляющий винт для основания под макияж для деревянного дома
- Category: Anchor >>>
- Supplier: Soeasy (Xiamen) Photovoltaic Technology Co. Ltd.
Share on (62432693097):
Product Overview
Description
Project Case
67MW in Cambodia More than 70000pcs Ground Screw

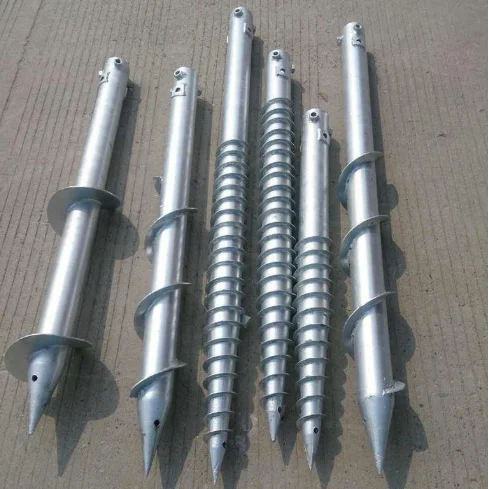

FOUNDATION STAKE HELIX SPIRAL ANCHOR GROUND SCREW ANCHOR SCREW PILES
Our Advantage

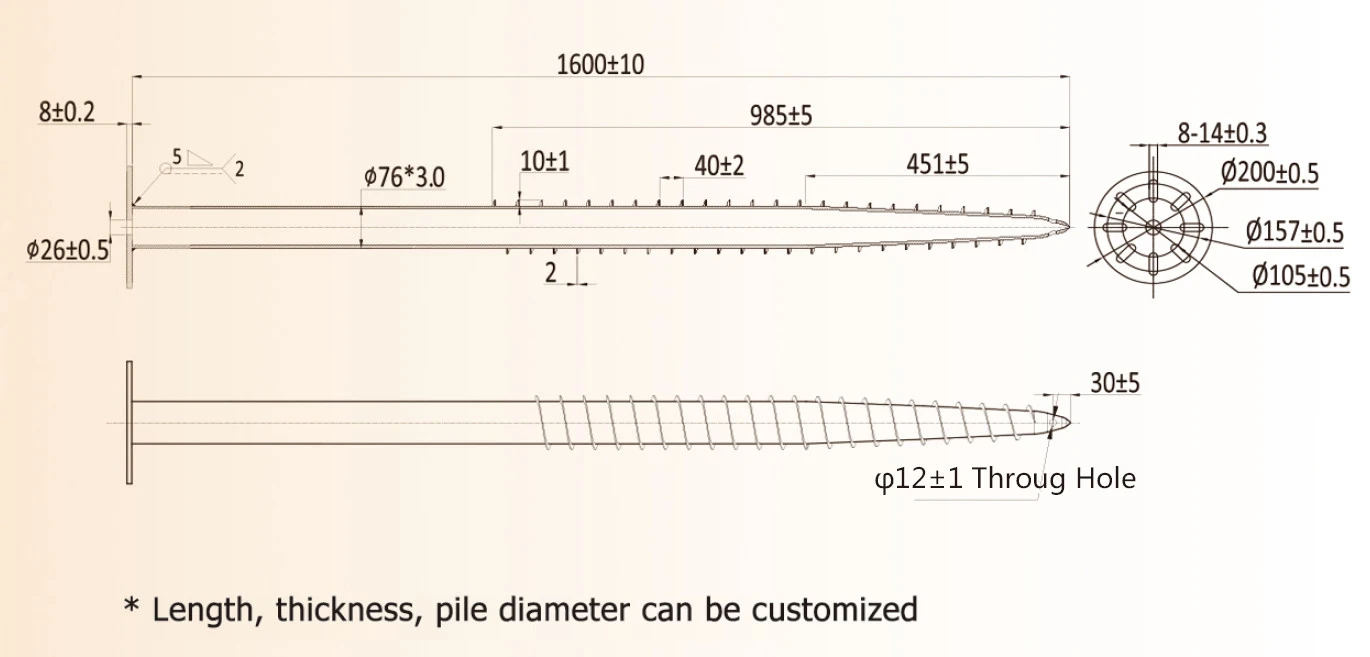

Foundation Stake Helix Spiral Anchor Ground Screw Anchor Screw Piles | ||||||
Item | Type | Size | Material | |||
Ground Screw | Ground Screw (Plum hole) | 76*T3.0* 1200~3000 | Q235 | |||
Ground Screw (Slotted hole) | 76*T3.0* 1200~3000 | Q235 | ||||
Ground Screw(Flat type) | 80*T3.0*1200~2000 | Q235 | ||||
Ground Screw | Ground Screw(3 Nut Welded) | 76 *T3.0*1200 | Q235 | |||
Adjust Flange Screw | Adjust Flange Screw(Plum hole) | 60*T3.0*600 | Q235 | |||
Adjust Flange Screw(Slotted hole) | 60*T3.0*600 | Q235 | ||||
House Ground Screw China cheap foundation ground screw anchor
Screw Foundation Systems is the intelligent alternative fixing method for all types of installations requiring a solid footing. Tests conducted in different consistency soil showed a clear advantage in all aspects, from wind loads and lateral pull, to horizontal load and lift, compared to concrete footings which are held in the ground mostly by their own weight.
Installation

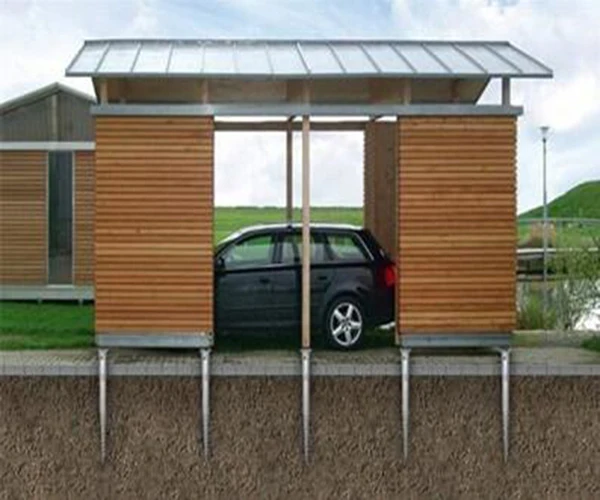

Wide Range of Application
The ground screw can be widely used in all types of soil (sandy, clay, and gobi desert ,rock and so on) .

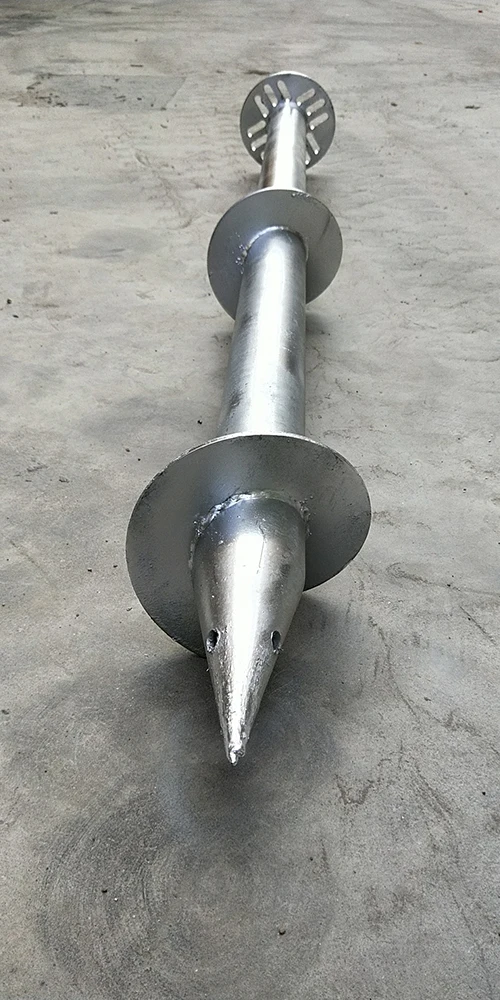

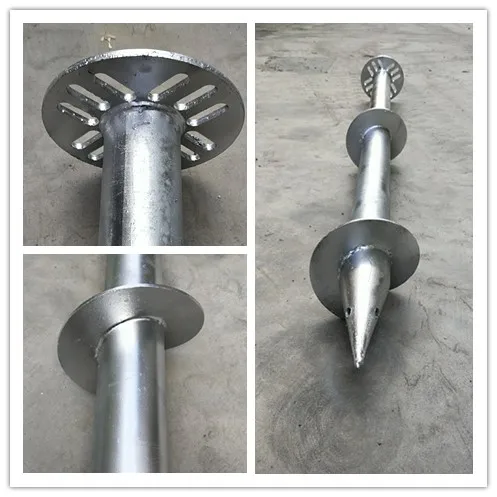

Detailed Images
Item | |
Name | Ground Screw (Plum hole) |
Size | 76*T3.0* 1200~3000 |
Material | Q235 |
Certificate | NID/JIS/ISO |
Surface Treatment | Hot Galvanizing |
Item | |
Name | Ground Screw (Slotted hole) |
Size | 76*T3.0* 1200~3000 |
Material | Q235 |
Certificate | NID/JIS/ISO |
Surface Treatment | Hot Galvanizing |
Item | |
Name | Ground Screw(3 Nut Welded) |
Size | 76 *T3.0*1200 |
Material | Q235 |
Certificate | NID/JIS/ISO |
Surface Treatment | Hot Galvanizing |
Our Service
What's the quantity? ________PCS
Length: ________mm (1600mm)
Pile pipe outer diameter: ________mm (76mm)
Pile pipe thickness: ________mm 3.0mm±0.25（standard）
Images、pictures or drawing for quote
Length: ________mm (1600mm)
Pile pipe outer diameter: ________mm (76mm)
Pile pipe thickness: ________mm 3.0mm±0.25（standard）
With or without flange plate? Or other types of plates?
Images、pictures or drawing for quote
