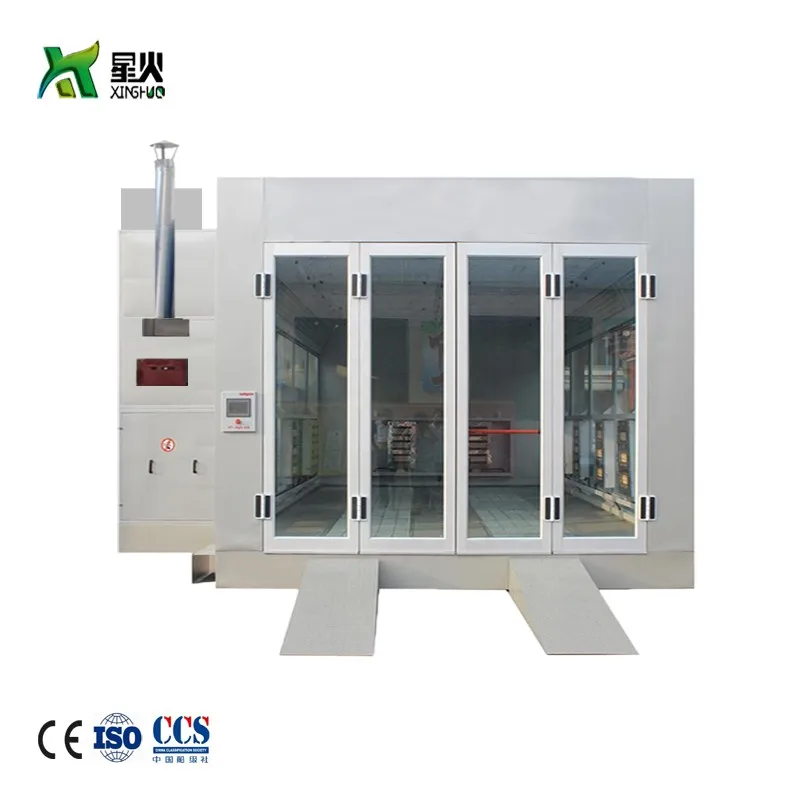

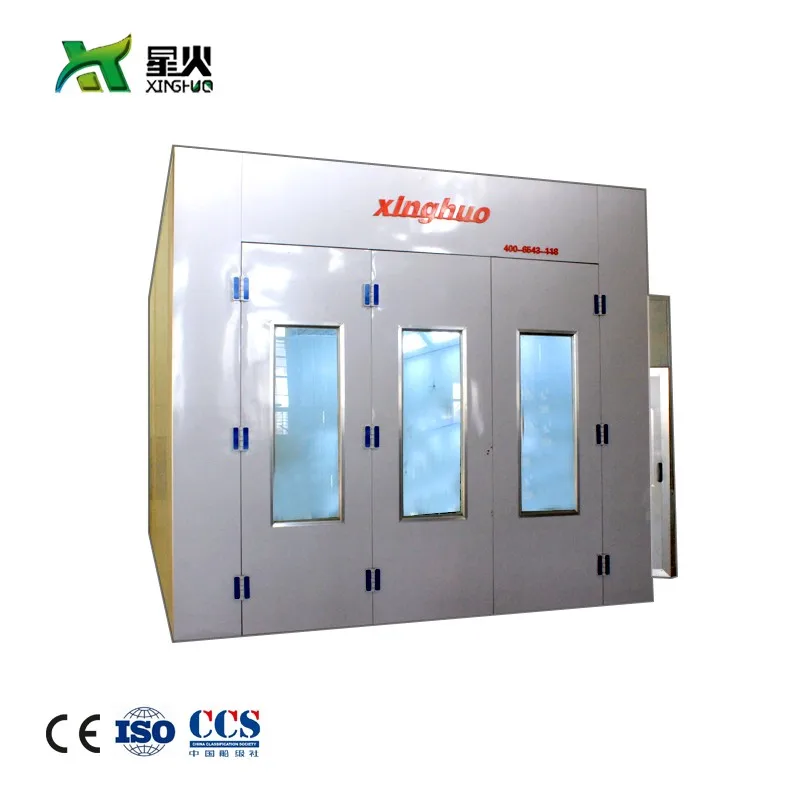

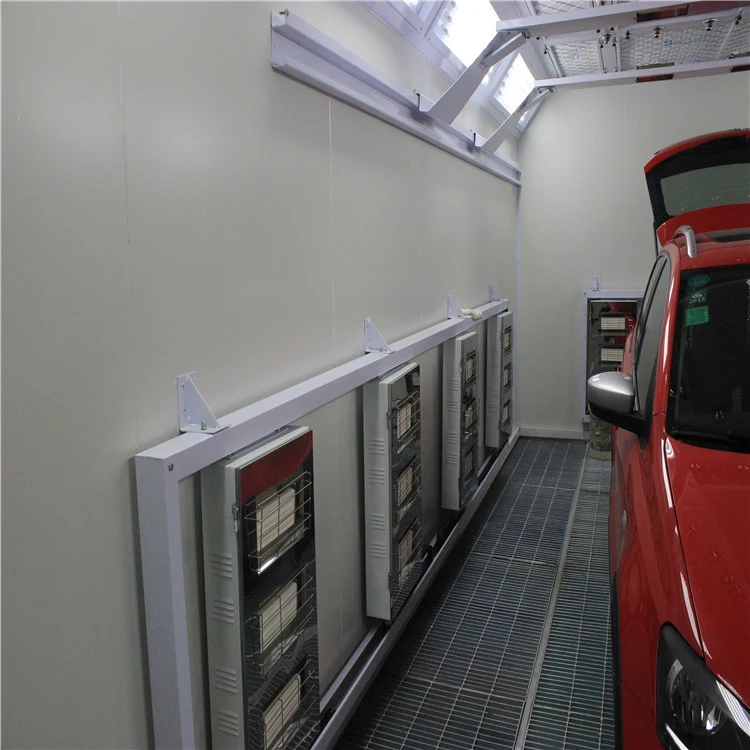

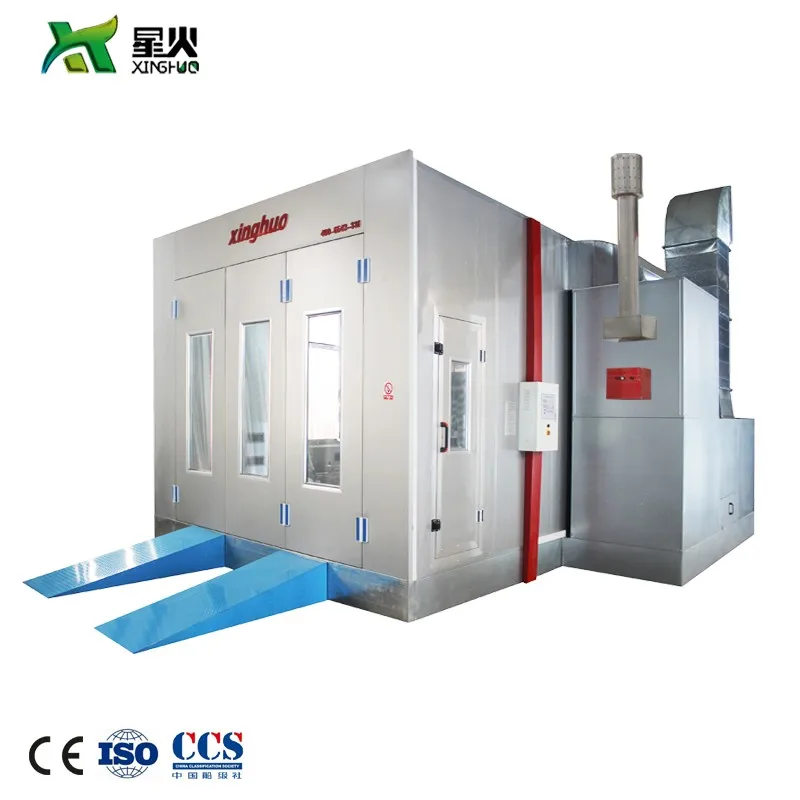

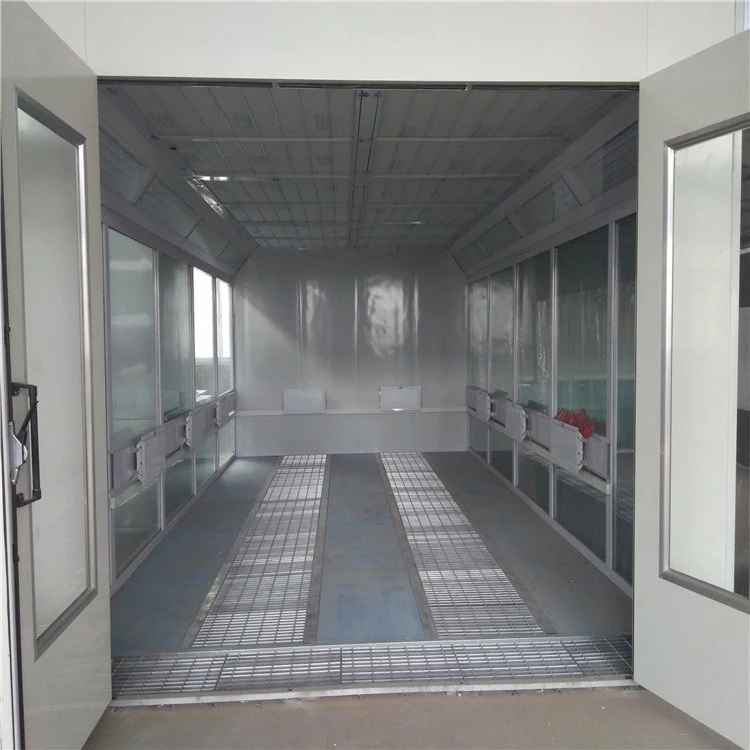

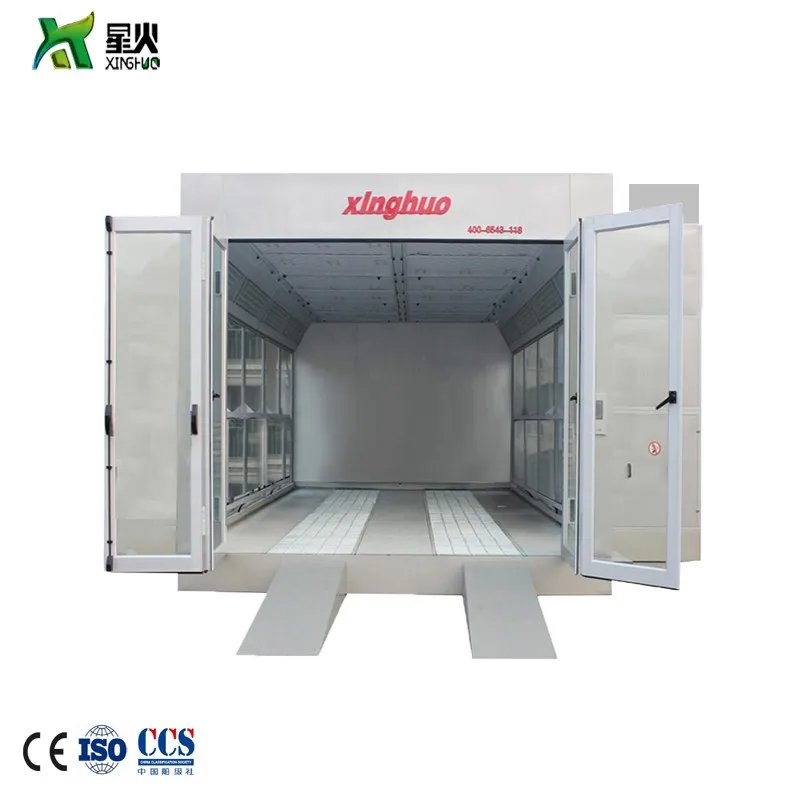

CE Approved Diesel Heating Type Oven for Car Painting
- Category: >>>
- Supplier: Zouping Xinghuo Coating Equipment Co. Ltd.
Share on (62432724167):
Product Overview
Description
Advantages
Our company advantages
-More than 20 years in spray booth for car painting field
-products got 'CE ' and 'ISO 9001'certificates.
- Professional pre-sales and after-sales service.
-One year the quality assurance
-Accept Customization
Product parameters
Fuel gas painting room parameters | ||||||
usage | Car painting | Power | 25kw | |||
External size(L/W/G)mm | 8030*5500*3500 | Internal size(L/W/G)mm | 7930*4400*2750 | |||
Voltage | 380V/50HZ | Certification | CE/ISO9001/ccs | |||
Baking temperature | ≤85℃ | Environmental protection | Photooxygen catalytic purification equipment | |||
Air-intake fans | 1unit | Air-exhaust fan | 1unit | |||
Color | customization | Water-based paint device | configuration | |||
Heating system | RIELLO Brand Diesel Burner | Ceiling light | 40 sets LED tubes | |||
Configurations
Housing system

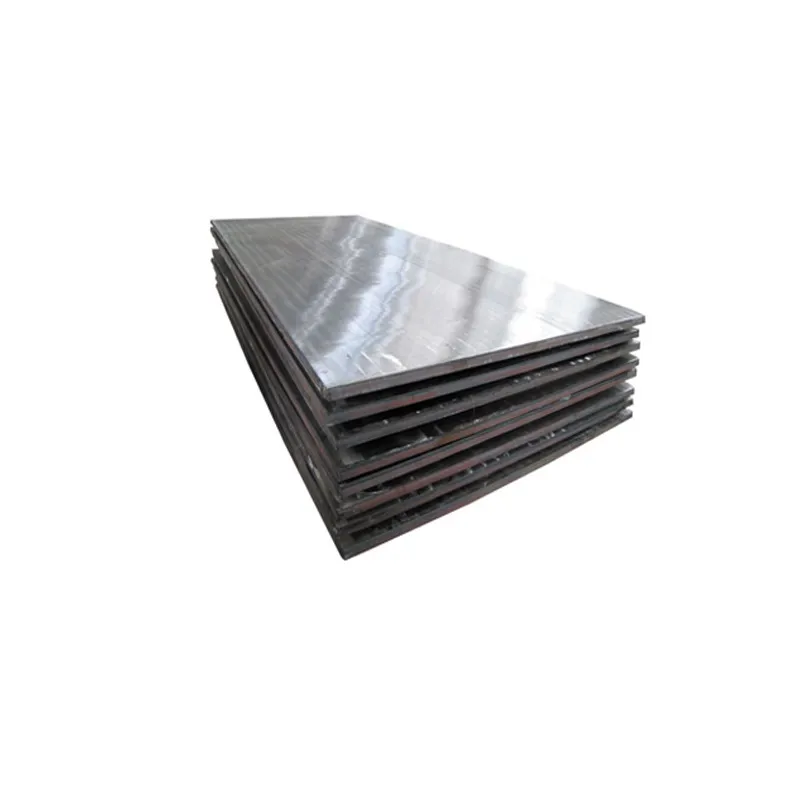

-Wall panel:Stainless steel high-density high-temperature resistant fireproof rock wool board, plate thickness 50mm, double-sided 0.5mm;Or double-layer hollow tempered glass, special aluminum profile frame
-Roof:High-quality galvanized sheet bending and fastening
-Skeleton:Galvanized steel frame welding

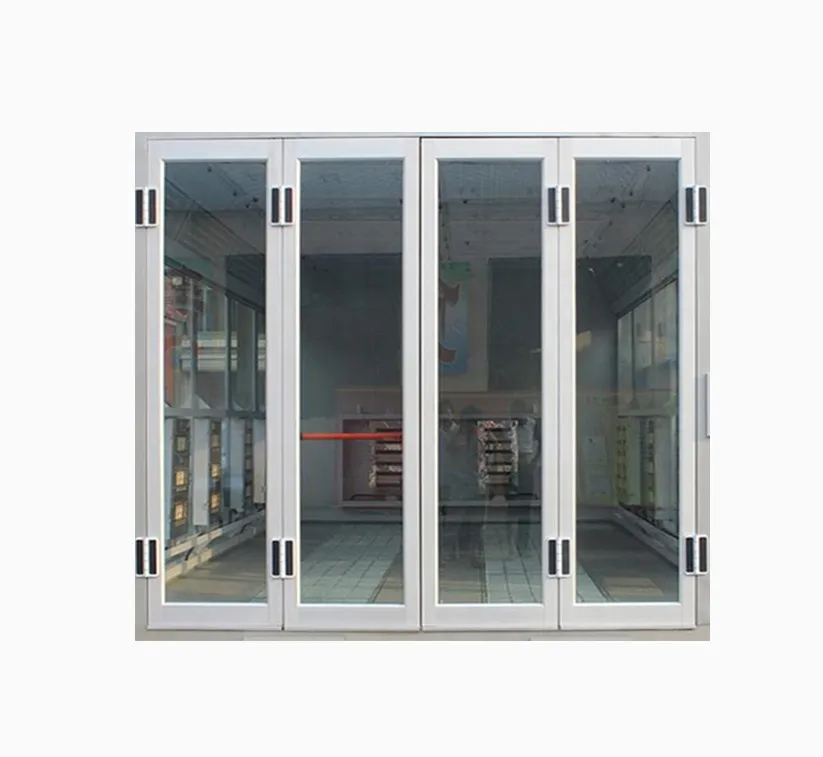

The door
-Designed folding four-doors
-all aluminum alloy frame production
-external mortise lock, equipped with tempered glass observation window
-Safety work door on one side of the room, equipped with safety pressure lock device

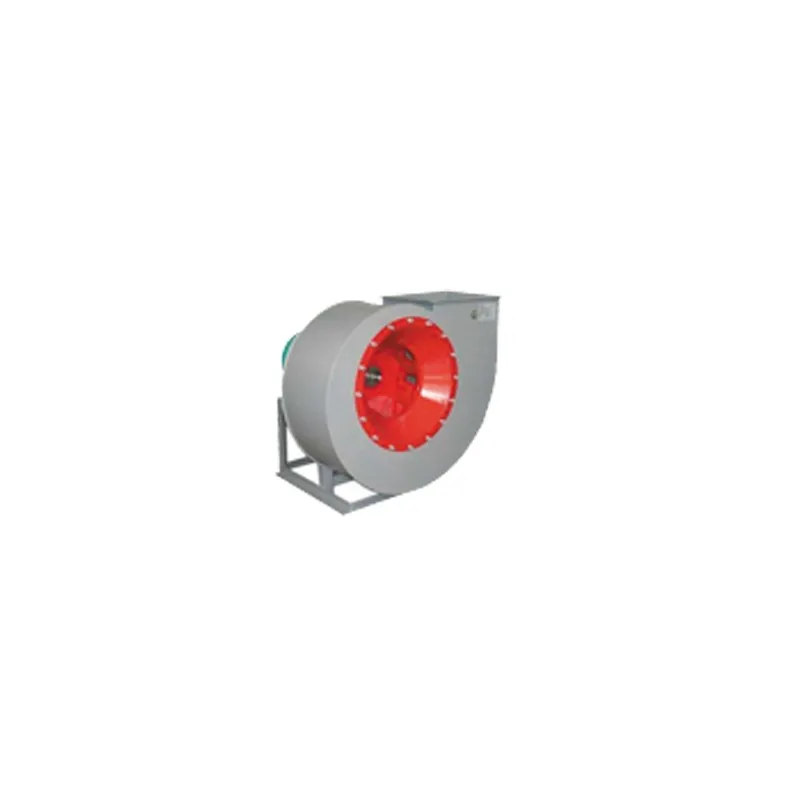

Air system
-The intake fan is made of DKF double inlet fan produced by Jiangsu Yancheng
- one 7.5KW fan intake air and one 7.5KW fan exhaust air
-adopted Siemens motor

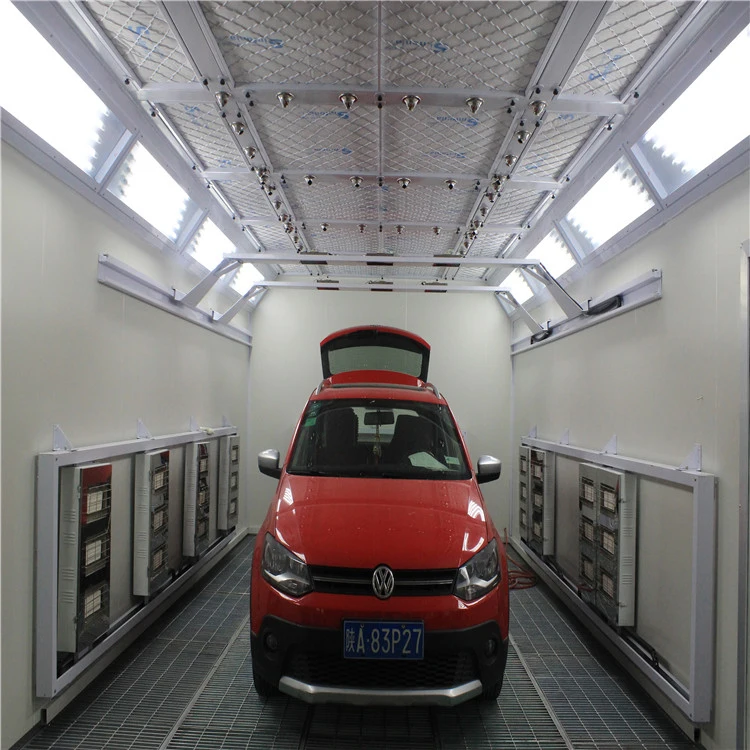

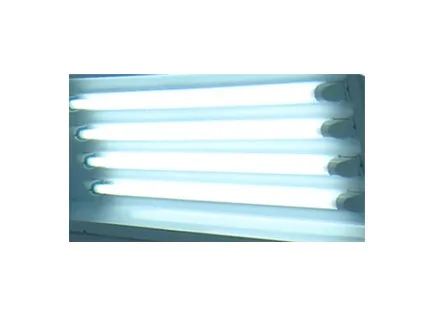

Illumination system
- 40 sets of imported Philips LED tubes with illumination≥1200 lux
- the surface of the tube has a glass cover
-located on both sides of the spray booth and are fixed at the top of the spray booth at a 45 degree angle.

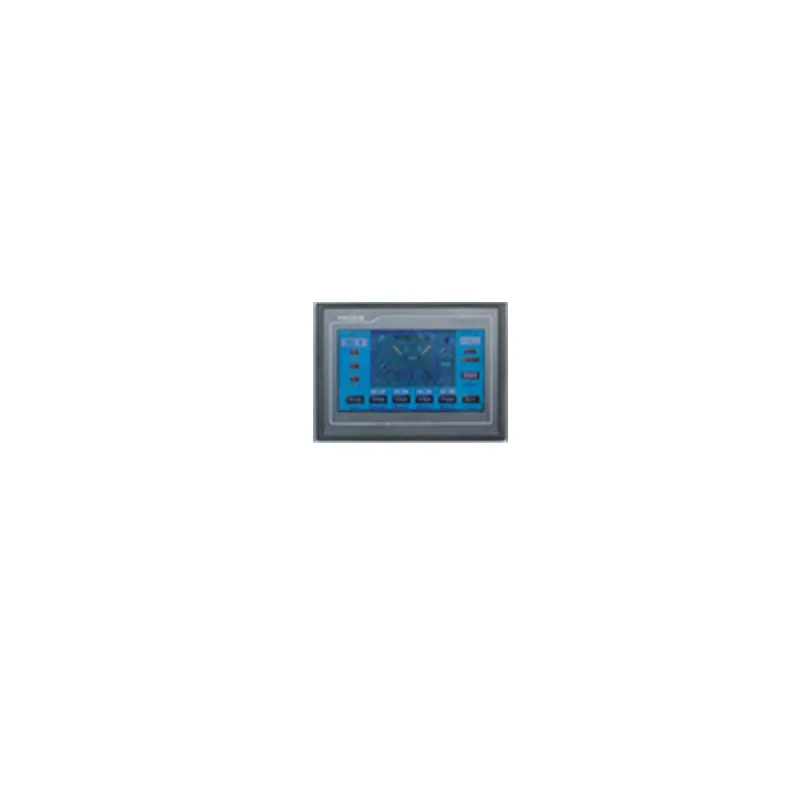

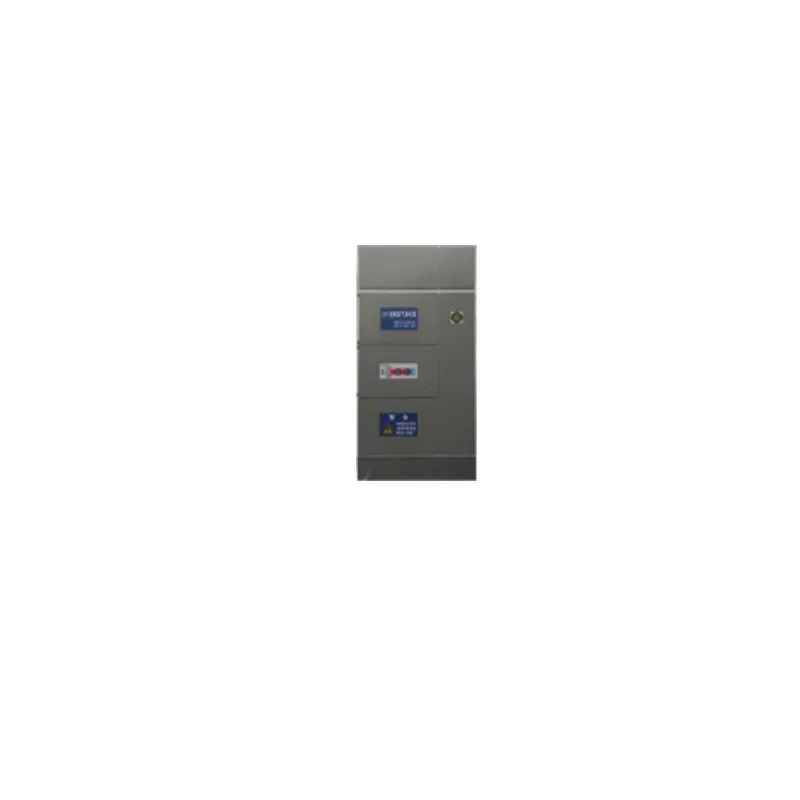

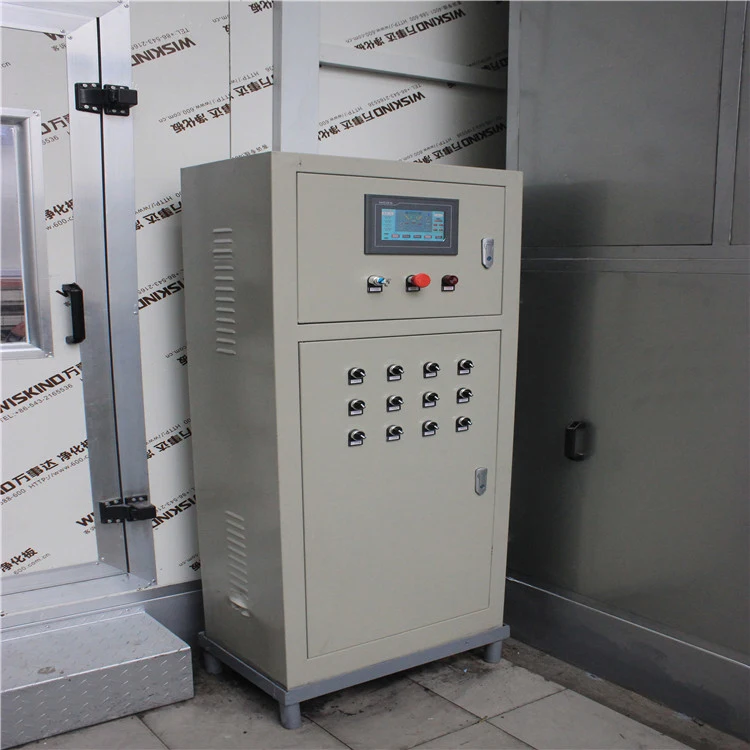

Control panel
-Adopt PLC touch screen type control panel and the main circuit has multiple protections
- With temperature time setting, normal temperature painting, paint switch, lighting switch, emergency stop switch, fault alarm,etc

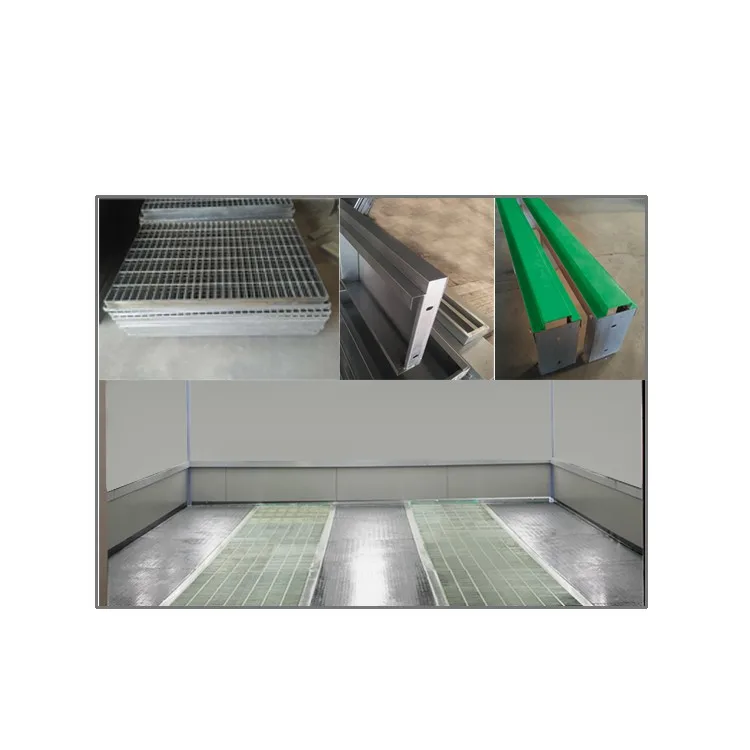

Basement system
- The surrounding is made of high-quality galvanized sheet.
- The load-bearing bracket is 2.5mm galvanized sheet with convex steel structure welded
- Steel grilles(30*6mm flat iron and 8 #threaded steel welding)*2rows
- Non-slip boards(painted by the tread plate)*3rows
Environmental protection system
-Photooxygen catalytic purification equipment
- multi-layer filtration
-effective decomposition of waste gas pollutants, the purification rate of up to 90%
-Hydrocyclone filter and glass fiber cotton
-cartridge filter and photodissociation,activated carbon
Water paint installation
--adjustable angle high-speed air shower nozzle, two YDW centrifugal fans independently
-or a water-based paint unit is installed on the four corners, each unit is equipped with a fan to independently supply air
- equipped with a wind shower head,Lighting and pneumatic plugs, etc.
Our Company
Shandong province Zouping county spark coating equipment limited company is a high-tech enterprise which integrates specializing in the design, production and sales of spray-baked paint room, waste gas treatment and environmental protection equipment and industrial painting equipment as one.The company integrates design, manufacturing, installation, commissioning and consulting services,committed to the research, development and promotion of new products, new technologies and new processes.The company is located in Mingji Development Zone, Zouping County, Shandong Province,the company has a variety of advanced professional processing equipment such as large-scale shearing, CNC bending, punching machine tools.Products sell well all over the country and Japan, South Korea, North Korea, Vietnam, Russia and other neighboring countries,won the praise of the majority of users.
Companies adhere to the people-oriented, cooperative innovation, excellence as the concept,established a complete R&D and quality assurance system,products passed the ISO9001: 2015 quality management system certification,and has been rated as "contract-honoring and trust-keeping enterprise" many times,and passed the traffic product certification in 2010,passed China classification society traffic product certification in 2014,and reached a long-term cooperation agreement with the huge group.The Spark brand has matured and been put on the market stably,our customer network and product sales services have covered the world,the products are widely used in the surface coating of various industries such as automobile industry painting production and paint repair for the market after vehicle maintenance service, paint production in the railway rail transit industry and parts, construction machinery, energy equipment, wood furniture and other industries.
Product process
Quilty is the first,customer satisfaction is our glory,welcom to visit and communicate.
