Pro Huepar OSRAM Rechargeable GF360G,Multi line Outdoor Pulse Mode,Green Beam 3D 12 Cross Line Rotary Land Nivel Laser Level
- Category: >>>
- Supplier: Zhuhai Levelsure Technology Co. Ltd.
Share on (62432745929):
Product Overview
Description
Product Description
With advanced laser level technology, Huepar is committed itself to providing solutions for a wide variety of applications of greater accuracy and precision.
GF360G 3 x 360 Green Laser Level Specifications:
Model No. | GF360G |
Expanded Angle | 1H360°/2V360° |
Laser class | Class 2 |
Beam source | Green Beam |
Laser wavelength | 520nm |
H/V accuracy | ±3mm/10m;±1/9 In. at 33 Ft. |
Self-leveling range | 4°±1° |
Self-leveling time | ≤3s |
Working distance (Line) | 45m、≥60m with detector |
Operating time | >5h(all lasers on) |
Power source | Lithium battery |
IP rating | IP54 |
Operating Temp | -10°C to 50°C |
Storage Temp | -20°C to 70°C |
Mount size | 1/4'' or 5/8" |
GF360G 3*360 Degree Laser Level Features:
* ✔️BRIGHT GREEN LASER: This laser level projects green laser which is brighter than standard red beams with a working range up to 130Ft with +/- 1/9" at 33Ft accuracy.
* ✔️MULTIFUNCTIONAL LASER TOOL: The horizontal and two vertical 360° laser lines can be projected separately or together for a variety of level and alignment applications. With our smart pendulum system, this laser level tool self levels and indicates out-of-level condition while pendulum unlocked. The manual mode is activated to lock laser lines at any angle once the pendulum locked.

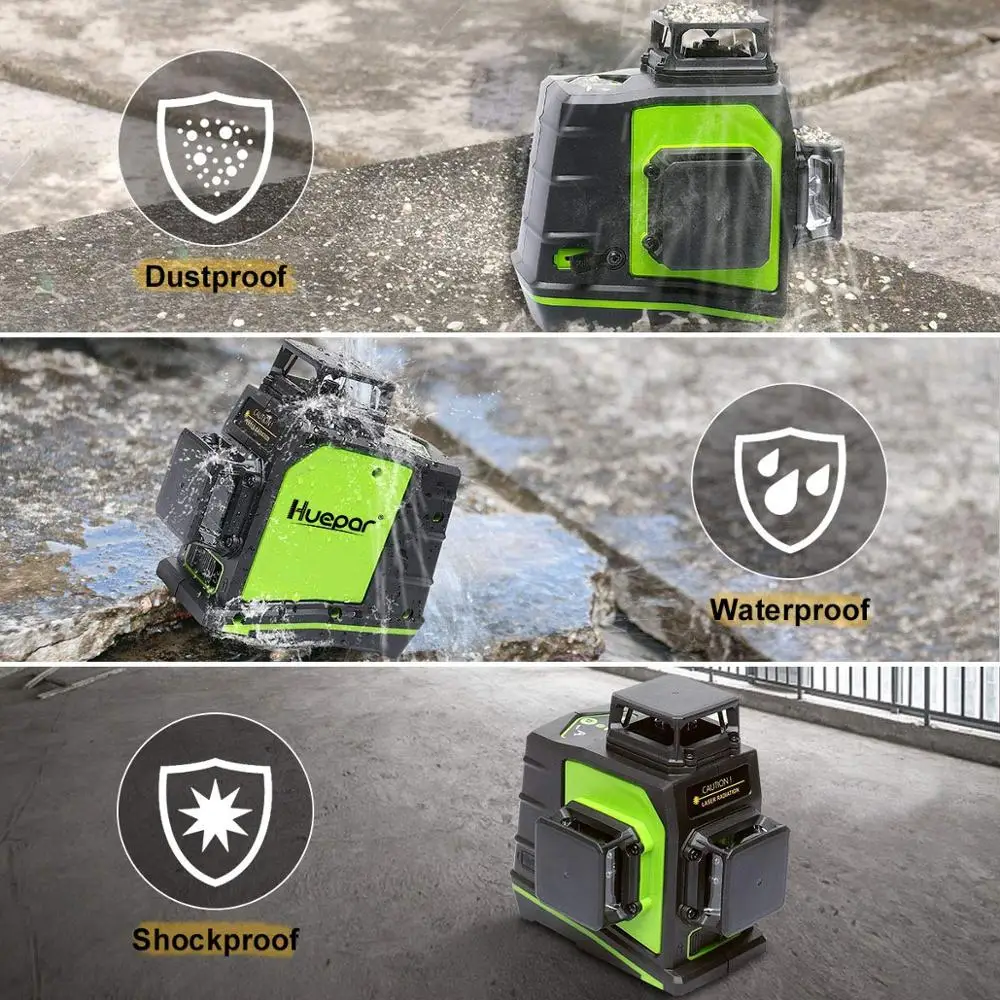

* ✔️DURABLE DESIGN: IP54 water/dust-proof ensures you work well under hazardous working conditions. Protected by TPR soft rubber on all sides makes the laser level shock resistant, wear resistant and impact resistant perfectly.
* ✔️MULTIFUNCTIONAL LASER TOOL: The horizontal and two vertical 360° laser lines can be projected separately or together for a variety of level and alignment applications. With our smart pendulum system, this laser level tool self levels and indicates out-of-level condition while pendulum unlocked. The manual mode is activated to lock laser lines at any angle once the pendulum locked.
* ✔️DURABLE DESIGN: IP54 water/dust-proof ensures you work well under hazardous working conditions. Protected by TPR soft rubber on all sides makes the laser level shock resistant, wear resistant and impact resistant perfectly.
Pulse Mode
Turn ON pulse mode: Slide the pendulum to the Unlocked Position, then press and hold the power button to turn on the pulse mode,the indicator lights up in red.
Application：When the pulse mode turned on, laser tool can be used with a laser receiver to work in brighter condition or a larger
working distance.
●When use with a receiver, it’s necessary to turn on the pulse mode
Application：When the pulse mode turned on, laser tool can be used with a laser receiver to work in brighter condition or a larger
working distance.
●When use with a receiver, it’s necessary to turn on the pulse mode
●It is compatible with Huepar Line Laser Receiver only.
Flat Laser Window

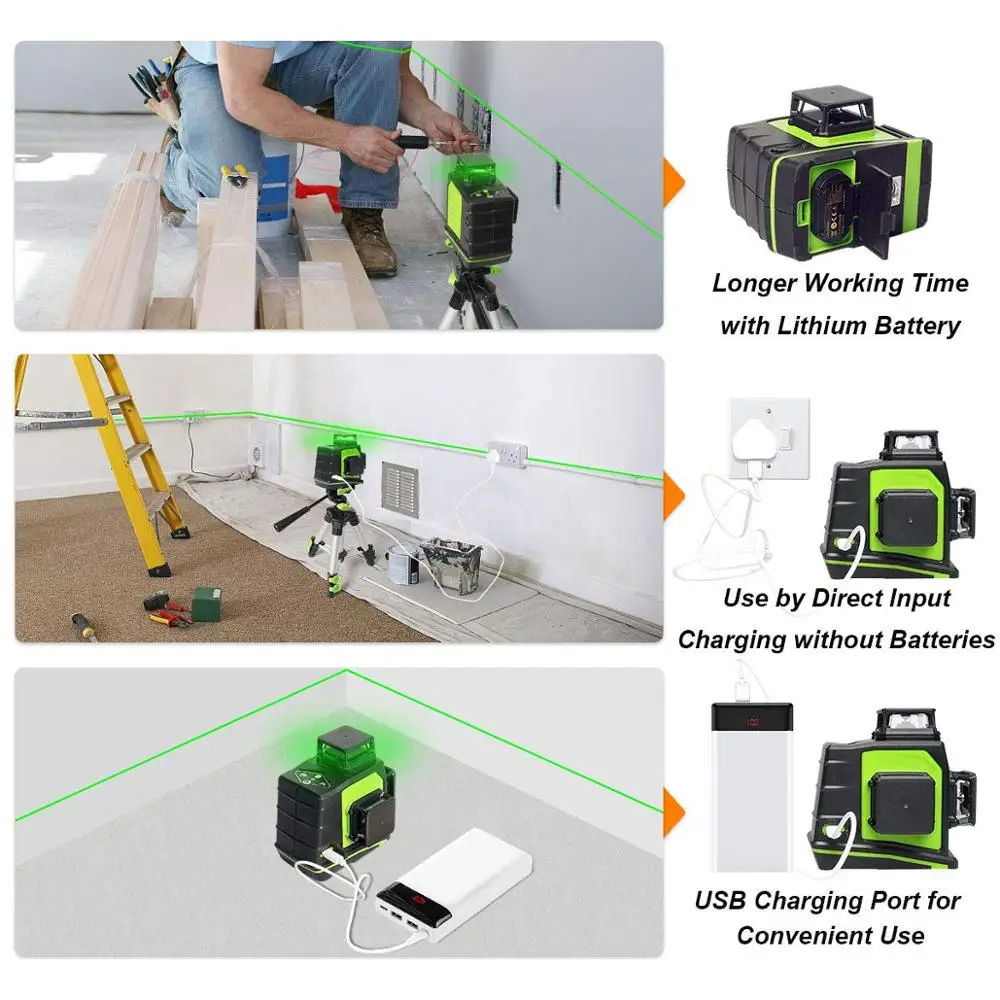

* This laser tool utilizes the included large capacity lithium battery.
* Direct plugged in application: This laser tool can be used at job site with by plugged in even if take out the battery.
* Charging protection help prevent the tool from overcharge.
* Direct plugged in application: This laser tool can be used at job site with by plugged in even if take out the battery.
* Charging protection help prevent the tool from overcharge.
Easy Use

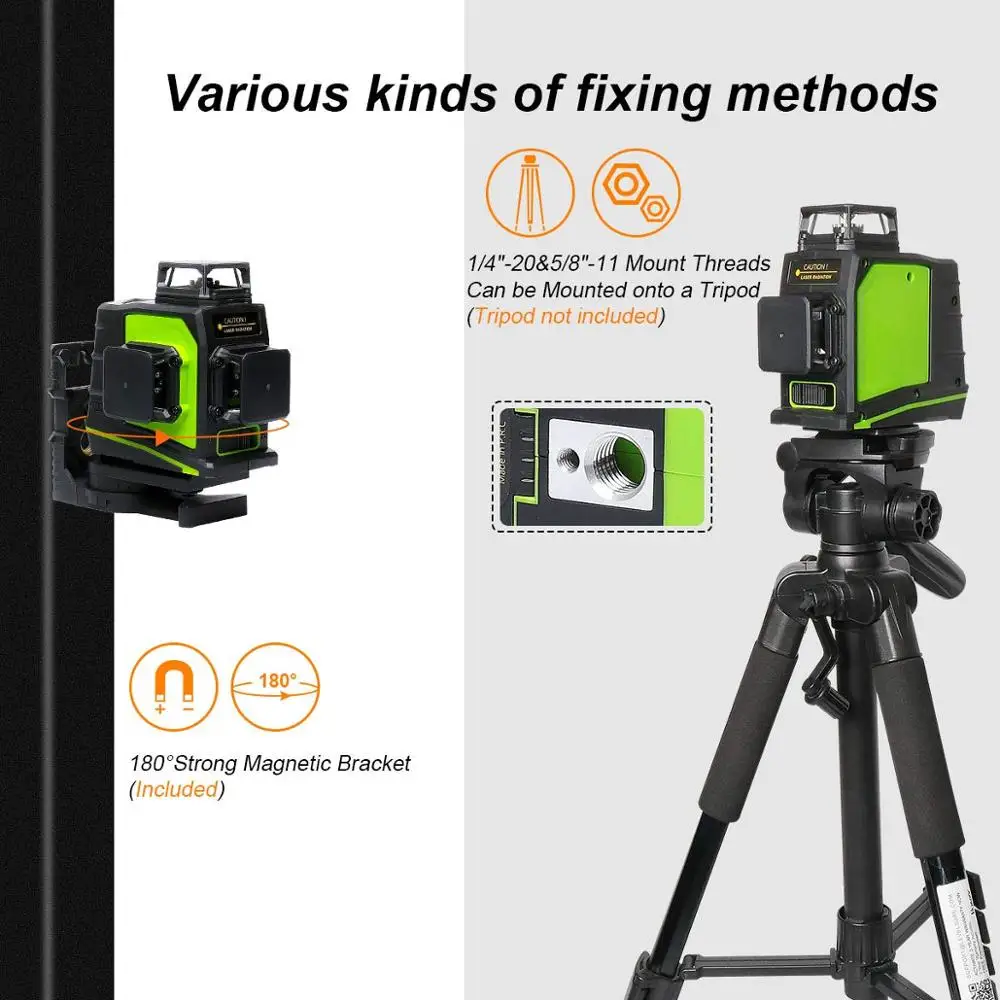

* This laser level comes with 180°Magnetic L Mount with tripod thread of 5/8-11-Inch and 1/4-20-Inch that has strong magnets to
attach to steel studs, useful for turning it around at 180 degree horizontally and being fixed on tripod.
* Two Mount Sizes: 1/4"-20 and 5/8"-11 mounting threads for temporarily fastening in place or being fixed on tripod.
attach to steel studs, useful for turning it around at 180 degree horizontally and being fixed on tripod.
* Two Mount Sizes: 1/4"-20 and 5/8"-11 mounting threads for temporarily fastening in place or being fixed on tripod.

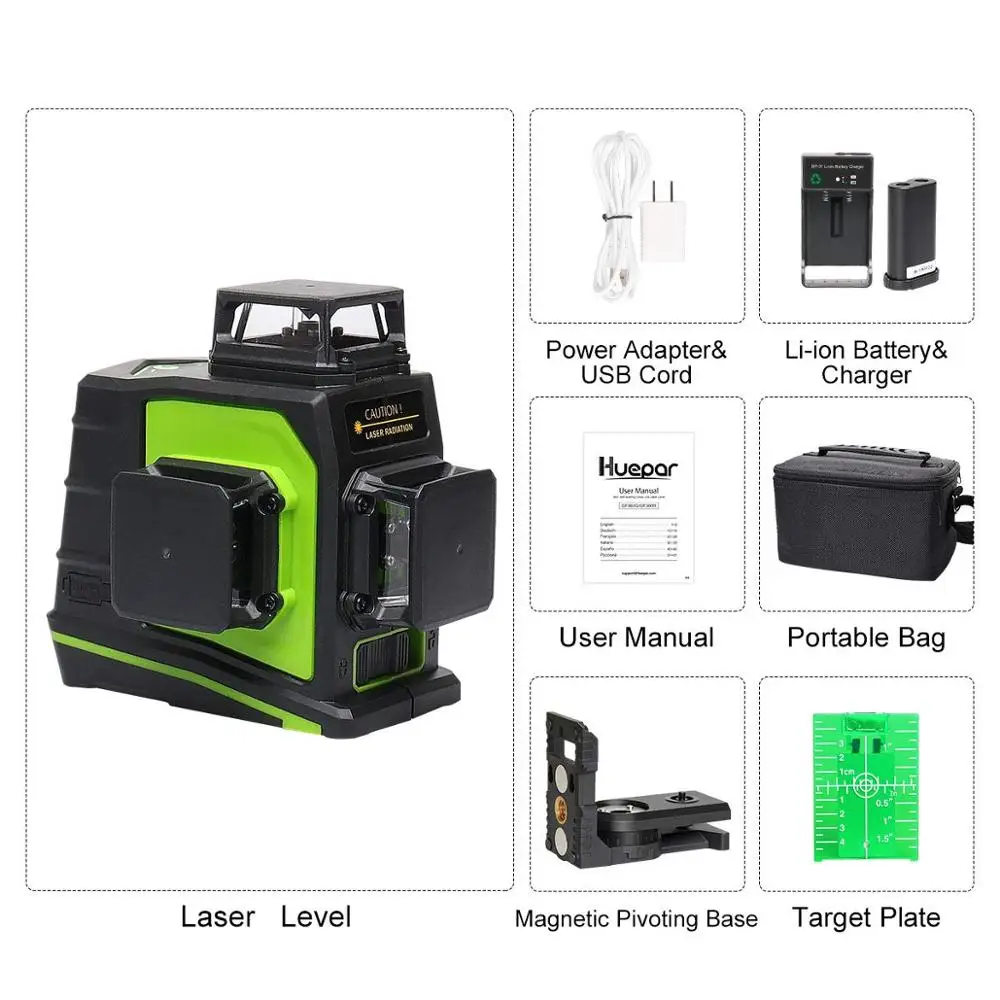

Packing Includes
1 x Huepar GF360G 360 Degree Green Self-Leveling 3D Cross Line Laser Level
1 x Magnetic L Mount1 x Laser Target Plate
1 x Rechargeable Lithium Battery
1x Power adapter
1x USB power cord
1 x User Manual
1 x Portable Bag
