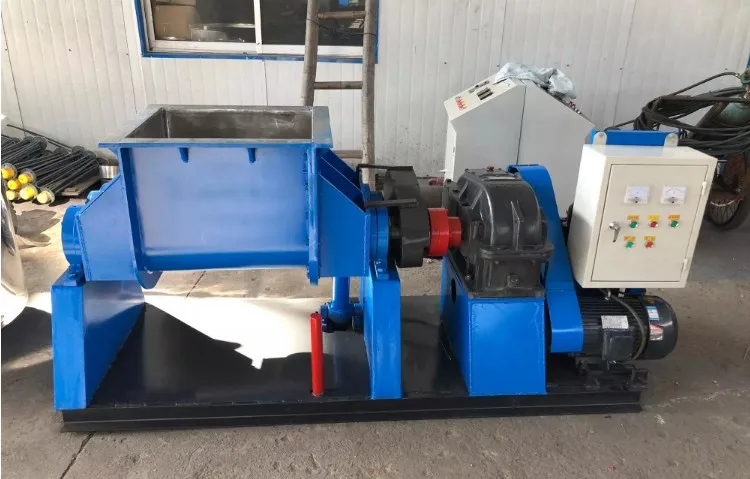

Commercial Wholesale Double Kneader Sigma Blade Mixer

Share on (62432825240):


Price:$2,000.00 - $3,500.00

Quantity:


Product Overview

Description



Product Description

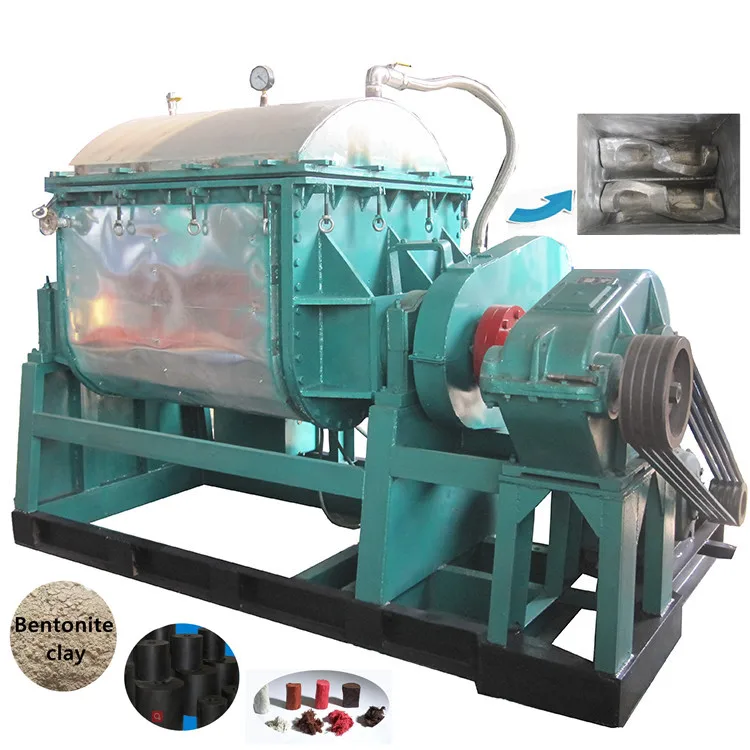

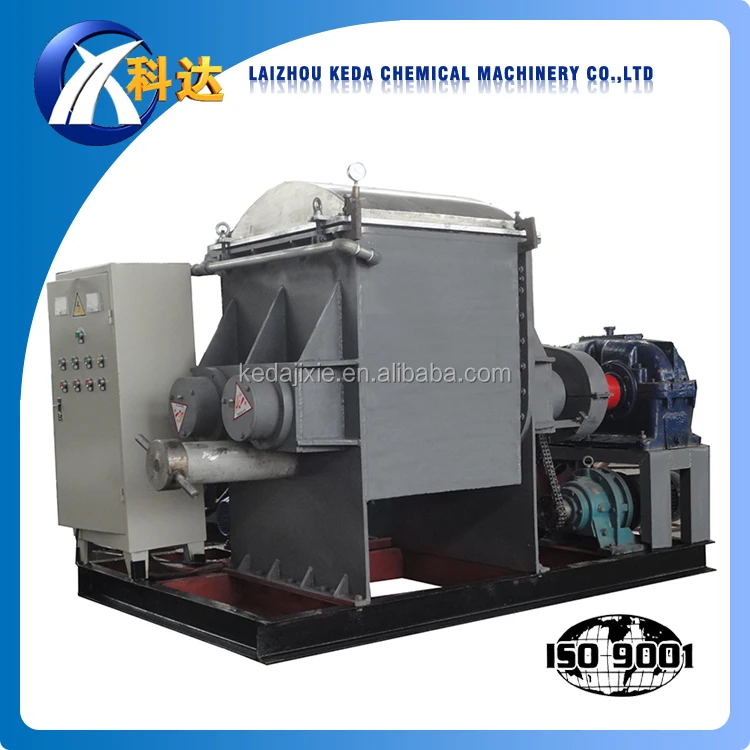

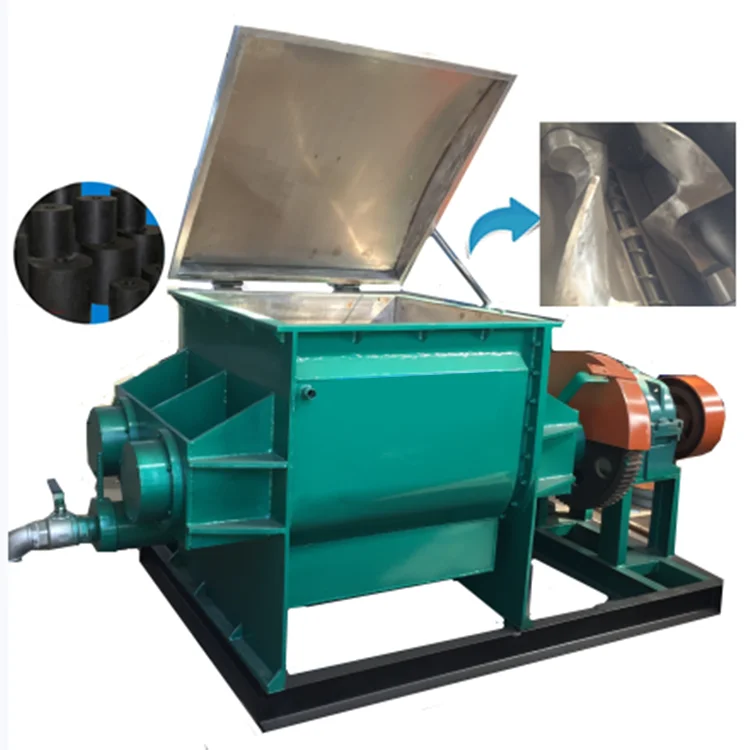

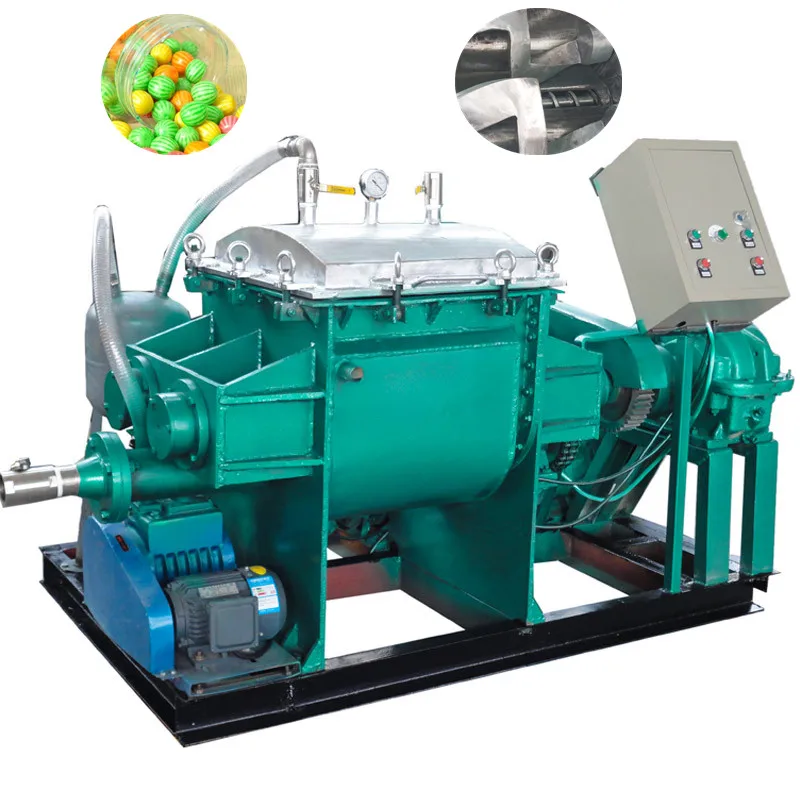

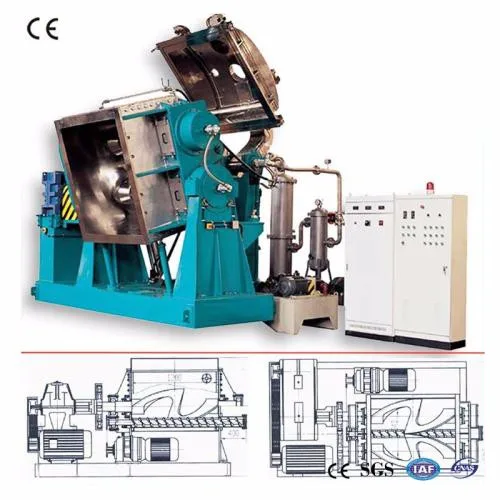

Commercial Wholesale Double Kneader Sigma Blade Mixer

The kneader is an ideal equipment for kneading, mixing, vulcanizing, and polymerizing high-viscosity, elastic-plastic materials. The kneader can be used to produce silicone rubber, sealants, hot melt adhesives, food gum bases, pharmaceutical preparations, etc. The kneader is a special mixing and stirring device. The most commonly used is two Σ paddles, which are arranged side by side tangential differential type, that is, one mixing paddle is fast, and one mixing paddle is slow, so that Shear force and different paddle speeds allow the mixed materials to be cut quickly, so that the materials can be mixed uniformly.

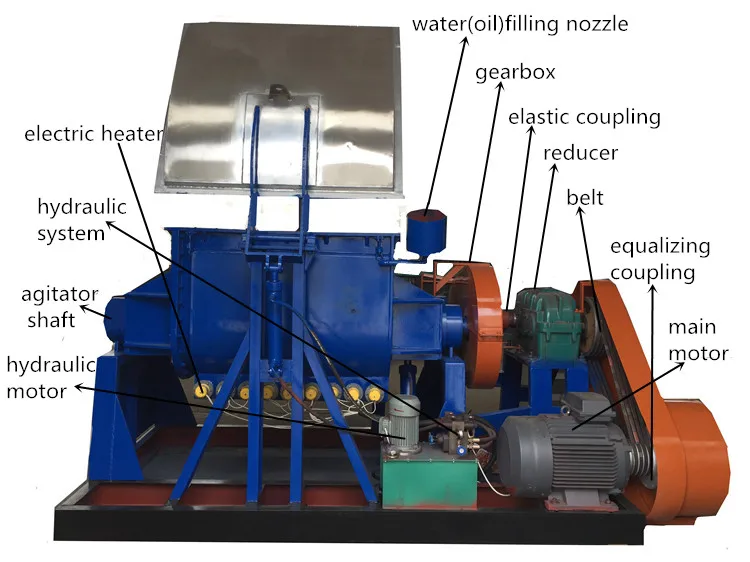

Vacuum Kneader is a kind of kneader, mainly used in chemical rubber production fields such as silicone rubber, glass rubber, butyl rubber, hot melt adhesive. The kneader usually consists of several major components, such as a kneading system, a vacuum system, a heating system, a cooling system, and an electrical control system.

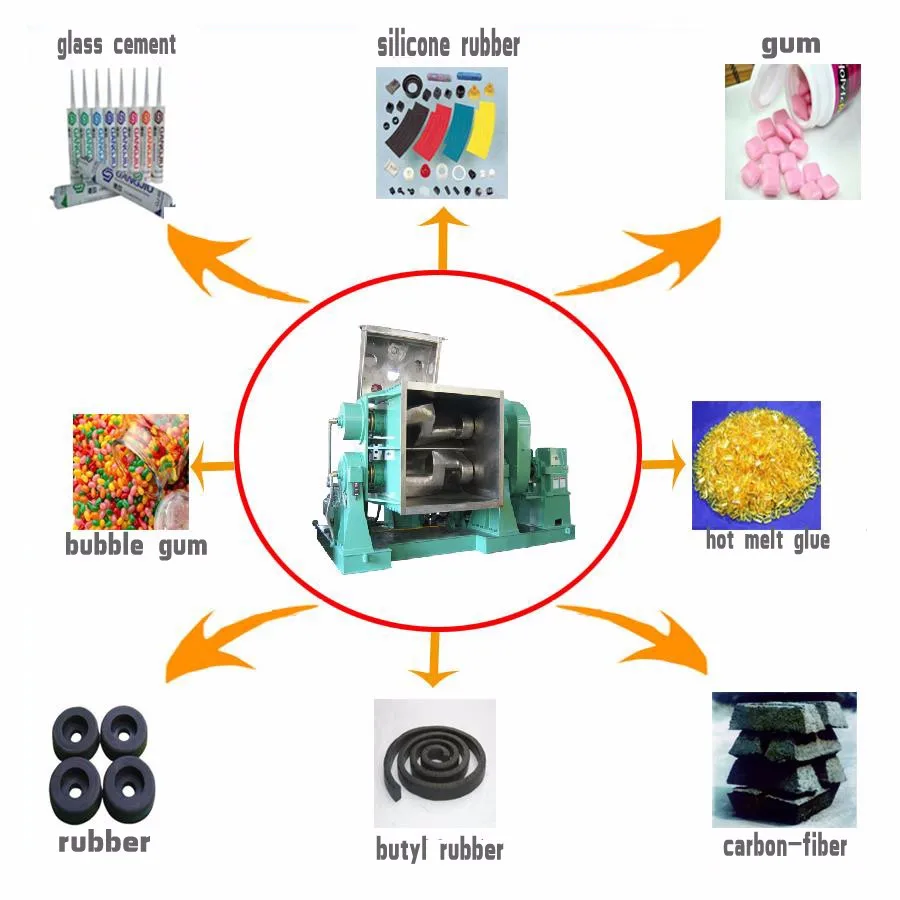

Product Application

------Chemical Industry:

Resins, Sealant, silicon rubber, glue/ adhesive, paint, dye, BMC/CMC, pigment, plastics, batteries. Tooth paste, Clay etc.

------Food Industry:
Bubble gum, dough, chewing gum, soft candy, cheese etc.

----Pharmaceutical:

Certification: CE Certificate

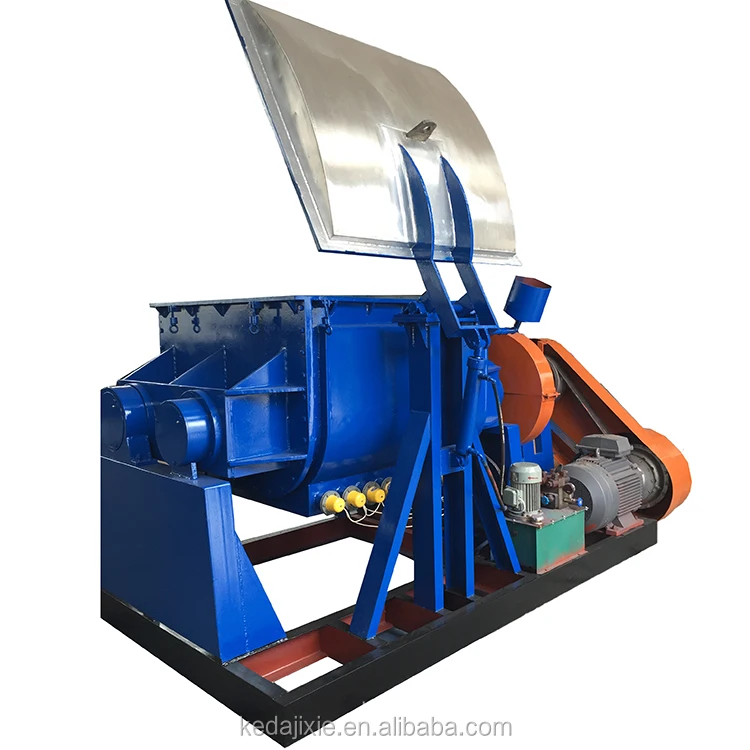

Discharge Way: Hydraulic tilt; Screw extruding ,Bottom valve.

Heating: Electric heater heating; Circulation oil heating or Steam heating.

Material: SUS304/S.S316/Mild steel. Customized according to client's request.

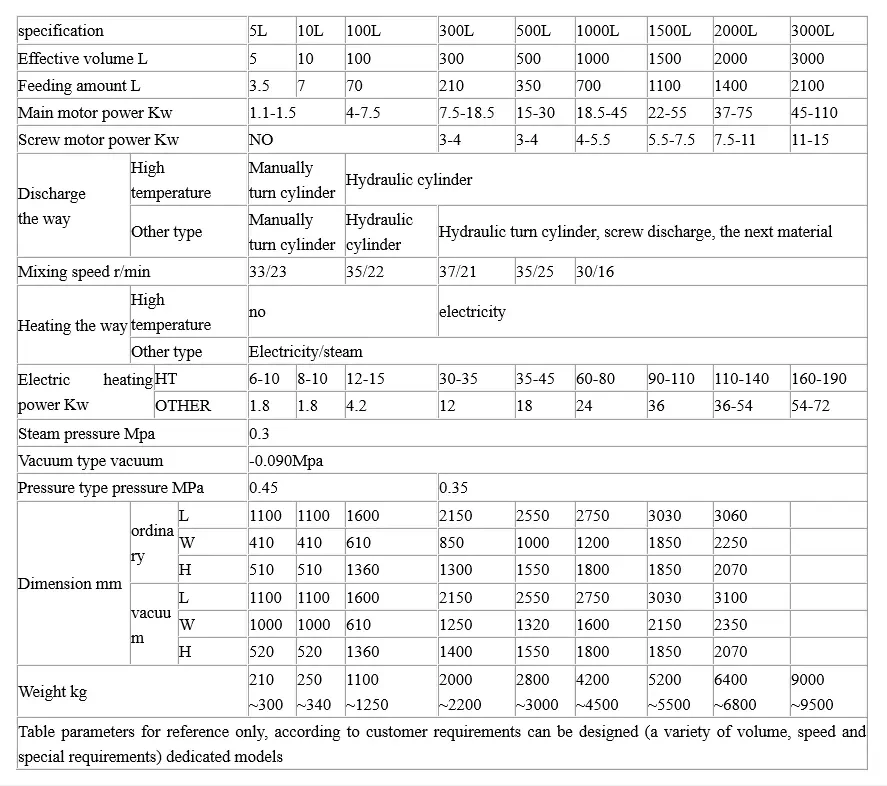

Capacity: 5-3000L

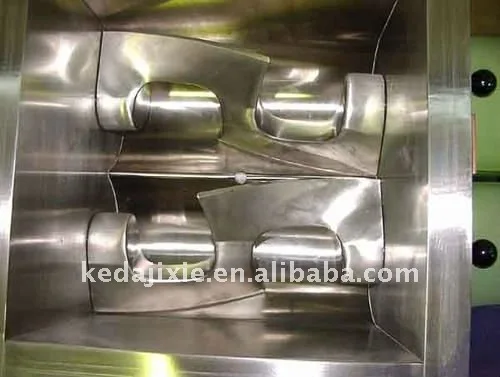

Main part 1

Double sigma (Z arm) blade: different rotational speeds produce strong shearing, squeezing and agitation to make the viscous material mix evenly.







Main Part 2

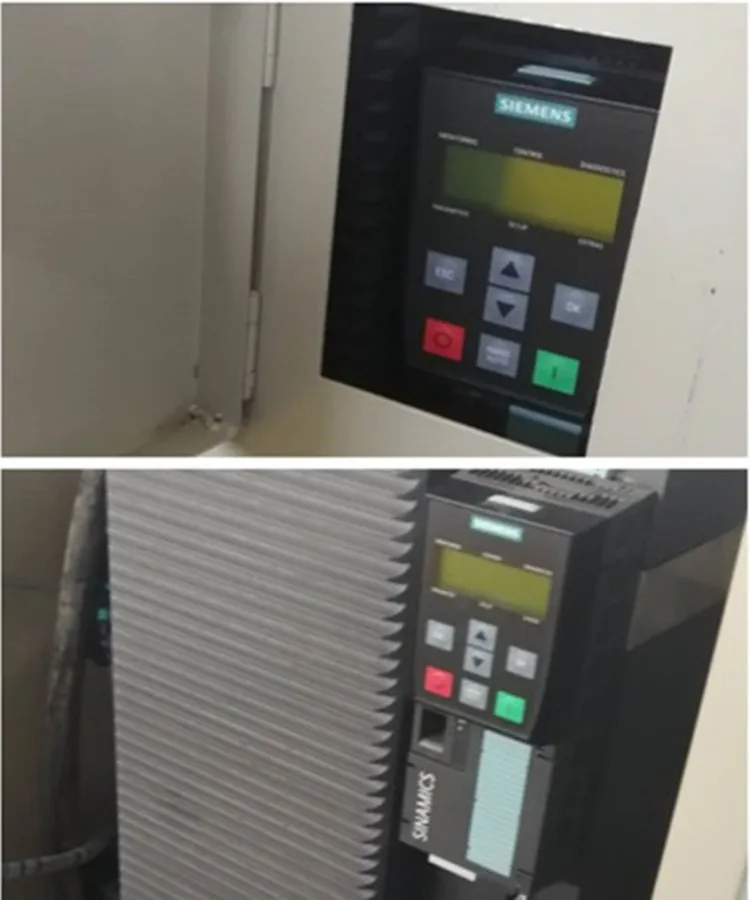

Siemens frequency converter





Main Part 3

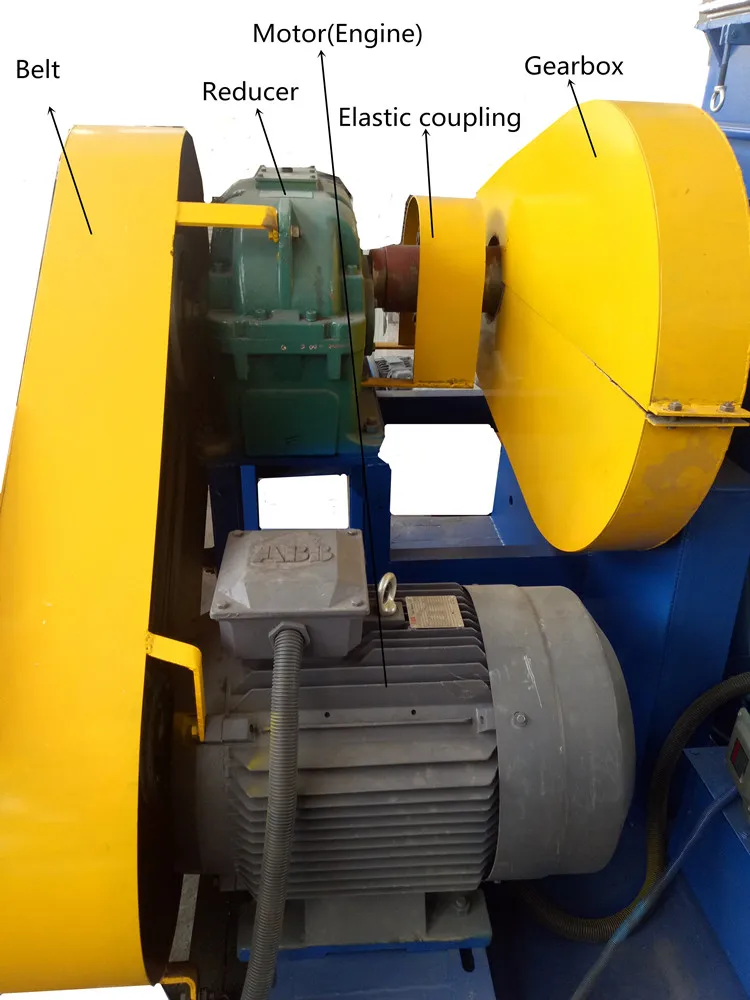

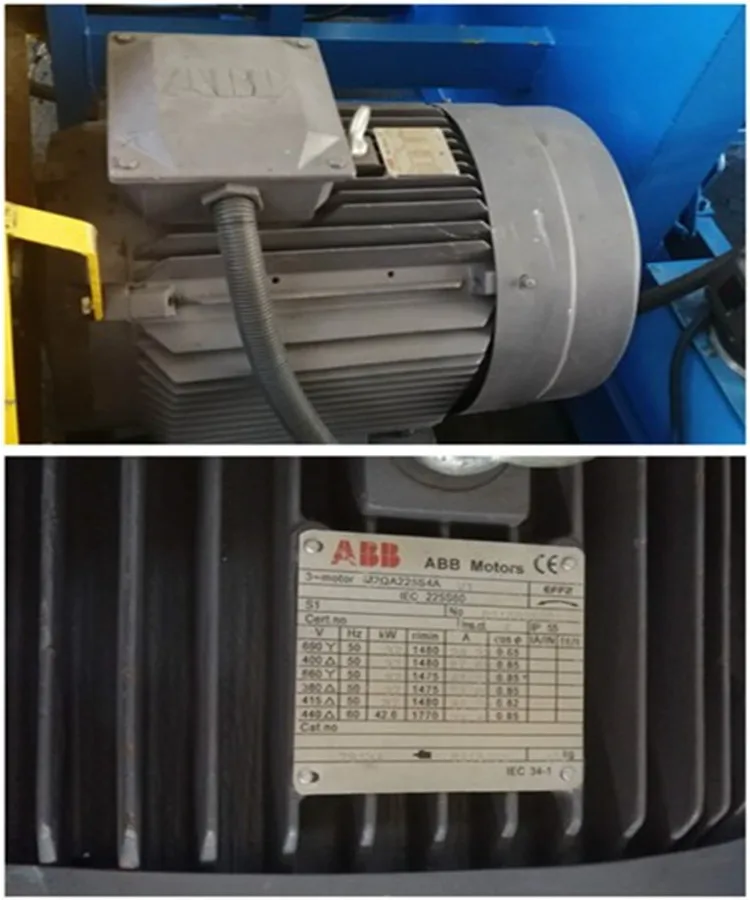

ABB Motor





Company Profile




We are the professional manufacturer for chemical machine, we have do this machine manufaturer more than 15years,have rich experience and mature technical design and export this machine.
Depend on rich experience and advance technical, we export machine to USA, UAE, Russia, Italy, Armenia, Saudi Arabia, Pakistan, India, Indonesia, Brazil, Ecuador, South Korea, South Africa, Singapore, Vietnam and Poland.etc.
The chemical and plastic industry machine we can provide like:
SMC production line, BMC production line, resin production line, coating production line, adhesive production line, Hot melt glue stick production line,Waste plastic recycling machine,Plastic granulation machine,Powder mixing machine,Liquid mixing machine,Reactor, Z arm mixer, dispersing machine, colloid mill, three roller mill, ball mill, sand mill.
WELCOME TO   OUR COMPANY ANY TIME




Customers from all over the world come to our factory to visit the machine and successfully purchase to achieve good cooperation.


Certification

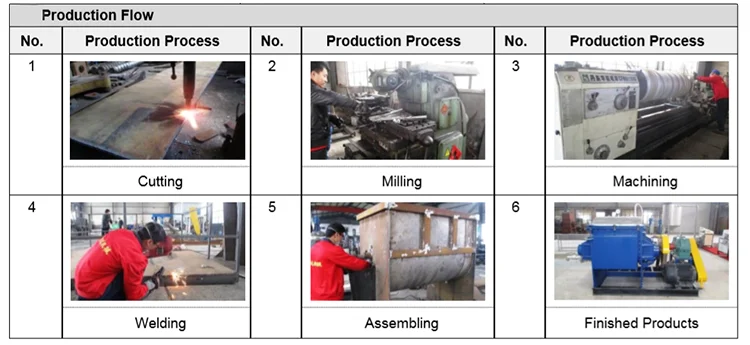

Technical Process




Our Service


Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.



Packing & Delivery


Packaging
Size
2750 (L) * 1200 (W) * 1500 (D)
Weight
4200-4500kg



Packaging Details
Packaging Details: Usually Package By Three Plywood,Suitable And Convenient For Shipment.
