high temperature Silicone mechanical seal for IS water pump 100 65 200

Product Overview

Description

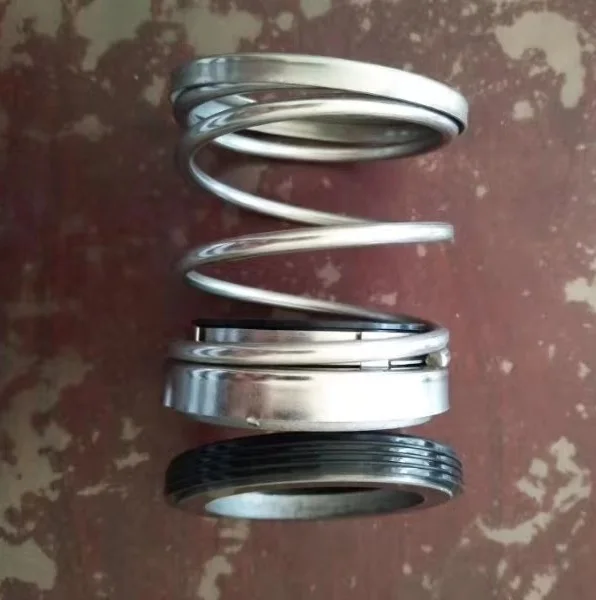

mechanical seal for IS water pump 100-65-200



We are centrifugal pump factory, we could supply mechanical seal for centrifugal pump IS 100-65-200



Model	Capacity	Head	Speed	NPSHr	Efficiency	Power
	Q(m3/h)	H (m)	n(rpm)	r(m)	η (%)	Kw
50-32-125	12.5	20	2900	2	60	2.2
50-32-160	12.5	32	2900	2	54	3
50-32-200	12.5	50	2900	2	48	5.5
50-32-250	12.5	80	2900	2	38	11
65-50-125	25	20	2900	2	69	3
65-50-160	25	32	2900	2	65	5.5
65-50-200	25	50	2900	2	60	7.5
65-40-250	25	80	2900	2	53	15
65-40-315	25	125	2900	2.5	40	30
80-65-125	50	20	2900	3	75	5.5
80-65-160	50	32	2900	2.5	73	7.5
80-50-200	50	50	2900	2.5	69	15
80-50-250	50	80	2900	2.5	63	22
80-50-315	50	125	2900	2.5	54	37
100-80-125	100	20	2900	4.5	78	11
100-80-160	100	32	2900	4.5	78	15
100-65-200	100	50	2900	3.6	76	22
100-65-250	100	80	2900	3.8	72	37
100-65-315	100	125	2900	3.6	66	75
125-100-200	200	50	2900	4.5	81	45
125-100-250	200	80	2900	4.2	78	75
125-100-315	200	125	2900	4.5	75	110
125-100-400	100	50	1450	2.5	65	30
150-125-250	200	20	1450	3	81	18.5
150-125-315	200	32	1450	2.5	79	30
150-125-400	200	50	1450	2.8	75	45
200-150-250	400	20	1450	3.5	82	37
200-150-315	400	32	1450	3.5	82	55
200-150-400	400	50	1450	3.8	81	90



beside this model , we supply mechanical seal for other IS water pump models, and also ISW horiozntal inline pump, ISG vertical pipe pump, GC boiler water pump, etc



 Material:

1. Silicon carbide,

2. stainless steel,

3. alloy
