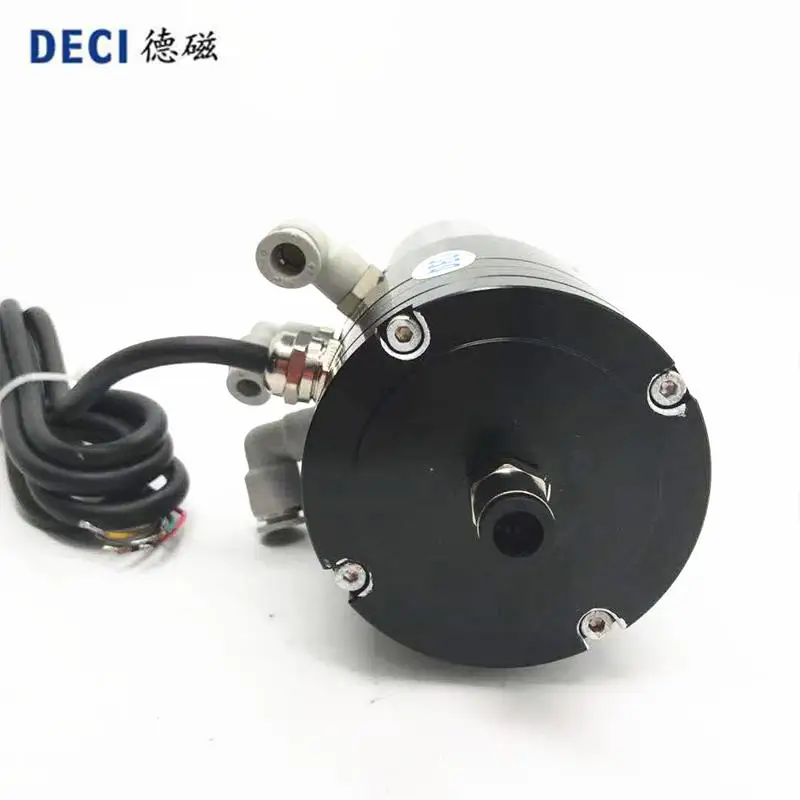

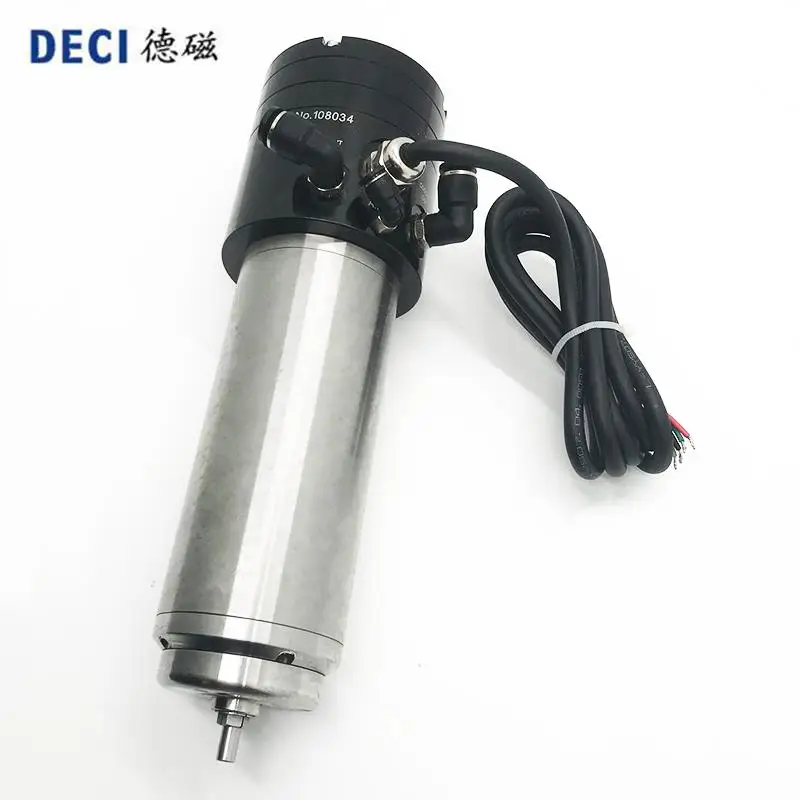

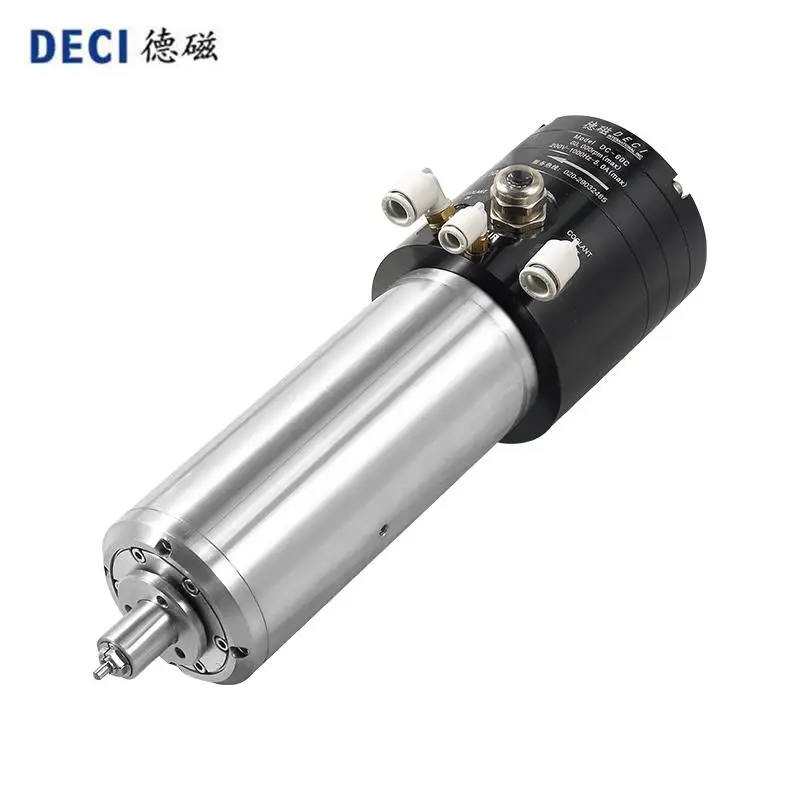

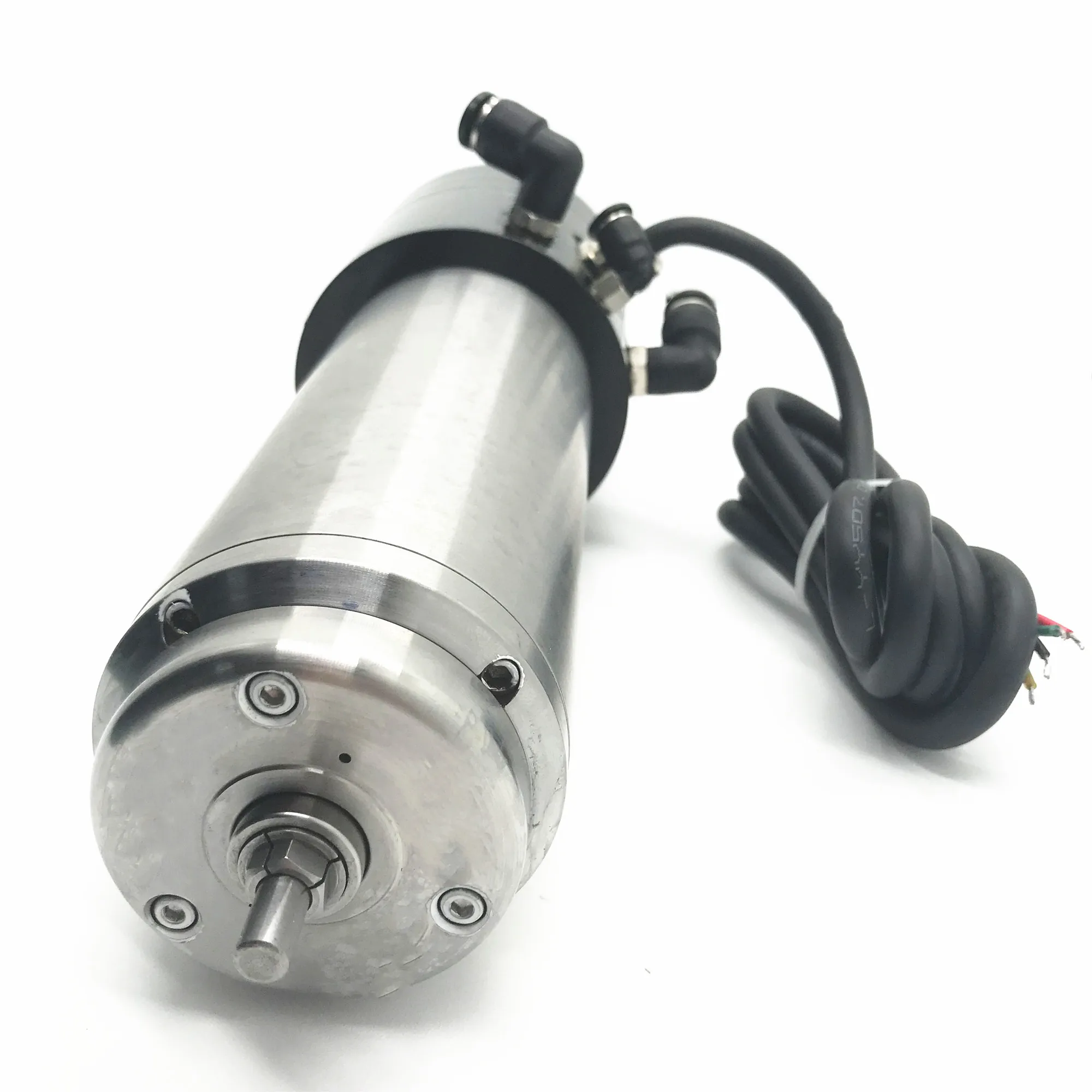

DECI high speed 60000 rpm 200V 1.8KW 1.5kw water cooling atc spindle for cnc milling machine
It's a automatic tooling change high precision high speed spindle motor. It can install Φ3-Φ6 Collect without BT or ISO tools hold. It can apply for PCB drilling ,dental engraving. Some clients need less power also used to alumium profile polishing and cutting.
DECI spindle Motor Feature
1) Imported bearings with good quality, long working life. 2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine. 3) There are water cooling spindle, air cooling spindle and self cooling spindle for your choose. 4) Every spindle motor could be passed polishing process, Improve spindle concentricity to increase motor working life.
DECI DC-60C
Parameters
Motor Power:
1.8/1.5KW
Rated voltage:
200V(3~)
Max rotate speed :
60000Rpm/min
Max currency:
6.5A
Max Frequency:
1000Hz
Torque:
0.28N.M
Specification
Shaft-end Cone Run-out:
≤0.001mm
Tooling Releasing Air Pressure:
5.6-6.0 Kgf/cm²
Tooling Exchange Method:
ATC
Air curtain pressure at front end:
2.5~3.0 Kgf/cm²
Tooling Pulling Force:
─
Tooling Back Air Pressure:
─
Tooling Connection:
Φ3-Φ6 Collet Chuck
Cooling:
water cooling
Encoder:
─
Coolant Pressure:
≥2.5 Kgf/cm²
Approach Switch:
─
Bearing Lubrication Method:
Grease
Balance Level :
G1
Tooling Instalation Method:
Mechanical clip
Vibration Value:
≤0.8
Weight:
3kg
Packing&Shipping
Packed in export standard carton or plywood case with PP bag, thick foam. DECI Spindle / cnc in Machining. pcb milling spindle speed
high-speed pcb drilling spindle
