WMD30VL mini drill mill bench machine for metal
- Category: >>>
- Supplier: Chizhou Syntop CNC Industrial Co. Ltd.
Share on (62432873244):
Product Overview
Description
Product Description
Features
Have speed dispaly
High precision bored and honed milling head
Precision ground worktable
Tilting and swiveling head
Adjustable gibs on table
Adjustable stop on table
Accurate presition, strong rigidity, strong cutting power
Gear drive, lower noise
Specifications for WMD30V | ||
Maximum Drilling Capacity | 32mm | |
Maximum End Capacity | 25mm | |
Maximum Face Capacity | 80mm | |
Spindle travel | 70mm | |
X-axis Travel | 425mm | |
Y-axis Travel | 220mm | |
Z-axis Travel | 360mm | |
Spindle Speed | 50-2250 r.p.m | |
T-slot Size | 14mm | |
Spindle Taper | MT3 or R8 | |
Motor Power | 1100W | |
Head Rotation | ±45° | |
Table Size | 700×210mm | |
Packing Size | 710×890×1150mm | |
N.W./G.W | 220/250kgs | |
● Depth ruler
● Drill chuck 3-16mm
● Arbor
● Drawbar
● Operating tools
● Keyless drill chuck 3-16mm
● ER25/6pcs collet chuck (4-16mm)
● End mill 7pcs (4-16mm)
● 58pcs of clamping kits
● X-axis power feed
● Digital readout
Company Profile

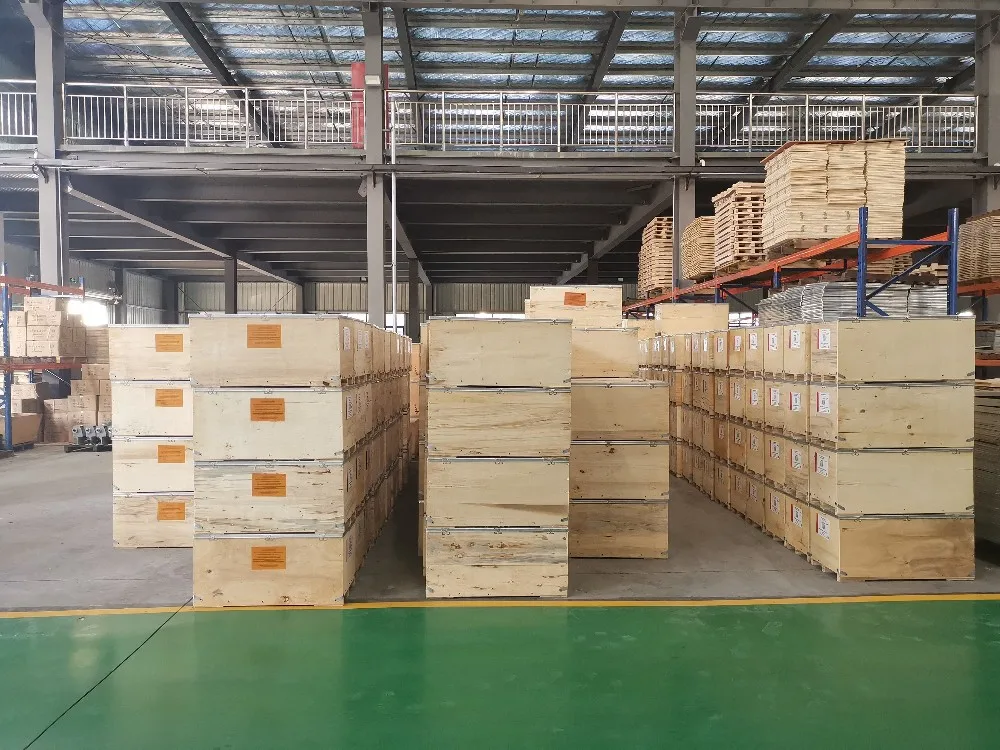

Packing & Delivery
