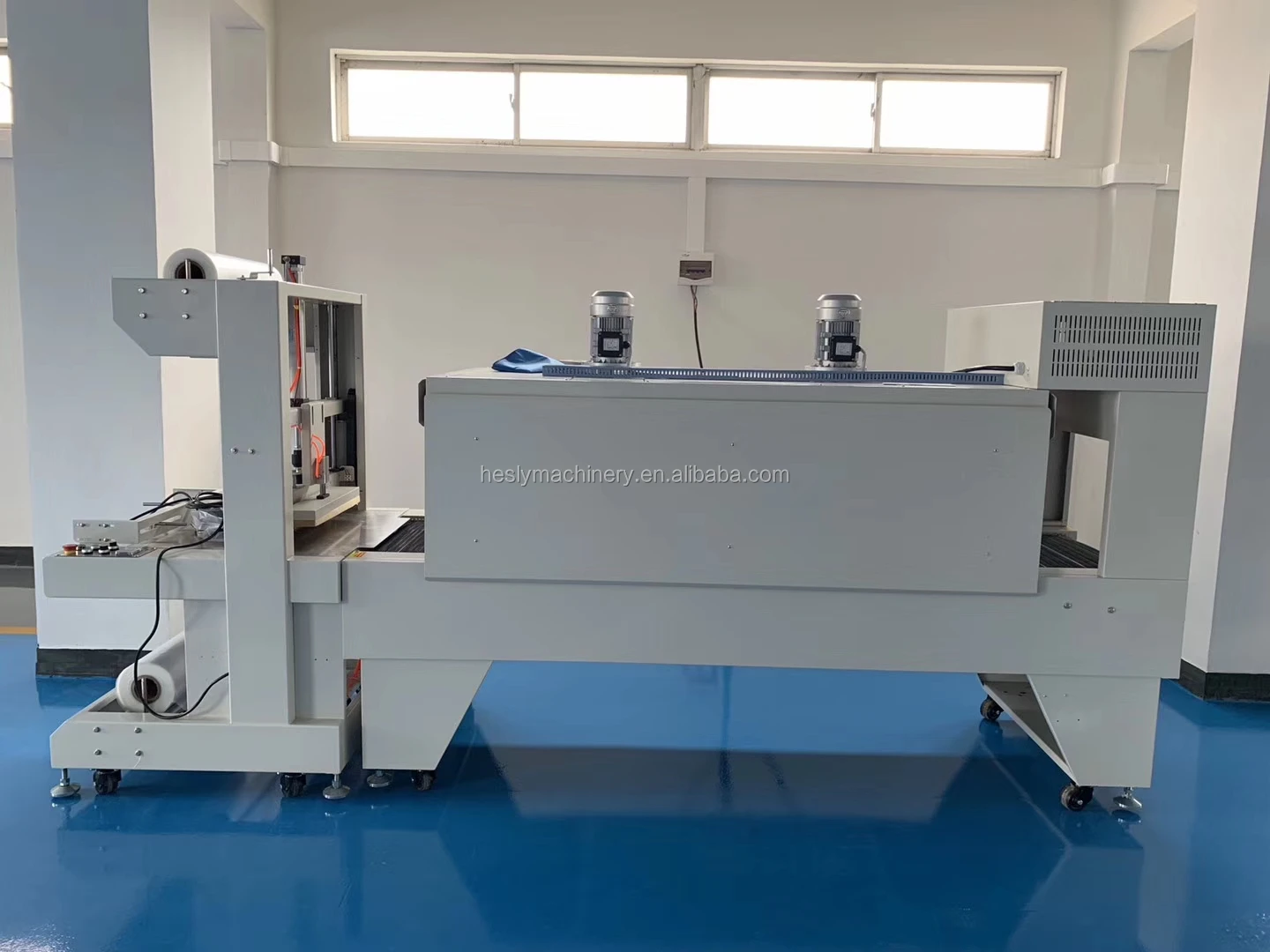

Packaging Equipment Bse4535 PE Film Heat Shrink Tunnel Wrapping Machine
- Category: >>>
- Supplier: Ruian Hesly Machinery Co. Ltd.
Share on (62432909044):
Product Overview
Description
Shrink machine:
(I) schedule setting.
The longer the time, the longer the film will shrink.(the shrinkage film will be slack after packaging).
Note: When the time is too short, it is possible to cut the cutting knife into the package, usually 0.1-0.5 seconds (though the time is different due to the thickness of the packaging).
(2) counter
When the package is switched on by the electric eye the cutting knife is lowered and then recovered, the number on the counter will be displayed.* (when the counter is zero, press the "RESET" button in the upper right corner)
(3) the direct eye switch (assembled on both sides of the conveyor belt)
When the package is passed through the photocell, the travel setter will be used to seal the cutting knife.
(4) select switch.
When installing the film or debugging machine, you must press the manual button. When the conveyor belt is not running, the electric eye is closed. Select automatic button when packing the product, so the conveyor belt is running , the photocell is activated. When the package touches the electric eye, the cutting knife will automatically drop, and you should be careful not to touch the eye with your hand.
(5) sealing temperature.
Usually set transverse sealing at about 180 ° C, the vertical sealing set at about 300 ° C.The material and thickness of the shrink film are different.
(6) sealing time.
Usually set in 0.8 seconds.The material and thickness of the shrink film are different.
(7) cylinder.
At least once a month (the white button below the cylinder will come out) check the oil at least once a mon
Model | QSJ5540A |
Voltage supply | 220V ,50-60Hz |
Power | 2.0KW |
Packing speed | 0-10pcs/minute |
Working pressure | 4-6kg/cm2 |
Film width/thickness | Max,550mm/0.03-0.25mm |
Max packing size(L*W*H) | 500*300*340mm |
Min.packing size(L*W*H) | 250*50*100mm |
Overall dimension(L*W*H) | 3510*1870*1900 |
Height | 950mm |
Weight | 350KG |

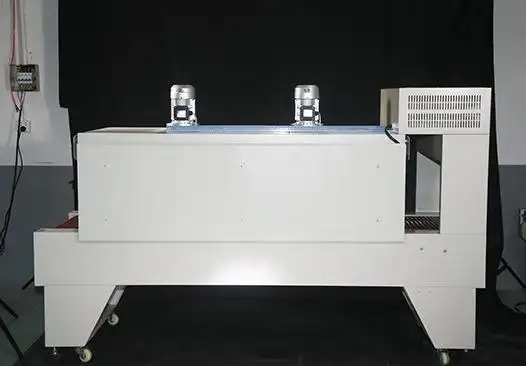

TUNNEL MACHINE
Specification:
Model | BSN6040 |
Voltage | 380v 50-60HZ |
Power | 18KW |
Shrink tunnel(L*W*H) | 1800x600x400mm |
Product size(W*H) | 550x450mm |
Transfering speed | 0-15m/min |
Mesh chain | |
Product weight | 50kg max |
Machine size(L*W*H) | 2500x900x1650mm |
Weight | 420kg |
Packing material | PE |
