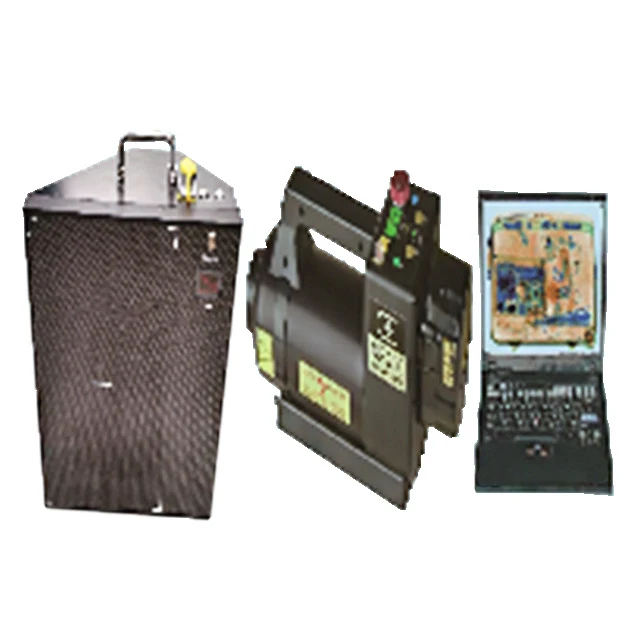

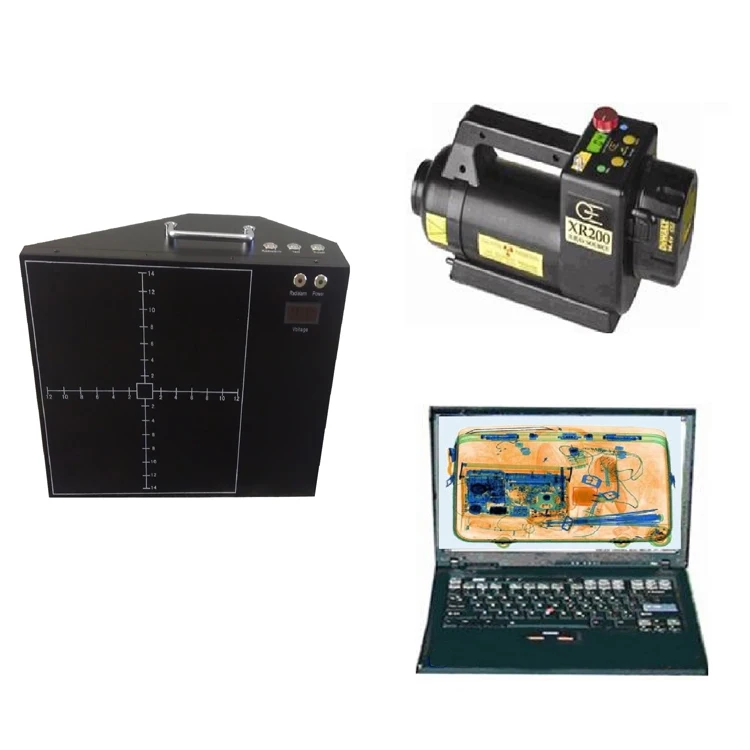

Product Name | X-ray baggage scanner portable X-ray machine security inspection system | ||

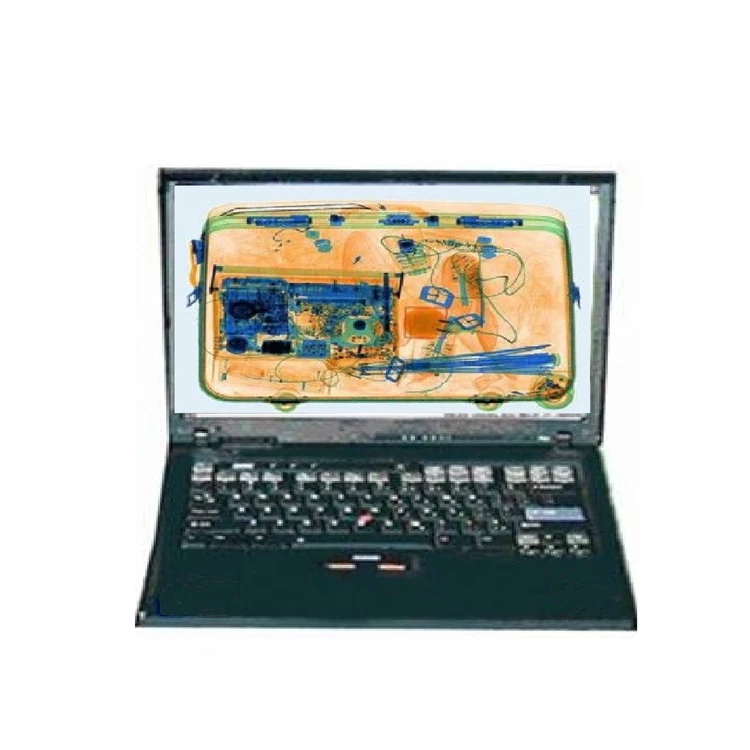

Imaging quality | (1) Line resolution: | Distinguish AWG40 (0.079mm) wire (security inspection field) | |
(2) Penetration: | 12mm steel plate (XR200); | ||
Hardware index | (1) Packing box size: | Small: 450mm × 360mm × 180mm; Large: 560mm × 440mm × 260mm; | |
(2) X-ray source | |||

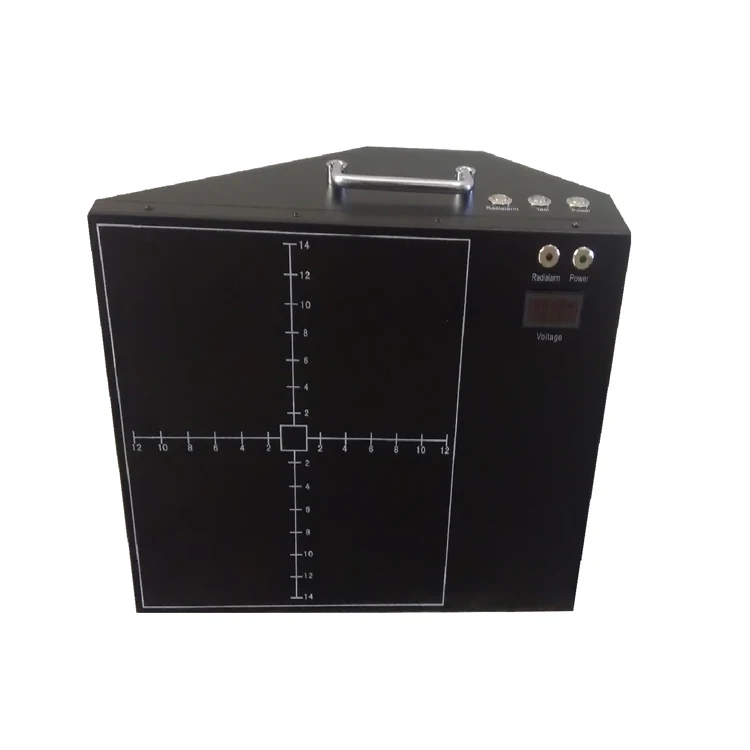

Imager | Imager size: | 375mm × 315mm × 150mm; | |
Imaging window: | 305mm × 254mm; | ||
weight: | 5.6 kg (including battery) | ||
battery: | 12V lithium battery, working independently, power supply time is 14 hours; | ||
X-ray detection system: | Japanese ultra-high sensitivity detection system, 1600 * 1200 pixels. | ||
Image dynamic range: | 14-bit sampling rate, 16384 gray levels | ||
transfer method: | Network port | ||

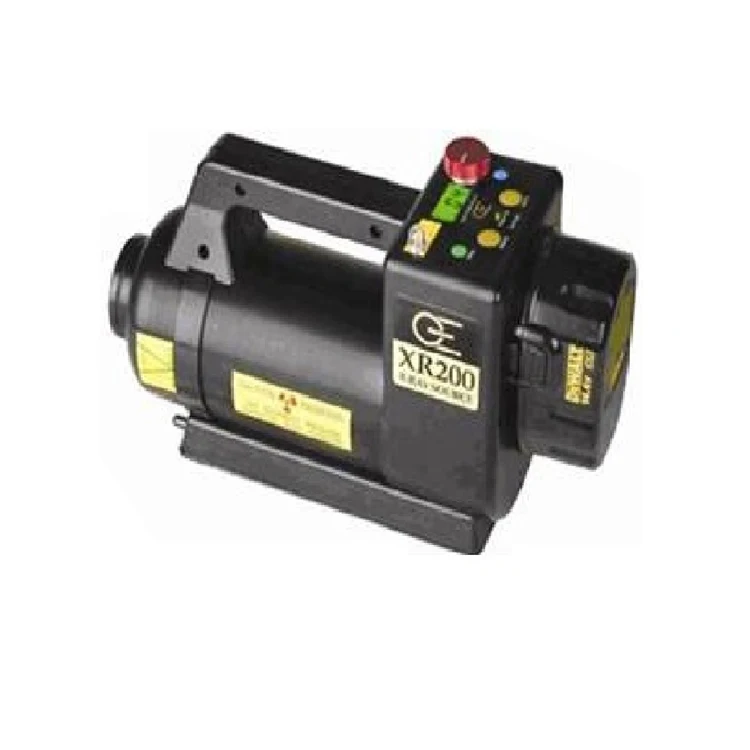

Compatible X-ray sources: | XR150, XR200, XRS-3 pulse sources; INSPECTER200, CP120B and all continuous X-ray sources | ||
Operating temperature: | -10 ℃ ~ + 40 ℃, | ||
Relative humidity: | 10% ~ 90% (non-condensing) | ||
