GV2ME Motor Starter Motor Protection Circuit Breaker 3P silver point Motor Protector
- Category: >>>
- Supplier: Wenzhou Kunling Electric Co. Ltd.
Share on (62433055451):
Product Overview
Description
Product Description

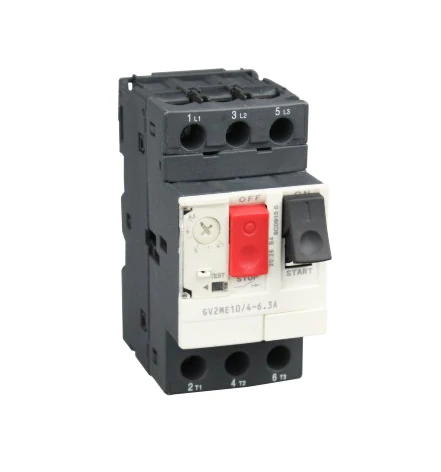

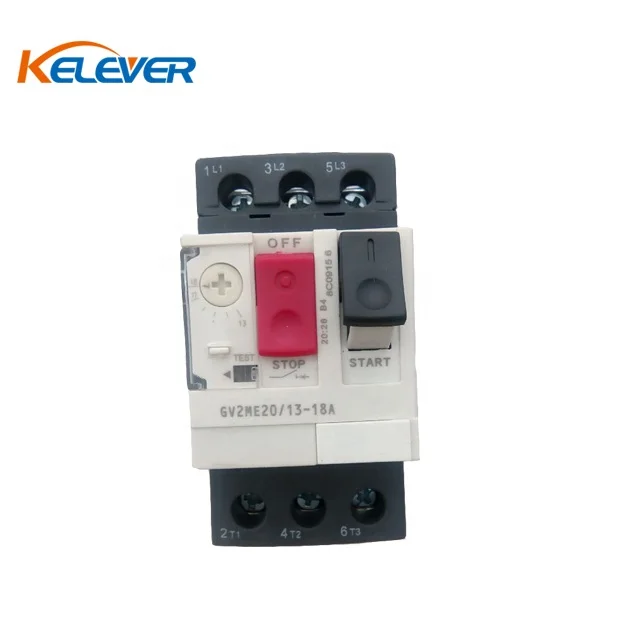

GV2ME Motor Starter Motor Protection Circuit Breaker 3P silver point Motor ProtectorG
GV2ME Series electric motor protection circuit breaker,uses the modular design,the contour is artistic,the volume is small,breaks protects,inside sets Hot Relay,the function is strong,the versatility is good.
GV2ME Series motor protection circuit breaker are mainly used for the overload and short-circuit protection for motors ins
the circuit of AC50/60Hz,rated operating voltage up to 690V,rated operating current from 0.1A to 32A.As overload, phase failure, short circuit protection and infrequent start control of three-phase motors, it can be used for distribution line protection and infrequent load conversion, and can also be used as an isolator.
The GV2ME series GV2ME Motor Starter conforms to IEC60947-2 and IEC60947-4.1 as well as the EN60947-1 standard. The Motor Protector switch and the contact device may compose the electric motor is direct Starts.The GV2ME Series Motor Starter outer covering protection rankmay achieve IP65.This series pooled three types model product:GV2M,GVEME is the clectric motor belt thermomagnetism protection circuit breaker which the button controls;GV2RS is the electric motor belt thermomagnetism protection circuit breaker which the change-over switch controls;GV2LS,GV2LE is the electric motor belt thermomagnetism protection circuit breaker which the change-over switch controls does not bring hot protection.
The dis jointing current commuting value of breaker in instant magnetic field.
Rated current InA | The adjusting range commuting current for coponents A | The disjointing current commuting value in instant field InA |
0.16 | 0.1-0.16 | 1.5 |
0.25 | 0.16-0.25 | 2.4 |
0.4 | 0.25-0.4 | 5 |
0.63 | 0.4-0.63 | 8 |
1 | 0.63-1 | 13 |
1.6 | 1-1.6 | 22.5 |
2.5 | 1.6-2.5 | 33.5 |
4 | 2.5-4 | 51 |
6.3 | 4-6.3 | 78 |
10 | 6-10 | 138 |
14 | 9-14 | 170 |
18 | 13-18 | 223 |
23 | 17-23 | 327 |
25 | 20-25 | 327 |
32 | 24-32 | 416 |
The rated power of three-phase electricmotor controlled by breaker.
The adjusting range of rated current (A) | The rated power of three-phase electromotor controlled by breaker | ||||||||||
230/240V | 400V | 415V | 440V | 500V | 690V | ||||||
0.1-0.16 | - | - | - | - | - | - | |||||
0.16-0.25 | - | - | - | - | - | - | |||||
0.25-0.40 | - | - | - | - | - | - | |||||
0.40-0.63 | - | - | - | - | - | 0.37 | |||||
0.63-1 | - | - | - | 0.37 | 0.37 | 0.55 | |||||
1-1.6 | - | 0.37 | - | 0.55 | 0.75 | 1.1 | |||||
1.6-2.5 | 0.37 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | |||||
2.5-4 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | |||||
4-6.3 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 | |||||
6-10 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 | |||||
9-14 | 3 | 5.5 | 5.5 | 7.5 | 7.5 | 9 | |||||
13-18 | 4 | 7.5 | 9 | 9 | 9 | 11 | |||||
17-23 | 5.5 | 11 | 11 | 11 | 11 | 11 | |||||
20-25 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | |||||
24-32 | 7.5 | 15 | 15 | 15 | 18.5 | 23 | |||||
The characteristic of over-current action protection.
The action characteristic of breaker(GV2ME Motor Protection Circuit Breaker )
The multple of rated current | Starting state | Stipulated time | Due result | The temperature of ambient air |
1.05 | Cold state | t≤2h | No disjounting | +40oC±2oC |
1.2 | Hot state(rises up to the stipulated current after following the test of No 1) | t<2h | Disjounting | |
1.5 | One-time commuting current Starts after the bot balance | t<2min | Disjounting | |
7.2 | Cold state | 2<t≤10s | Disjounting |
The action characteristic of breaker(GV2ME Motor Protection Circuit Breaker ) when every phase load is in balance(phase-broken)
The multiple of rated current | Starting state | Stipulated time | Due result | The temperature of ambient air | ||
Any two phases | The third phase | |||||
1.0 | 0.9 | Cold State | t≤2h | No disjounting | +40oC±2oC | |
1.15 | 0 | Hot state(rises up to the stipulated current after following the test of No 1) | t<2h | Disjounting | ||

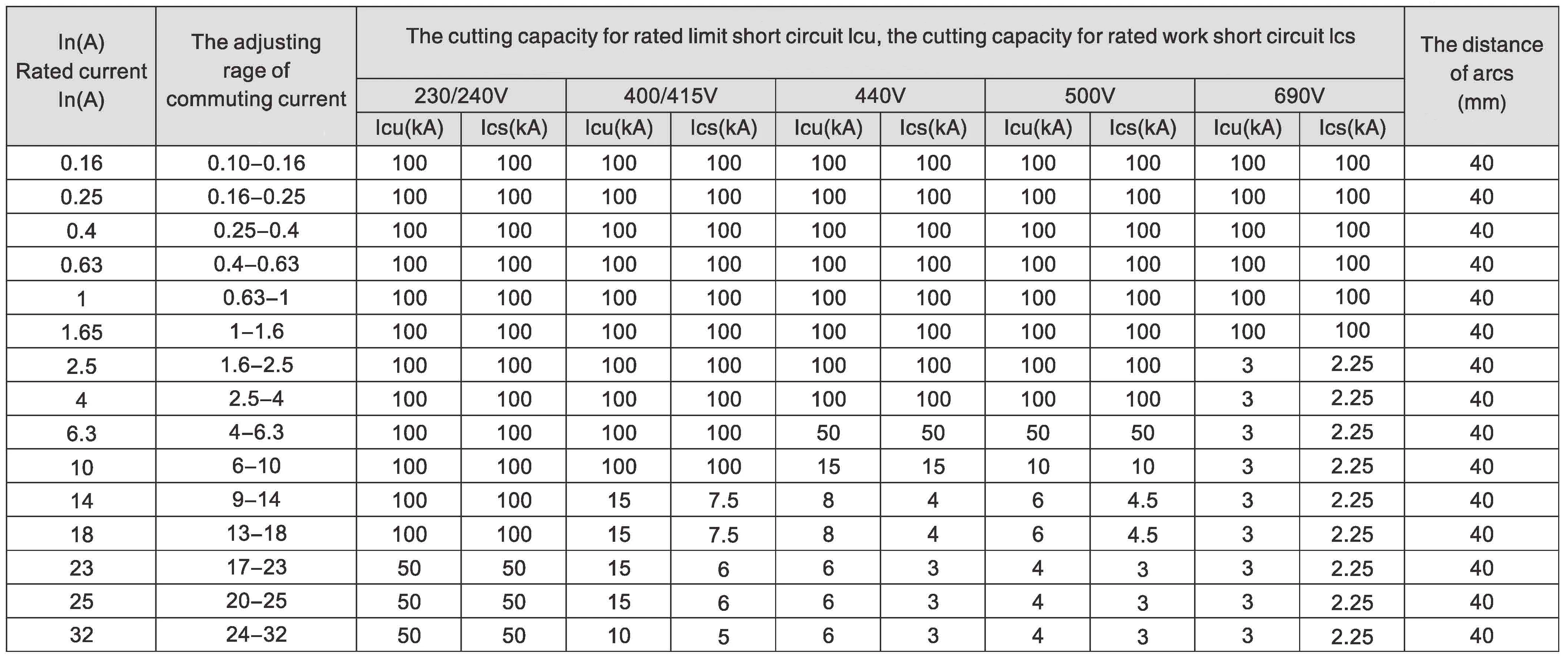

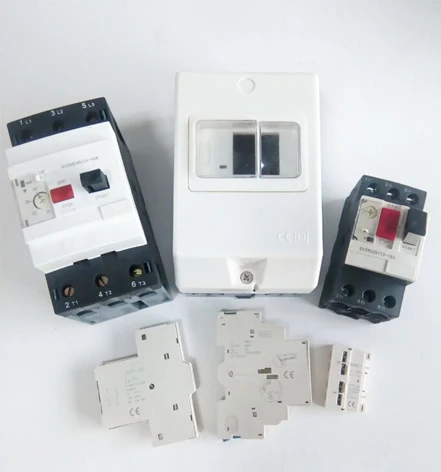

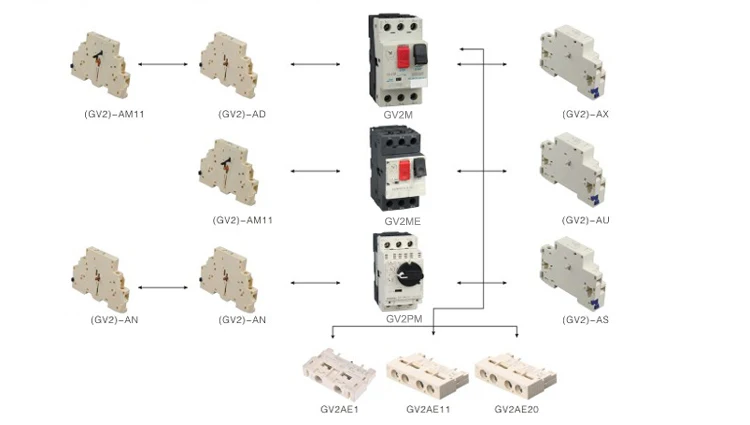

Accessories
1.Contacts of accessories
Names of accessories | Model | the types of contacts | installation place | ||
Instantaneous auxiliary contacts | AE1 | 1NO/1NC | The front of breaker (1pcs can be installed) | ||
AE11 | 1NO+NC | ||||
AE20 | 2NO | ||||
AN11 | 1NO+NC | the left of breaker (4pcs can be installed) | |||
AN20 | 2NO | ||||
Fault signal contacts+Instantaneous auxiliary contacts | AD1010 | Contant-open trouble | NO | ||
AD1001 | NC | ||||
AD0110 | Constant-closed trouble | NO | |||
AD0101 | NC | ||||
Short circuit contacts | AM11 | 1NO、1NC | |||
2.Electricdisjointing
Names of accessories | Model | Voltage | Installation place |
Lack-voltage disjointing | AU115 | 110-127V 50Hz | the right of breaker (1pcs can be installed) |
AU225 | 220-240V 50Hz | ||
AU385 | 380-415V 50Hz | ||
Division disjointing | AS115 | 110-127V 50Hz | |
AS225 | 220-240V 50Hz | ||
AS385 | 380-415V 50Hz | ||
Be used to the release of low voltage | AX115 | 110-127V 50Hz | |
AX225 | 220-240V 50Hz | ||
AX385 | 380-415V 50Hz |
3.The protective case of breaker | ||
Model | Description | |
MC01 | case with button | |
MC02 | empty case | |

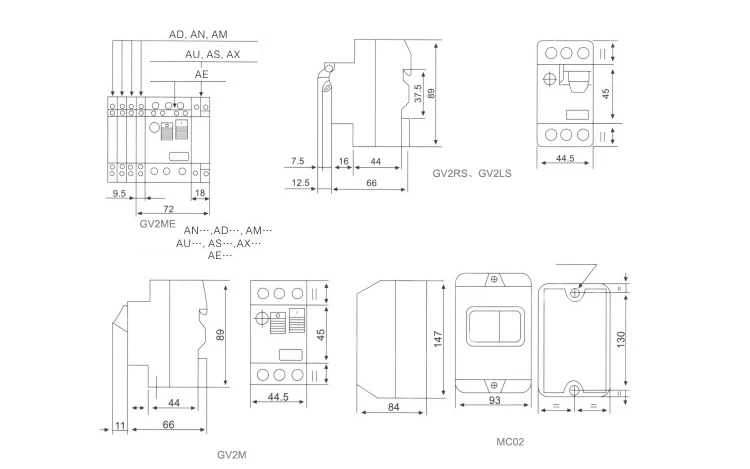

The external fixing dimension

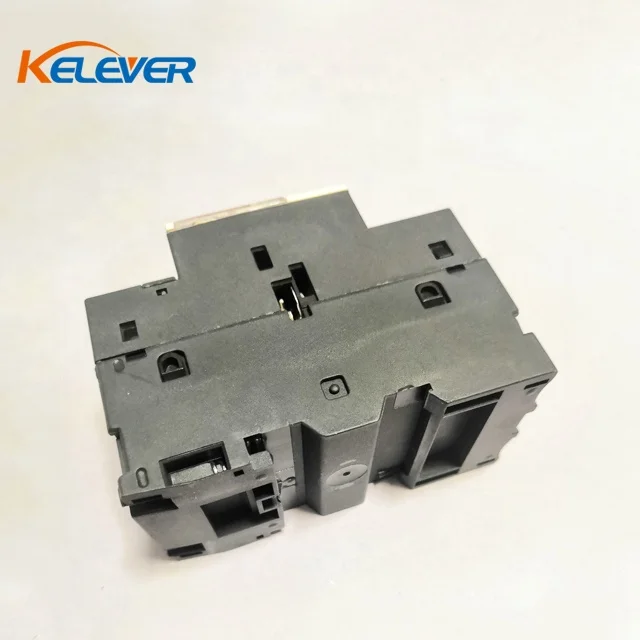

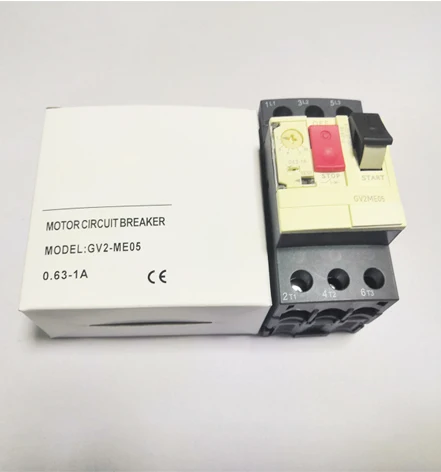

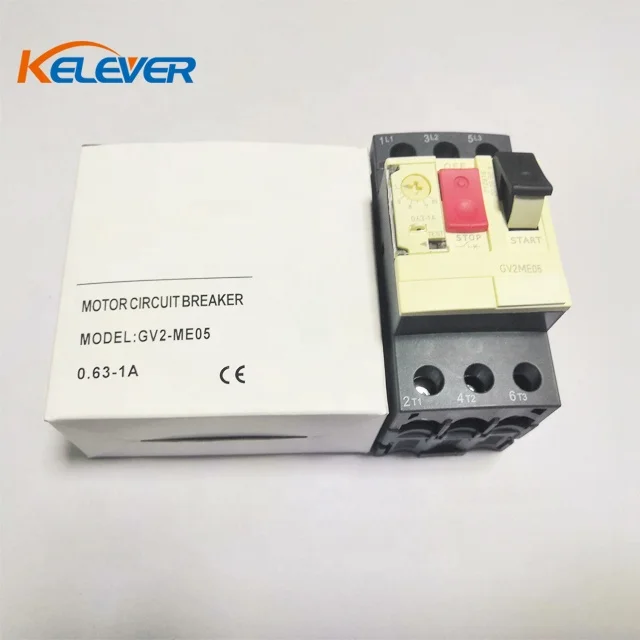

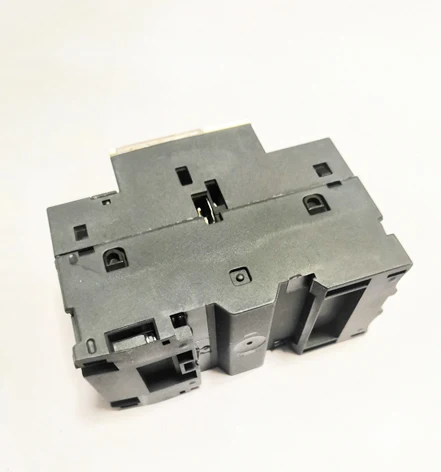

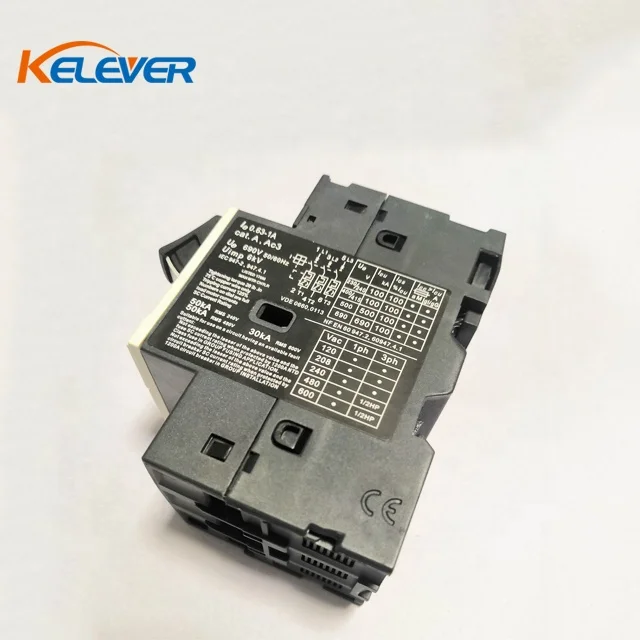

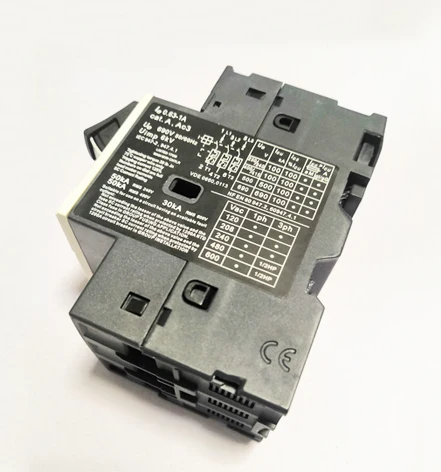

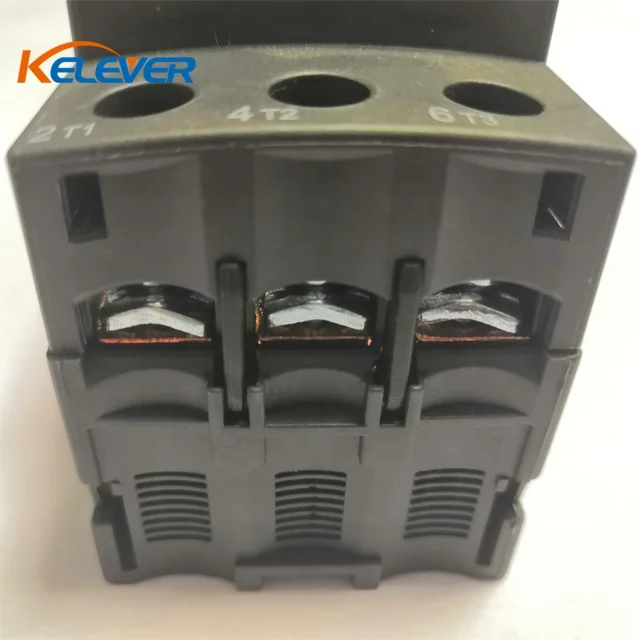

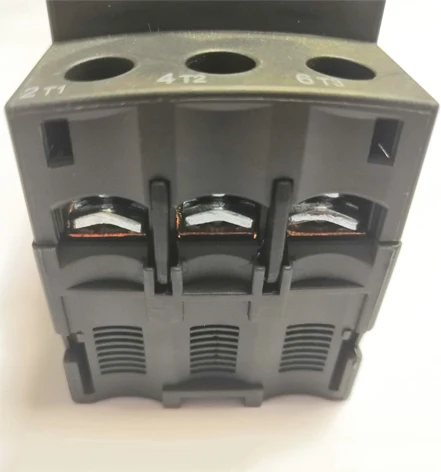

Detailed Images
Packing&Shipping
Related Products
After Sales Service
Any question,please feel free to tell us
E-mail:sales@kelever.com
Tel:0086-577-62715651Mobile(WhatsApp/Wechat/Skype):+86 151 0577 1211
Company Introduction
Wenzhou Kunling Electric Co., Ltd. was built in 2005,we are the leading suppliers of electrical equipment in China. And specializing in OEM&ODM electric products for more than 10 years.Located in Liushi electrical capital of China, the City of Electrical Appliance, adjoining on the Wenzhou Airport 45 minutes, our cooperation owns the advantaged recourses in convenient transportation and basic facilities.The special production are as follows : Circuit Breaker,Contactor,Timer,Distribution boards,Surge Device,Fuse,Isolator Switch,Relay,Electrical Accessories,Tools,etc. . All the products have achieved the standard of IEC, and have passed ISO9001: the international quality control system attestation in 2000. Some of the products have passed the international attestations such as Semko, KEMA, GS, VDE, CB,CSA, UL, TUV,etc.
Enterprise Culture
Our mission: Create the first class enterprise and develop Kelever to benefit the human beings.
Our Core idea: Adopt kinds of experience and up to the best
Our Working policy: Mutual benefits to make progress
Our Working style: Initiative, preciseness, cooperation, effectiveness Our Sales idea: Service open market, search for mutual benefit
Our Manage idea: Use rules and morality to manage
Our Innovation idea: The foundation of development
Our Quality idea: The customer's satisfaction has our good market
Our Brand idea(Kelever): Provide the best products with the best quality
