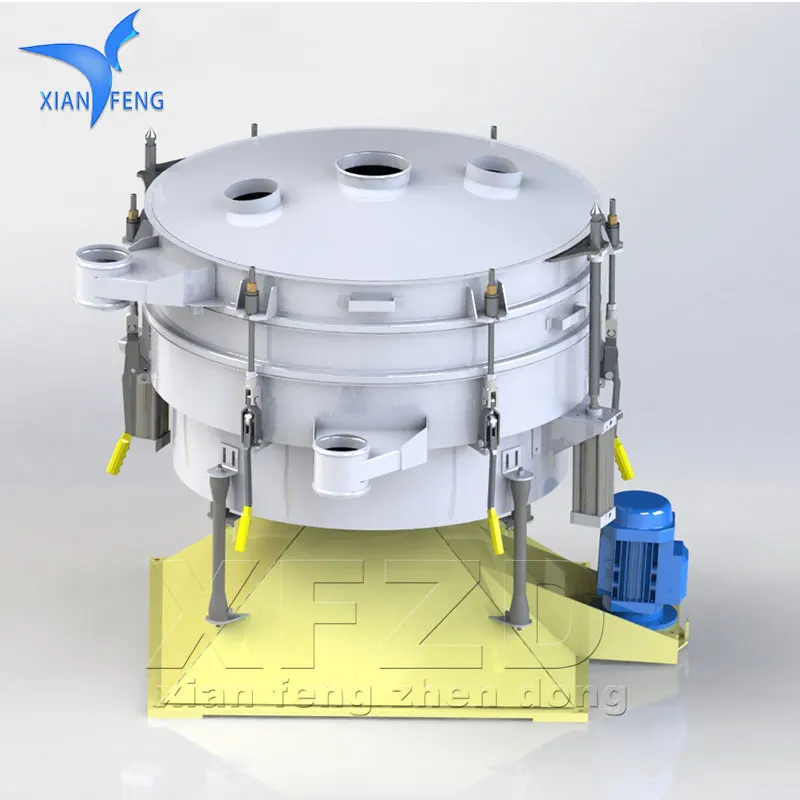

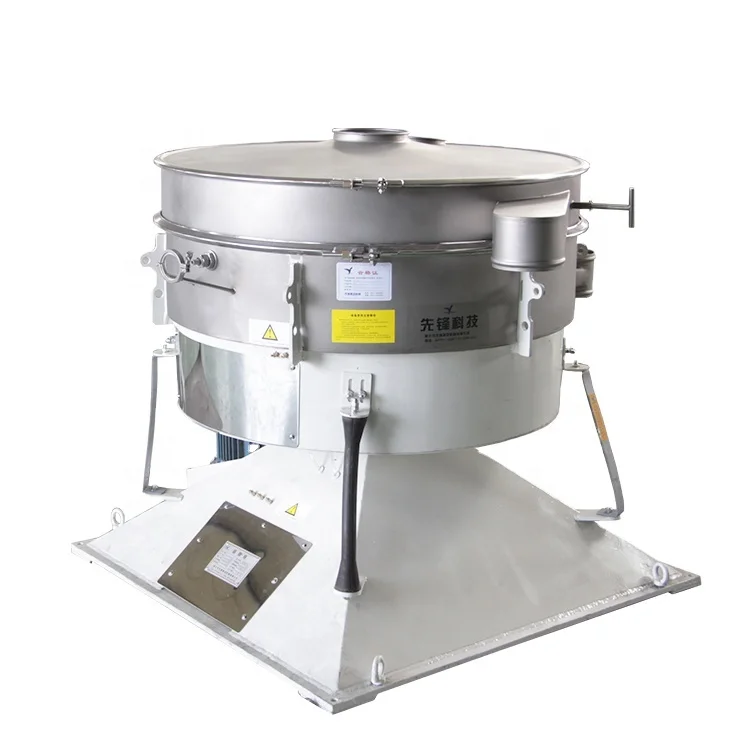

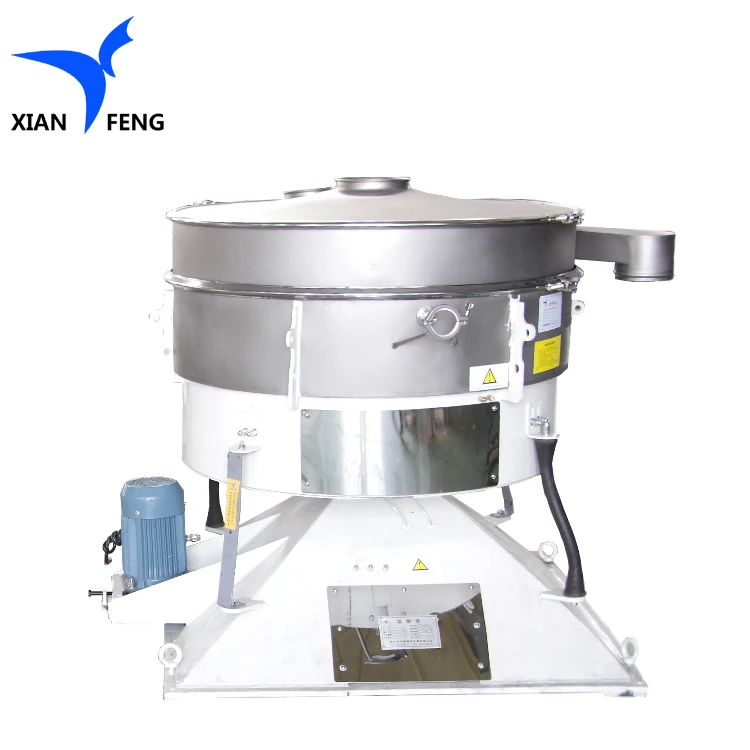

YBS1200 2 tons capacity rotary vibrating sieve screening machine for powder processing
YBS1200 2 tons capacity rotary vibrating sieve screening machine for powder processing
YBS1200 2 tons capacity rotary vibrating sieve screening machine for powder processing
YBS1200 2 tons capacity rotary vibrating sieve screening machine for powder processing
YBS1200 2 tons capacity rotary vibrating sieve screening machine for powder processing
YBS1200 2 tons capacity rotary vibrating sieve screening machine for powder processing
YBS1200 2 tons capacity rotary vibrating sieve screening machine for powder processing

YBS1200 2 tons capacity rotary vibrating sieve screening machine for powder processing

Share on (62433220877):


Price:$3,350.00 - $4,450.00

Quantity:


Product Overview

Description



Products Description






Introduction

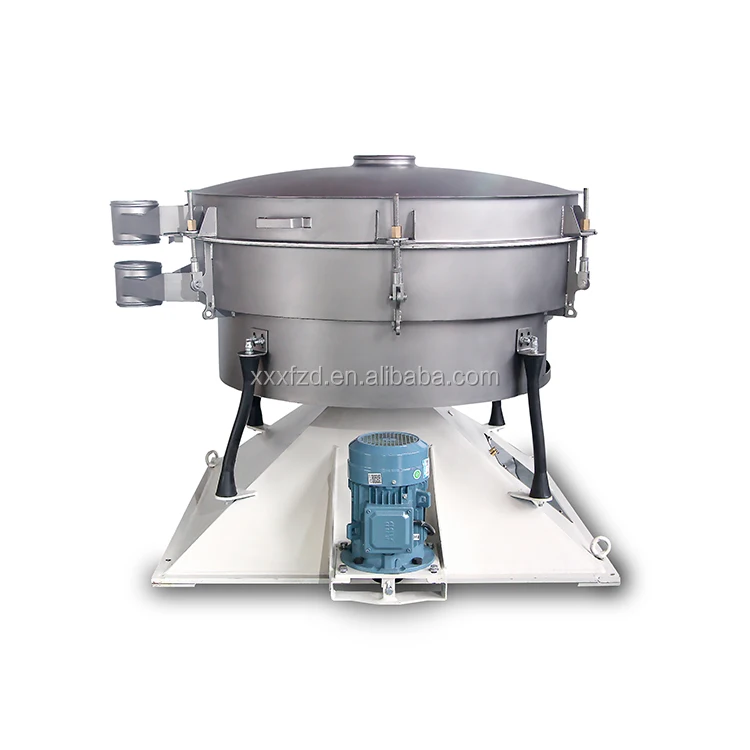

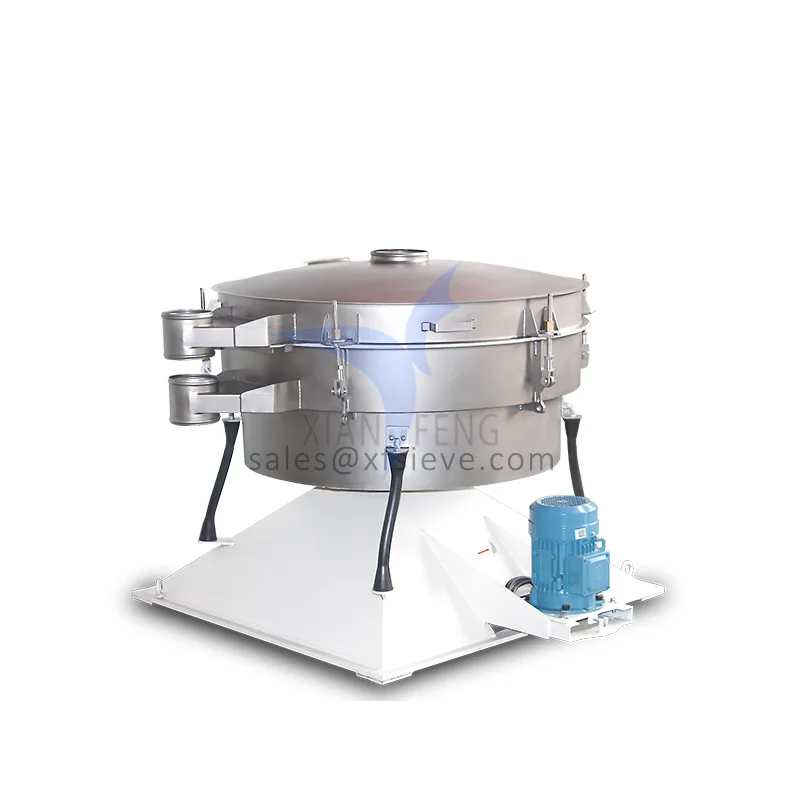

YBS round tumbler sieve machine is developed from rotary vibrating sieve, which has higher separating accuracy and processing capacity.
YBS is suitable for light particle. Like flour, plastic powder, metal powder. Widely used in food, medicine, chemical industry.

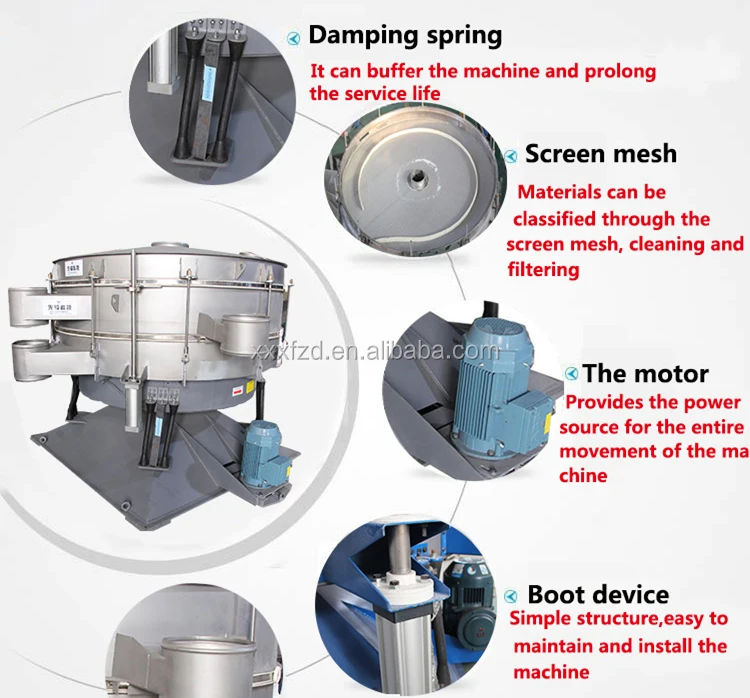

Feature:
* Up to 5 TPH capacity
* As smallest as 0.025 MM particle recognize
* More than 95% sieving accuracy
* Friendly-Maintenance


ABB motor
Stable performance, world-wide after sales service.
Roller bearing
NSK brand bearing, longer lifetime.


Hydraulic lifting mechanism
User can open the screen deck to maintain and change mesh screen easily.
Double belt transmission
Higher power efficiency.


Technical data


Specification
YBS1000
YBS1200
YBS1600
YBS1800
YBS2000
YBS2200
YBS2600
Discharge range
mm
0.025~10
0.025~10
0.025~10
0.025-10
0.025~10
0.025~10
0.025~10
Deck speed
r/min
220
220
220
220
220
220
220
Power kw
1.5
2.2
3
4
4
5.5
7.5
Sizing Accuracy
%
≥95
≥95
≥95
≥95
≥95
≥95
≥95
Capacity
kg/hour
0.5-1t/h
1-1.5t/h
1.5-2t/h
2-3t/h
2.2-3t/h
2.5-3.5t/h
4-5t/h




Application industry




Material name
Density kg/m³
Moist
Mesh size MM
Model NO.
Capacity TPH
wheat starch
1.0
Dry
0.2
YBS2600-1
8
corn starch
0.6
Dry
0.425
YBS2600-1
10
Glucose powder
0.8
Dry
0.8, 2
YBS2200-1
5
rice flour
0.5~0.8
Dry
0.15
YBS2000-1
2
Skimmed milk powder
0.58~0.7
Dry
0.8
YBS2200-1
5
salt
1.2
Dry
0.6, 0.18
YBS2000-1
3
Chlorophyll
0.25~0.4
Dry
0.3, 0.08
YBS2000-1
1
pollen
0.4
Dry
1.7
YBS1600-1
3
Animal and vegetable glue
0.5
Dry
0.425
YBS1600-1
1
Instant soup powder
0.6~0.8
Dry
2.8, 0.18
YBS2000-1
6
Coarse sugar
1.2
Dry
1.7
YBS2600-1
10


Product Advantage




Company strength




Size sieving expert

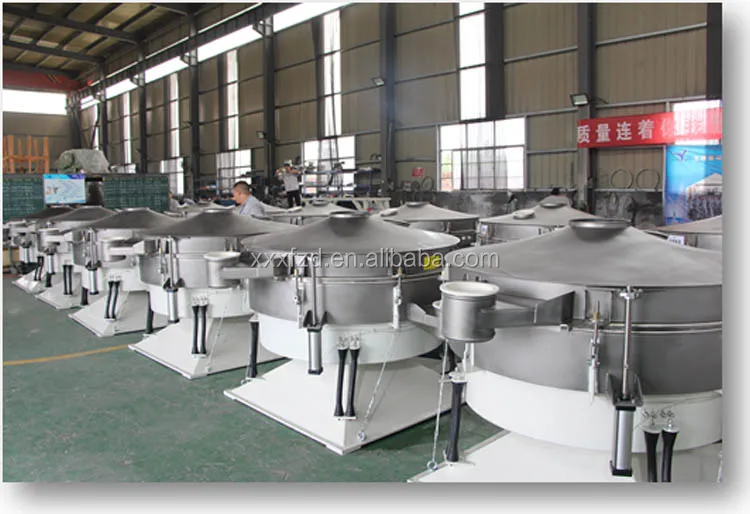

XIANFENG manufacturing facility occupied 15000㎡, with more than 100 skilled workers. Headquartered in Xinxiang, Henan, China. We deliver more than 5 million dollars of vibrating screen solutions per year, and market covers China, Saudi Arabia, USA, Africa, Southeast Asia, South America and Europe. With this type of facility and team, you can be assured that XIANFENG will provide you with the best product and service in the industry.








FAQ


Q : What details do I need to provide if I want to confirm the precise model?
A : 1. Material 's name to be screened or conveyed.
2. The particle size of material.
3. Whether the material contains water, and what's the water content.
4. Production of required equipment.
5. The voltage and frequency.

Q : What are your payment terms?
A : We accept T/T, L/C, west union and other payment terms.

Q: How can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;

Q: What can you buy from us?
A: Vibrating Screen Machine,Conveyor Equipment,Feeding Equipment,Screening Separation Equipment
