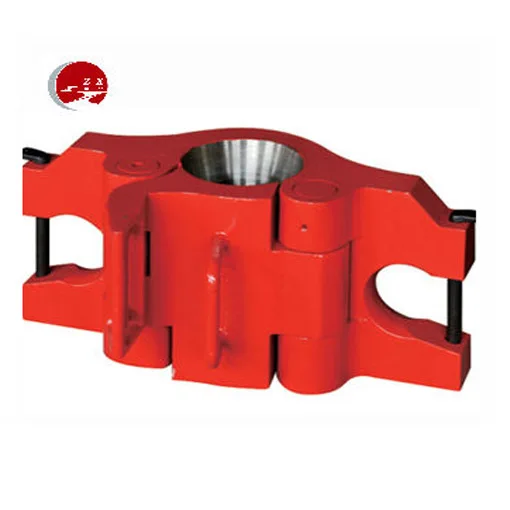

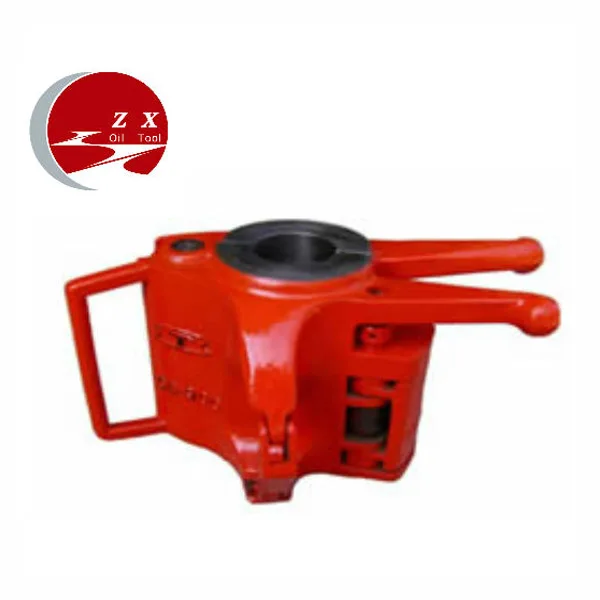

API 8C wellhead tubing elevator/drill pipe elevator of drilling rigs for oilfield

API 8C wellhead tubing elevator/drill pipe elevator of drilling rigs for oilfield

Price:RUB 26,778.57 - RUB 76,510.20

Quantity:

Product Description

1.high quality alloy steel processing, light weight, small size, big load, greatly reduce the work intensity.

2.composed of main parts, hand door, lock pin assembly and hand shank etc. through technological

transformation, the users can easily confirm the hand door open or not and greatly reduce the occurrence

of safety accidence.

3.double proofed safety pin has been invented after many years reaserch and practical operation, which

have obtained good reputation from the oilfield workers.

4.API Spe 8C

The specifications and main parameters

Technical parameters BD serices :

Specification CD series :

Model	Rated load Kn/US ton	Tubing specification		Diameters for elevators' holes (up and down)(in)	Net weight (lbs)
Model	Rated load Kn/US ton	in	mm	Diameters for elevators' holes (up and down)(in)	Net weight (lbs)
CD2 7/8-150	1335/150	2 7/8	73.0	3	161
CD2 7/8EU-150		2 7/8EU	73.0	3 1/4 / 3	161
CD3 1/2-150		3 1/2	88.9	3 1/4	168
CD3 1/2EU-150		3 1/2EU	88.9	3 7/8 / 3 1/4	168
CD4-150		4	101.6	4	187
CD4EU-150		4EU	101.6	4 3/8 / 4	187
CD4 1/2-150		4 1/2	114.3	4 5/8	209
CD4 1/2EU-150		4 1/2EU	114.3	4 7/8 / 4 5/8	209

Secification DD serices :

Model	Rated load kN/US ton	OP(oil pipe) specification		Diameters for elevators' holes (up and down)(in)	Net weight (lbs)
Model	Rated load kN/US ton	in	mm	Diameters for elevators' holes (up and down)(in)	Net weight (lbs)
DD2 3/8-150	1335/150	2 3/8	60.3	2 1/2 / 2 1/2	291
DD2 3/8EU-150		2 3/8EU	60.3	2 3/4 / 2 1/2	291
DD2 7/8-150		2 7/8	73.0	3/3	287
DD2 7/8EU-150		2 7/8EU	73.0	3 1/4 / 3	287
DD3 1/2-150		3 1/2	88.9	3 9/16 / 3 9/16	282
DD3 1/2EU-150		3 1/2EU	88.9	3 9/16	282
DD4 -150		4	101.6	4/4	276
DD4EU-150		4EU	101.6	4 3/8 / 4	269
DD4 1/2-150		4 1/2	114.3	4 5/8 / 4 5/8	267
DD4 1/2EU-150		4 1/2EU	114.3	4 7/8 / 4 5/8	265

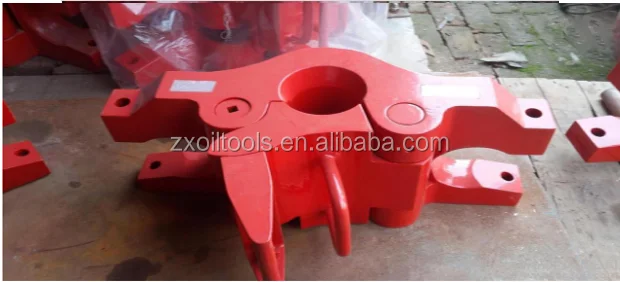

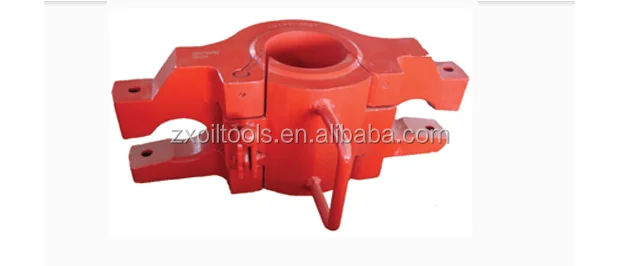

Product show :

.png
