Supply Fast Speed Water Well 400m Water Well Drilling Rig
US $19000-$30000

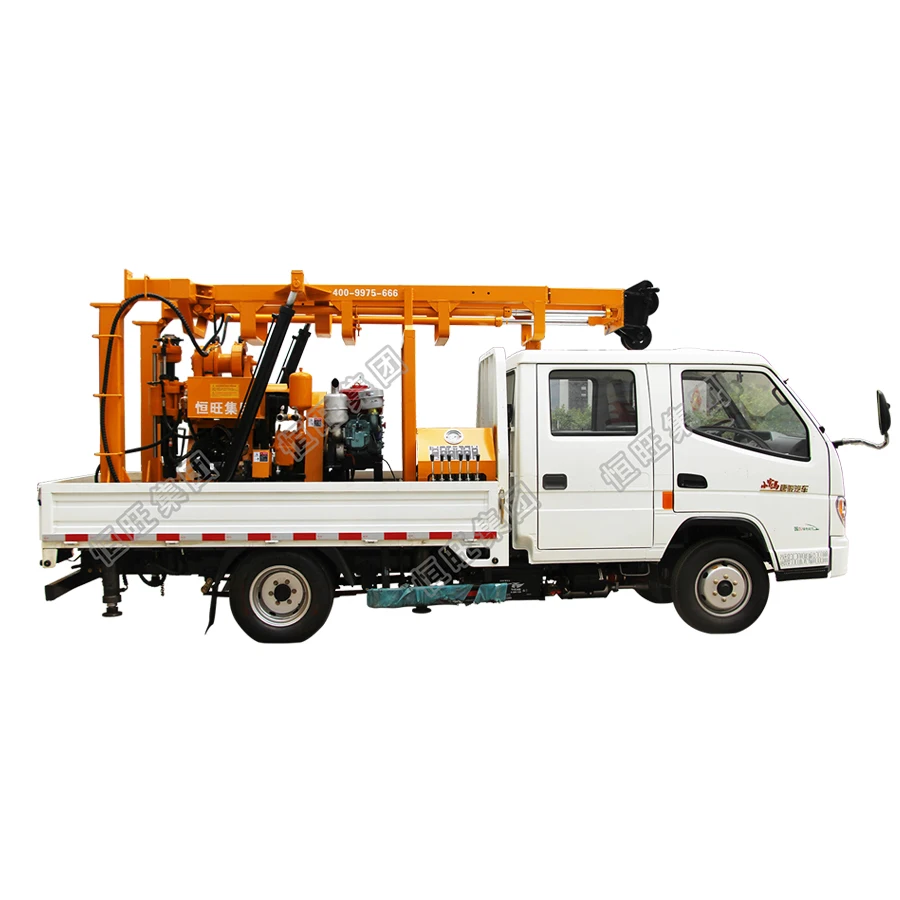

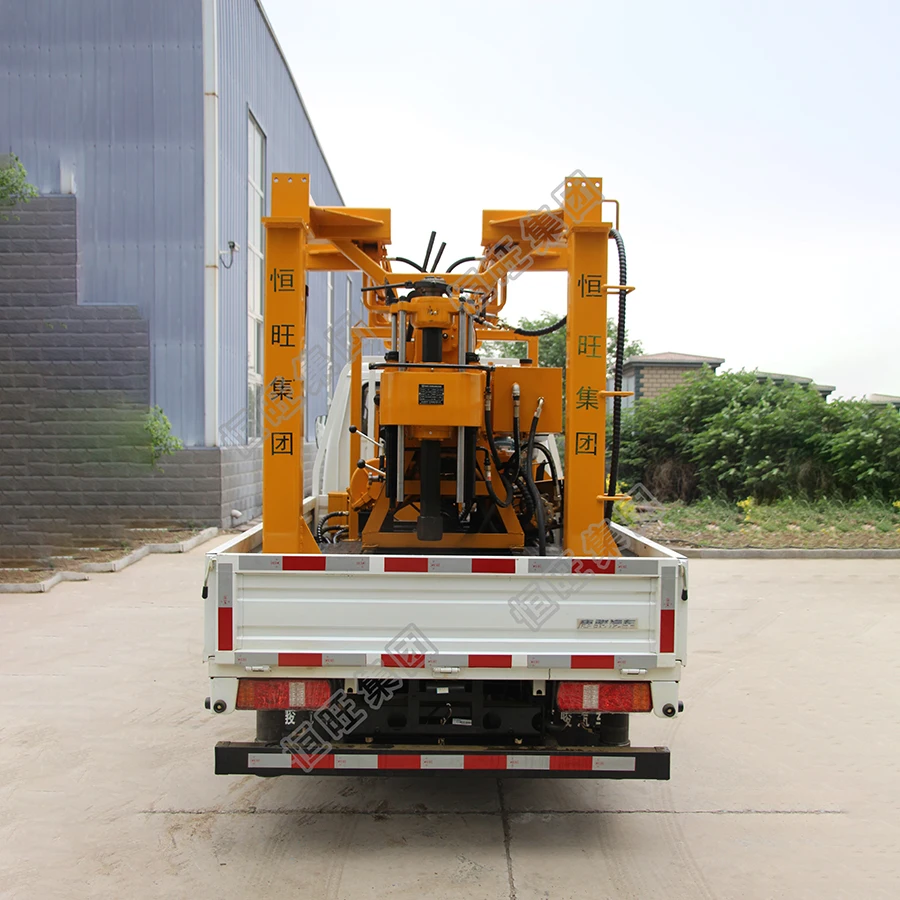

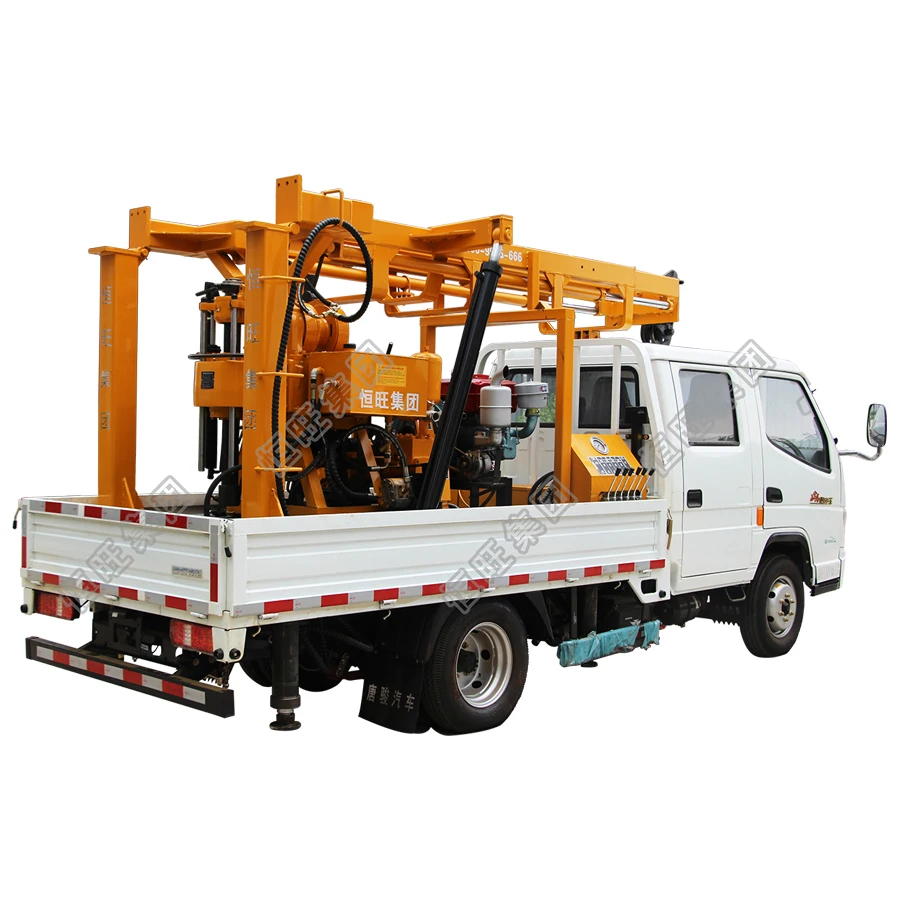

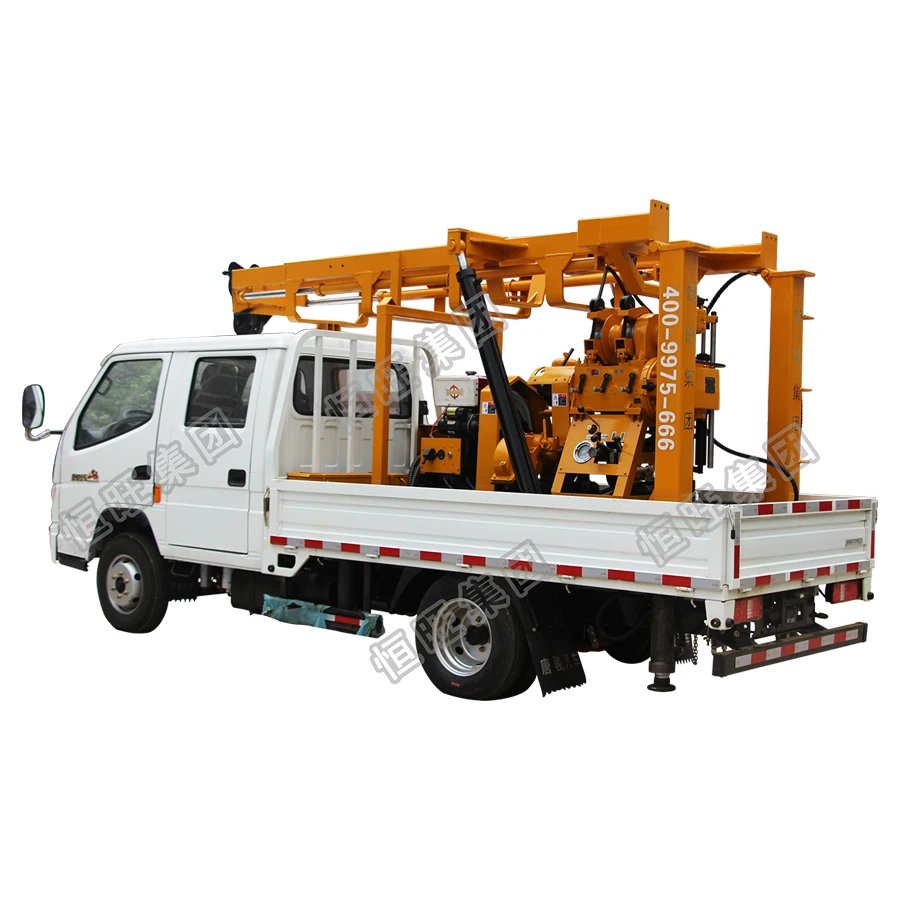

200 Meter Deep Truck mounted hydraulic spindle rotary drilling rig
- Category: Mine Drilling Rig >>>
- Supplier: Jining Hengwang Mining Machinery Co. Ltd.
Share on (62433298355):
Product Overview
Description
Product Description
Technical Parameters
Technical parameters of truck-mounted core drilling rig | ||||||
Model | HW-230C | XY-3C | ||||
Drilling depth ( m) | 30-230 | 30-600 | ||||
Drilling hole dia. (mm) | 300-75 | 300-75 | ||||
Drilling angle (° ) | 90-75 | 90-75 | ||||
Spindle speed (r/min) | 64 -557 | 30-1050 | ||||
Spindle stroke (mm) | 450 | 600 | ||||
Max winch lift capacity (kg) | 1600 | 3000 | ||||
Main winch steel wire capacity(m) | 35 | 65 | ||||
Reel lifting speed (m/s) | 0. 12-0. 95 | 0. 3-1.9 | ||||
Steel wire dia. (mm) | 12.5 | 12.5 | ||||
Drilling tower height ( mm ) | 6500 | 6500 | ||||
Weight without engine (kg) | 970 | 1800 | ||||
Diesel engine | ZS1115 | Yunnei YN27 | ||||
Rated power 14. 7kw/2200rpm | Rated power 39kw/2400rpm | |||||
Mud pump | BW-160 | BW-250 | ||||
Vehicle chassis | Mode I | Tangjun Jinlika double-column bar light truck | (CA1167PK2L2E4A80) New Sailong medium truck | |||
Drive type | 4*2 | 4*2 | ||||
Model | Quanchai 4B2-95C40 | BF4M2012-16E4 | ||||
Diesel engine | Emission standard | GB3847-2005, GB17691-2005 | GB3847-2005, GB17691-2005 | |||
Rated power (kW) | 70 | 121 | ||||
Features
1, Truck-mounted drilling rigs are hydraulic spindle rotary drilling rig.

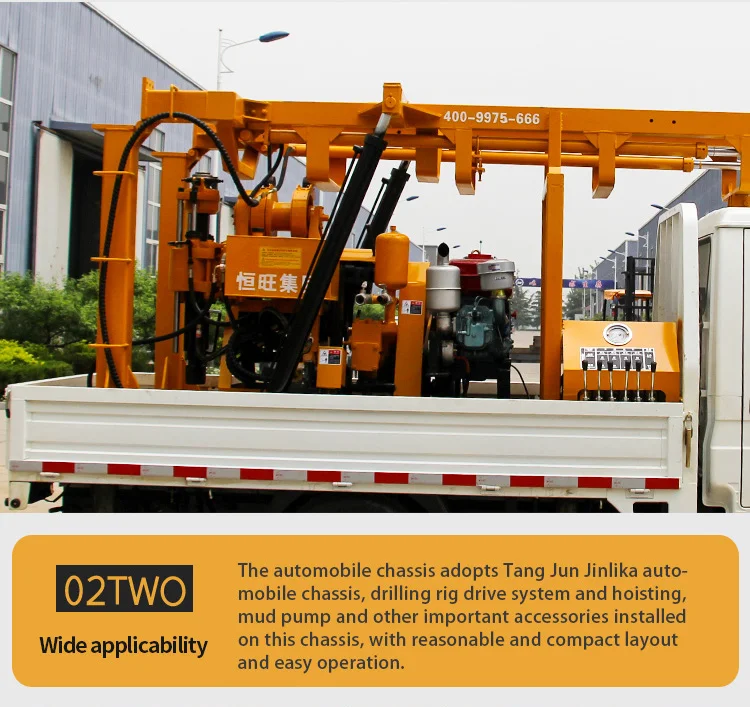

2, HW-230C uses Tangjun Jinlika chassis,XY-3C uses Qingdao Sailong medium truck chassis,drilling rig and mud pump are installed on the chassis.Reasonable and compact layout,easy to operate.

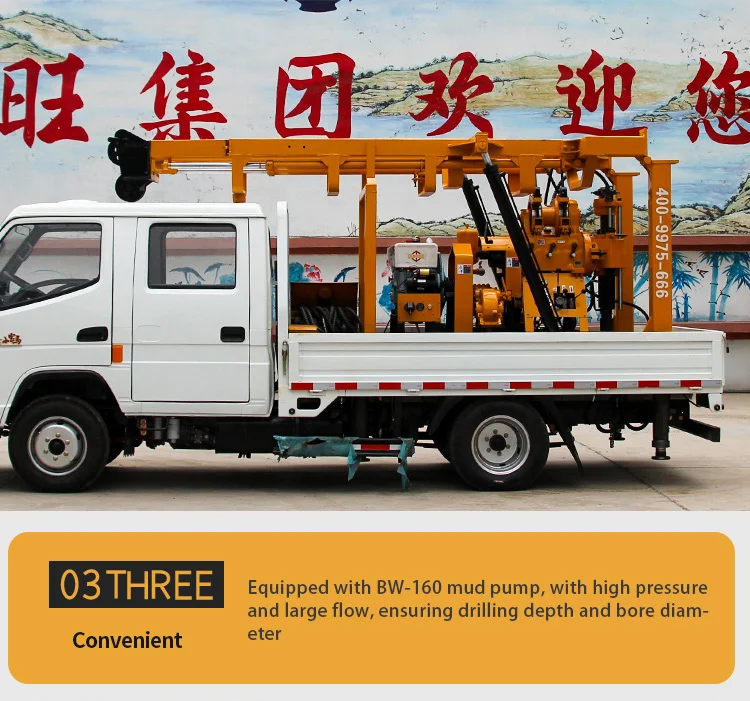

3, Configurating with BW-160 or BW-250 mud pump,high pressure,big flow,it ensures drill depth and diameter.

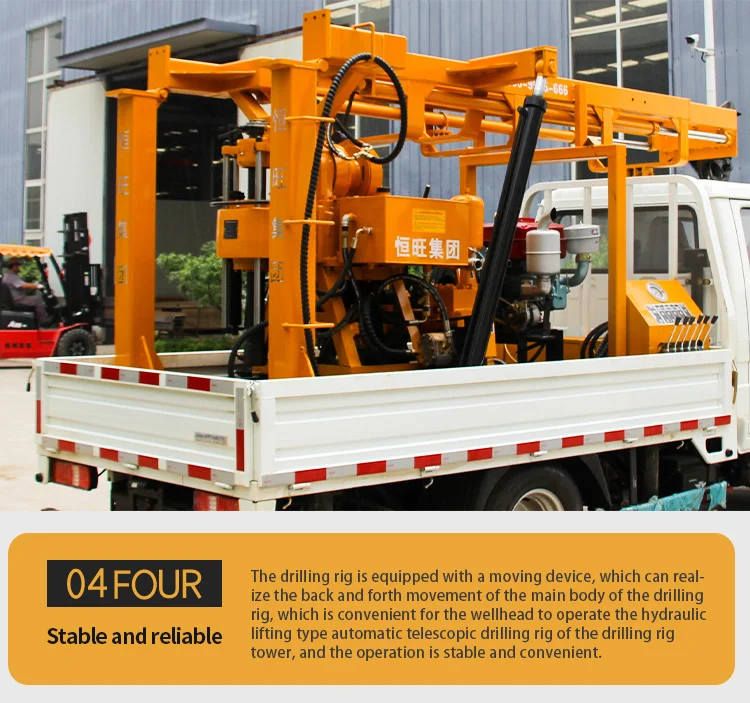

4, Drilling rig self-equipped with mobile devices,drilling rig moves back and forth,and it is convenient for wellhead operation.
5, Drilling rig tower hydraulic up and down and automactic telescopic drilling tower,safe and convenient operation.
2, HW-230C uses Tangjun Jinlika chassis,XY-3C uses Qingdao Sailong medium truck chassis,drilling rig and mud pump are installed on the chassis.Reasonable and compact layout,easy to operate.
3, Configurating with BW-160 or BW-250 mud pump,high pressure,big flow,it ensures drill depth and diameter.
4, Drilling rig self-equipped with mobile devices,drilling rig moves back and forth,and it is convenient for wellhead operation.
5, Drilling rig tower hydraulic up and down and automactic telescopic drilling tower,safe and convenient operation.

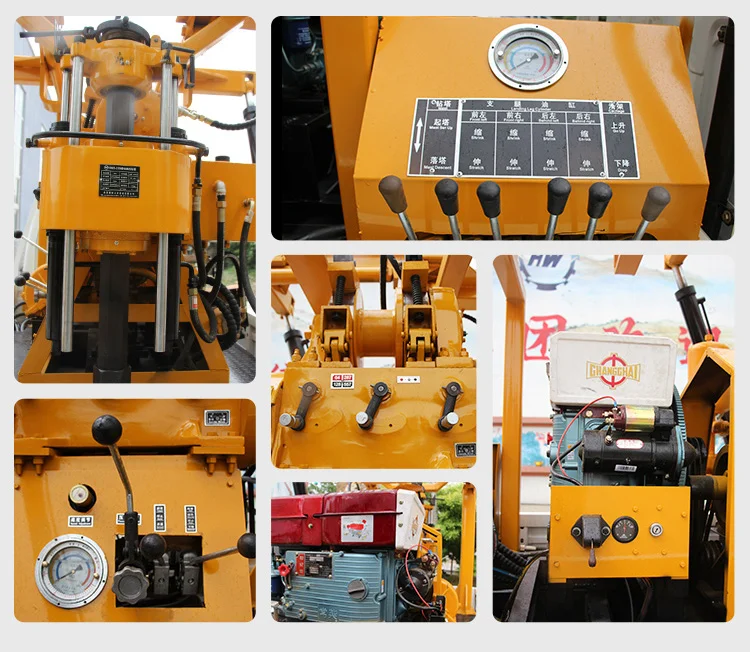

Details Images
Spare parts
Product packaging
Packaging | ||
Size | According to truck size | |
Weight | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
