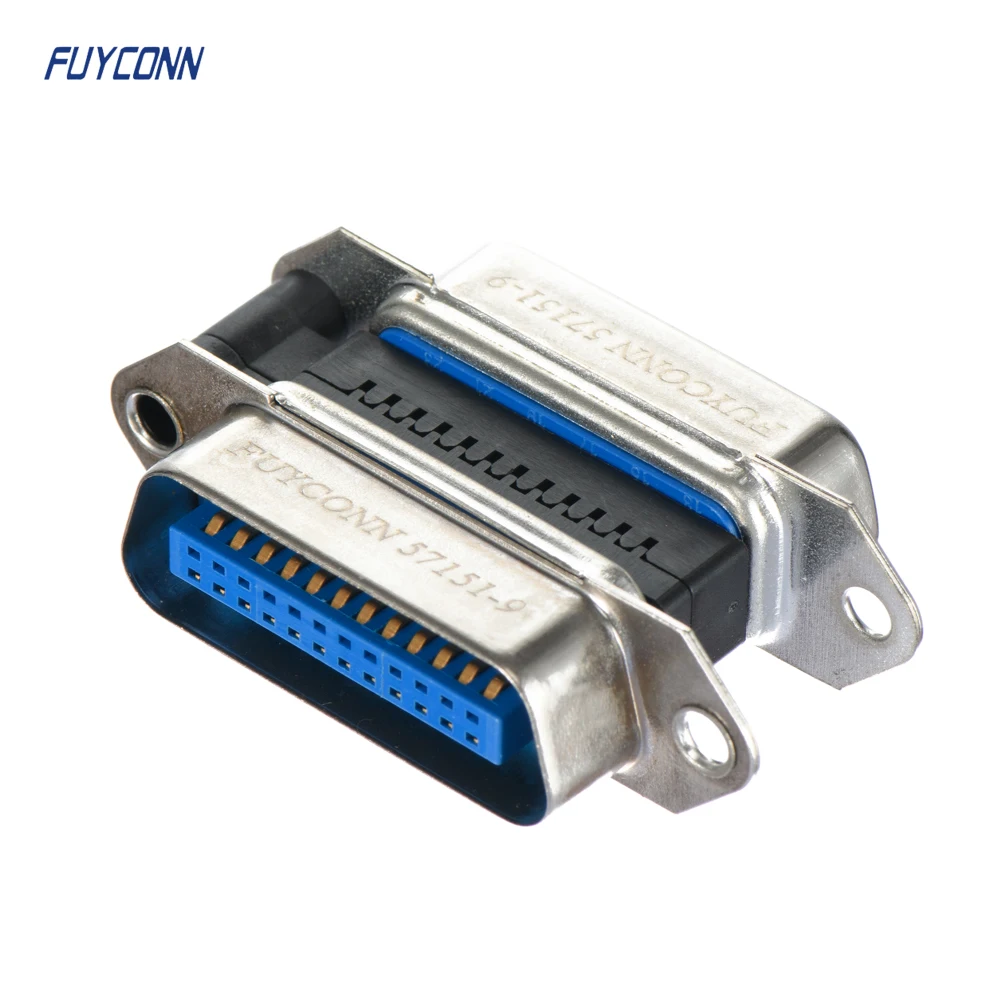

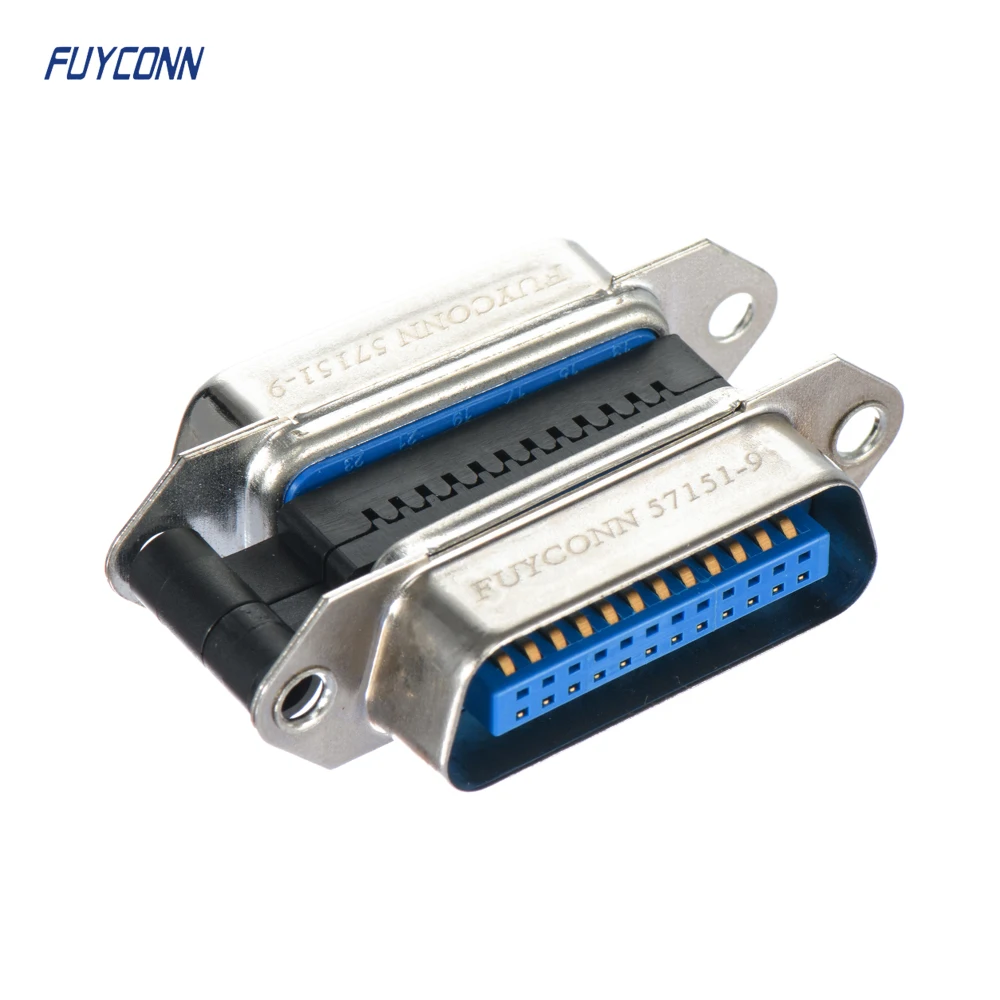

Female to Male CN24 IEEE488 Connector, 24 pin Male IDC Crimping Centronic Connector for GPIB Cable
- Category: >>>
- Supplier: Dongguan Fuyconn Electronics Co. Ltd.
Share on (62433336296):
Product Overview
Description
IEEE488 24pin Centronic Connector, Champ 2.16mm Pitch IDC Crimping IEEE-488 CN24 Male to CN24 Female Connector for GPIB Cable
The DataPro 1488 series cable is commonly used to extend an HPIB or GPIB bus (used by Hewlett-Packard). This stands for Hewlett-Packard Interface Bus or General Purpose Interface Bus, and is also known as IEEE 488.
IEEE 488 stacking connectorsIEEE 488 is a short-range digital communications 8-bit parallel multi-master interface bus specification. IEEE 488 was created as HP-IB (Hewlett-Packard Interface Bus) and is commonly called GPIB (General Purpose Interface Bus). It has been the subject of several standards.
Why Choose Us
1, 16 years Centronic Connector production experience
2, R&D engineers with over twenties years' working experience
3, Thousands molds for your choice
4, UL Certificted, ROHS compliant
5, Factory-direct price
6, Free sample within 2 days
7,With short lead time, within one week for normal products.
8, No MOQ, you can try our products and services easily
9,Customer’s Logo can be added on to product and package
10,Plastic Inject workshop, Stamping workshop, Assembly production lines. we are able to control quality, costs, delivery time better than our competitors.
2, R&D engineers with over twenties years' working experience
3, Thousands molds for your choice
4, UL Certificted, ROHS compliant
5, Factory-direct price
6, Free sample within 2 days
7,With short lead time, within one week for normal products.
8, No MOQ, you can try our products and services easily
9,Customer’s Logo can be added on to product and package
10,Plastic Inject workshop, Stamping workshop, Assembly production lines. we are able to control quality, costs, delivery time better than our competitors.
Product Description
Product features | |
1. Product Name: | Centronic Connector |
2. Product Line: | IEEE 488 Connector |
3. Connector Type | IDC Crimping |
4. Connector Gender: | Male to Female |
5. Number of Position: | 24pin |
6. Contact Material: | Phosphore Bronze |
7. Contact Plating: | 1U", 3U", 5U", 10U", 15U",30U" |
8. Insulation Material: | PBT |
9. UL Flammability Rating | UL-94-V0 |
10. Mount | Ribbon Cable Mount |
11. Pitch | 2.16mm |
12. Certification | UL Certificated |
Electrical Specifications | |
1. Current Rating: | 5Amp |
2. Voltage rating: | DC 1000v per minute |
3. Insulator Resistance: | 1000Mn MIN.(at 500V DC) |
4. Operation Temperature: | -55°C to +105°C |
Application
The usual application for this cable is with laboratory test equipment. It is an 8-bit parallel interface for stringing up multiple communicating instruments for control by a single computer and/or other instruments.
Related Products
Packing&Shipping
Strong Package
1, Vacuum Tray
2, PE Bag
3, Take strong bags/boxes/cartons
4, PE Bag + Strips
Company Profile
Dongguan Fuyconn Electronics Co,. Ltd
Established in 2004, Dongguan Fuyconn Electronics specializes in IT and communication connectors. Our main products include 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, D-SUB connector, SCSI series and RJ series. We have over 1,000 models for you choice.
Our products are UL- and SGS-certified and are compliant with the RoHS Directive. Our product defect rate is less than 0.5% and 99% of our customers repeat their orders with us. Our ISO 9001:2008- and ISO 14001:2004-certified factory covers a total of 5,000 square meters with R&D Department, molding workshop, Plastic Inject workshop, Stamping workshop, Assembly production lines.
