Hot Sale Automatic Of Paint Lotion Bottle Filler Bucket Epoxy Paste Filling Machine
- Category: >>>
- Supplier: Guangzhou ABCDPACK Machine Co. Ltd.
Share on (62433351197):
Product Overview
Description
Product Description
Hot Sale Automatic Bucket Of Paint Filling Machine Lotion Bottle Filler
How It Works:
The piston is drawn back in its cylinder so that the product is sucked into the cylinder. A rotary valve then changes position so that the product is then pushed out of the nozzle instead of back into the hopper.
Application:
This type of piston filler is best suited for viscous products that are paste, semi paste, or chunky with large particlates. These piston fillers are built to meet food grade standards and can also handle various chemical applications.
Examples:
Heavy sauces, salsas, salad dressings, cosmetic creams, heavy shampoo, gels, and conditioners, paste cleaners and waxes, adhesives, heavy oils and lubricants.
Advantages:
This lower cost conventional technology is easy to understand for most users. Fast fill rates are achievable with fairly thick products. Warning: this technology is nearly obsolete with the advent of servo positive displacement fillers.
Data sheets
Data sheets | Details |
Name and model | AXGZ-SB-8B PLC control inverter motor driving piston filler |
Max filling speed | filling 200ml, 2000~4000pcs/hour, speed will be different when bottle shape and neck size and the filling material forming and other physical property |
Applicable bottle diameter size |
Φ20 ≤D≤Φ100mm |
Applicable bottle height size | 30≤H≤300 mm |
Filling dose | 100~ 1000ml |
Filling accuracy | ±1% |
Voltage | AC220V, single phase, 50/60HZ |
Power | 2.0KW |
Working pressure | 0.6MP |
Air consumption | 700L one hour |
Net weight | 700 /900 Kgs |
Machine size(L*W*H) | 2000*1200*2250mm |
Machine direction | from left to right |
Operation process | put products on conveyer—>Block bottles—> sensor count the empty bottle—> 8 bottle come into the filling station —>lock bottles —>starting filling —> filling finished —> loose Block bottles—> Output bottles |
Object sensor | KEYENCE (Janpan ) |
Cylinders | Airtac or SMC (according customer requirements) |
PLC | Siemens |
Touch Screen | Siemens |
Basic construction | SUS304 & anodized aluminum alloy |
Material contact parts made | SUS304 or SUS316 according order |

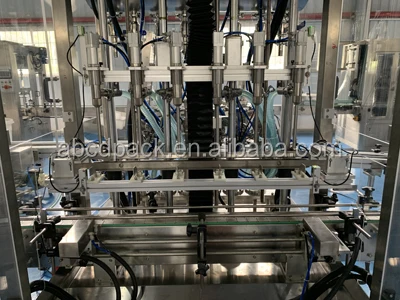

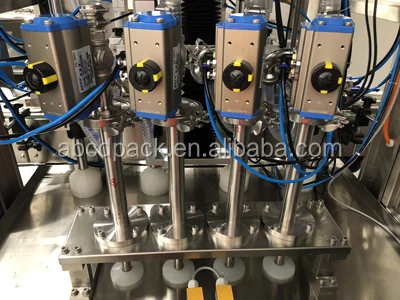

Detail image

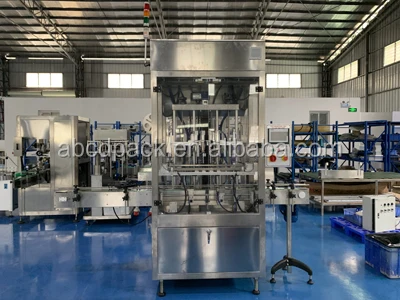

Automatic Lotion Filling Machine
Samples
This piston filling machine is also suitable for:
Heavy sauces, salsas, salad dressings, cosmetic creams, heavy shampoo, gels, and conditioners, paste cleaners and waxes, adhesives, heavy oils and lubricants.
Packaging & Shipping
Packaging Details:
Filling machine packed by packed with seaworthy strong wooden case as the general export package. We use carton as inner packing, in case of damage in the course of carriage, we also can pack it according to clients' requirements
Port: Guangzhou
Lead Time : 30 working days after payment.
