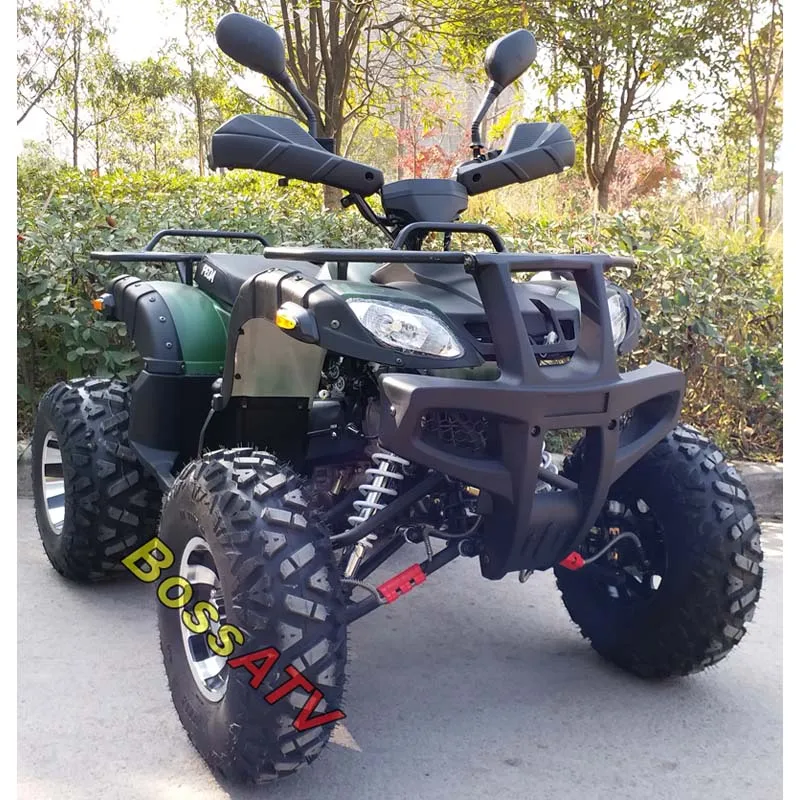

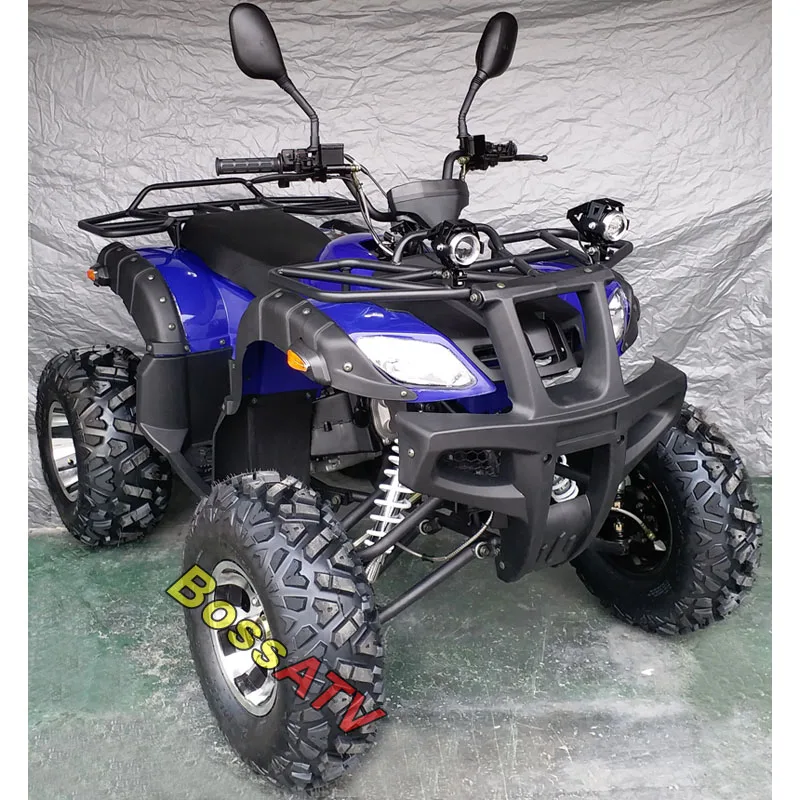

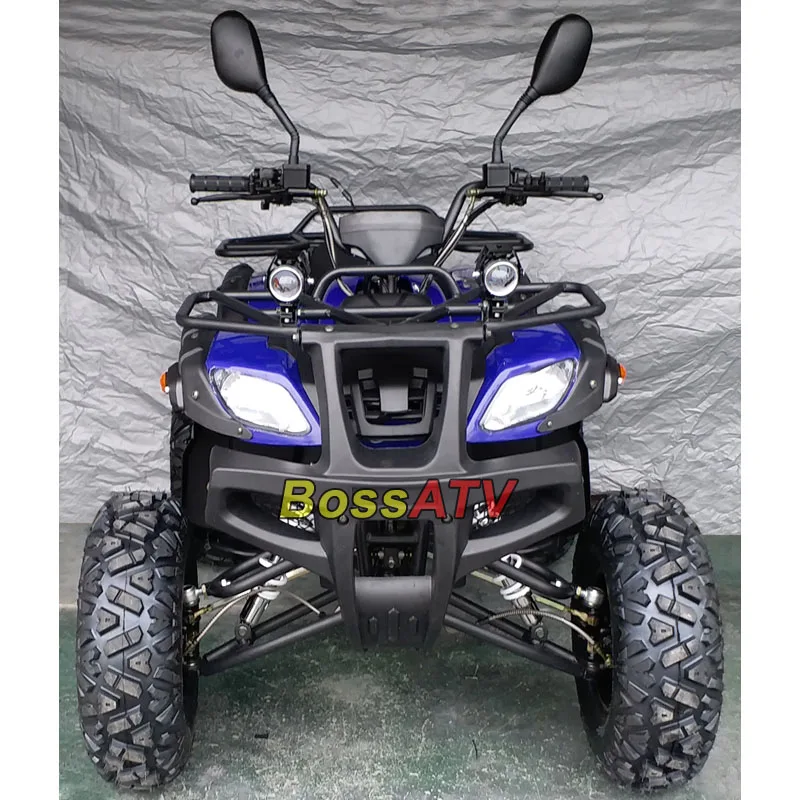

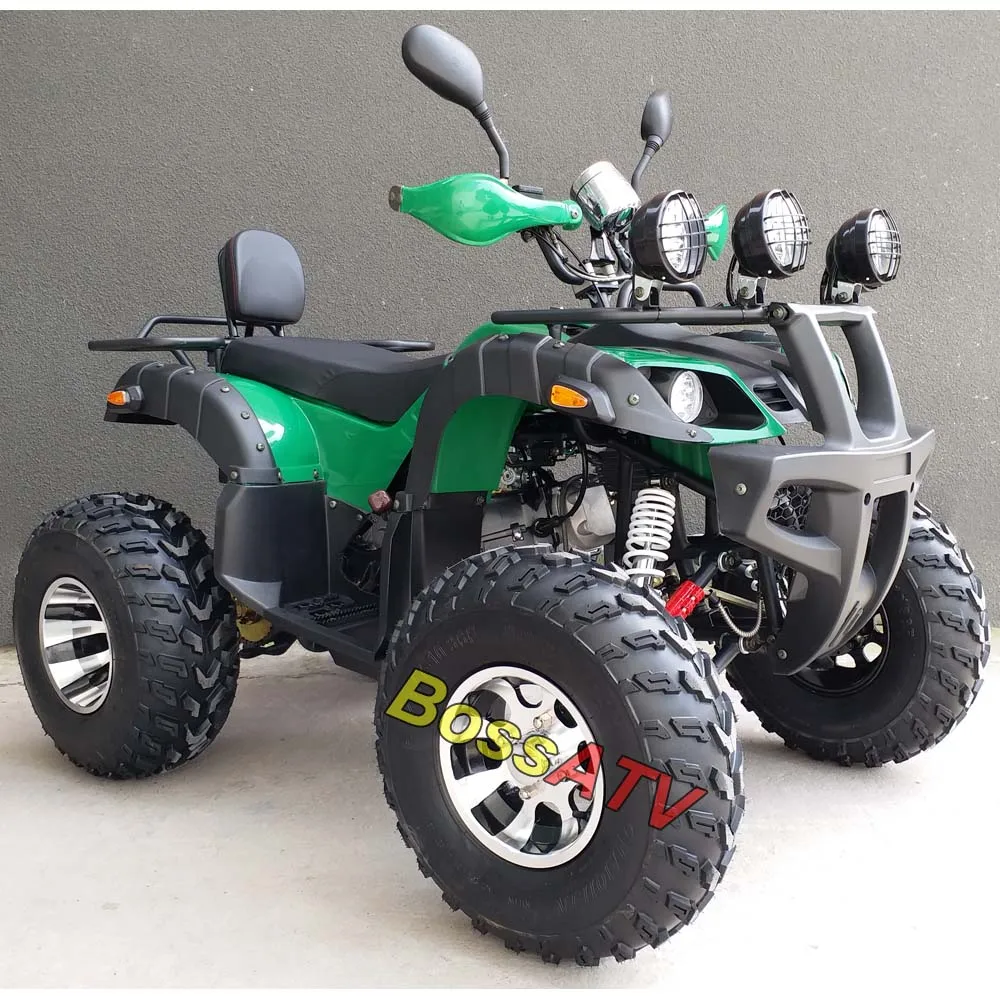

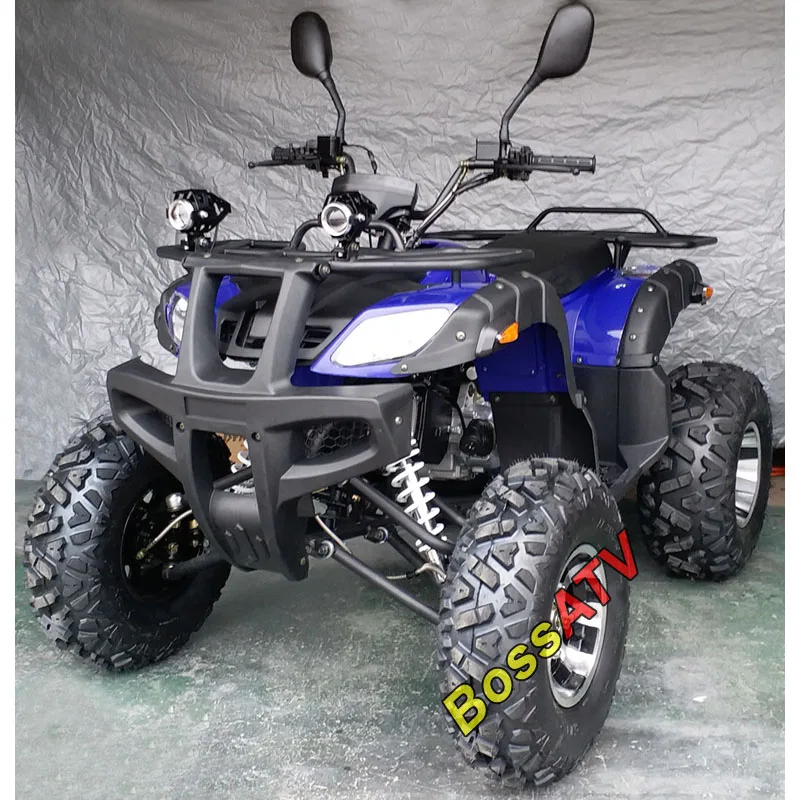

150cc GY6 ATV 200cc GY6 ATV 150cc automatic ATV

Engine

Engine Type

Single cylinder, air-cooled, 4-stroke, fully automatic with reverse

Engine Displacement

150cc or 200cc oil-cooled

Bore & Stroke

57.40x57.80mm[200cc: 62.5x57.4mm]

Compression Ratio

9.2:1[200cc: 10:1]

Carburetor

Carburetor

Max. Power Output

6.0kW/(7500r/min) [200cc: 7.3kW/(7500r/min)]

Max. Torque

8.3N.m/(5500r/min)[200cc: 10N.m/(6000r/min)]

Ignition

CDI

Starter

Electric start + kick start

Drive Train

Clutch

Fully automatic

Gearbox

1 forward, neutral and 1 reverse gear

Final Drive

Chain

Dimensions and Weight

Length x Width x Height

1,770 x 1,200 x 1,320mm

Wheelbase

1,160mm

Front Tread

950mm

Rear Tread

760mm

Seat Height

680mm

Foot Step to Seat

480mm

Fuel Capacity

7.8L, metal tank

Dry Weight

195kg

Max. Load

250kg

Wheels, Suspension and Brakes

Wheels Front

14’ alloy rim

Wheels Rear

14’ alloy rim

Tyres Front

235/30-14

Tyres Rear

235/30-14

Suspension Front

Independent double-wishbone

Suspension Rear

Swing arm with single shock

Brakes Front

Dual hydraulic disc brakes(Hand operated)

Brakes Rear

Hydraulic disc brake(Hand operated or foot operated)

Packing

Carton Size

152x87x85cm

G.W./N.W.

195/170kg

Container Load

14pcs/30pcs/45pcs
