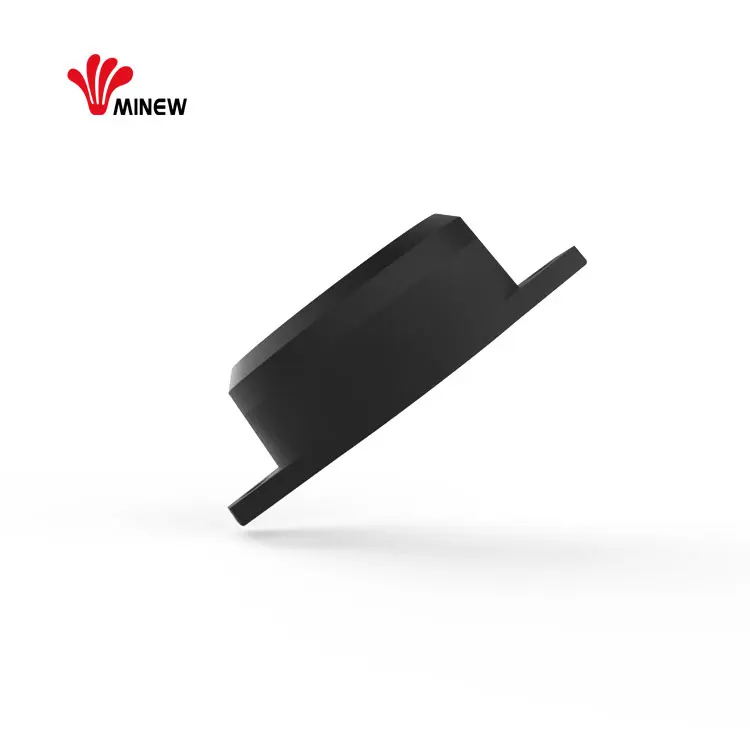

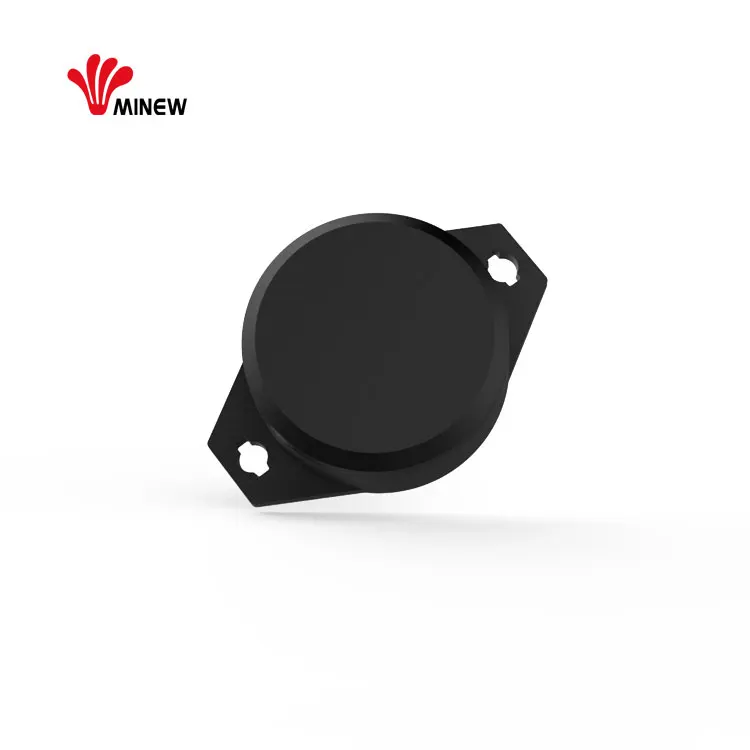

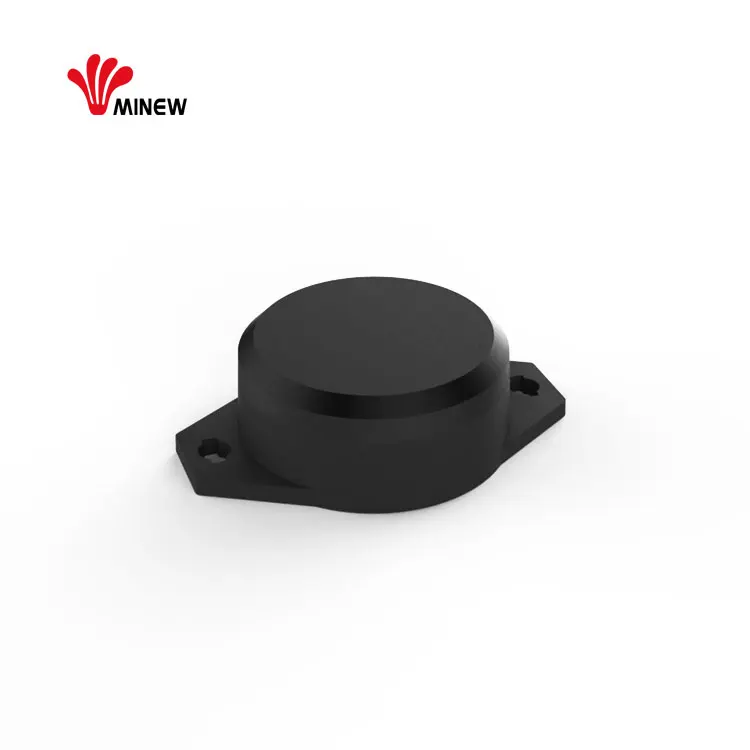

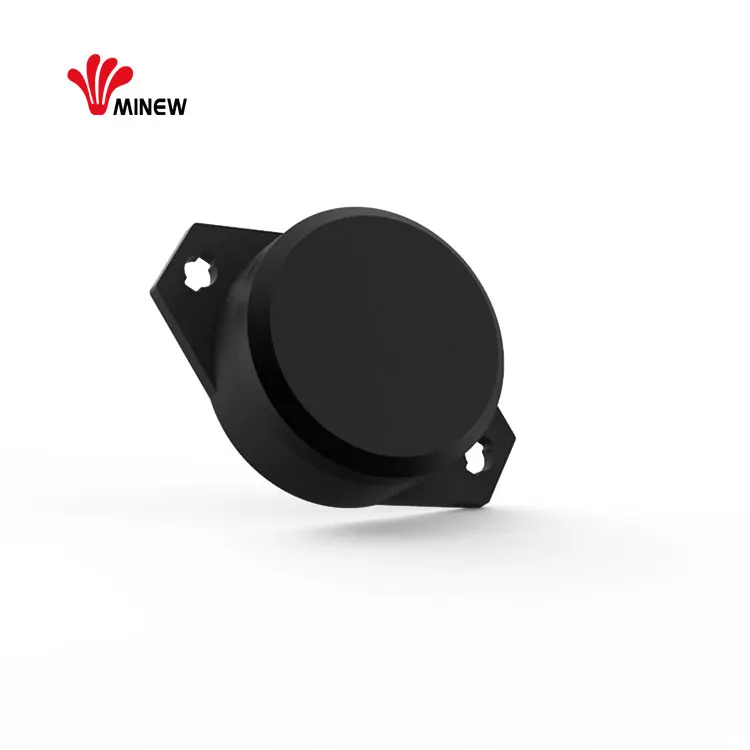

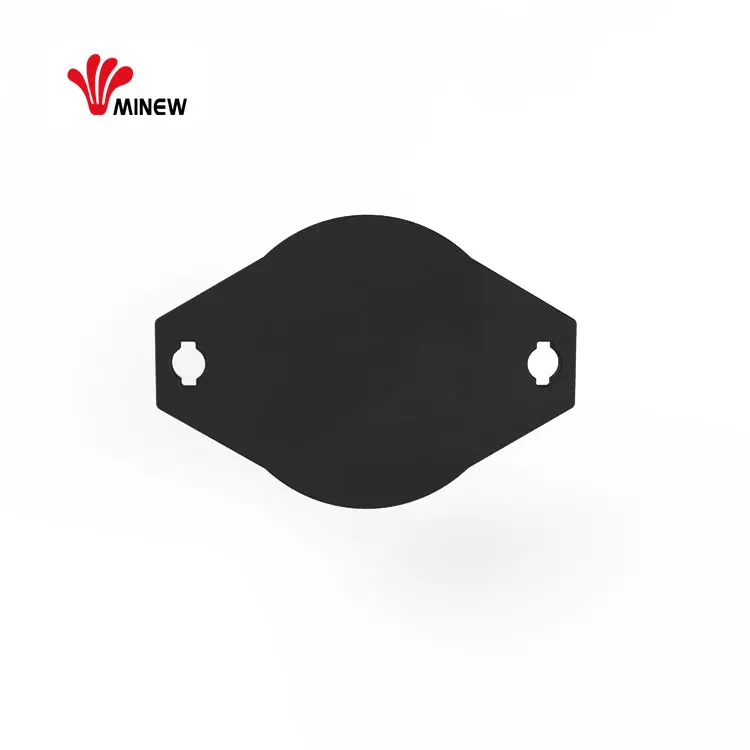

Smart Ble 5.0 Beacon High Accuracy Temperature Sensor E9
- Category: >>>
- Supplier: Shenzhen Minew Technologies Co. Ltd.
Share on (62433550259):
Product Overview
Description
NRF52832 Accelerometer Sensor Beacon Temperature Data Logger
Product Description
Item | Value | Remarks |
Case color | Black | Other colors can be customized |
Battery Model | 1 x CR2477 | 1pc CR2477 coin battery, 1000mAh, 3.0V |
Operation voltage | 1.8-3.9V | DC |
Transmission current | 5.3mA (Max.) | Tested at 0dBm transmission power |
Transmission range | 100meters | Maximum |
Waterproof level | IP67 | Tested at 1 meter water |
Broadcasting interval | 900ms | Null |
Antenna | 50ohm | On board / PCB Antenna |
Accessories | Screws/Double adhesive | 2pcs/1pc, high-strength, 3M |
Size | Ø49 x 66 x 17.5mm | 49mm diameter, 66mm length, 17.5mm height |
Sensor option | Temperature sensor optional | / |
Certification | CE FCC | / |
Application | Asset management,indoor navigation, temperature monitoring | / |
Features
- Advertising standard iBeacon&Eddystone
- Unique MAC address (ITU)
- Bluetooth 5.0 chipset nRF52 series
- Included 1pc CR2477coin battery replaceable
- The max.100meters advertising distance
- IP67 waterproof and long life for asset tracking
- Have the version that with temperature sensor or Accelerometer.
- E9 is a low energy beacon,with UUID,Major,Minor programmable.You could set those parameters as well as transmission power, broadcast internal ... via our comfiguration APP " BeaconSET+ ". And even regrammed of firmware upgrade On The Air.
- We offer free SDK/API download link for free,also cloud platform is available.
- Unique MAC address (ITU)
- Bluetooth 5.0 chipset nRF52 series
- Included 1pc CR2477coin battery replaceable
- The max.100meters advertising distance
- IP67 waterproof and long life for asset tracking
- Have the version that with temperature sensor or Accelerometer.
- E9 is a low energy beacon,with UUID,Major,Minor programmable.You could set those parameters as well as transmission power, broadcast internal ... via our comfiguration APP " BeaconSET+ ". And even regrammed of firmware upgrade On The Air.
- We offer free SDK/API download link for free,also cloud platform is available.
Application
TRACKING | NAVIGATION | SERVICES |
Item tracking | Indoor positioning | Contactless ticket and payment |
Staff tracking | Robotic navigation | Check-in control |
Customer tracking | Store mapping | Location based service |
Moveable tools tracking | Parking space advisor | Location dependent content |
Vehicles tracking | Seat locator | Loss protection |
Movement patterns | Room navigation | Security alerts |
Personnel Location
To monitor the real time personnel locates at the events or exhibitions
Asset Management
Deploying sensor tag on the assets to monitor assets
Other products
G1 Gateway
Temperature and humidity sensor
Accelerometer sensor
Long rang and long life time beacon
Small size beacon
Temperature and humidity sensor
Accelerometer sensor
Long rang and long life time beacon
Small size beacon

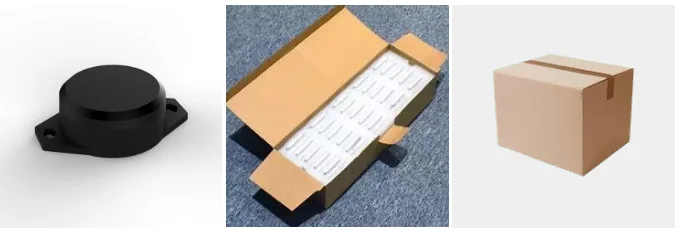

Packing & Delivery
Package Information
Details | Industrial Box | Master Carton |
Quantities | 20 pcs/box | 200pcs/box |
Size | 30.5*11*7.5cm | 32*23.5*40cm |
For samples:
we would send samples via DHL Express within about 2 days after payment, then you would receive them in about 4 to 5 days.
For orders:
bulk orders usually take about 2 to 3 weeks after payment received.
we would send samples via DHL Express within about 2 days after payment, then you would receive them in about 4 to 5 days.
For orders:
bulk orders usually take about 2 to 3 weeks after payment received.
Company Information
Founded in 2007,Minew has been engaged in IoT (Internet of Things) field for years and is keeping updated
to the market demand all along.
We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products.
We focus on designing and manufacturing many different high quality and low cost iBeacons hardware,offering one-stop services
include:
1. Schematic design;
2. Mold design;
3. PCB layout;
4. Firmware design;
5. Production and assembling.
Warmly welcome the OEM and ODM projects
Certifications
We pass the ISO9001 quality control system certification
Other certifications available: CE / FCC / RoHS / BQB / IC / ATEX / RCM / Telec. etc
Other certifications available: CE / FCC / RoHS / BQB / IC / ATEX / RCM / Telec. etc
R&D center
50+ R&D Experts for :
Hardware design
Firmware /software design
Mechanical design
Mobile application design
Cloud platform design
Hardware design
Firmware /software design
Mechanical design
Mobile application design
Cloud platform design
OEM & ODM Services
Minew is a professional turnkey manufacturer with the ability to bring your concepts and ideas into reliable solution.
We work with many startups and top-class corporations at all stages of design and manufacture. Our factory equips with quick response and flexible manufacturing system to support all different demands.
Exhibition
Every year we will attend many exhibitions like CES, Cebit, MWC to exhibit our lastest technologies and new coming products.
FAQ
1.How to order samples?
-You can contact us by sending an inquiry on Alibaba.
-You can pay the samples via Paypal/Alibaba Trade Assurance/TT, samples can supply from stock. you can receive the samples within 3-4 days after you pay it.
2.What service we will offer after sample order?
The following technical data and documents will be provided.
1.SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions
3.How long will it take for producing volume orders?
-If we have pcb in stock,the lead time is 2-3 weeks
-If there is not enough pcb in stock,the lead time is 3-4 weeks.
4.Can you customize the logo/mac address on the interface of this bluetooth ibeacon?
-Yes.
5.Can you make pre-configuration (pre-program the uuid,major,minor,etc)?
-Yes,we can make pre-configuration in our factory with free of charge.
