IP68 Наружный свет нейлон PA66 винт 2Pin 3Pin Водонепроницаемый Электрический разъем
- Category: >>>
- Supplier: Shenzhen Weichat Technology Co. Ltd.
Share on (62433612134):
Product Overview
Description

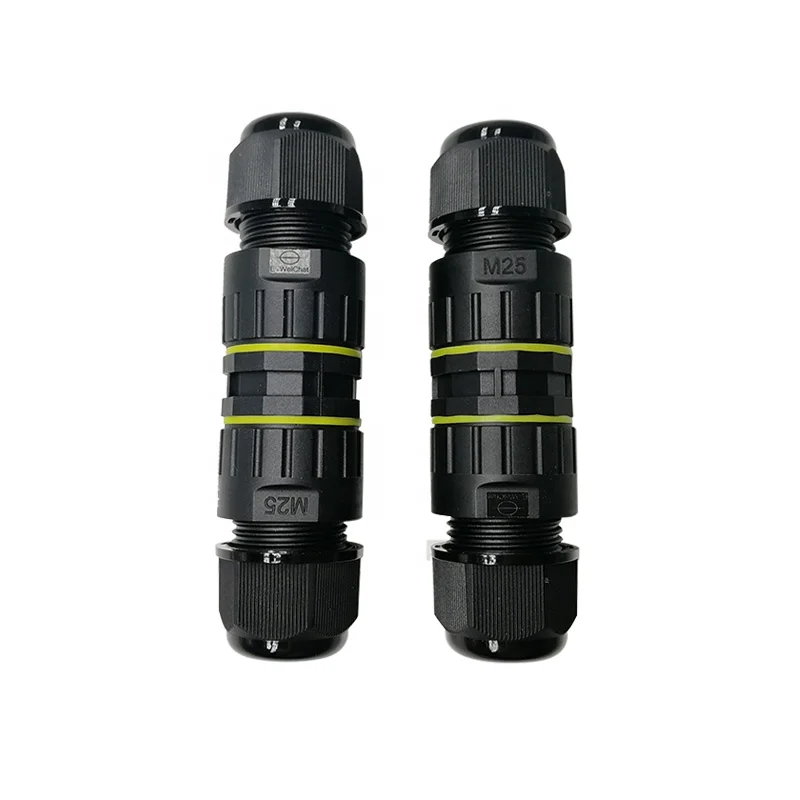

IP68 Outdoor Light Nylon PA66 Screwless 2Pin 3Pin Waterproof Electrical Connector
Product Description
| Specifications |
| ELECTRICAL CHARACTERISTICS | |
| Item | 3 pin waterproof electrical connectors |
| Number of Poles | 2Pin 3Pin |
| Operating current | 24A |
| Operating voltage | 400V |
| MECHANICAL CHARACTERISTICS | |
| Protection against solid/water (IP) | IP68(4m, 365 days) |
| CABLE CHARACTERISTICS | |
| Wire cross-section min.-max. (stranded cable) | 0.08mm² - 2.5mm² |
| Wire cross-section min.-max. (solid cable) | 0.08mm² - 2.5mm² |
| Cable Diameter min-max | 4.7-9mm,9-12mm,10-14mm (for cables with diameter cables please take the proper accessory) |
MATERIAL CHARACTERISTICS | |
| Connector housing | PA66 UL94-V2 |
| Cable gland | |
| Sealing | silicone |
| Grommets | silicone |
| Screws | Zinc |
| Material properties | Halogen Free |
| Operating temperature range | -40℃/+105℃ |
Related Items
Advantages
The 3 pin waterproof electrical connectors provide IP68 rated water and dust protection, can be immersed up to 4m in water, It is important for your protection electricity.
Pa66 Material, high strength, fireproof, resistance to climate variability and excellent geometric stability.
Application
The 3 pin waterproof electrical connectors applied for: LED(Architectural lighting/Floodlight/Wall Luminaires/Street light/indoor appliances/Urban luminaires/Spotlights);ect.
Click here for more information!
Company Information
| Shenzhen E-Weichat Technology Co., Ltd |
Shenzhen Weichat Technology Co.,Ltd is a trade and manufature combined company, our main products are IP68 waterproof connectors, 3 pin waterproof electrical connectors ,quick wire connectors, terminal blocks, waterproof glands and PCB connectors. Most of products have UL, CE, TUV ,SAA,ROHS certification.We can also meet your custom requirements.
| Certification |
The 3 pin waterproof electrical connectors have obtained the UL/SAA/ROHS/CE/TUV certificates.
Exhibition
Click here for more information!
| Customers Reviews |
Packaging & Shipping
Trade term: EXW, FOB, CIF
Port: Shenzhen
MOQ: 300pcs
Sample Availability: Yes
Supply capability: 10000 pcs/week
Shipment: ocean or air transportation, international express
Payment: T/T, Western Union, etc
Normal lead time: 3 days for sample order; 7-15 days for the production
Packing: carton box
FAQ
Q 1. How can we get the samples? Is it free?
We provide free 3 pin waterproof electrical connectors samples by express, but the express charge should be paid by your side .
Q 2. Do you have a minimum order?
Yes, usually our MOQ is 300pcs
Q 3. What about the lead time?
We have this item in stock, mass production needs further discussion.
Q 4.Can I print my logo on the watertight ip68 connectors?
Yes. We welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our sample.
Q 5.How long is the delivery time?
It depends on the quantity.
A few goods,we promise to sent in 1-3 days. Most have in stock.
A big order,we promise to sent in 15-30 days.
Q 6.Which shipping method do you provide?
A few goods will be sent by express.
A big order can be sent by air or by sea, just according to your demand.
