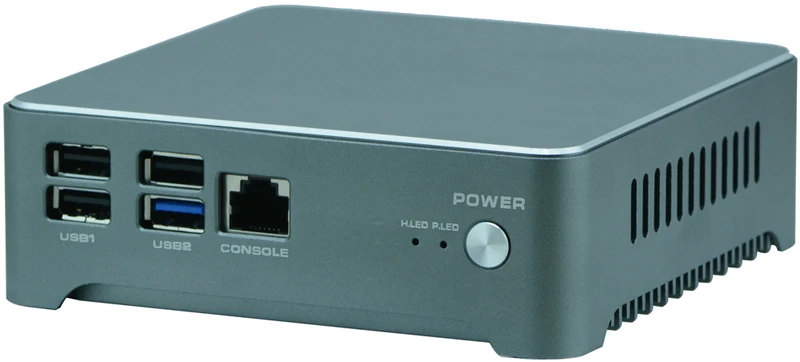

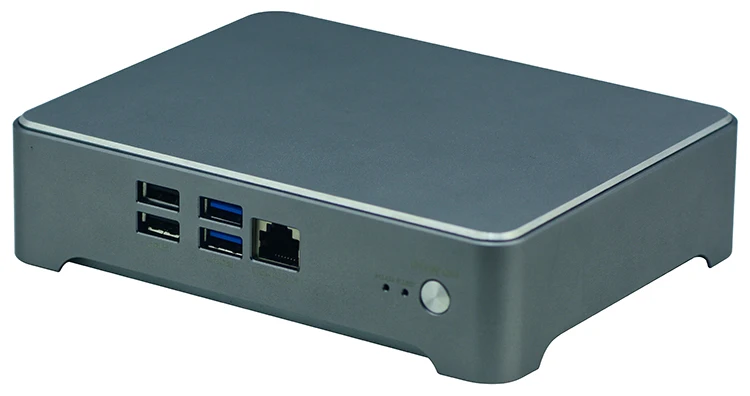

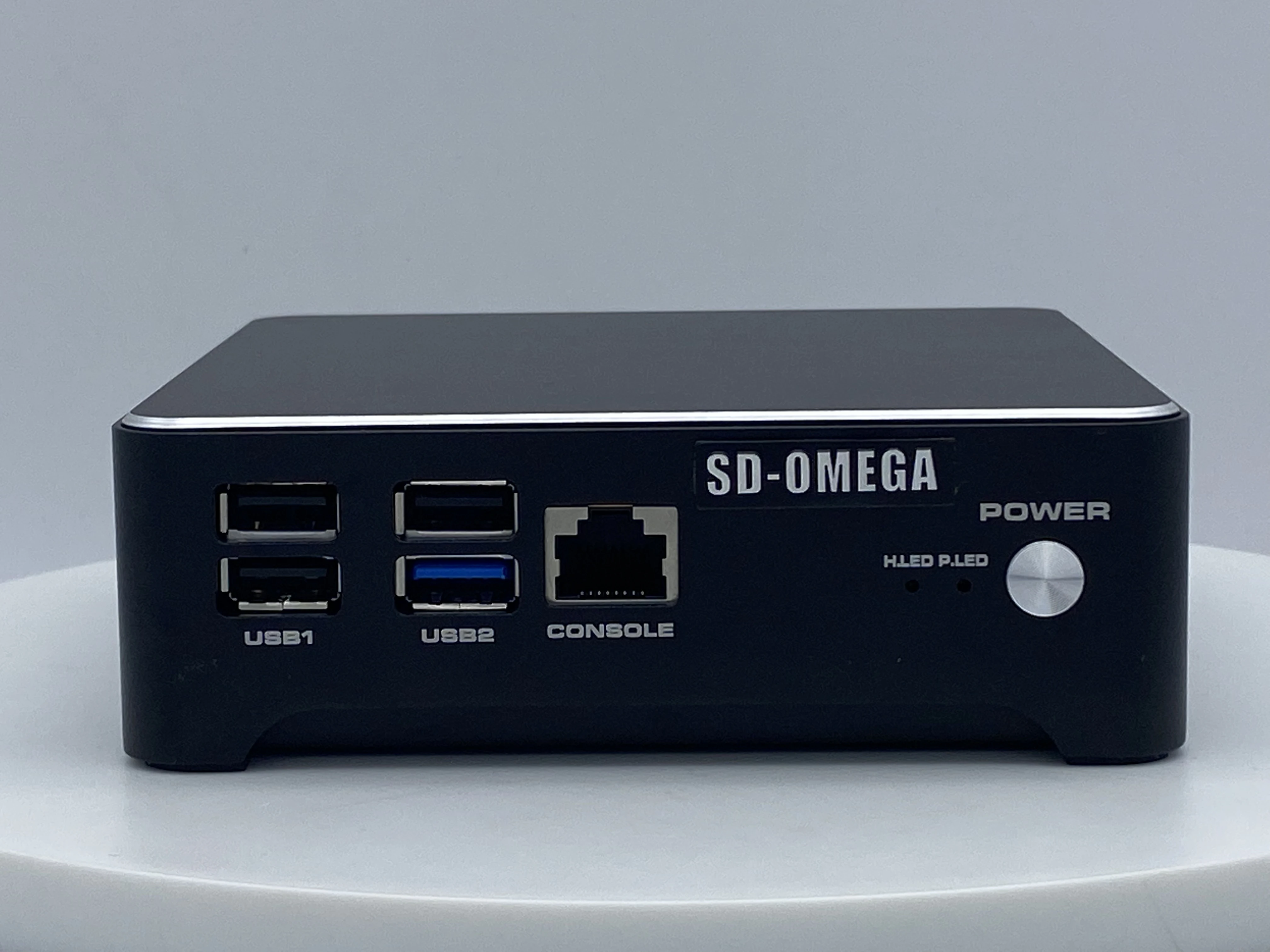

Mini Computer SDN3923BZ Haswell DDR3L 8GB 2 LAN VESA Mount Nano Desktop Mini Computer

Share on (62433660769):


Price:

Quantity:


Product Overview

Description


Mini Computer Features


Fanless cooling structure
Full aluminum alloy, compact structure, flexible installation
1xVGA, 1xHDMI, support synchronous/asynchronous display
Integrated Intel® Haswell i3 dual core processor
2 Gigabit Ethernet port, support Wake On LAN

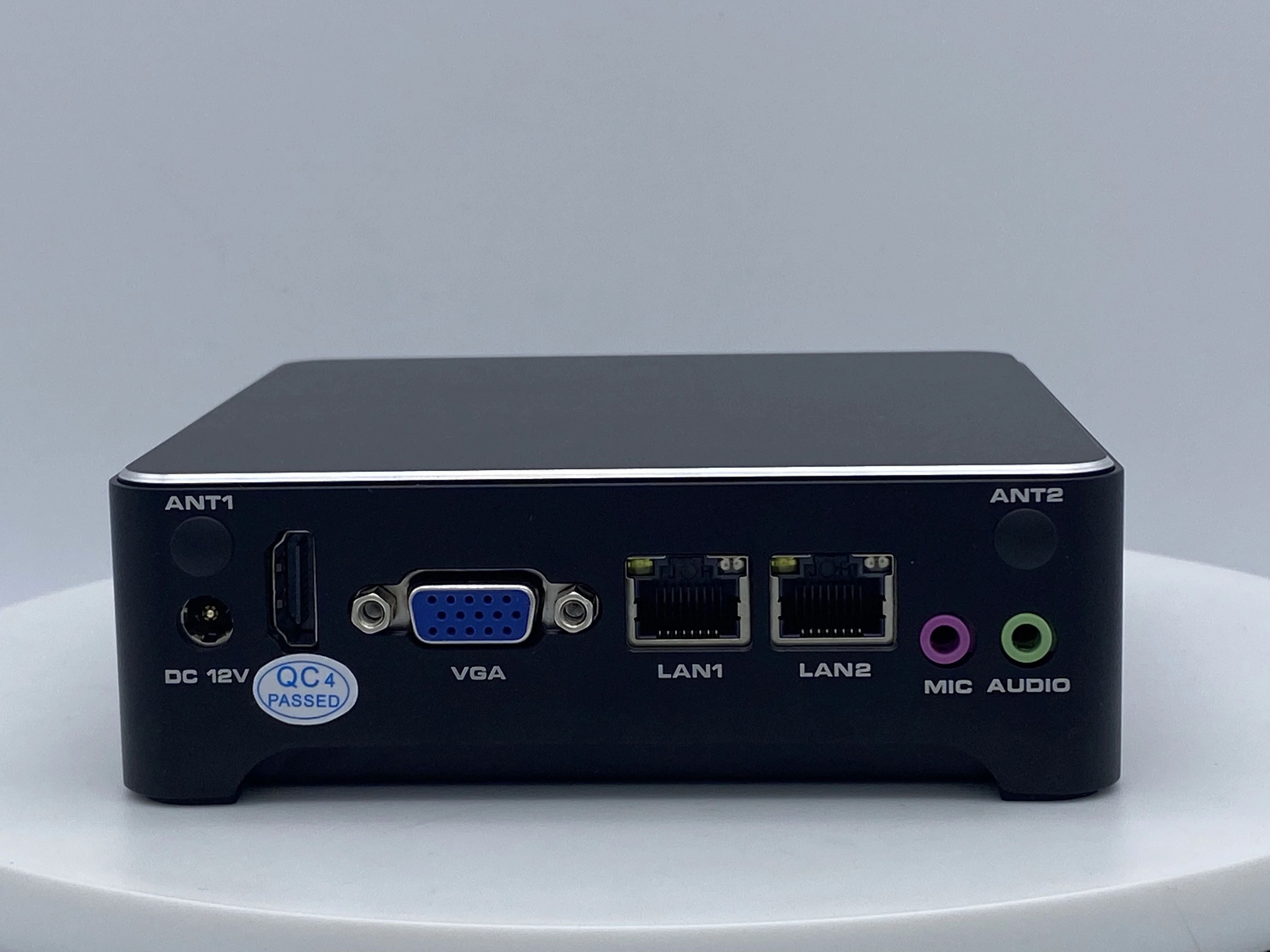

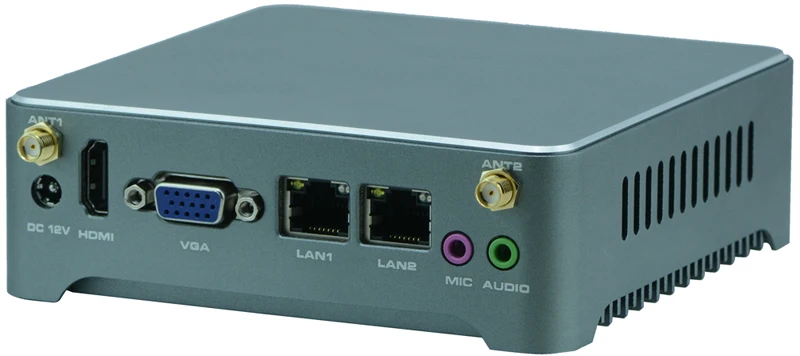

Rich IO: 1*DC Jack, 4*USB, 1*HDMI, 1*VGA, 1*Audio, 2*LAN





Specification

















































































































































Model No.SDN3923BZ Mini Computer
ChassisColorBlack / iron gray
Dimension128mm*128mm*41mm(L*W*H)
StructureFull aluminum fanless cooling structure
MaterialAluminum alloy
InstallationDesktop type or wall mounted installation
MotherboardModelSDN92_I3
ProcessorIntegrated Intel® Haswell-U I3-4020Y 1.5GHz dual core processor
ChipsetIntel® Haswell-U/Broadwell-U SOC platform
GraphicsHD GraphicsIntegrated Intel® HD Graphics 4200, support DirectX 11.2/12, OpenGL4.3, support VGA, HDMI synchronous/asynchronous display.
Resolution

VGA: max support 1920 x 1200 @ 60HZ


HDMI: max support 3200 x 2000 @ 60HZ


StorageMemory1* SODIMM 1600/1333MHz DDR3L/1.35V memory, max up to 8GB
SATAN/A
SSDSupport 1*MSATA SSD expansion
AudioAudioIntegrated ALC662 6 channels Hi-Fi audio controller, support MIC, Line_out
NetworkEthernet2* RTL8111 Gigabit Ethernet, support Wake On LAN /PXE
WiFiProvide 1* Mini-PCIE slot, support WiFi, 3G module
I/O Port
Serial Port1* CISCO standard serial interface
USB2* USB2.0, 2*USB3.0
Power Switch1* Power switch
LED indicator1*HDD LED, 1*Power LED
LAN2*RJ45 Gigabit Ethernet interface
Display1*VGA, 1*HDMI
Power1*12V DC IN Jack
Antenna2* WiFi/3G SMA antenna (optional)
Audio1*Line-out, 1*MIC
PowerPower Adaptor12V/5A
ReliabilityOperating Temp.0℃~45℃
Storage Temp.-20℃~70℃
Relative Humidity5%-95%, no condensing
Vibration0.5g rms/5-500HZ/random/operating
Operating SystemSupport Windows7, Windows8.1, Windows10, Linux OS
