Product Overview
Description
Product Description
25CH DC9-24V Rs485 Lock Electronic Control Board for Smart Locker
Model | VE-B-RS485-12W | VE-B-RS485-18W | VE-B-RS485-25W | VE-B-RS485-36W | VE-B-RS485-50W |
Way | 12Way | 18Way | 25Way | 36Way | 50Way |
Products descripition :
The lock control board adopts RS485 communication interface, supports a variety of electric control locks, supports lock signal feedback, supports 12V and 24V electric control locks, and the lock feedback mode can be configured by software, with independent PTC resettable fuses, and supports short circuit protection. , The protection current is 3A, providing configuration tool software, users can freely change the communication protocol and lock feedback type.
Application field:
The lock control board is widely used in centralized control cabinets such as storage cabinets, letter boxes, storage cabinets, logistics cabinets, file cabinets, lockers, vending machines, mobile phone cabinets, shoe cabinets, etc. Widely used in: schools,community logistics, hotels, factories, bathing centers, troops, banks, supermarkets, prisons and other places.
PRODUCT PARAMETERS
Working voltage | DC9-24V | DC9-24V | DC9-24V | DC9-24V | |||||
Standby power consumption | Less 1W | Less 1W | Less 1W | Less 1W | |||||
Working temperature | -30℃~ +80℃ | -30℃~ +80℃ | -30℃~ +80℃ | -30℃~ +80℃ | |||||
Communication interface | RS485, Baud rate 9600 | RS485，Baud rate 9600 | RS485，Baud rate 9600 | RS485，Baud rate 9600 | |||||
485 connect quantity | Max 32 pcs | Max 32 pcs | Max 32 pcs | Max 32 pcs | |||||
Drive the lock current | Max 3A | Max 3A | Max 3A | Max 3A | |||||
Read lock status | Support | Support | Support | Support | |||||
Open lock time | 200ms | 200ms | 200ms | 200ms | |||||
Program update interface | TTL series | TTL series | TTL series | TTL series | |||||
Watchdog timer | Support | Support | Support | Support | |||||
OEM | Accept | Accept | Accept | Accept | |||||

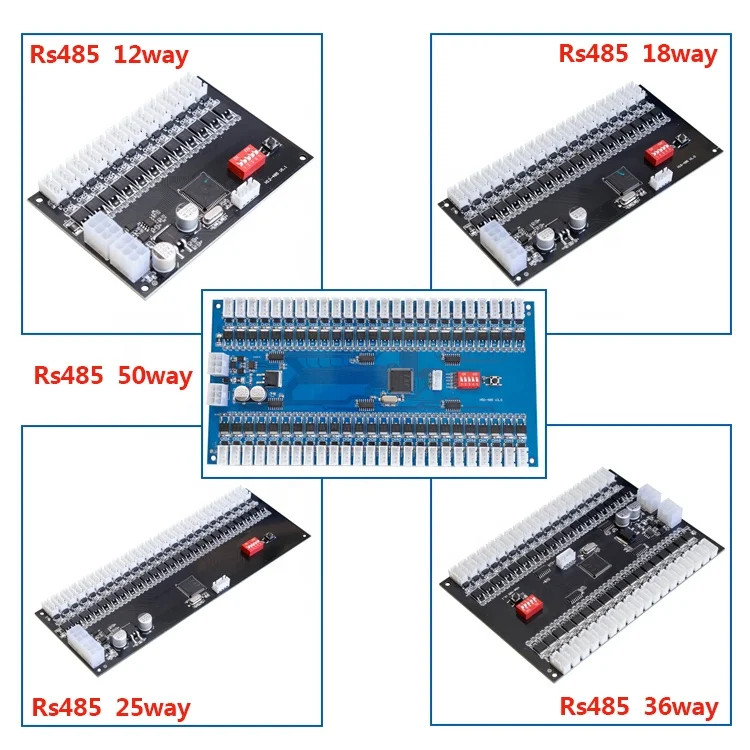

Details Images

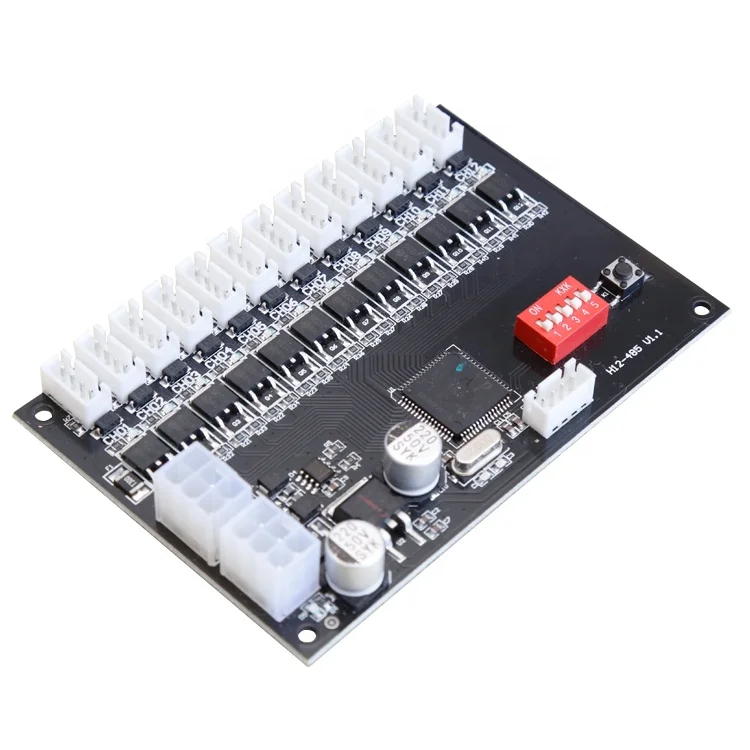

12Way VE-B-RS485-12

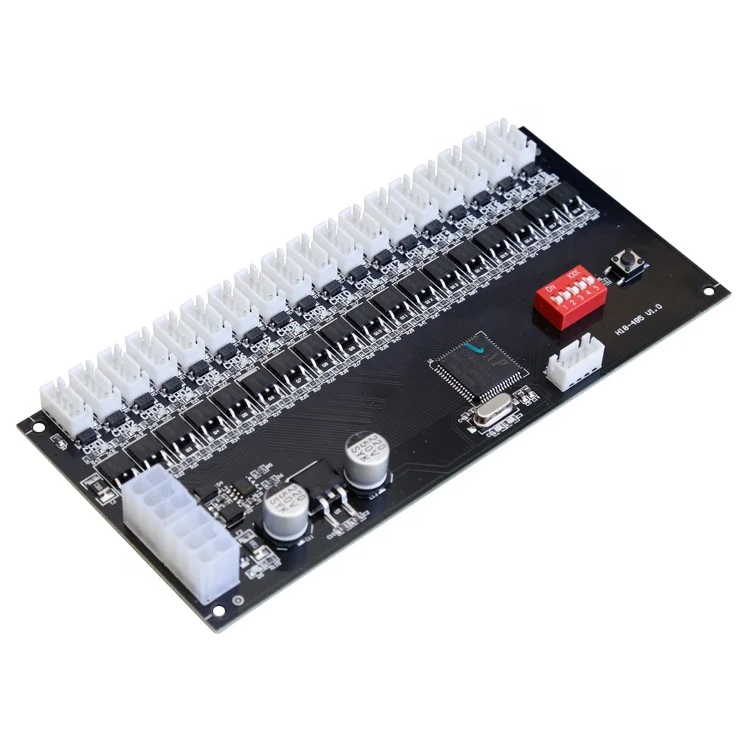

18Way VE-B-RS485-18
25Way VE-B-RS485-25

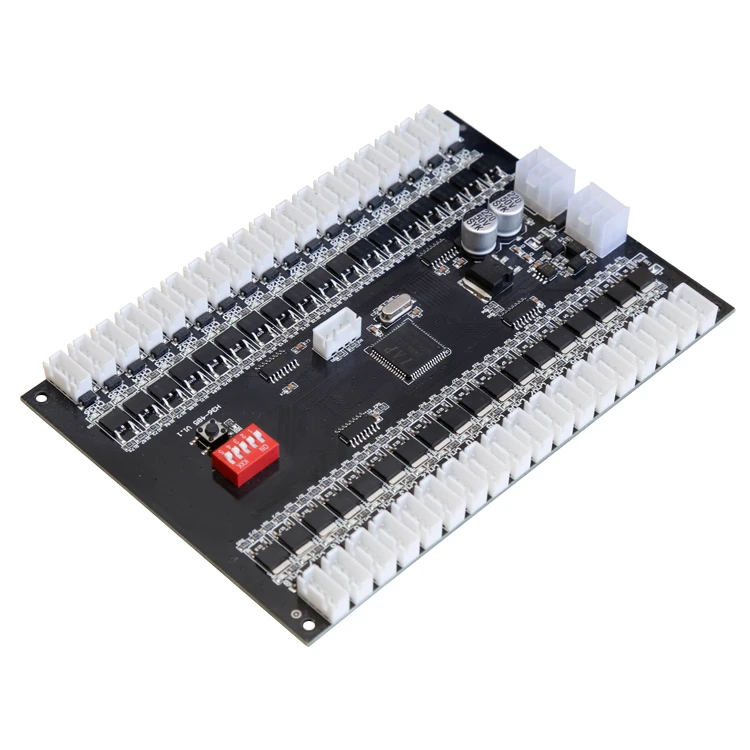

36Way VE-B-RS485-36

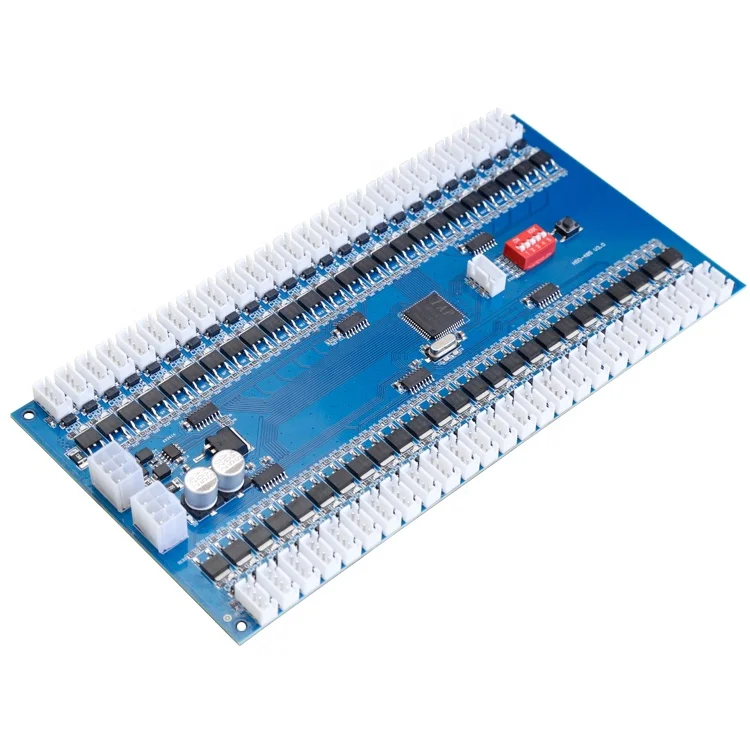

50Way VE-B-RS485-50
Packing & Delivery
Packing : bubble bag / standard carton
100pcs / Carton
Carton size : 46.5x32x30cm
Shipping way | Service | Time ( for reference , depend on your country) |
DHL/UPS/FEDEX/TNT | Door to door | 4-7days |
By Air | Door to airport | 7-15days |
By sea | Sea port to sea port | 20-40days |
