12V 18W PAR56 LED surface Mounted Underwater Light For Concrete Swimming Pool LED in ground pool light led pool light IP68
- Category: >>>
- Supplier: Shenzhen Heguang Lighting Co. Ltd.
Share on (62433756204):
Product Overview
Description
Product Description
12V 18W PAR56 LED surface Mounted Underwater Light For Concrete Swimming Pool LED in ground pool light led pool light IP68

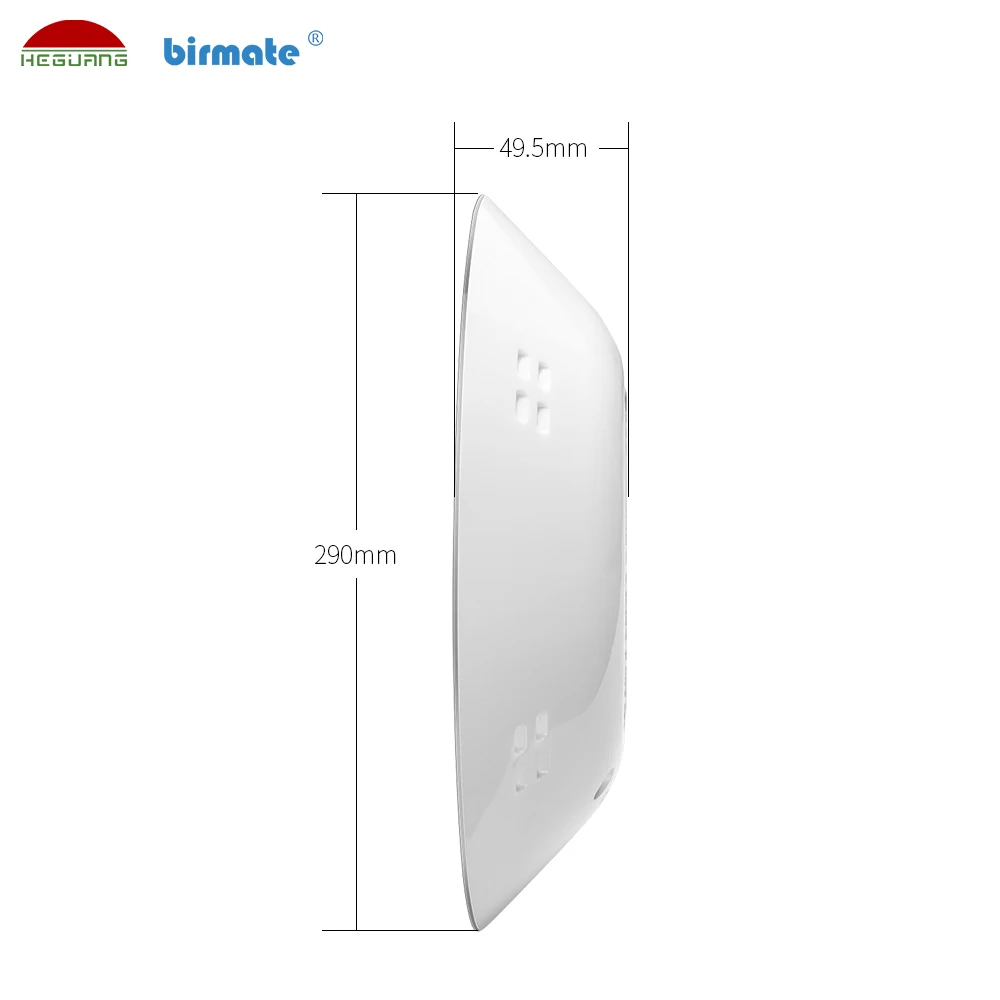

Product Size :
Product Parameter
| HG-PL-18W-C1 | ||||||
| Lamp paramater | Material | ABS + Transparent PC cover | ||||
| Light dimension | Φ290×49.5mm | |||||
| Input voltage | AC12/DC12V | |||||
| Wattage | 18W±10% | |||||
| Light lumen | 1700LM±10% | |||||
| Halogen replacement | 150W | |||||
| Beam angle | 120° | |||||
| BASE | wire out | |||||
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized | |||||
| Specifics | Operating Temperature (℃) | -20~40℃ | ||||
| IP Rating | IP68 | |||||
| Certificate | CE, ROHS,FCC, IP68,VDE | |||||
| Life-span | 50,000 hours | |||||
| Warranty | 2 Years | |||||
| !!! Remarks | Connect coil transformer | must be coil transformer | ||||
| Waterproof ring of housing | must do right to get IP68 | |||||
| Test position | LED Surface Mounted Swimming Pool Light(Min) | |||||
| Working temperature 28℃ | Working temperature 40℃ | |||||
| Underwater test time(Min) | 480 | 480 | ||||
| LED edge temperature(℃) | 67 | 70 | ||||
Advantages

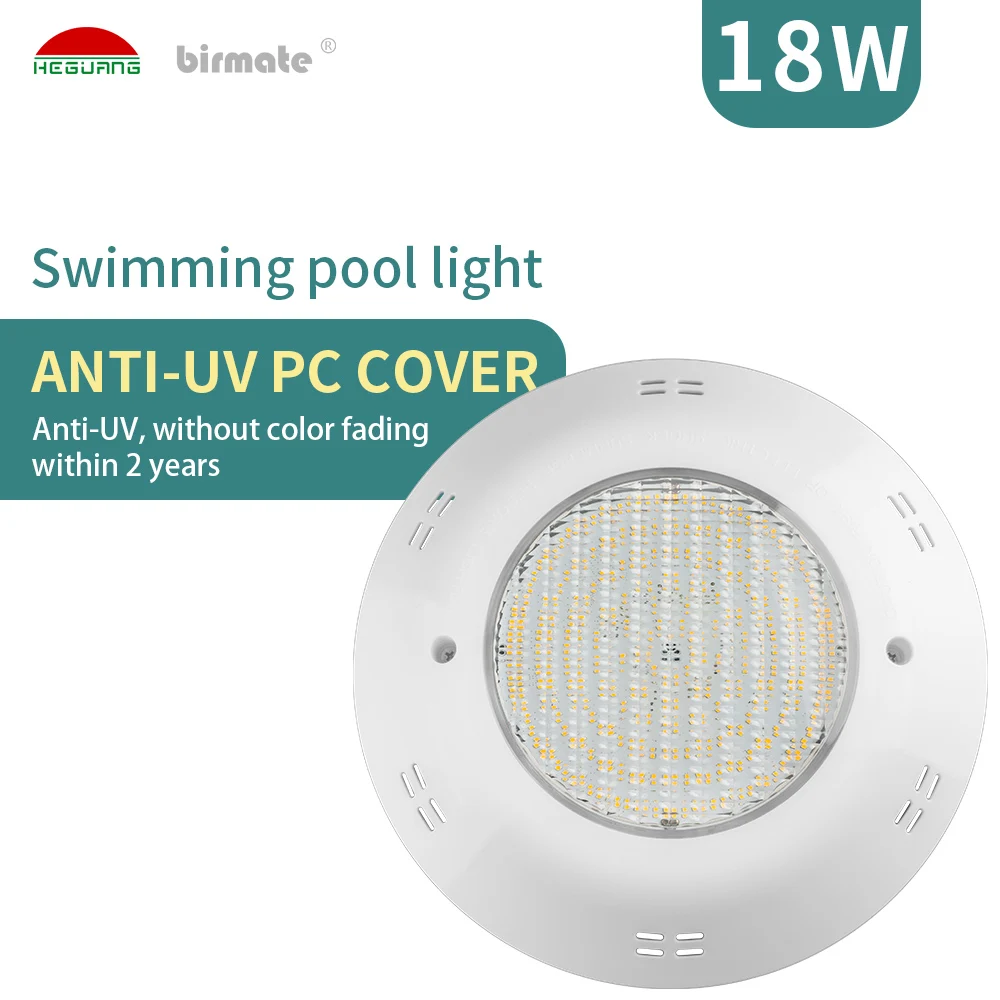

1. Anti-UV PC cover, excellent yellowing resistance, and durable
2. Environmental ABS material shell, 7 colors for optional.
3. Nylon+Fiber material base shell, good toughness and aging-resistant
4. IP68 Structure waterproof, without resin-filled
5. Patented 4-layers waterproof structure, more stable than resin-filled pool lights
6. VDE standard rubber wire, connected with IP68 nickel-plated copper connector.
7. All products succeeded in 10m deep water testing before delivery.
8. 8 hours aging testing, 30 steps quality inspections, assure the great quality pool light.
9. Constant current driver, comply with CE & EMC standard.
10. 2-3MM aluminum light board for excellent heat dissipation, 2.0W/(m.k) Thermal conductivity.
underwater light for concrete swimming pool compared to others :
Application
HG-PL-18W-C1underwater light for concrete swimming pool use in concrete pool ,underwater IP68.
How to install the underwater light for concrete swimming pool:
underwater light for concrete swimming pool application :Concrete pool ,Vinyl pool ,Outdoor Swimming Pool ,family pool,hotel pool ,underwater etc

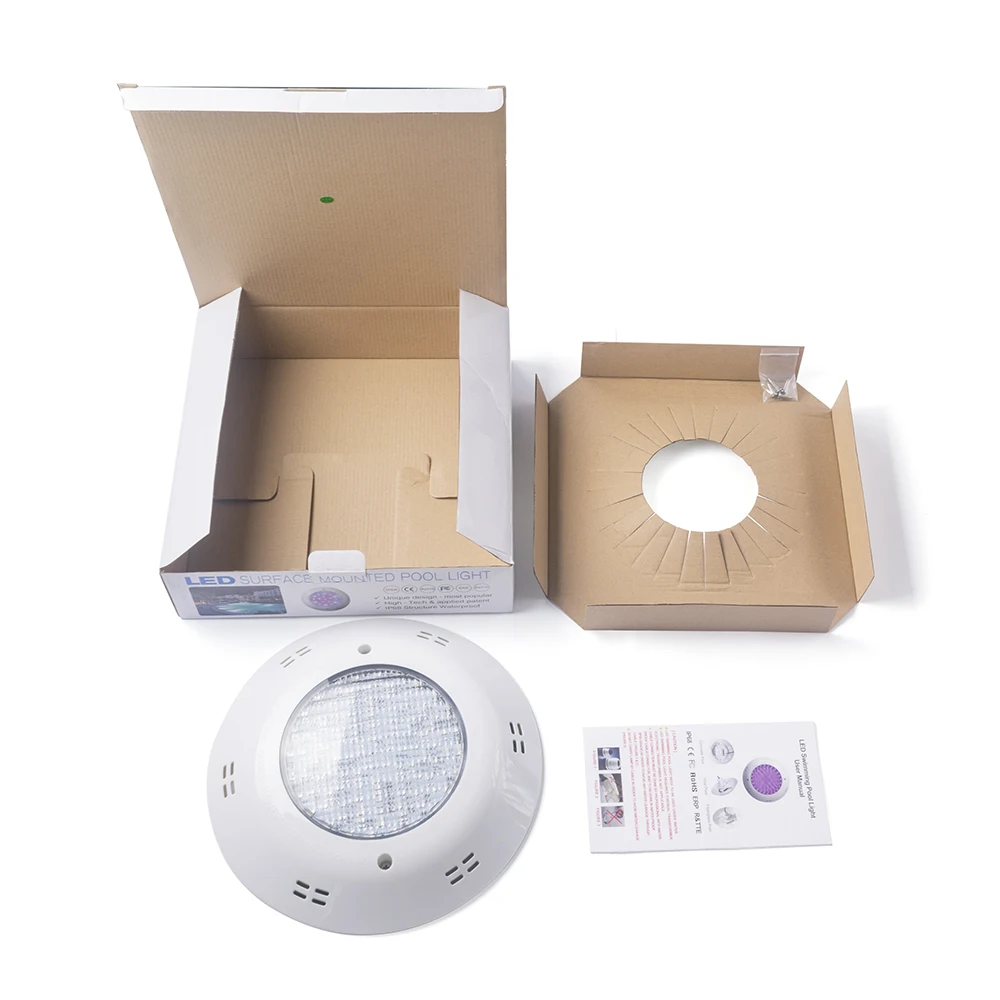

Packaging & Shipping
Item | HG-PL-18W-C1 underwater light for concrete swimming pool |
Product weight | 1350g |
color box size | 310×310×88mm |
Carton/pcs | 10pcs/Carton |
Carton size | 640x330x470mm |
Carton weight | 18kg |
About Company
In 2006, we began working in LED Underwater product development and production. factory area of 2,000 square meters, we are a high-tech enterprise also the only one China supplier who is listed
in UL certificate in Led Swimming pool light industry.
MAIN PRODUCTS
1.UL Certificated pool light
2.LED PAR56 pool light
3. LED Surface Mount LED Pool light
4. LED Fiberglass pool lights
5. LED Vinyl pool lights
6. LED Underwater Spot light
7. LED Fountain Light
8. LED Ground lights
9. IP68 Led Strip light
10.RGB Led Controller
11. IP68 par56 housing/Niche/fixture
CERTIFICATION AND GLORY
1.UL Certification (PAR56 Pool lights), CE, ROHS, FCC, EMC, LVD, IP68 , IK10.VDE
2.ISO9001 certification
3.Private model products
4.Structure waterproof technology
5.Customer satisfaction rate >98%
Heguang always adheres to the quality first, constantly develops new products to adapt to the development of the market,and provides customers with comprehensive and intimate product solutions to ensure worry-free after-sales!
The factory is located in Baoan, Shenzhen, close to Hong Kong and Shenzhen Airport. Welcome to visit factory.
Heguang LED pool lighting Certification :
Heguang exhibition :
Recommed
Heguang other products :IP68 underwater pool lights ,led fountain lights ,wall mounted led pool lights ,IP68 led strip lights ,led pool lighting accessories :
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices, please call us directly or leave us the messge ,we will give priority to your inquiry.
2. Q: May I get samples to test quality and how long can I get them?
A: Yes, samples can be ready in 3-5 days.
3. Q: What is the MOQ?
A: NO MOQ,the more you order ,the cheaper price you will get .
4. Q: Can you accept small trial order?
A: Yes
5. Q: Do you accept the OEM&ODM?
A: Yes, OEM/ODM acceptable
6.Q:what's the RGB control you have?
A: Patent design RGB 100% synchronous control ,switch control ,external control ,wifi control ,DMX512 control,etc.
