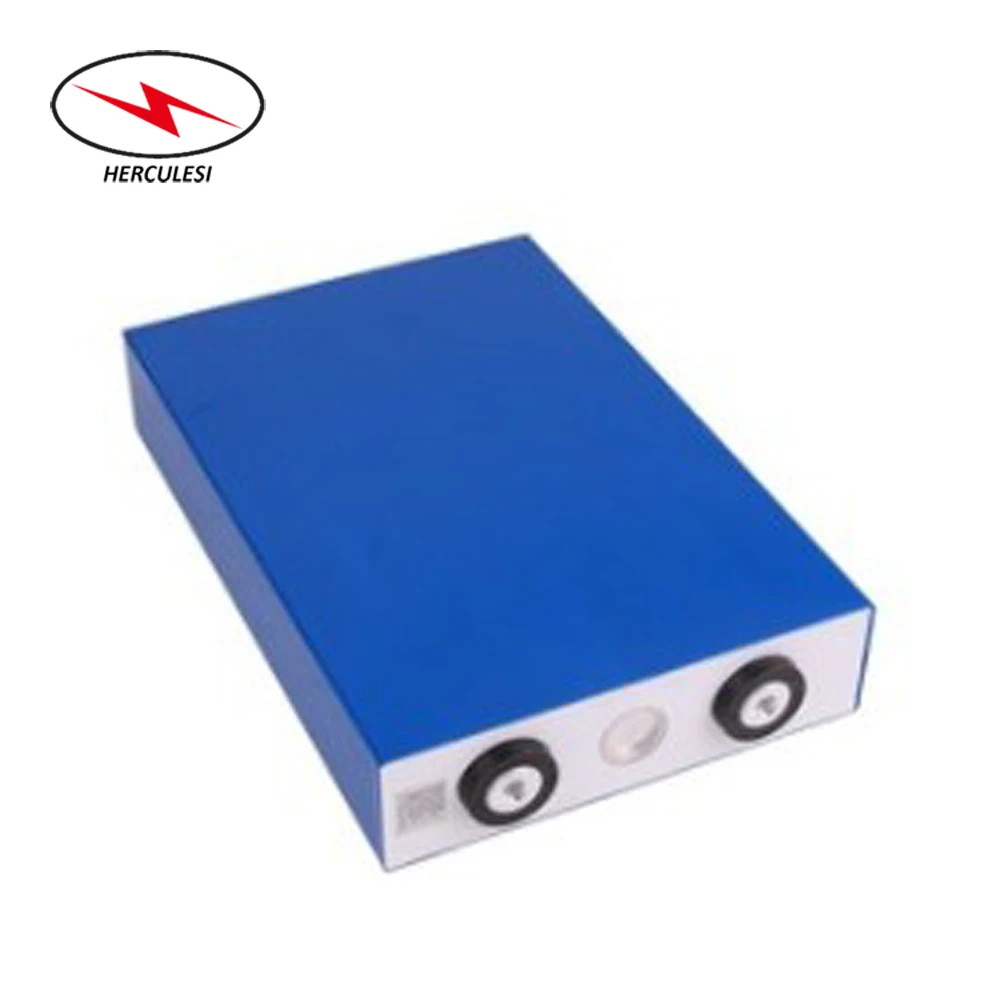

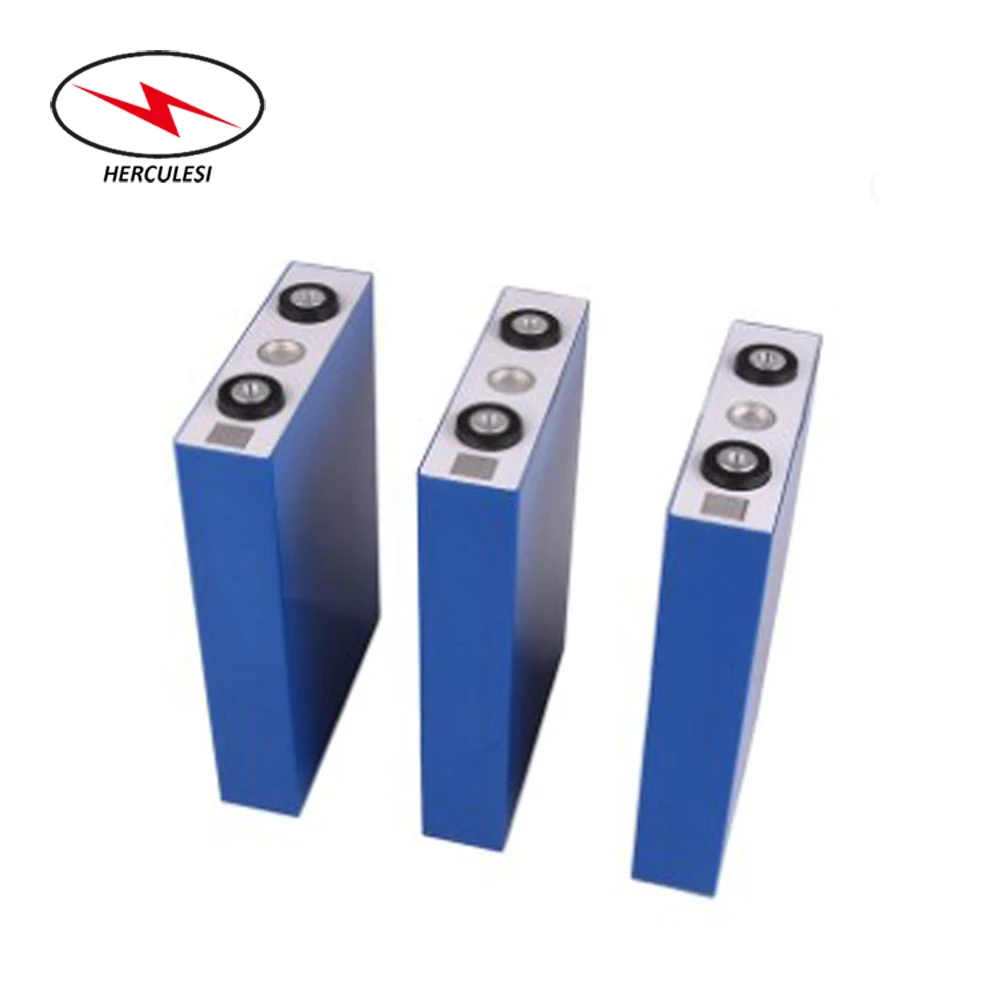

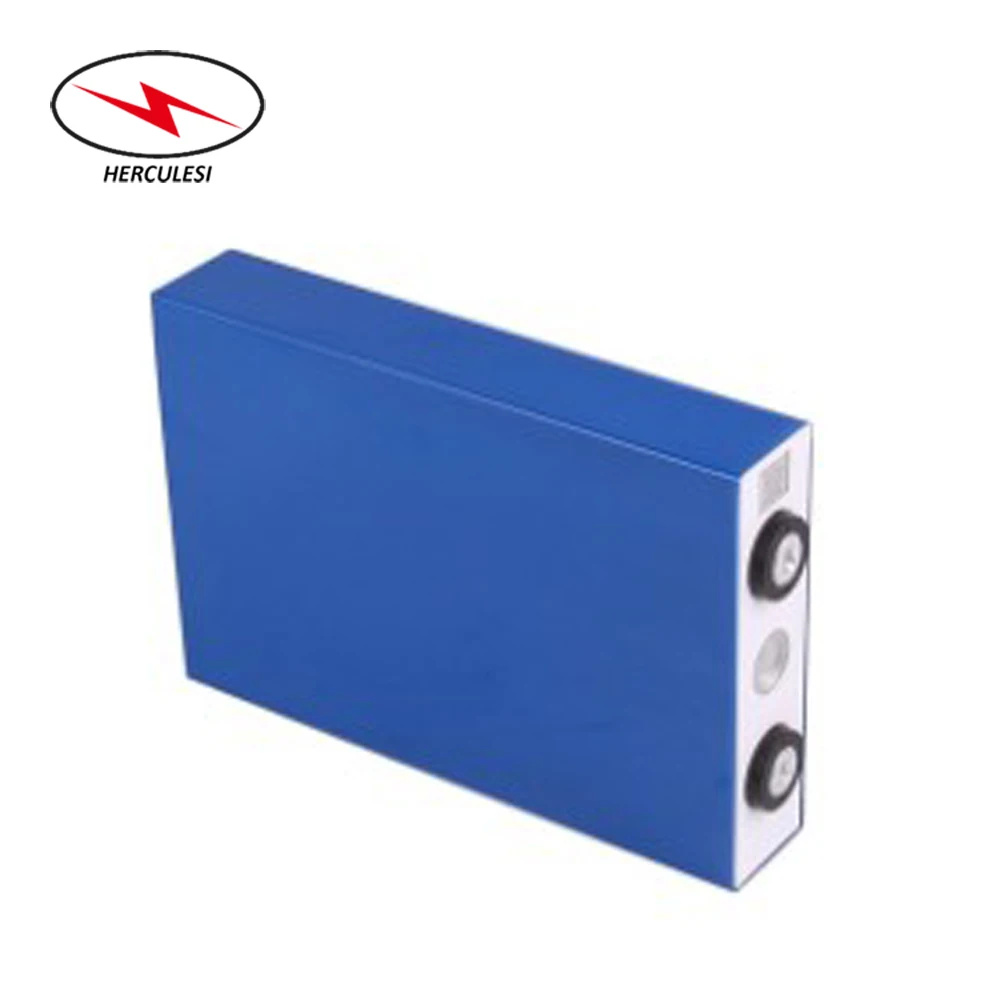

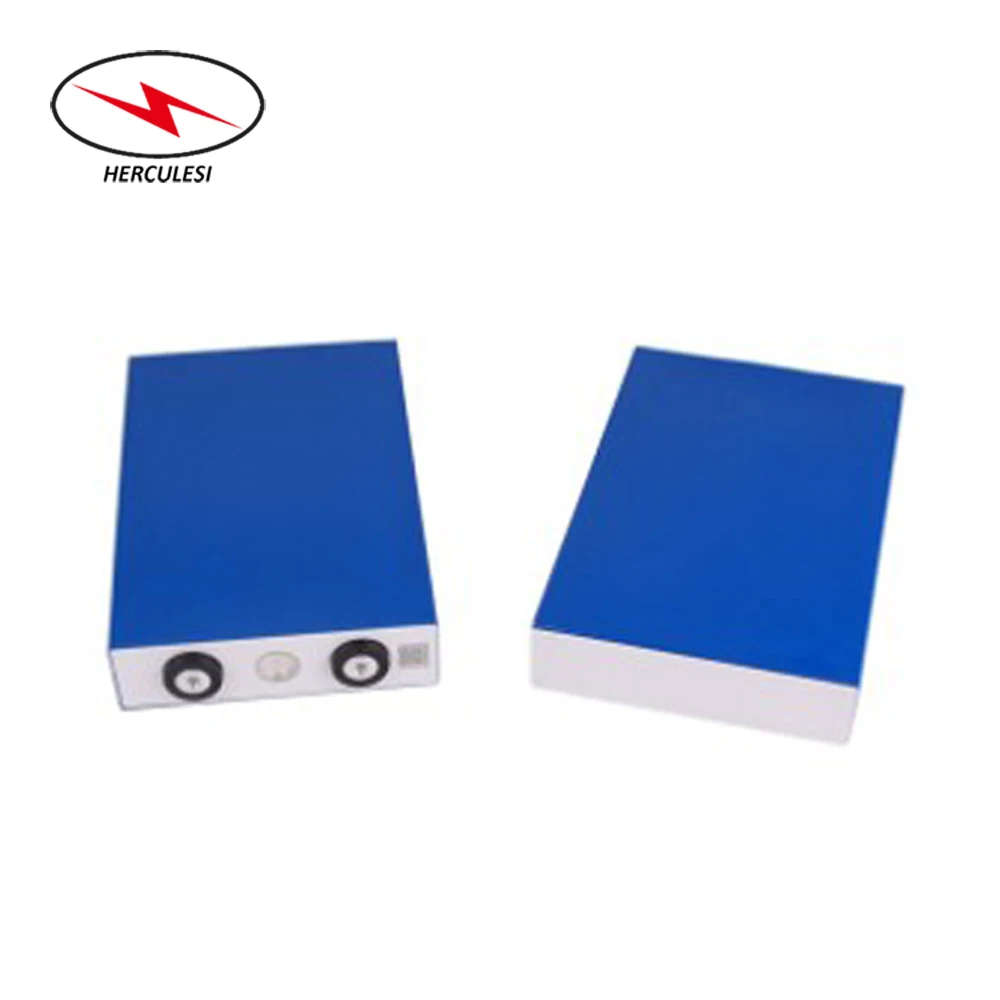

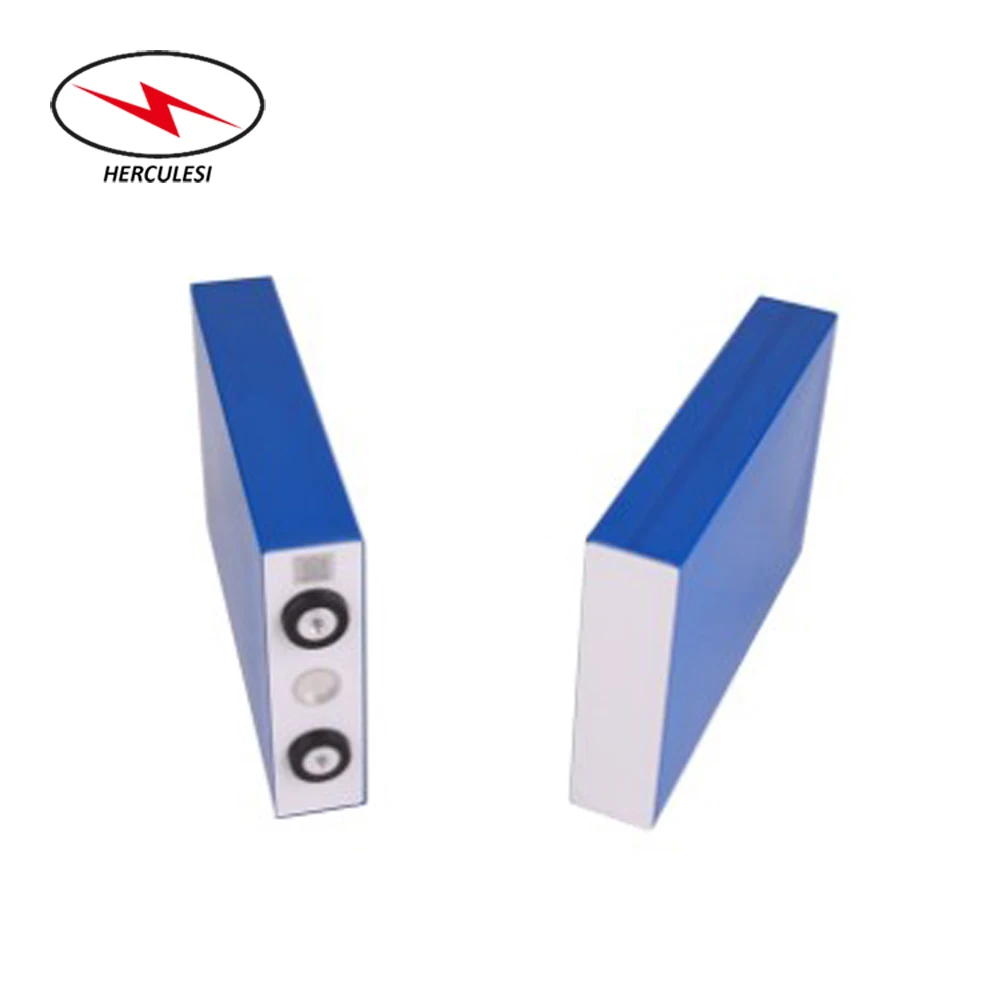

Lithium Battery Solar Storage LiFePO4 3.2V 100Ah LFP Prismatic Cell for 12V 24V 36V 48V 5KW 7KW 10KW EV Battery System

Advantages of LiFePO4 Prismatic EV Battery Cells

• High Energy density, long cycle life, reliable safety


• High lifespan: one thousand cycles and more


• Ultra safe Lithium ion chemistry(no thermal run-away, no fire or explosion risks)


• No lead, no heavy metal, no toxic element


• Excellent temperature robustness(-20℃ up to +55℃ )


• Flexbile deployment: combining in parallel and series


• Constant power during discharge(very low internal resistance)


• Energy efficiency>96%


• Very low self  discharge(<5% per month)


• No memory effect


• Passed CCS, IEC62619, MSDS, RoHS, UN38.3 and UL.

Lithium Battery Solar Storage LiFePO4 3.2V 100Ah LFP Prismatic Cell for 12V 24V 36V 48V 5KW 7KW 10KW EV Battery System

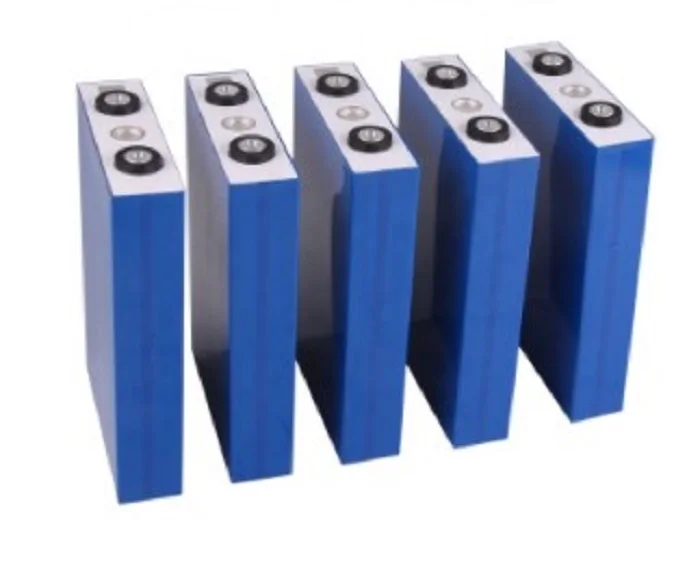

105Ah LFP Power Battery

Capacity/voltage: 105Ah/3.2V

Charge/discharge rate: 1C/3C

Charge/discharge end voltage: 3.65V/2.5V

Dimension: 37.2*131*201mm(T*W*L)

Weight: 2.05Kg

Energy density: 164Wh/kg

Terminal: M6 screw

General Technical Parameter of LF105:

Battery Product Performance Curve

LiFePO4 cells in prismatic form use the latest cathode technology and deliver high-capacity cells that are among the safest and most robust in the industry. Our cell products are ideal for the transportation, grid power, and commercial and industrial vehicle markets.

We are hazmat certified to ship our cells and all our cells are tested and certified (UN38.3) and MSDS to be shipping safe.

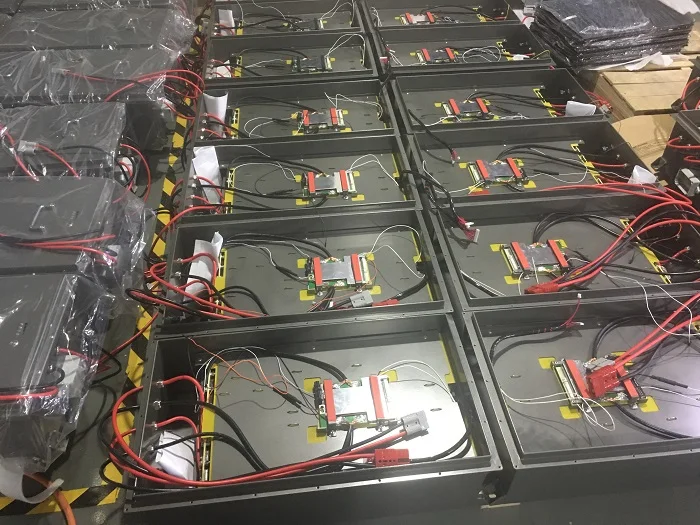

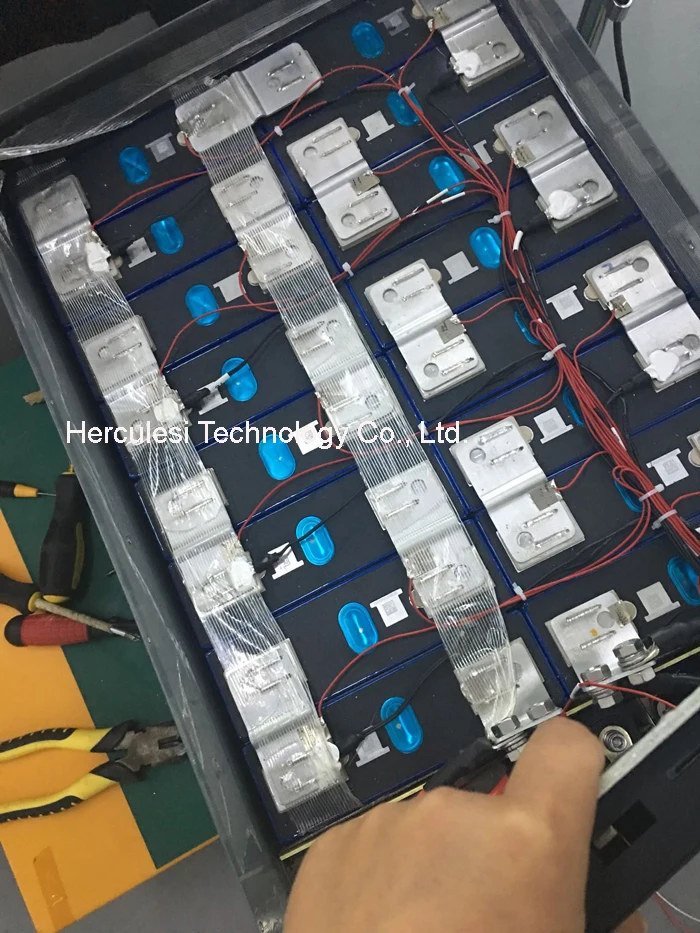

Besides of individule cells, we also manufacture and supply assembled lithium ion battery packs.

Our standard modules can be custom-configured as the building blocks to accelerate development of power systems for a variety of applications, such as electric motorcycles, commercial and industrial units and stationary storage.

Our lithium-ion power battery cell products can be applied to electric passenger cars, electric bus cars, electric logistics vehicles and a variety of special models. The years of research and development experience and results are used in design and production to meet start-stop, fast charge, long life, High energy density, waterproof and dustproof and other functional requirements.

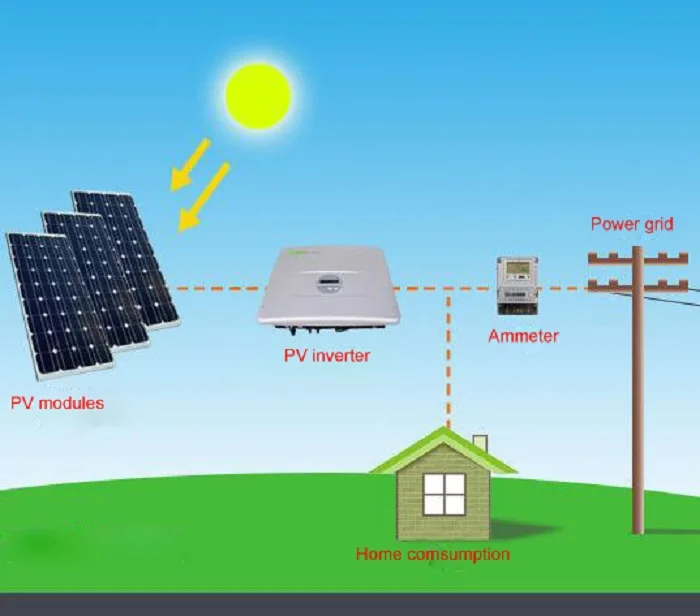

The application areas of energy storage products include smooth renewable energy output, power grid frequency modulation, communication base stations, industrial and commercial buildings and household energy storage. It can adjust smooth new energy, make up for line loss power compensation, track the plan to cut peaks and fill valleys, and realize efficient use of new energy.

About us

We design and manufacture batteries for a wide range of applications with around 12 years experience, from low-power low-capacity batteries for industrial, leisure and medical uses, to high-power high-capacity batteries for use in electric and hybrid electric vehicles. Provide power solution for customers both domestic and abroad, from end user, small business owner to large entreprise.

Battery Handling Precautions

• Before using the battery, please read the specification and pay attention to the battery


• surface logo.


• Please use the battery in a normal indoor environment, temperature: -20 ℃~55 ℃,


• relative humidity: 15 ~90%, atmospheric pressure: 86~106 Kpa.


• During the usage, should be away from heat, fire, to avoid children playing with the


• battery, do not beat, fall or impact the battery.


• The battery can only use the matching charger to charge.


• Do not short circuit the battery at any time, otherwise it can cause serious damage to the battery and cause danger.


• For the battery not used for a long time, please save the battery in the appropriate way, so that it is in a state of semi-charged, neither full nor finished.


•


  The waste battery should be dealt with in a safe and secure way, do not throw it into fire or water.





•


  Battery box design considerations




  a) The battery box should have sufficient mechanical strength to prevent the internal battery from mechanical impact. b) There should be no sharp corners in the location for placing the battery inside the box. c) The measurements for increasing air convection, waterproof and dustproof and others are




  needed.





•


  Connection




  a) Polishing the pole with abrasive paper before use, otherwise it would cause bad contact or failure. b) Using the specific tools, such as spanner, to connect the battery.




Warning!

• Do not immerse the battery in water or allow it to get wet.


• Do not strike, throw or subject the battery near a fire or in extremely hot conditions.


• Charge with specified charge according to charging requirement


• Do not reverse the positive (+) and negative (-) terminals.


• Do not put the battery into a fire or apply direct heat to it.


• Do not short-circuit the battery by connecting wires or other metal objects to the positive (+) and negative (-) terminals.


• Do not ship or store the battery metal objects, such as necklaces, hairpins, etc.


• Do not knock, throw, tread, bend, etc.


• Do not directly solder the battery terminals or pierce the battery casing with a nail or other sharp object.

Pay attention please, what make us unlike others?

• We can sign contract, after-sales service aggrement, non-disclosure aggrement, etc with you.


• We stand by our warranty. The period of warranty is 13 months from the date of received. Herculesi guarantees to give a replacement in case of batteries with defects proven due to manufacturing process instead of the customer abuse and misuse.

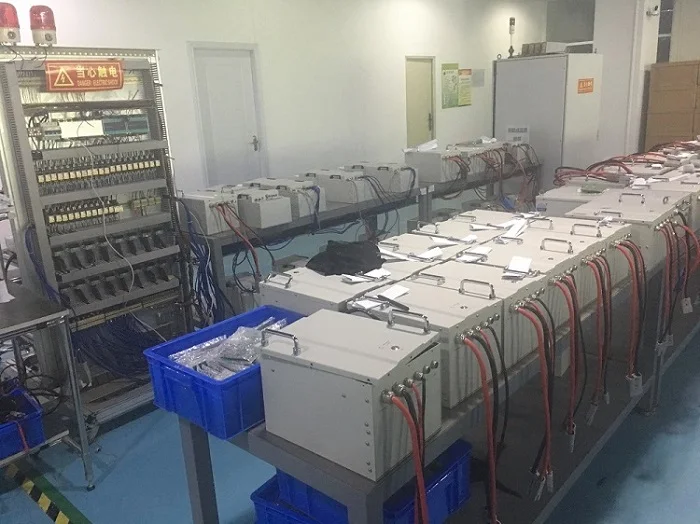

• We have in house manufacturing faculties as well as testing faculties for our manufactured equipments & systems. Stringent measures are taken to ensure that the quality standard of our company is maintained at all levels.


• We accept OEM orders. We can customize and rebuild batteries to your exact specifications with various imported branded lithium ion cells and local top-notch cells to choose from.


• Our cells passed related quality certificates. 3.2V 100Ah/200Ah/300Ah/400Ah passed CE, RoHS, MSDS and UN38.3. 3.2V 50Ah/55Ah/75Ah/90Ah/105Ah passed CCS, IEC62619, MSDS, RoHS, UN38.3 and UL.
