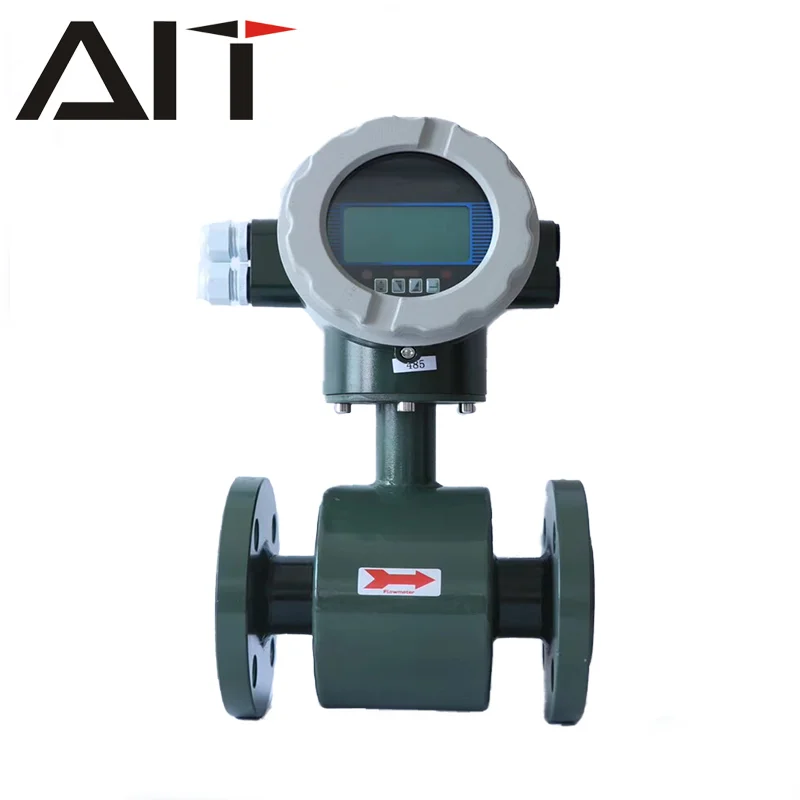

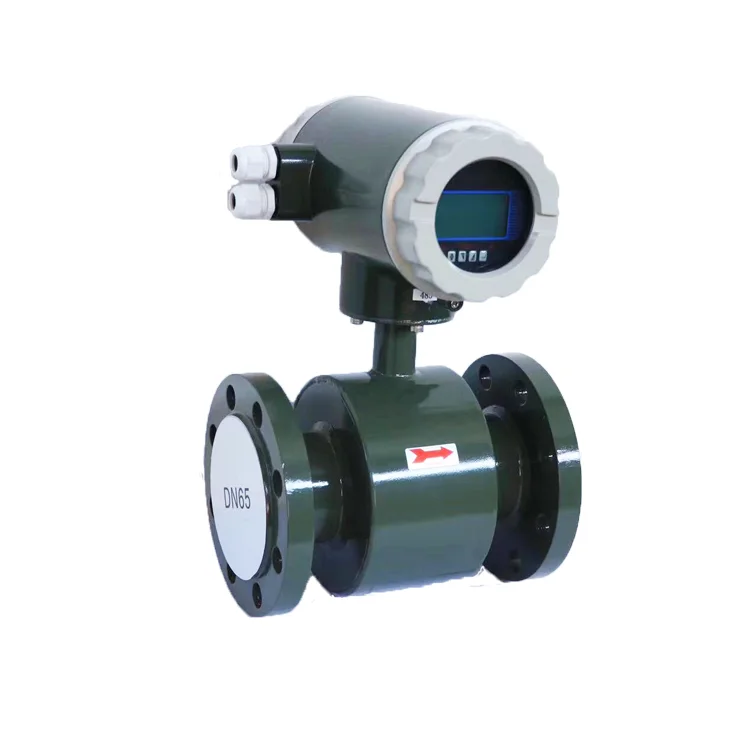

DN200 waste water high quality flowmeter electromagnetic flow meter with display
- Category: >>>
- Supplier: All-Instruments International Trading (Shanghai) Co. Ltd.
Share on (62434037109):
Product Overview
Description
Electromagnetic flowmeter
Features
▲ There are no moving parts and no choke parts in the pipeline, and there is almost no additional pressure loss in the measurement.
▲ The measurement result has nothing to do with physical parameters such as velocity distribution, fluid pressure, temperature, density, viscosity, etc.
▲ At the scene, the range can be modified online according to the actual needs of the user.
▲ High-definition backlit LCD display, full Chinese menu operation, easy to use, simple operation, easy to learn and understand.
▲ The measurement result has nothing to do with physical parameters such as velocity distribution, fluid pressure, temperature, density, viscosity, etc.
▲ At the scene, the range can be modified online according to the actual needs of the user.
▲ High-definition backlit LCD display, full Chinese menu operation, easy to use, simple operation, easy to learn and understand.
▲ Using 16-bit embedded microprocessor, fast operation speed, high accuracy, programmable frequency low frequency rectangular wave excitation, improve the stability of flow measurement, and low power consumption.
▲ Full digital processing, strong anti-interference ability, reliable measurement, high accuracy, flow measurement range up to 150: 1.
▲ Full digital processing, strong anti-interference ability, reliable measurement, high accuracy, flow measurement range up to 150: 1.
Performance Specifications
Accuracy | 0.5% | 1% | |||||
Medium temperature | Rubber lining: -20~+60℃ | High temperature Rubber lining: -20~+90℃ | PTFE lining: -20~+100℃ | High temperature PTFE lining: -20~+180℃ | |||
Working pressure | DN6~DN80: ≤1.6MPa | DN100~DN250: ≤1MPa | DN300~DN1200: ≤0.6MPa | High pressure can be customized | |||
Flow range | The flow measurement range corresponds to the flow rate range of 0.1-15m / s | ||||||
Power supply | 85~265v, 45~63hz | ||||||
Output | 4~20mA | RS485 | HART | ||||
Diameter (DN) | Flow range (m3/h) |
10 | 0.0283~4.42 |
15 | 0.0636~9.54 |
20 | 0.12~16.96 |
25 | 0.176~26.5 |
32 | 0.29~43.42 |
40 | 0.452~67.85 |
50 | 0.7~160.0 |
65 | 1.19~179.0 |
80 | 1.8~271.0 |
100 | 2.82~424.0 |
125 | 4.41~662.0 |
150 | 6.63~954.0 |
200 | 11.3~1690 |
250 | 17.6~2650 |
300 | 25.4~3810 |
350 | 34.6~5190 |
400 | 45.2~6780 |
450 | 57.2~8570 |
500 | 77.6~10600 |
550 | 85.5~12800 |
600 | 110~15200 |
700 | 138~20700 |
800 | 180~27100 |
900 | 229~34300 |
1000 | 282~42400 |
1100 | 342~51300 |
1200 | 407~61000 |
1400 | 554.1~83121 |
1600 | 732.7~108566 |
1800 | 916~127404 |
2000 | 1131~169635 |
2200 | 1368.4~205258 |

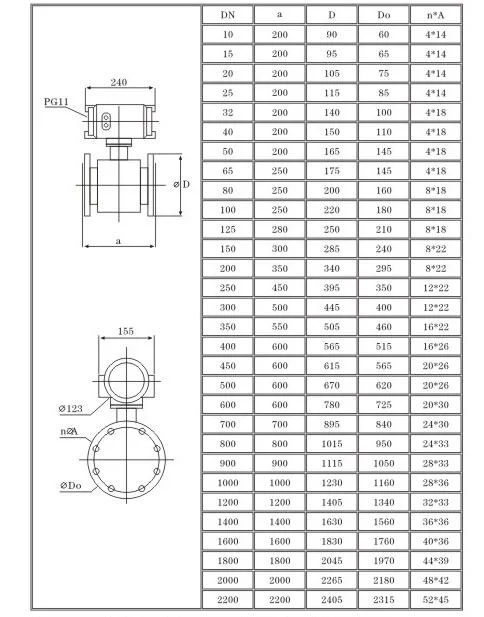

Product Dimentions
