Household WMD16V 16mm Small metal drilling and milling machine for hobby
- Category: >>>
- Supplier: Chizhou Syntop CNC Industrial Co. Ltd.
Share on (62434051568):
Product Overview
Description
Product Description
Features
● Variable speed.
● High strength with square column.

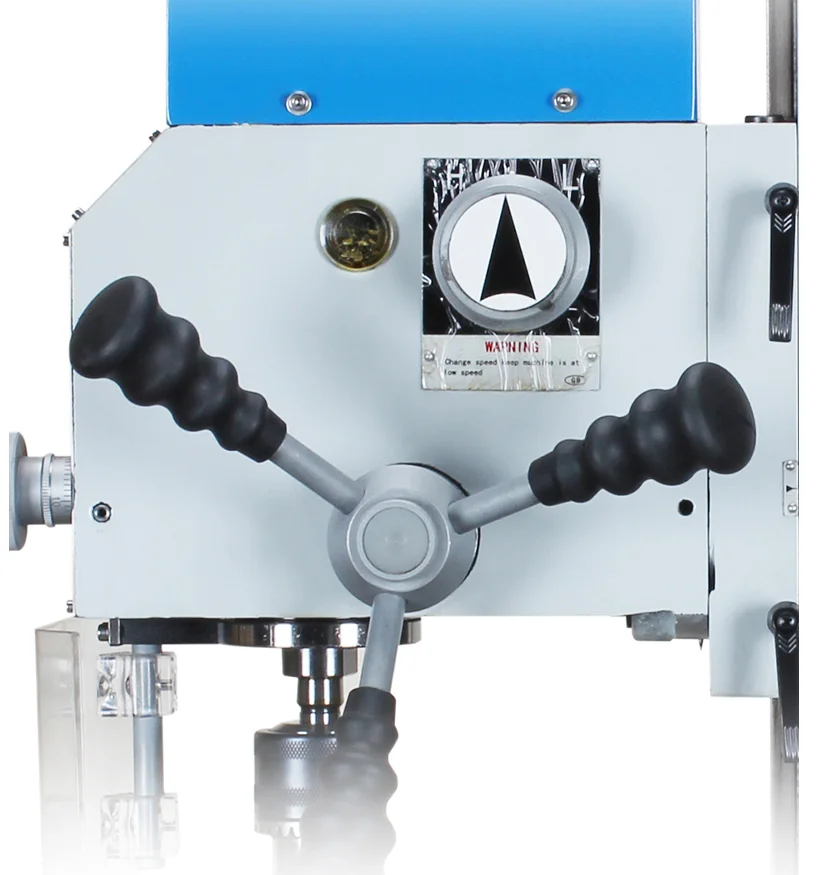

● High precision manual feeder.

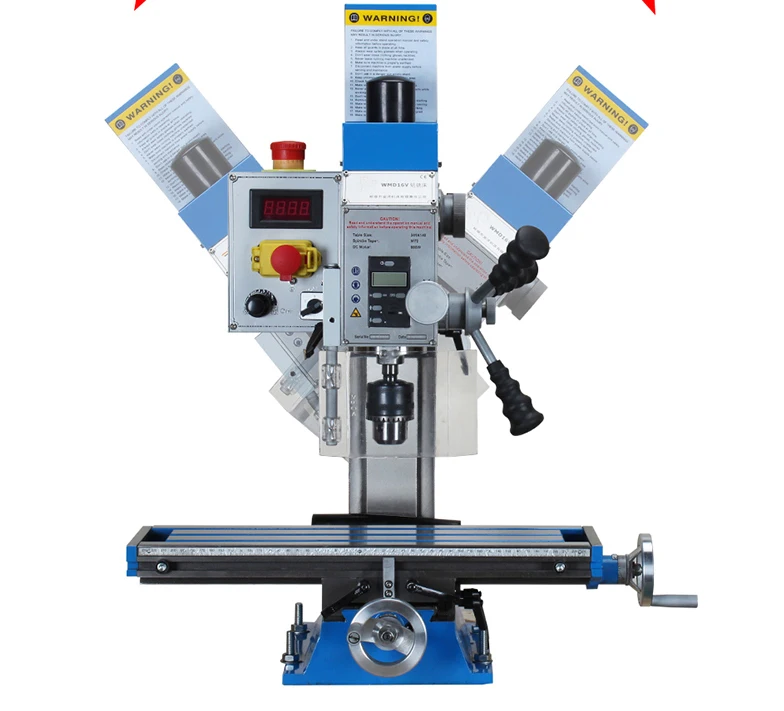

● Head-stock tilts left and right.
● Easy to operation.
● High strength with square column.
● High precision manual feeder.
● Head-stock tilts left and right.
● Easy to operation.
Specifications for WMD16V | ||
Drilling Capacity | 20mm | |
Face Milling Capacity | 52mm | |
End Milling Capacity | 16mm | |
Spindle Taper | MT2 | |

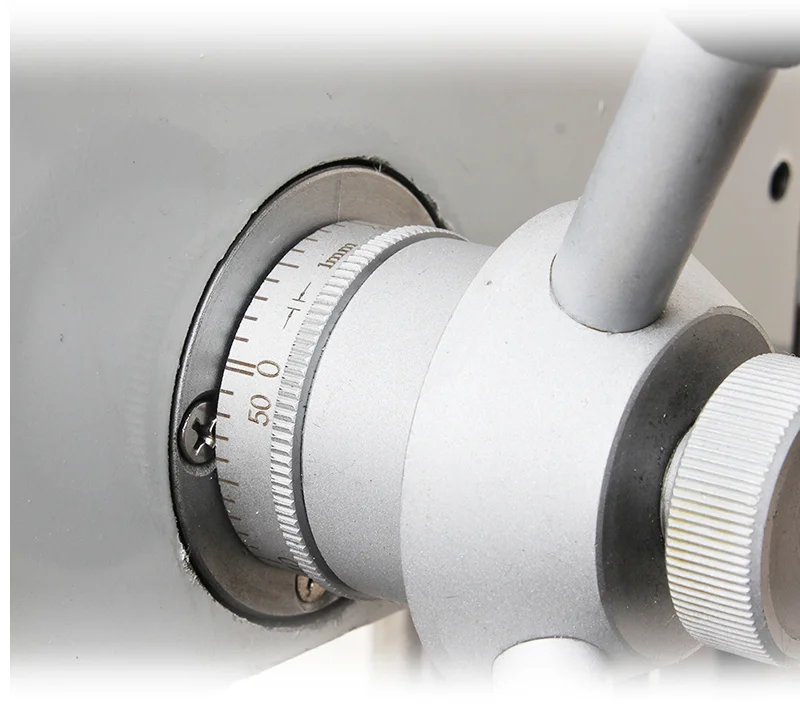

Spindle travel | 50mm | |
Spindle Speed | 50-2250r.p.m | |
Head Rotation | ±45° | |

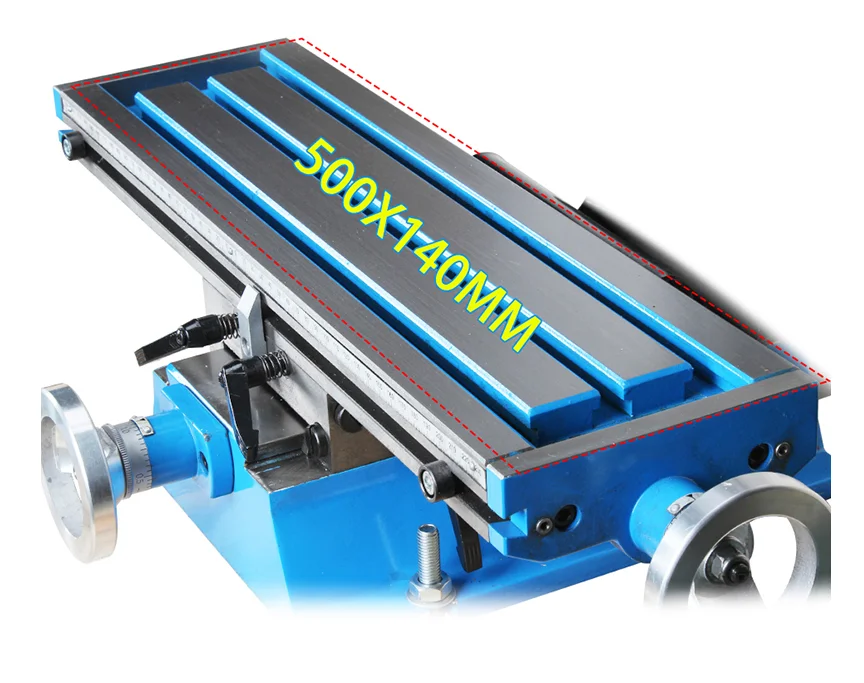

Table size | 500*140mm | |
X-axis Travel | 230mm | |
Y-axis Travel | 145mm | |
Z-axis Travel | 200mm | |
T-slot Size | 10mm | |
Motor Power | 500/600W | |

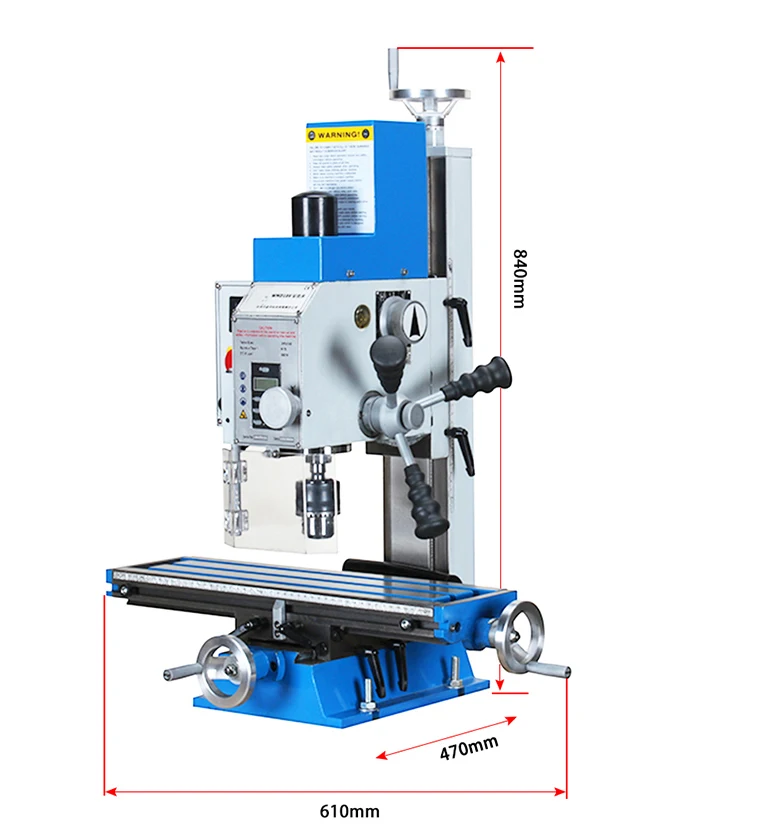

Packing Size | 610*505*840mm | |
N.W./ G.W. | 65/85kgs | |
Standard accessiories:
● Speed display
● Draw bar
● Depth ruler
● Arbor
● Draw bar
● Depth ruler
● Arbor
●tool box & tools
Optional accessories:
● Stand & chip tray
● Keyless drill chuck 3-16mm
● ER25/8pcs collet chuck (4-16mm)
● End mill 8pcs (4-16mm)
● 58pcs of clamping kits /M10 * 11.7mm
● Drill chuck 3-16mm
● X-axis power feed
● Digital readout
● ER25/8pcs collet chuck (4-16mm)
● End mill 8pcs (4-16mm)
● 58pcs of clamping kits /M10 * 11.7mm
● Drill chuck 3-16mm
● X-axis power feed
● Digital readout
