DC brushless servo motor barrier gate with led light boom
- Category: >>>
- Supplier: Shenzhen Wejoin Machinery & Electrical Technology Co. Ltd.
Share on (62434089754):
Product Overview
Description
WEJOIN 1~2s adjustable fast-speed servo barrier
Product Description
WEJOIN High-Grade Servo Barrier Gate WJCB01SV
DC Brushless Servo Motor
Higher Stability, Longer Sercive Life and Easier Operation

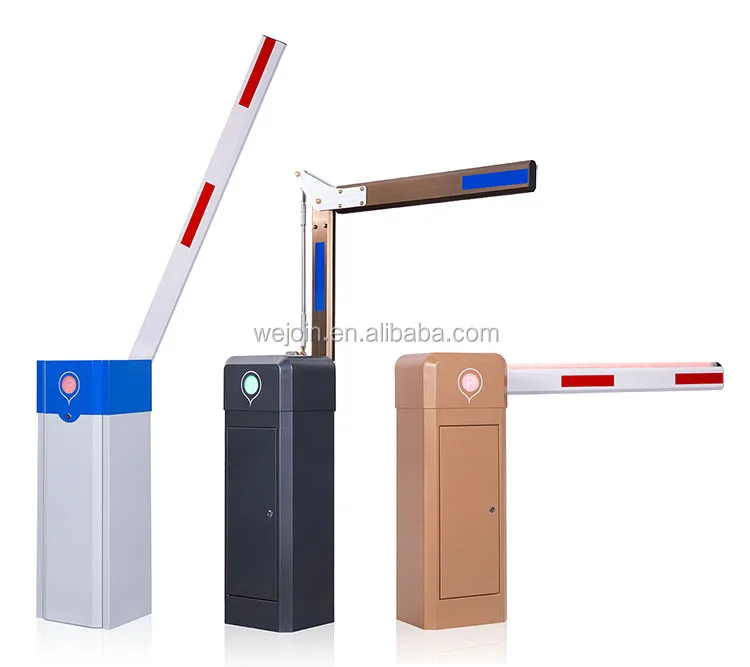

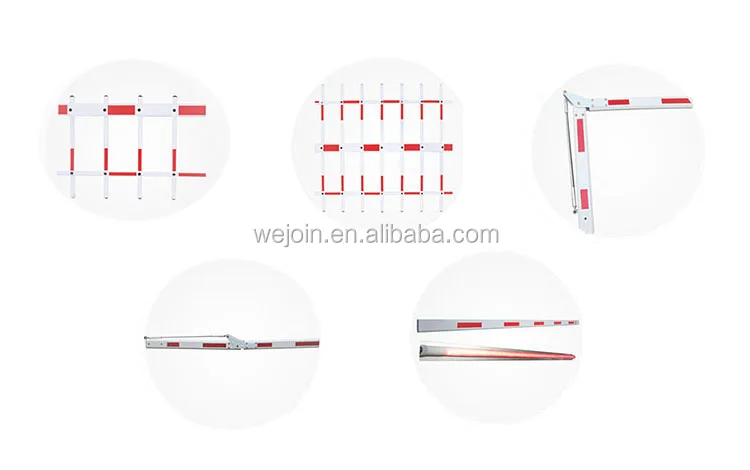

Boom Type Selection
Functions & Features
1). DC permanent magnet synchronous motor(PMSM), servo control.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power conaumption, high efficiency and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). More sensitive and reacting faster when reversing on obstacles.
8). With counting, delay auto-closing, and auto-aging test function.
9). 4-digit digital tube display, displays more information.
10).NO/NC wire control signal input are optional.
11).Integrated RS485 communication, infrared photocell and loop detector interface. RJ45 network, loop detector, and radar module can be added.
Technical Data
| Model | WJCB01SV-H | WJCB01SV-I | ||||
| Running Speed | 1/1.5/2S | 3/4/5S | 5S | 5S | 5S | 5S |
| Boom Type | Straight | Straight | 90° Folding | 180° Folding | 2 Fence | 3 Fence |
| Max Boom Length | 3.5M~4.5M | 4.5M~6M | 5M | 4M | 4.5M | 4M |
| Input Voltage | AC220V±10%, AC110V±10% | |||||
| Frequency | 50/60HZ | |||||
| Motor Voltage | DC310V | |||||
| Enclosure Rating | IP54 | |||||
| Working Temperature | -35°C ~ +85°C | |||||
| MTBF | 6000000 times | |||||
| Traffic Flow Appication | 24 hours uninterrupted operation | |||||
| Max Motor Power | 150W | |||||
| Max Motor Speed | 36r/min | |||||
| Max Torque | 240N.m | |||||

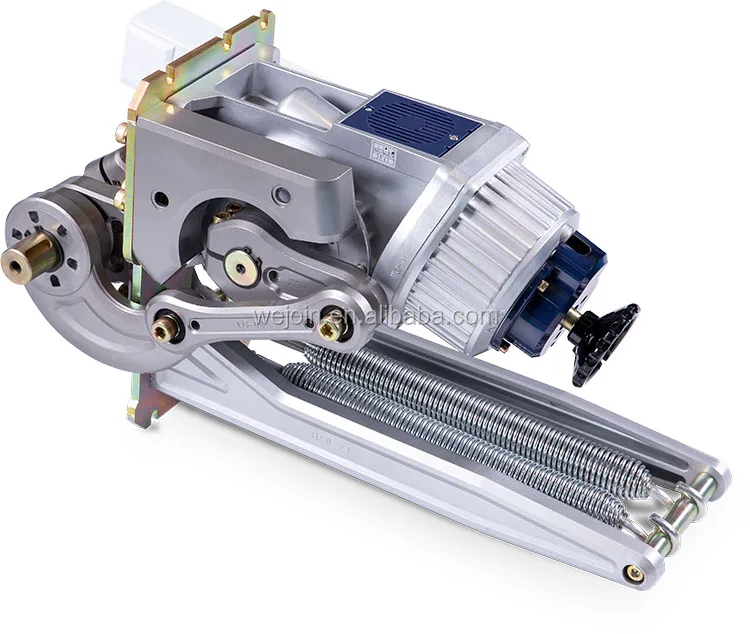

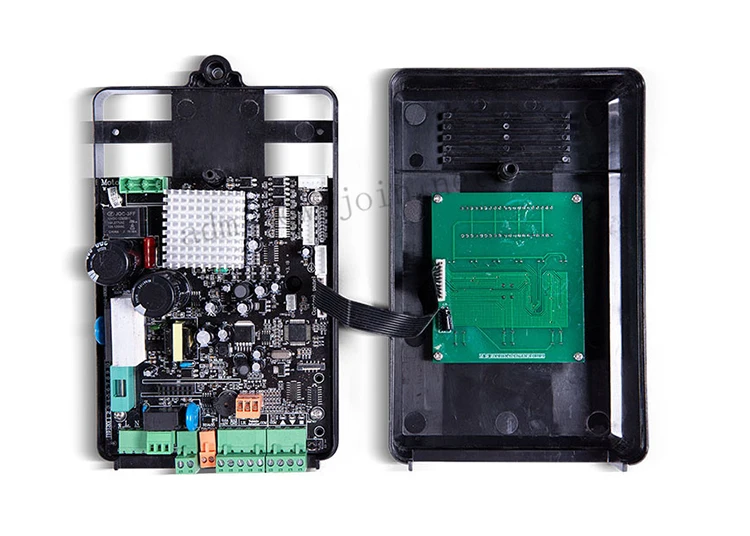

Machine Core and Controller

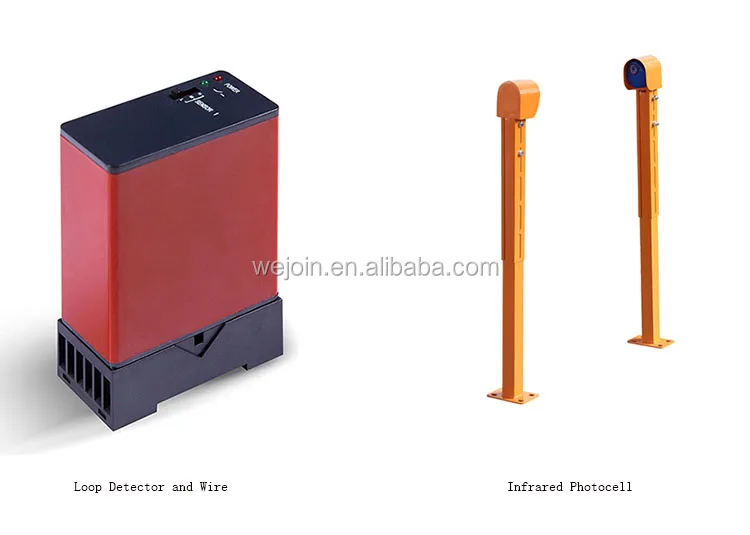

Optional Accessories
Packaging & Shipping
Packaging
| Size | 102(L)*37(W)*47(D) |
| Weight | 60 KG |
| Packaging Details | The normal package is paper carton (Size:102*37*47 cm). If wooden box is needed to export or pack it according to customers special request. |
| Size | 615(L)*11(W)*5(D) |
| Weight | 6.6 KG |
| Packaging Details | The normal package is foam paper. If Wooden box is needed to export overboard, the wooden box sill be fumigated. |
Our Service
| Payment Term | Leading Time | Minimum Order | Supple Ability | Package |
| T/T;Westuinon | 5-7 Working days | 1 Unit | 10000 Unit | Paper Carton of or Wooden Box |
WEJOIN Manufacturing
Company Information
SHENZHEN WEJOIN WECHANICAL & ELECTRICAL CO., LTD.
Shenzhen WEJOIN Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise speciallized in research and development, manufacturing and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.

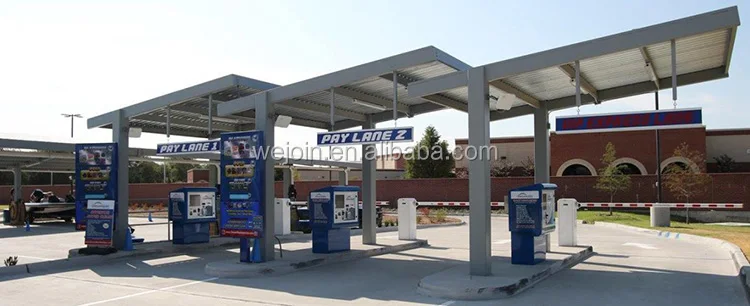

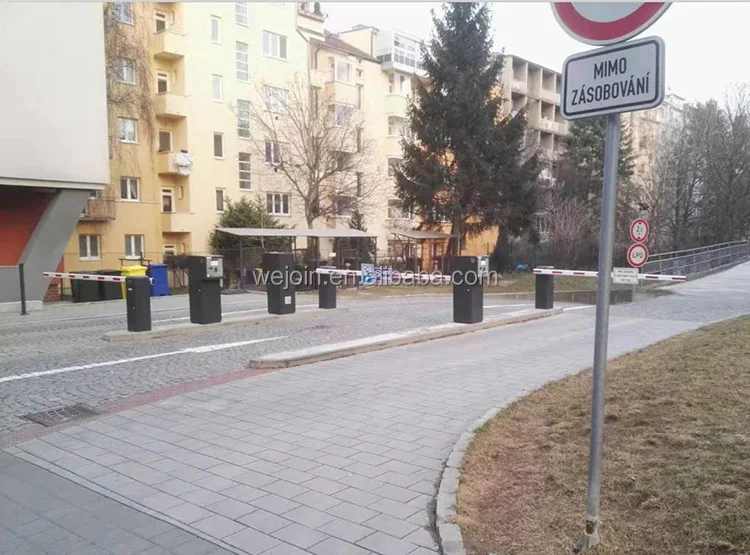

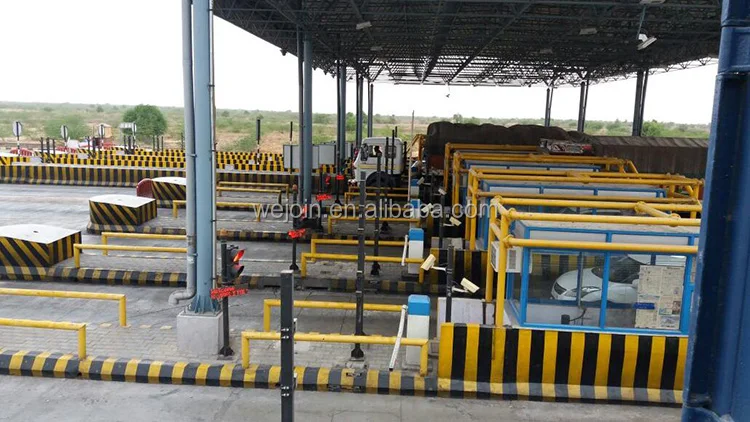

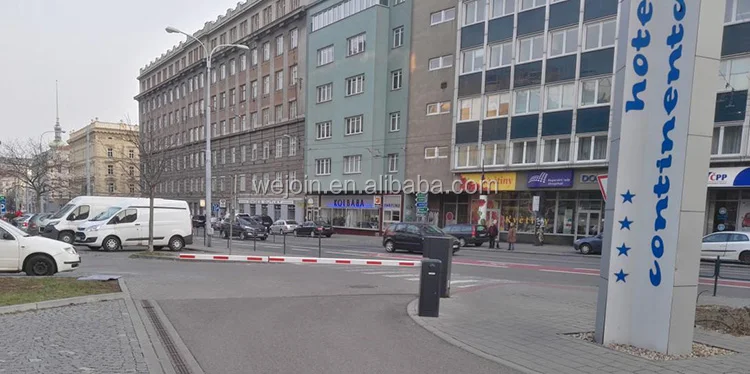

Worldwide Projects
