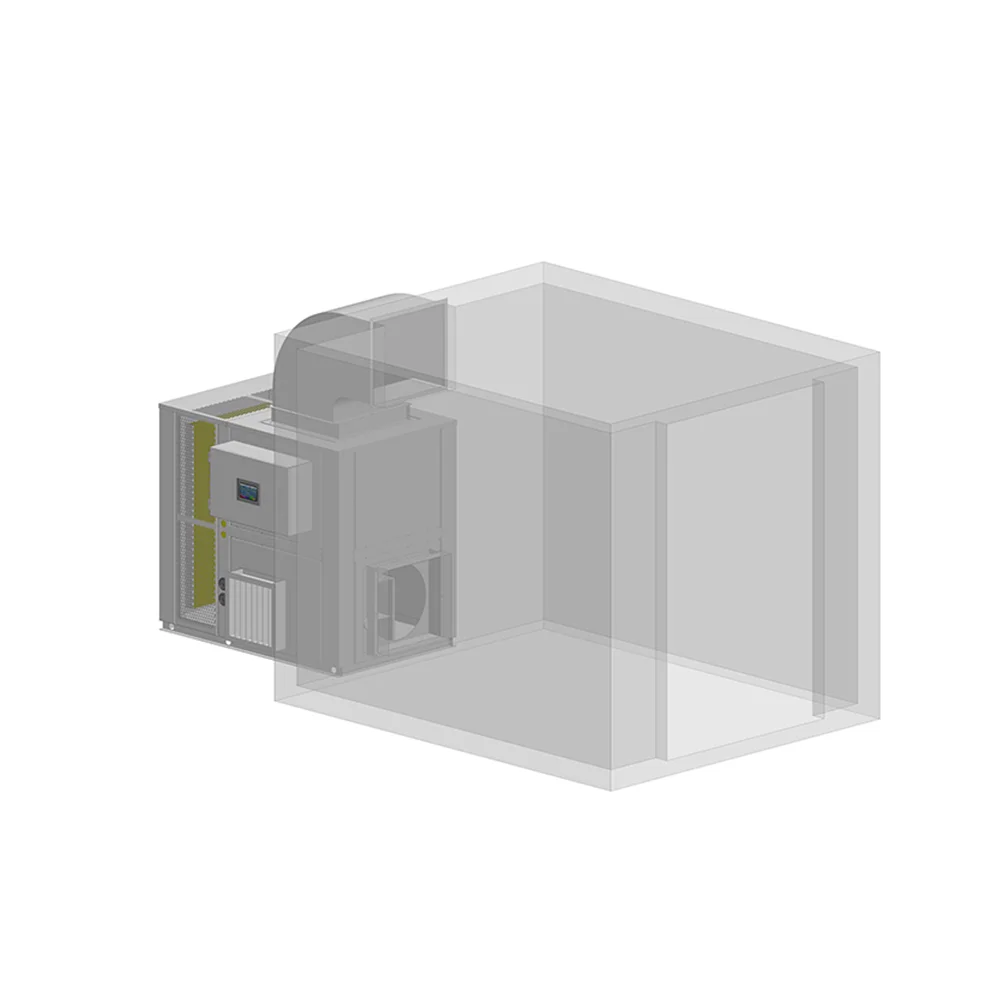

Hot air Timber pine wood Drying Machine Furniture dryer oven chamber and Wood Plank Heat Pump Dryer
- Category: >>>
- Supplier: Guangzhou Yike Heat Pump Drying Equipment Technology Co. ltd.
Share on (62434166983):
Product Overview
Description
Product Description
The wide application of products
Medicinal material dryers: Star anise dryer, Morinda officinalis dryer, Dendrobium dryer, Honeysuckle dryer,etc.

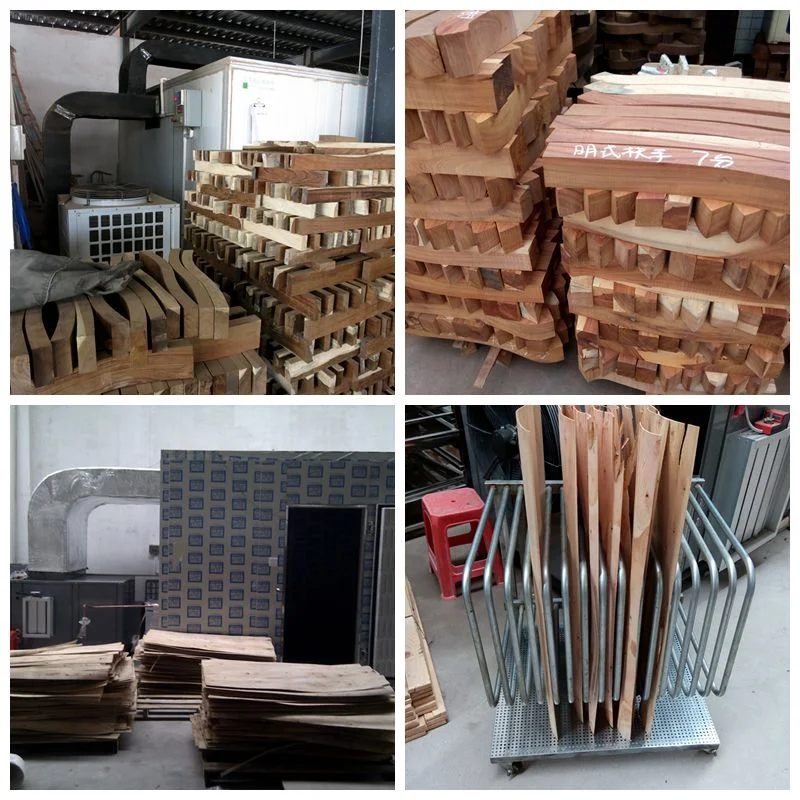

Wood dryers: Mahogany furniture dryers, Furniture paint dryers, Rose wood, Bamboo stick dryers,etc.
Agriculture products dryer: Mushroom dryer, Longon dryer, Pitaya dryer, Tobacco dryer, Pepper dryer,etc.
Food dryer: Sausage dryer, Bacon dryer, Preserved fish dryer, Noodles dryer, Rice flour dryer,etc.
Tea dryer: Pu 'er Tea, Lemon tea, Yerba mate ,Ceylon Tea, Iron Buddha, Jasmine tea,etc.
Seafood dryer: Squid dryer, Abalone dryer, Shrimp dryer, Marine dryer,etc.
Industrial dryer: Printing dryer, Leather dryer, Cloth dryer, Plastic dryer, Sludge dryer, Handicraft dryer,etc.
Product Name: | Wood drying equirpment | |||
Material: | Steel / Stainless Steel | |||
Power (KW): | 6.3 | |||
Features: | Drying, Dehumidify, Fourth waste heat recovery technology, touch screen control, Programmable |
Equipment core components
The compressor:adopts the well-known brand Emerson Copeland compressor to provide more heat.
The compressor:adopts the well-known brand Emerson Copeland compressor to provide more heat.
electrical accessories:adopt the well-known brand Schneider Electric accessories to make the quality replacement more stable.
The control system:adopts the best drying controller of Xingluo Electronics in the industry with complete functions. stable quality.
Heat recovery device: extra-large heat exchange core, anti-corrosion setting, energy-saving and power-saving.
The control system:adopts the best drying controller of Xingluo Electronics in the industry with complete functions. stable quality.
Heat recovery device: extra-large heat exchange core, anti-corrosion setting, energy-saving and power-saving.
Products application:
Heat pump drying equipment is suitable for drying fruit, wood, seafood,agriculture product,tea and sludge in many field. The working principle of Heat pump drying machine
* In the dryer system,hot and dry air at the exit of condenser is allowed to pass through the drying chamber where it gains latent heat from the material. The humid air at dryer exit then passes through the evaporator where condensation of moisture occurs as the air goes below dew point temperature. Then drain the condenser water.
Product features
1.Safety & Environment protection：The low-temperture drying process below 80°c is fully suitable for drying.It adopts low temperture （40-80°c）fully enclosed drying mode ,no odor overlow ,no need to install complex deodorizing device.
2.Energy saving & Efficient: Using heat pump recoery technology, the closed drying mode dose not have any waste heat discharge.
3.Intelligent & Operating easily: Fully automatic operation, PLC+touch screen intelligent control,which temperature and humidity can be controlled in different time.
Size Information
Recommend Configuration
Model | Capacity | Drying room size | Trolley qty | Drying room size can be customized under your requirements. |
One unit YK-72RD | 100KG/batch | 4000*2400*2400mm | 4 | |
Two units YK-72RD | 300KG/batch | 8000x2400x2400mm | 8 | |
One unit YK-120RD | 150KG/batch | 4000*2400*2400mm | 4 | |
Two unit YK-120RD | 400KG/batch | 8000x2400x2400mm | 8 | |
One unit YK-145RD | 600KG/batch | 5000x3000x2400mm | 8 | |
Two units YK-145RD | 1000KG/batch | 8000x3000x2400mm | 12 | |
One unit YK-240RD | 800KG/batch | 6000x3000x2400mm | 8 | |
Two unit YK-240RD | 1600KG/batch | 10000x3000x2400mm | 16 | |
One unit YK-290RD | 1000KG/batch | 8000x3000x2400mm | 12 | |
Two units YK-290RD | 2500KG/batch | 12000x3000x2400mm | 20 | |
One unit YK-360RD | 1200KG/batch | 8000x3000x2400mm | 12 | |
Two units YK-360RD | 3500KG/batch | 12000x3000x2400mm | 20 |
Details Images
Fan rack and fans
Trolley
Heat Pump Dryer

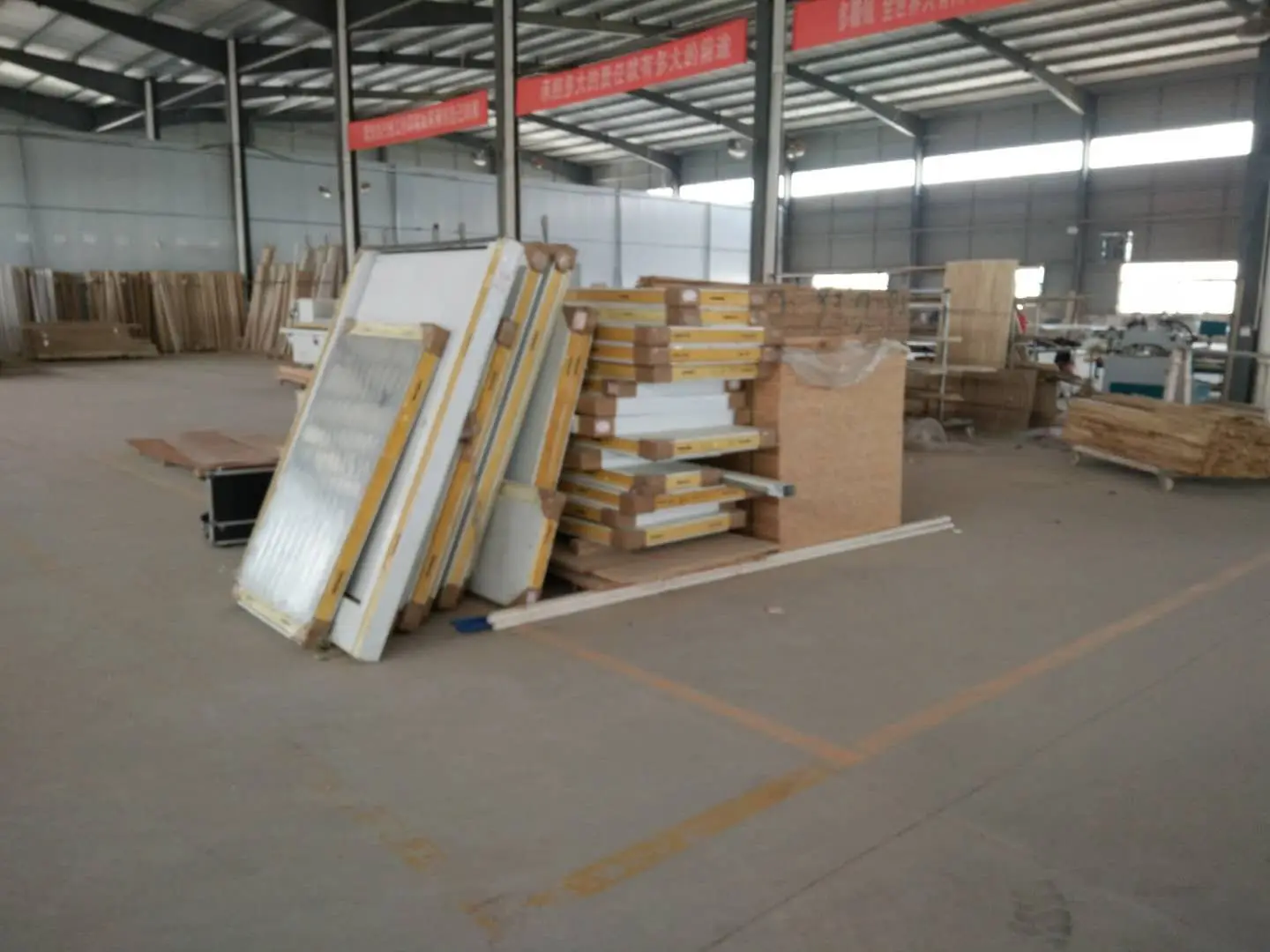

Polyurethane board
Temperature and humidity probe
Dehumidification fan
Trolley | ||
Material | 304 stainless steel | |
Size | 1210*870*2000mm | |
1010*870*2000mm | ||
870*610*2000mm | ||
1400*870*2000mm | ||
Tray | ||
Sort | size | |
Punching tray | 800*600*50mm | |
Solid tube edge tray | 800*600*50mm | |
Plastic tray | 800*600*50mm | |
Mesh tray | 800*600*50mm | |
Related Products
Model:YK-290RD
Click on me!
Model:YK-72RD-CH
Click on me!
Model:YK-240RD
Click on me!
Model:YK-145RD
Click on me!
Model:Yk-480RD
Click on me!
Model:YK-24E
Click on me!

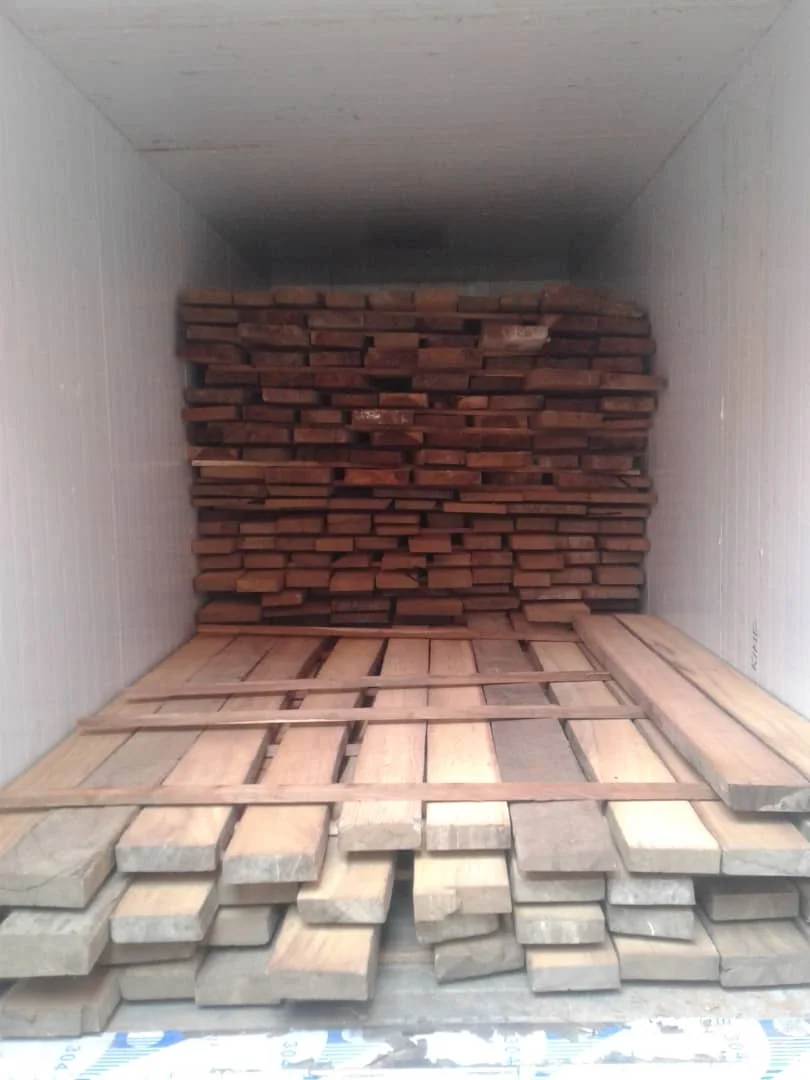

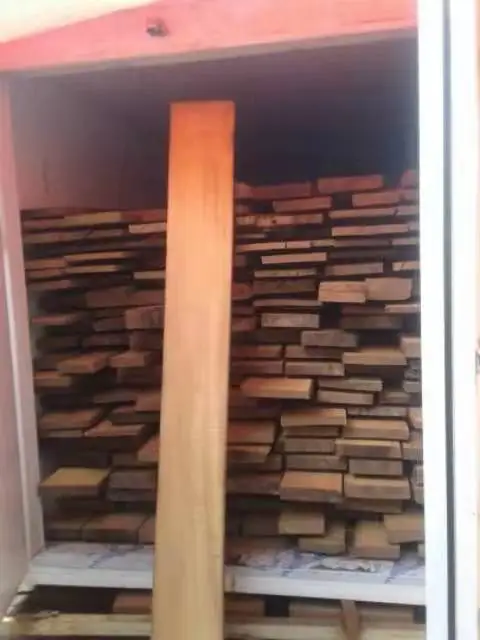

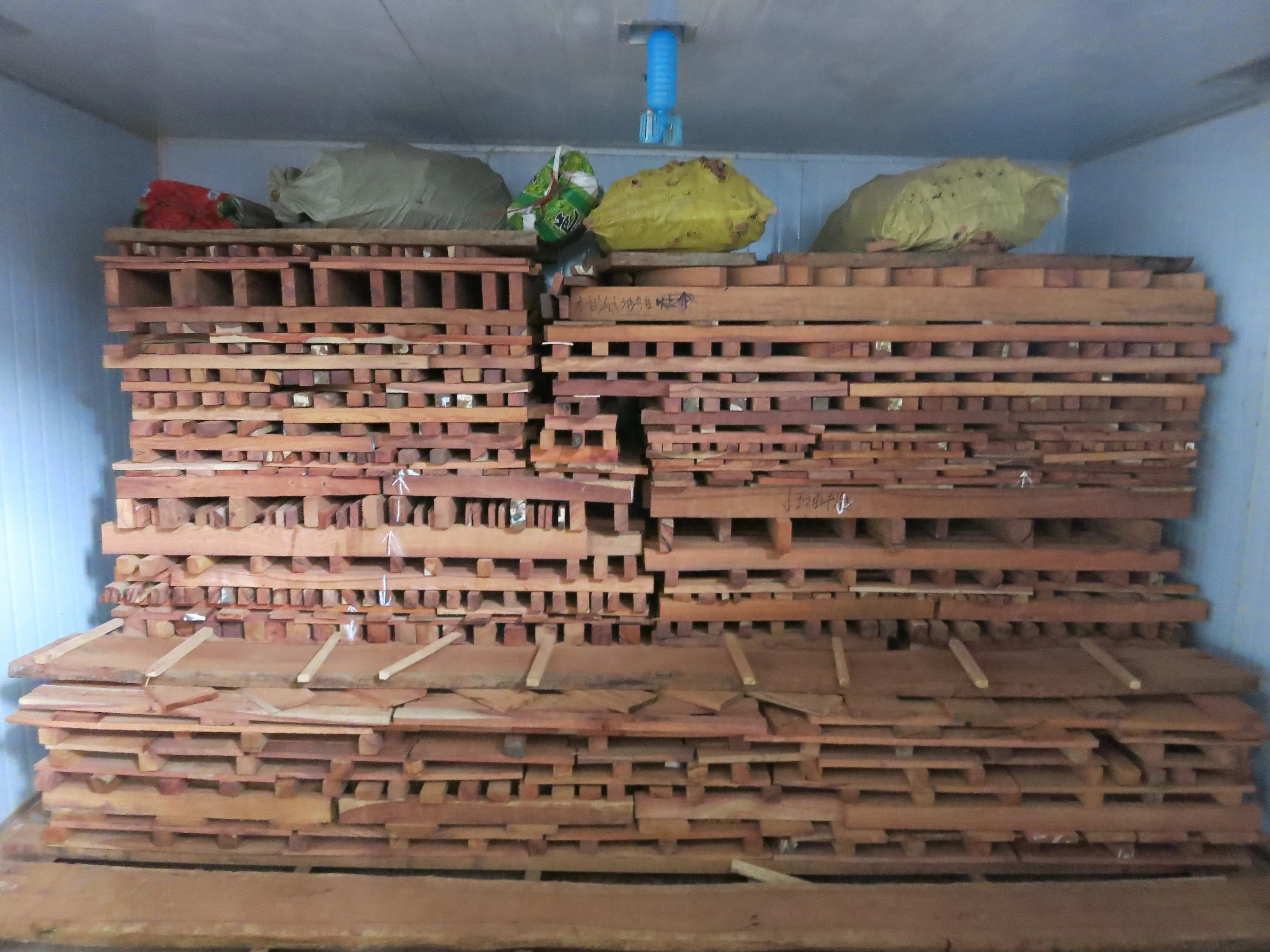

Successful cases
drying prrocessing

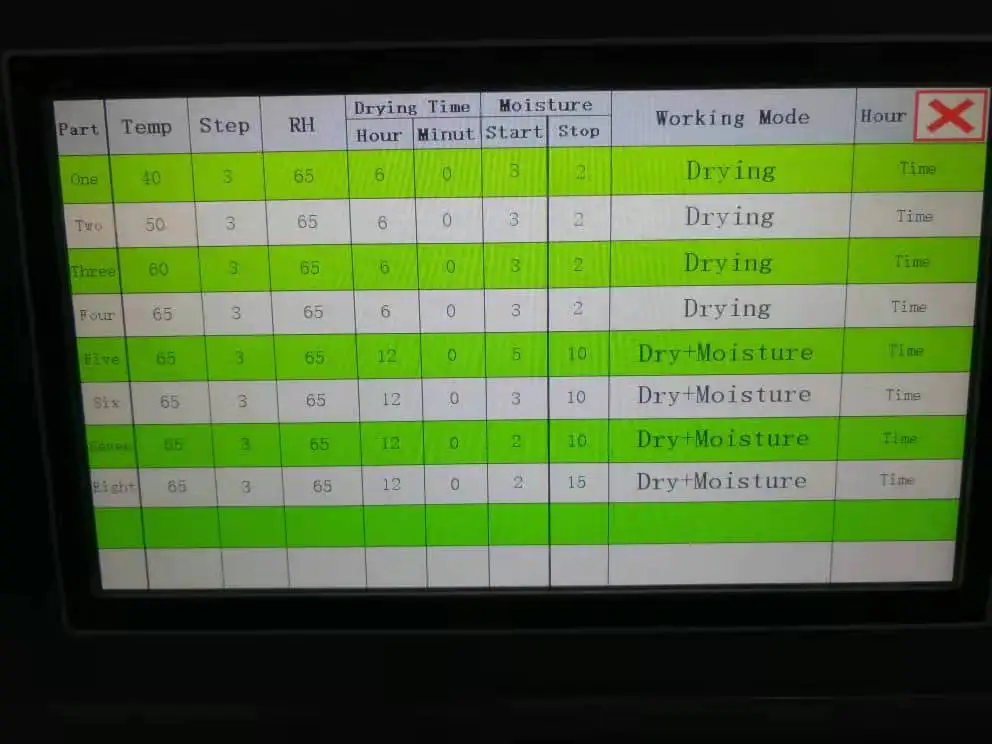

He dried with eight steps.First step with 40℃ and 6 hours.Second step with 50℃ and 6 hours.Third step with 60℃ and 6 hours.Fourth step with 65℃ and 6 hours. From fifth step to eighth step are all with 65℃ and 12 hours.From first step to fourth step are all dry with drying model which is order to raise temperature of the wood,the humidity setting of the drying room are all 65%.From fifth step to eighth step are all dry with dry+Moisture model which is order to keep the moisture away from the wood,the humidity setting of the drying room are all 65%.

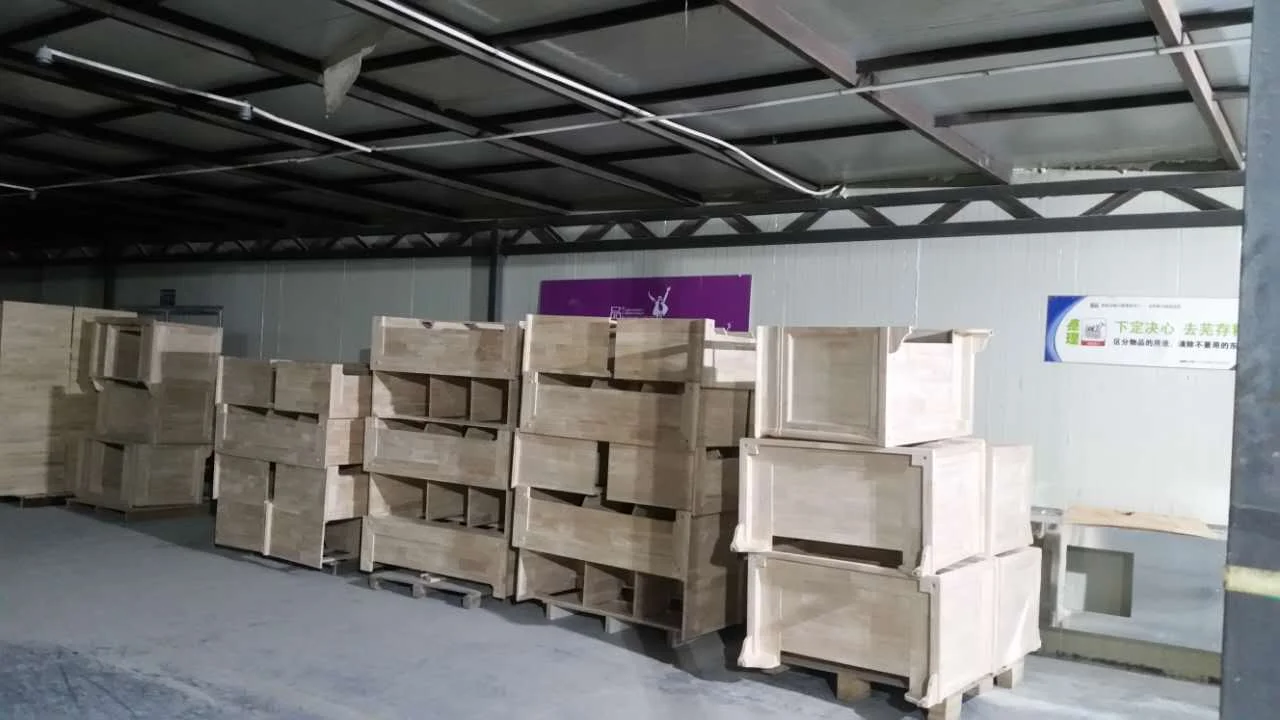

Product packaging
The goods are ready for Tanzania
The goods are ready for India
The goods are ready for Thailand
Packaging | ||
Size | 5.89m (L) * 2.33m (W) * 2.38m (D) | |
Weight | 3T | |
Packaging Details | The normal package is plywood box(Size: L*W*H). | |
If export to european countries,the plywood box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | ||
Packaging | ||
Size | 12.045m (L) * 2.340m (W) * 2.379m (D) | |
Weight | 5 T | |
Packaging Details | The normal package is plywood box(Size: L*W*H). | |
If export to european countries,the plywood box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | ||
After Sales Service
Before arrival of machines:
* Inquiry and consulting support WITHIN 24 HOURS
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After deliver the machines:
* Technical support to instal,operate and maintain the machine
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
Certifications
Company Introduction
Guangzhou Yike Heat Pump Drying Equipment Technology Co., Ltd. is committed to the research and development and application of heat pump dryer. We are specializing in R&D, manufacturing, sales and installation of “YKP” brand air energy energy-saving dryer (heat pump dryer). YKP company introduces advanced technology from Europe and the United States, combines traditional drying technology with modern drying technology, and adheres to the development strategy of independent research and development. At present, it has formed a all-in-one high-temperature heat pump dryer, split type high-temperature heat pump dryer, and high-efficiency industrial dehumidifier, sludge dehumidification and drying machine, automatic drying line and other products. The company insists on pioneering and innovating, is diligent and enterprising, continuously perfects and improves the quality of products, strives for perfection of products, and serves customers carefully, taking "integrity, focus, innovation, service, win-win and contribution" as the concept.
