Combination Type Four digital scale small sachet pyramids bag pouch packing machine for health herbal tea

Product Overview

Description

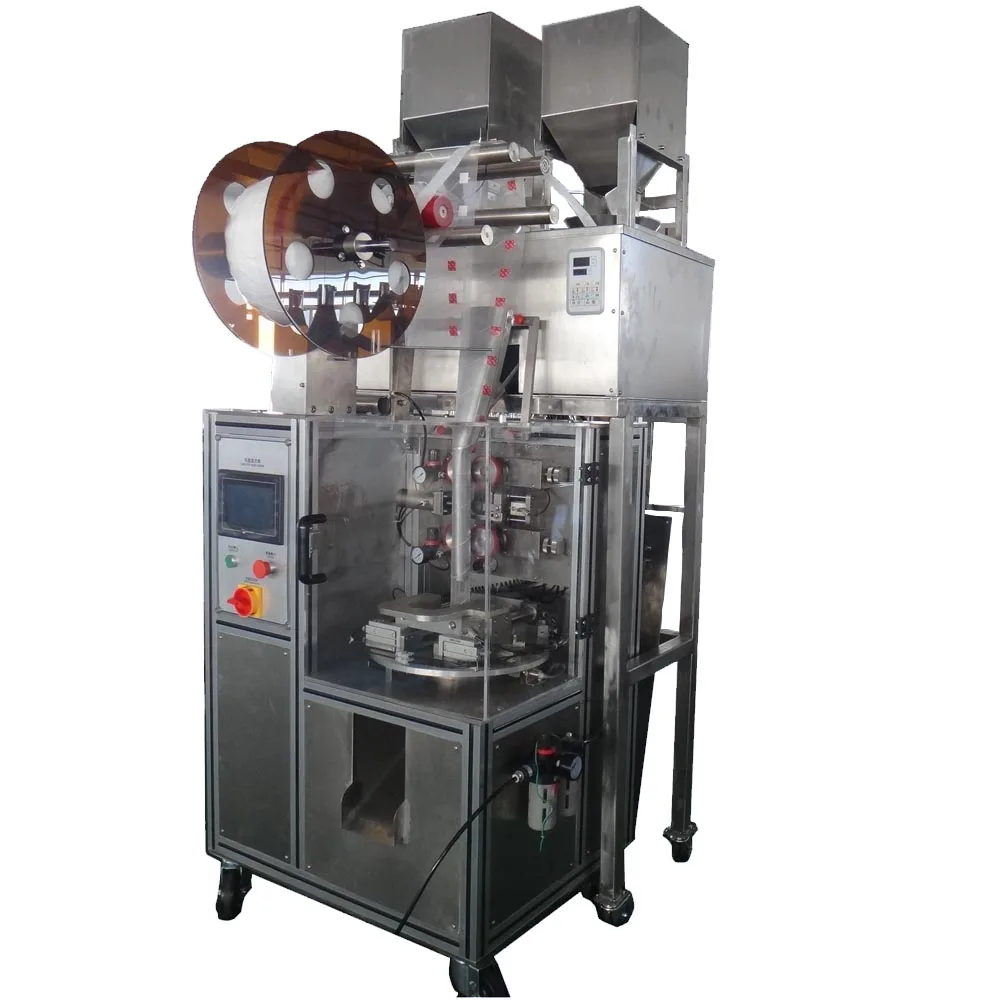

Four Digital Scale Small Sachet Pyramids Tea Bag Packaging Machine



Application:

Be used for automatically packing products as green tea, black tea, flower tea, health tea, medicine tea, and granule and so on.





Features:

1. This unit can perform either three sides sealing or triangle teabag .just need single bond to change the bag between three sides sealing and triangle shape.

2. Packaging capacity: 3000bags/h (Determined by packing material)

3. Applicable packing materials: Nylon film with thread and label.

4. The precision volumetric metering way very easily in the transformation of filling material. Electronic scale metering can be collocated according to the material.

5. Human-Computer Interface, Omron PLC control, adopted the Panasonic double Servo motor to make the bag .Supplied complete setting functions. Easy operating

6. Main motor overload protection device

7. Packaging material tension automatic adjustment device

8. The machine will automatically stop when issued the warning.





Technical Specification:



Model	YD-SJB01 (Volumetric cup)	YD-SJB02 (2 head electronic scale)	YD-SJB03 (3 head electronic scale)	YD-SJB04 (4 head electronic scale)
Capacity(bags/min)	30-50	30-40	30-40	30-50
Bag size(L*W,mm)	(40-80)*(60-80)	(40-80)*(60-80)	(40-80)*(60-80)	(40-80)*(60-80)
Packing film(mm)	120,140,160	120,140,160	120,140,160	120,140,160
Sealing type	Triangle bag and flat bag	Triangle bag and flat bag	Triangle bag and flat bag	Triangle bag and flat bag
Filling range(ml)	2-10	1-7	1-7	1-7
Film thickness	0.04-0.06mm	0.04-0.06mm	0.04-0.06mm	0.04-0.06mm
Air consumption	0.6Mpa 0.4m3/min	0.8Mpa 0.6m3/min	0.8Mpa 0.6m3/min	0.8Mpa 0.6m3/min
Total power	2.2KW	2KW	2.2KW	2.2KW
Power	Single 220V	Single 220V	Single 220V	Single 220V
Air compressor	less than 1 cube	less than 1 cube	less than 1 cube	less than 1 cube
Dimension	780*940*1800mm	1200*920*2060mm	1600*800*2650mm	1600*800*2650mm
The weight of the machine	400kg	400kg	600kg	650kg

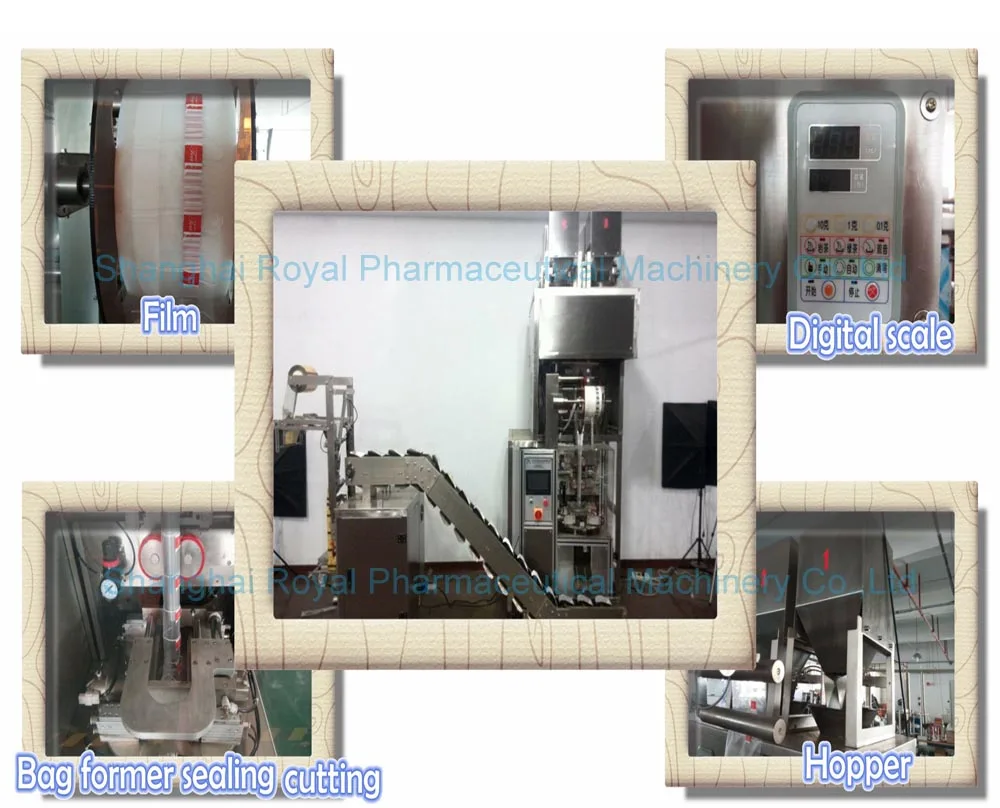

Machine detail

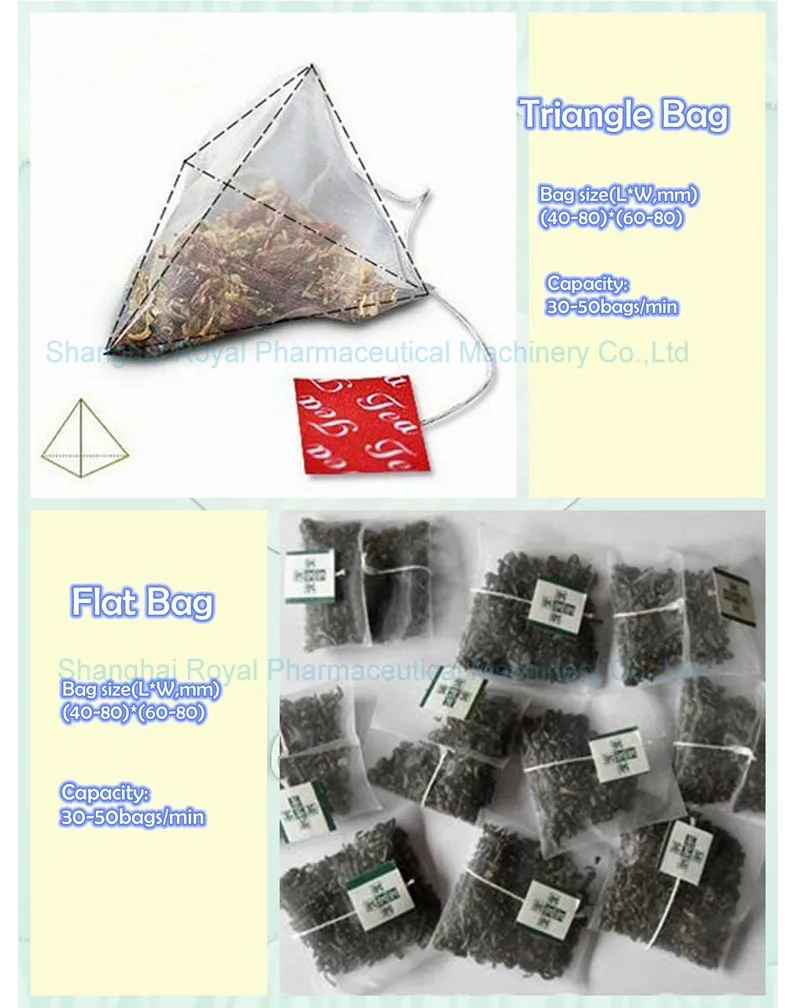

Packing bags type



Filling Material

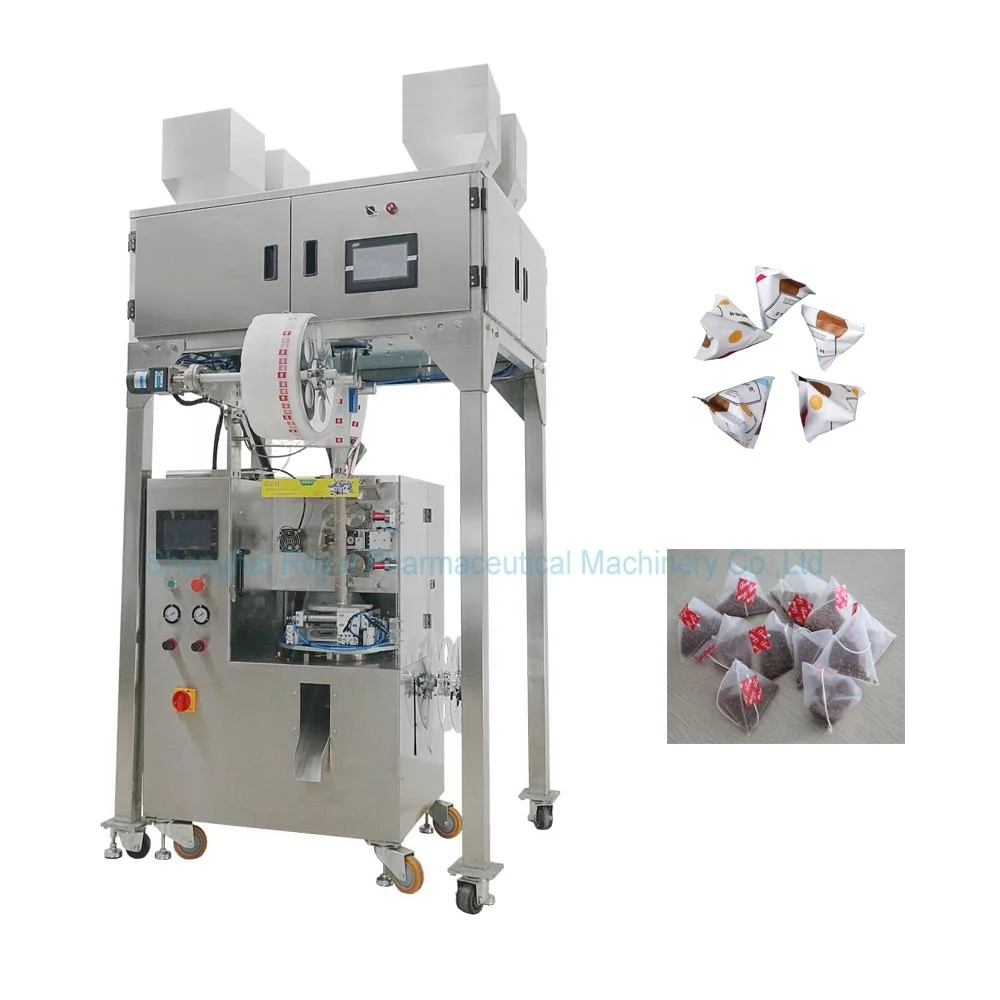

Other related products:



FAQ

Q1: What price terms you offer?

A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.



Q2: What payment terms you take?

A: We prefer T/T, but other terms also workable for us.



Q3: Will you help with installation and stuff training?

A: Yes, we can send our engineers to your place to guide the installation and train your workers if needed, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD50/day.



Q4: How can I visit and check your company?

A:Our factory is located in Shanghai and Zhejiang Province. Headoffice lay in shanghai, Minhang District. From Pudong International Airport to our office need only 45 minutes. U can take the metro line 5 come to our office directly!



Any other doubts about our machine, please feel easy to contact with us.
