JINGWEI food grade D type polymer feeds elevator buckets HDPE agricultural usage
- Category: >>>
- Supplier: Jiangsu Jingwei Conveying Equipment Co. Ltd.
Share on (62434286911):
Product Overview
Description
Product Description

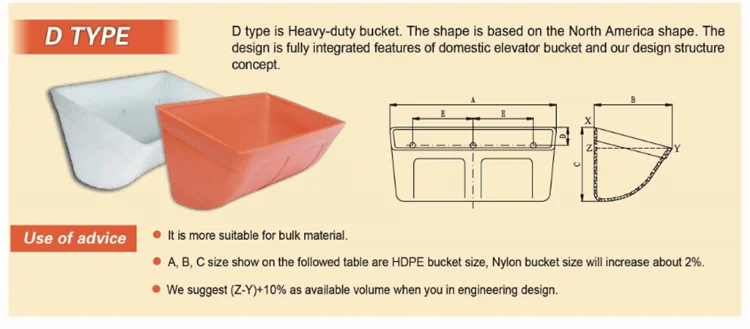

Model | Length A（mm） | Pro. B（mm） | Distance C（mm） | Distance D（mm） | Distance E（mm） | |||||
D4X3 | 107 | 82 | 75 | 22 | 50 | |||||
D5X4 | 134 | 116 | 105 | 32 | 60 | |||||
D6X4 | 159 | 116 | 104 | 32 | 60 | |||||
D7X4 | 185 | 112 | 103 | 32 | 120 | |||||
D6X5 | 168 | 145 | 130 | 40 | 90 | |||||
D7X5 | 192 | 145 | 130 | 40 | 120 | |||||
D8X5 | 211 | 145 | 130 | 40 | 120 | |||||
D9X5 | 237 | 148 | 127 | 40 | 85 | |||||
D10X5 | 266 | 145 | 130 | 45 | 90 | |||||
D11X5 | 289 | 145 | 130 | 45 | 100 | |||||
D8X6 | 211 | 168 | 150 | 45 | 120 | |||||
D9X6 | 239 | 173 | 150 | 45 | 85 | |||||
D10X6 | 268 | 164 | 154 | 45 | 90 | |||||
D11X6 | 289 | 174 | 154 | 45 | 100 | |||||
D12X6 | 312 | 174 | 152 | 45 | 85 | |||||
D13X6 | 338 | 168 | 45 | 45 | 85 | |||||
D14X6 | 368 | 168 | 50 | 50 | 95 | |||||
D10X7 | 269 | 197 | 45 | 45 | 90 | |||||
D11X7 | 287 | 197 | 45 | 45 | 100 | |||||
Fitting holes and hole diameter can be customized. MOQ:10 FREE SAMPLE, Dilivery within 7 days. LOGO custom, Size custom, COLOUR custom FREE PUNCHING. | ||||||||||

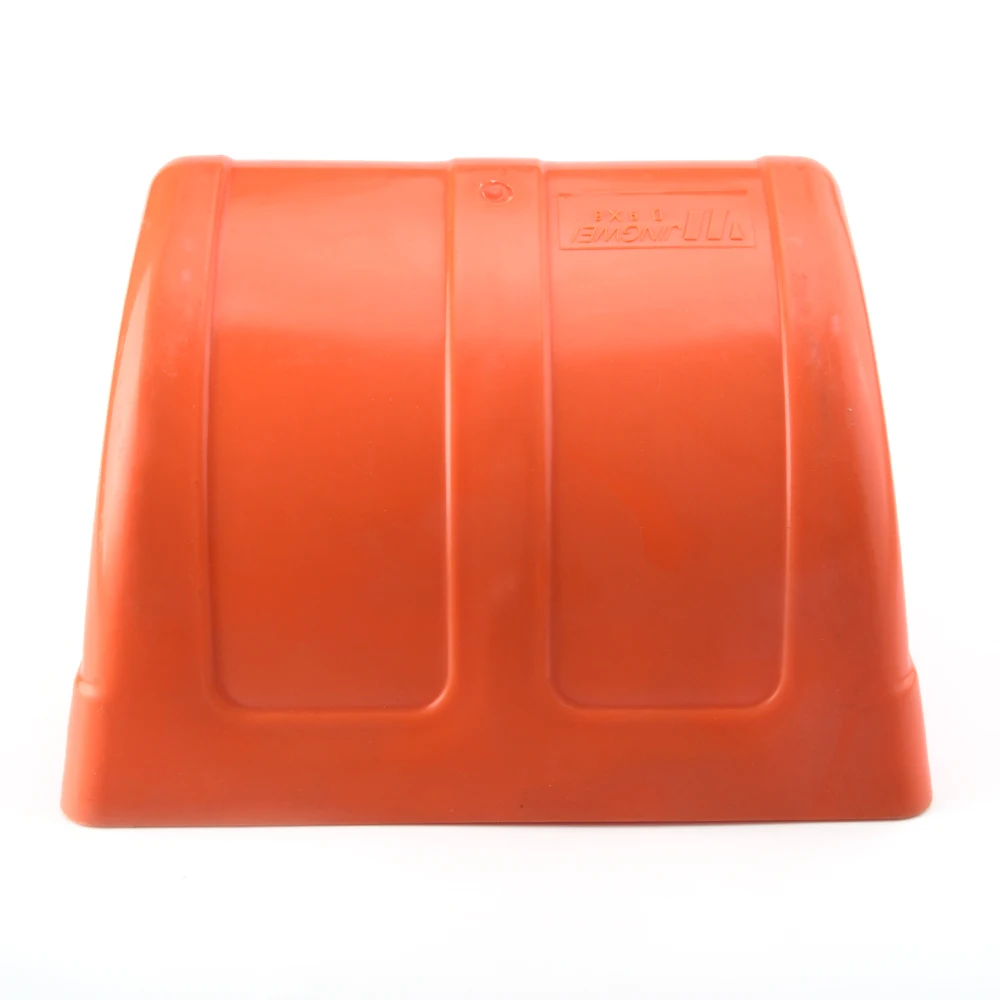

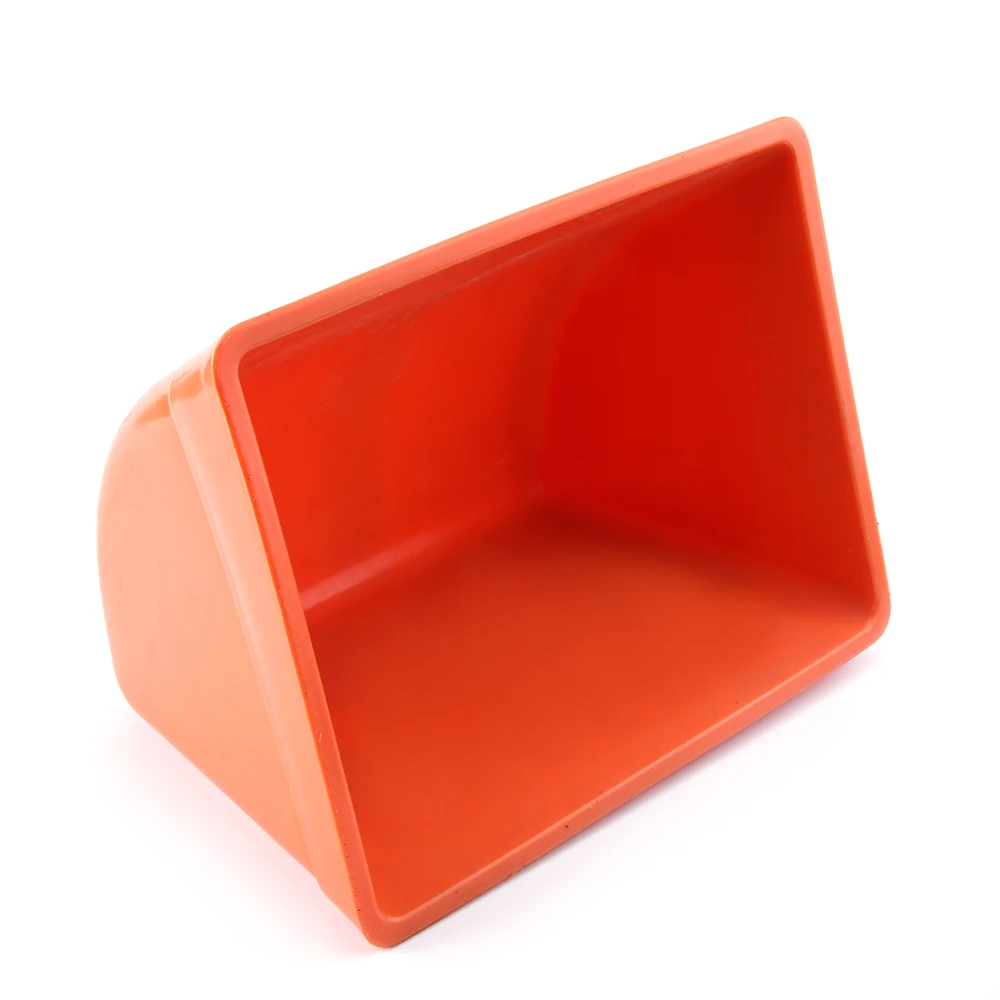

Details Images

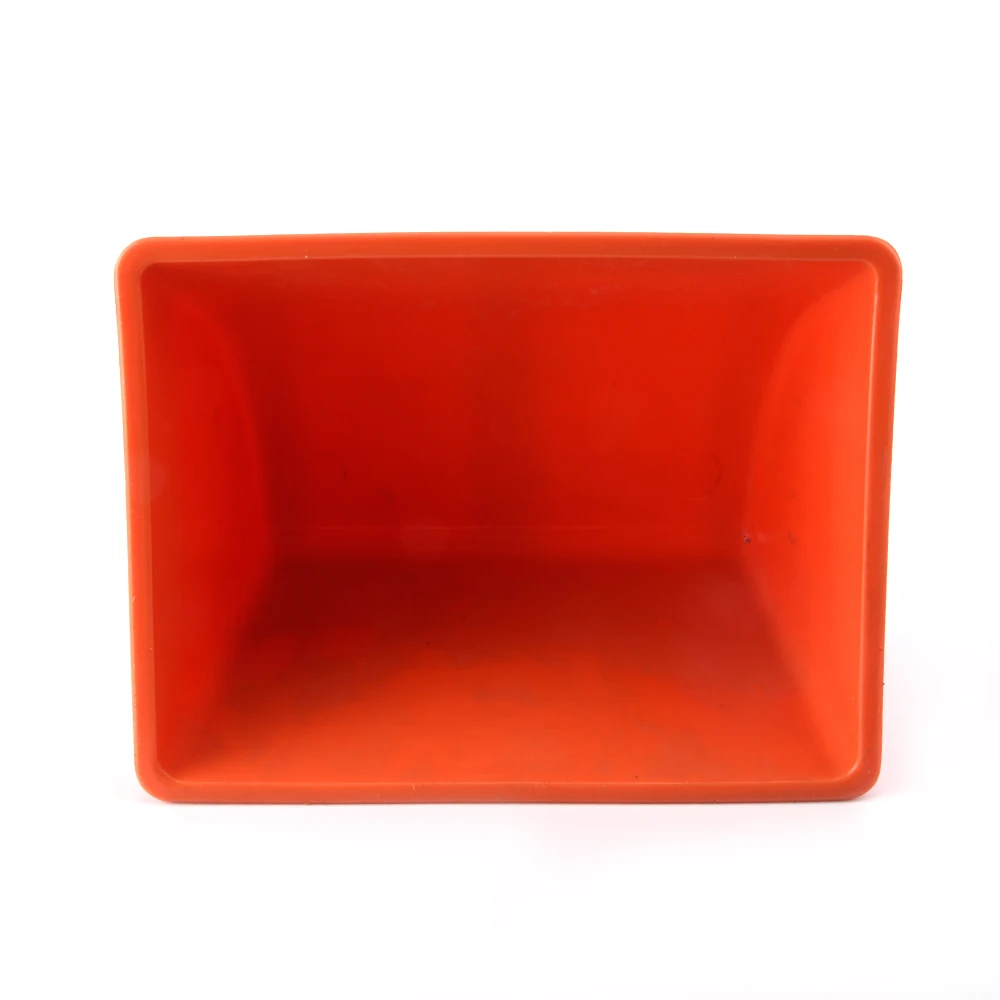

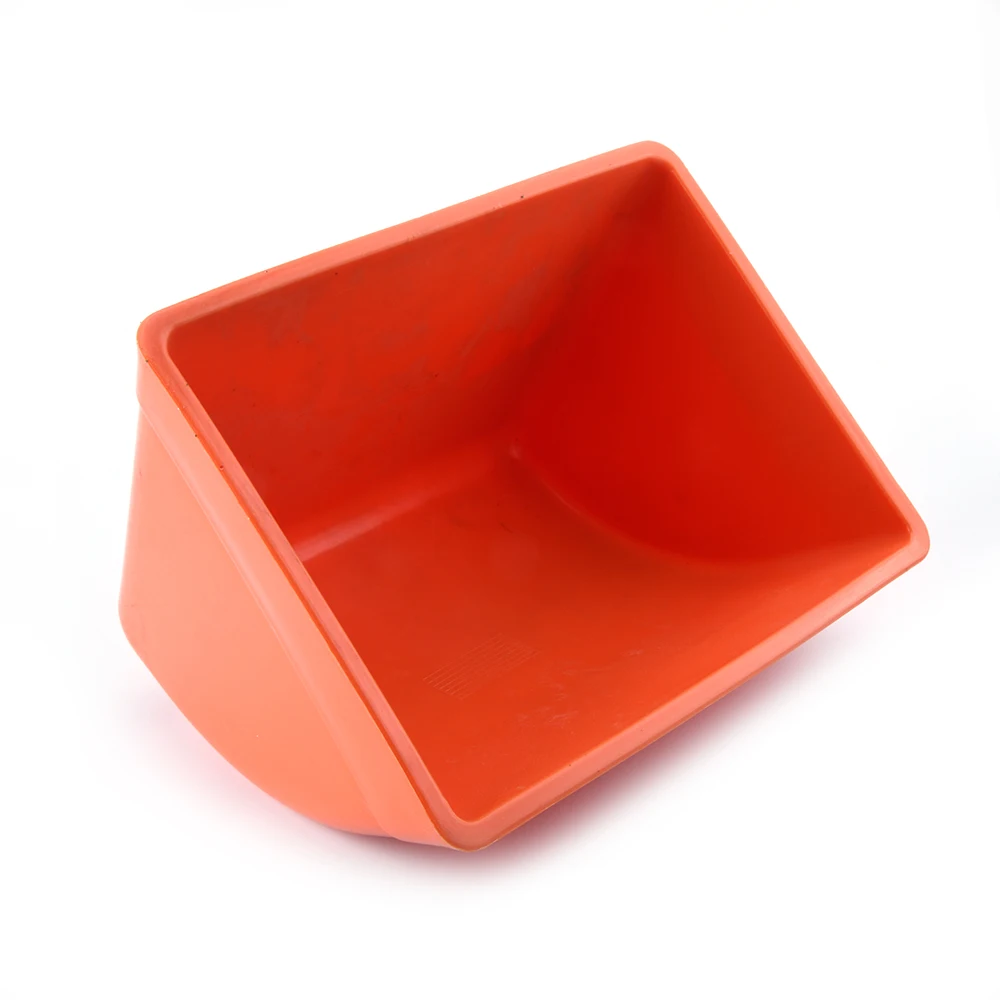

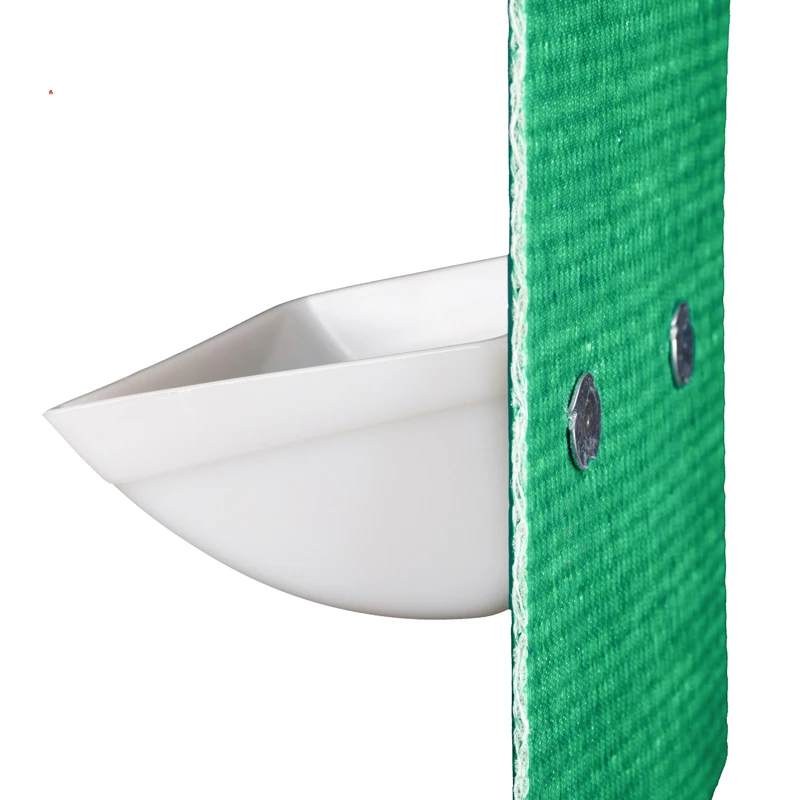

Detailed Images
WHY CHOOSE US?
1.High impact, abrasion resistance, no-corrosion, smooth surface.
2.Less weight, prolong service life of buckets and belts, reduce elevator consumption.

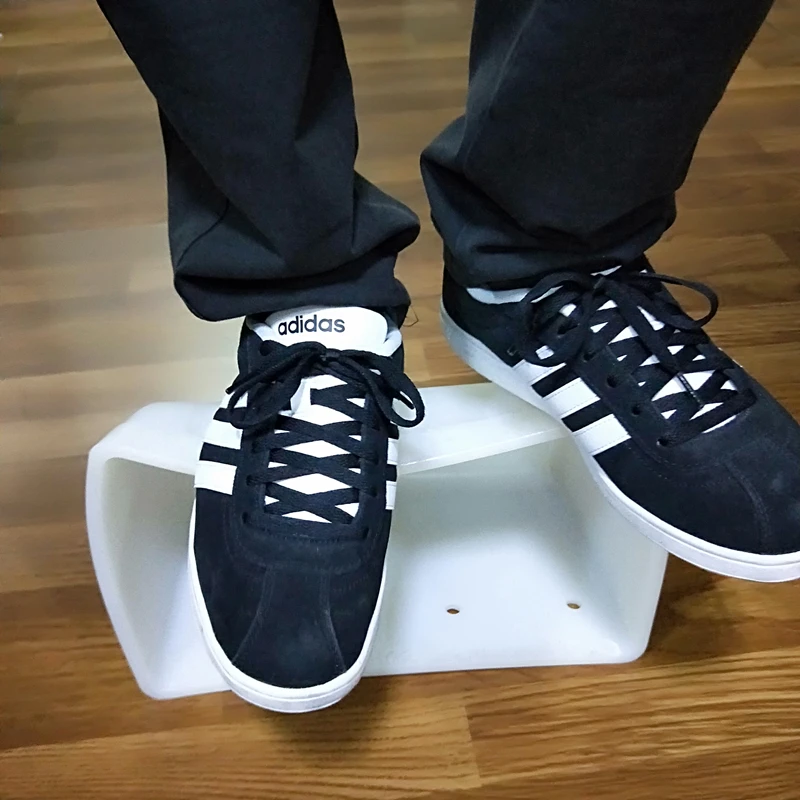

3.Good toughness, lower rate of breakage for material, no-sparking, avoid dust explosion.
4.Various materials and styles of plastic elevator buckets, more convenient to choose the proper bucket.
5.Higher performance than traditional cast iron bucket.
material: HDPE and NYLON.
Material | Color | Applied range | Operating temperature | Remarks |
HDPE | White/ Orange | Grain, fodder, seeds, manure, food, chemicals, sand, salt and other free flowing solid objects | -50~70 | Economical, misfit big unit weight material, sharp-edged & rough cullet, Large pellets of finished fodder and paddy |
NYLON | Off-white/ Milk white | High temperature, rough surface, larger bulk density material | -20~100 (transient temperature 120) | Suitable for high temperature & large wear condition. Working in dry conditions, especially in -20,easy to broken |

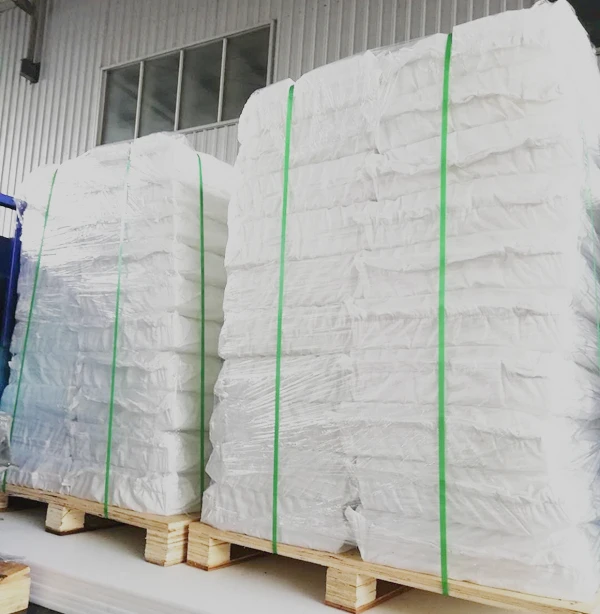

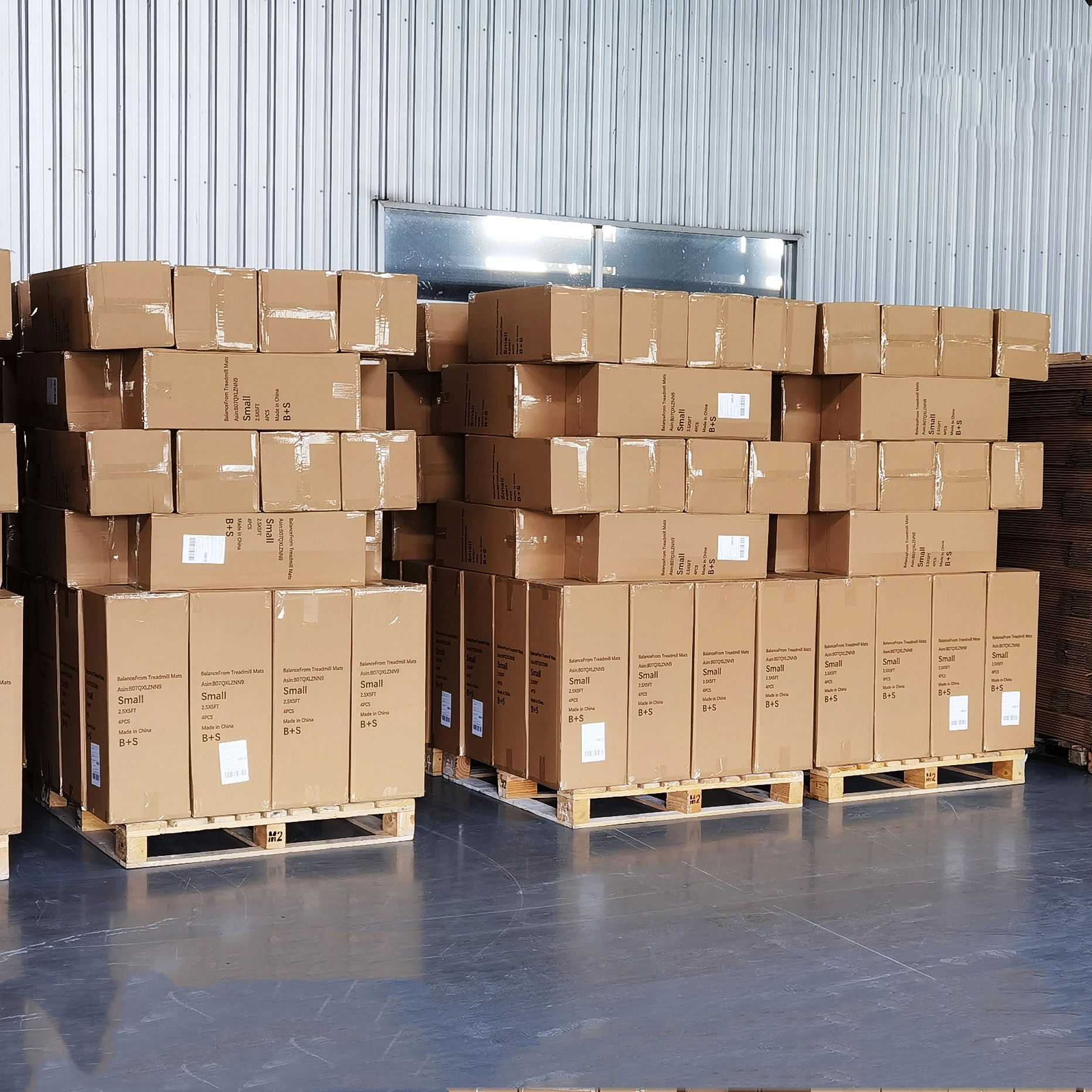

Packing & Delivery
Recommend Products

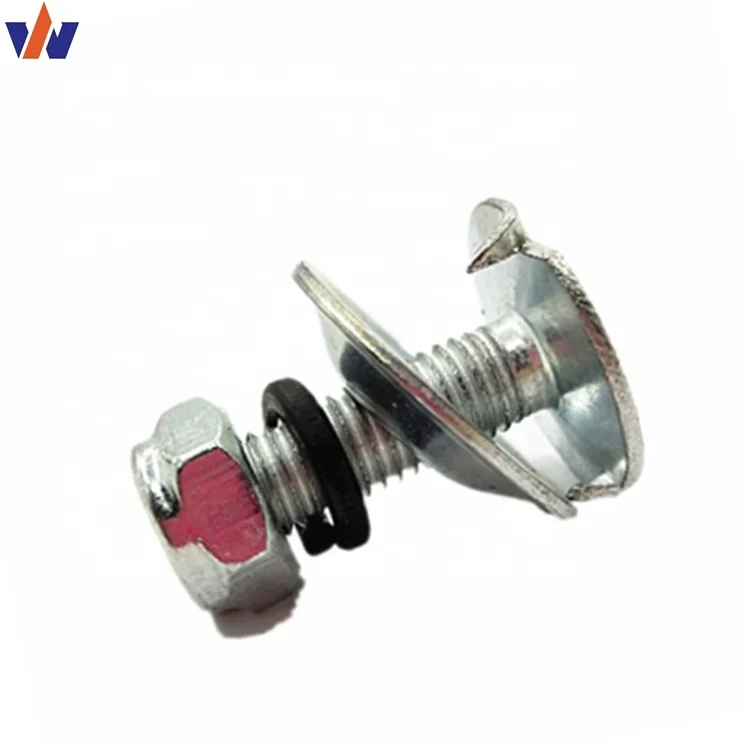

Elevator bolt
Rubber ball
Elevator belt
Main Product Catalogue
FAQ
Q: Are your manufacturer or trading company?
A: JIANGSU JINGWEI is a leading and professional manufacturer of grain conveying equipment accessories over 10 years in China.
Q: What is your payment term?
A: Our usual payment is 30%TT in advance ,70%TT before shipment (the bill of landing). For small quantity, we also accept other ways after discussion.
Q: Could i buy sample first or small order and is the sample fee refundable?
A: Of course. We accept sample and small order especially for new customs and of course the sample fee will be refundable when
order confirmed.
Q: When can delivery from ordering?
A: The delivery time depend on the quantity you ordered, generally about 15-45 days after deposit of payment.
Q: What is the quality of your products?
A: Quality is our corporate culture, we regard product quality as life of our company. We have achieved a lot of certifications to meet customs requirements. All raw material we used are the best. And quality Control Department specially responsible for quality checking in each process.As a factory, we can control all process of production 100% and every single product will be tested qualified before shipping.
Q: How long is the warranty of your product?
A: Our warranty period is usually one year. But the warranty period can be extended after discussion and agreement.
A: JIANGSU JINGWEI is a leading and professional manufacturer of grain conveying equipment accessories over 10 years in China.
Q: What is your payment term?
A: Our usual payment is 30%TT in advance ,70%TT before shipment (the bill of landing). For small quantity, we also accept other ways after discussion.
Q: Could i buy sample first or small order and is the sample fee refundable?
A: Of course. We accept sample and small order especially for new customs and of course the sample fee will be refundable when
order confirmed.
Q: When can delivery from ordering?
A: The delivery time depend on the quantity you ordered, generally about 15-45 days after deposit of payment.
Q: What is the quality of your products?
A: Quality is our corporate culture, we regard product quality as life of our company. We have achieved a lot of certifications to meet customs requirements. All raw material we used are the best. And quality Control Department specially responsible for quality checking in each process.As a factory, we can control all process of production 100% and every single product will be tested qualified before shipping.
Q: How long is the warranty of your product?
A: Our warranty period is usually one year. But the warranty period can be extended after discussion and agreement.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Danyang City, Jiangsu Province, China, about 2 hours bus ride from Shanghai .All our clients, from home or abroad, are warmly welcome to visit us!
A:Our factory is located in Danyang City, Jiangsu Province, China, about 2 hours bus ride from Shanghai .All our clients, from home or abroad, are warmly welcome to visit us!

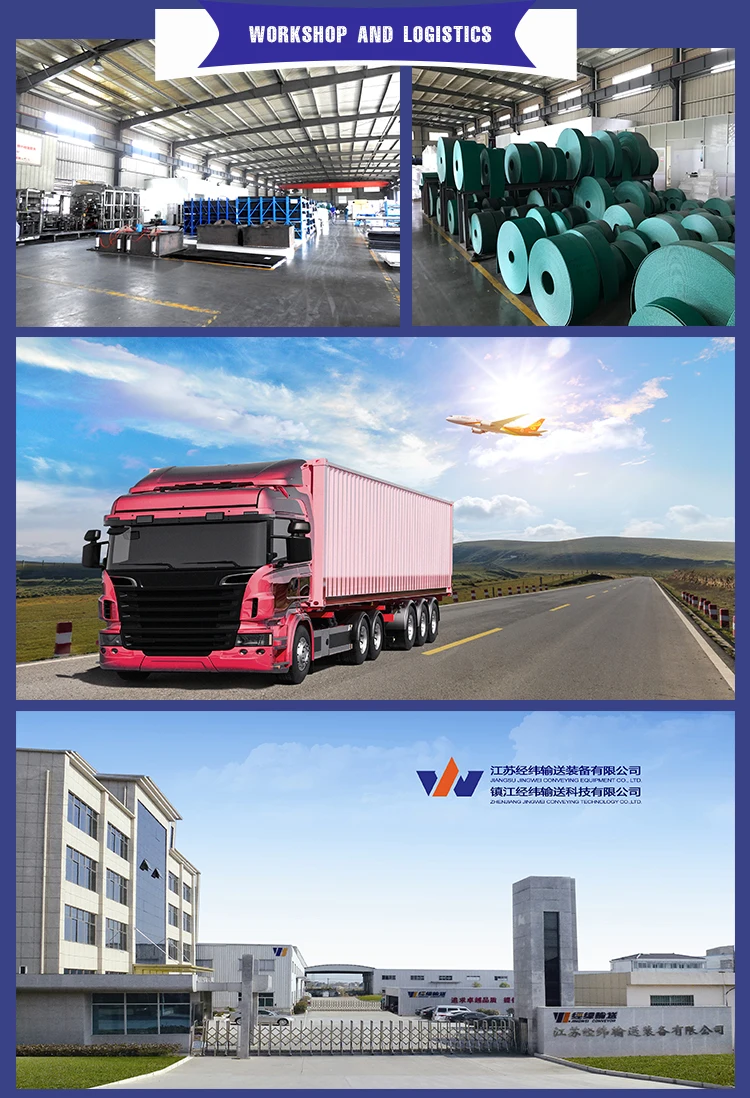

Our Company
