Timber Drying Machine Furniture Wood Dryer Dried Wood drying chamber machine
- Category: >>>
- Supplier: Guangzhou Yike Heat Pump Drying Equipment Technology Co. Ltd.
Share on (62434455092):
Product Overview
Description
Product Description
The wide application of products
Medicinal material dryers: Star anise dryer, Morinda officinalis dryer, Dendrobium dryer, Honeysuckle dryer,etc.
Wood dryers: Mahogany furniture dryers, Furniture paint dryers, Rose wood, Bamboo stick dryers,etc.
Agriculture products dryer: Mushroom dryer, Longon dryer, Pitaya dryer, Tobacco dryer, Pepper dryer,etc.
Food dryer: Sausage dryer, Bacon dryer, Preserved fish dryer, Noodles dryer, Rice flour dryer,etc.
Tea dryer: Pu 'er Tea, Lemon tea, Yerba mate ,Ceylon Tea, Iron Buddha, Jasmine tea,etc.
Seafood dryer: Squid dryer, Abalone dryer, Shrimp dryer, Marine dryer,etc.
Industrial dryer: Printing dryer, Leather dryer, Cloth dryer, Plastic dryer, Sludge dryer, Handicraft dryer,etc.

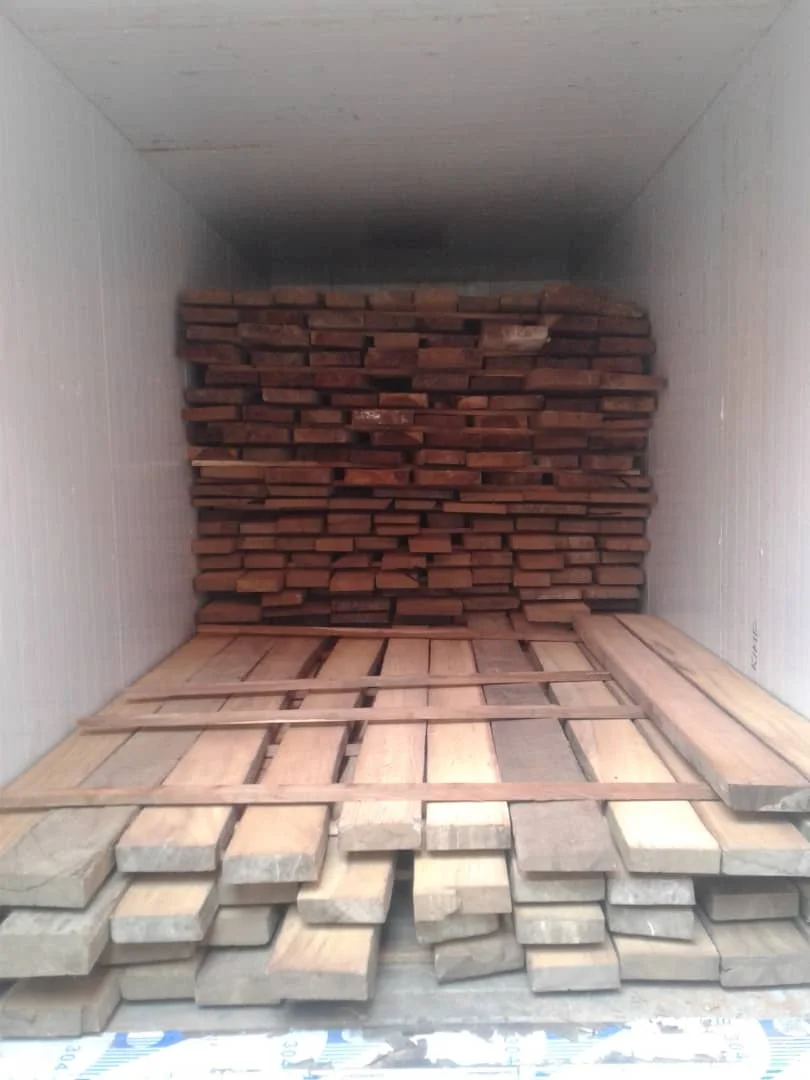

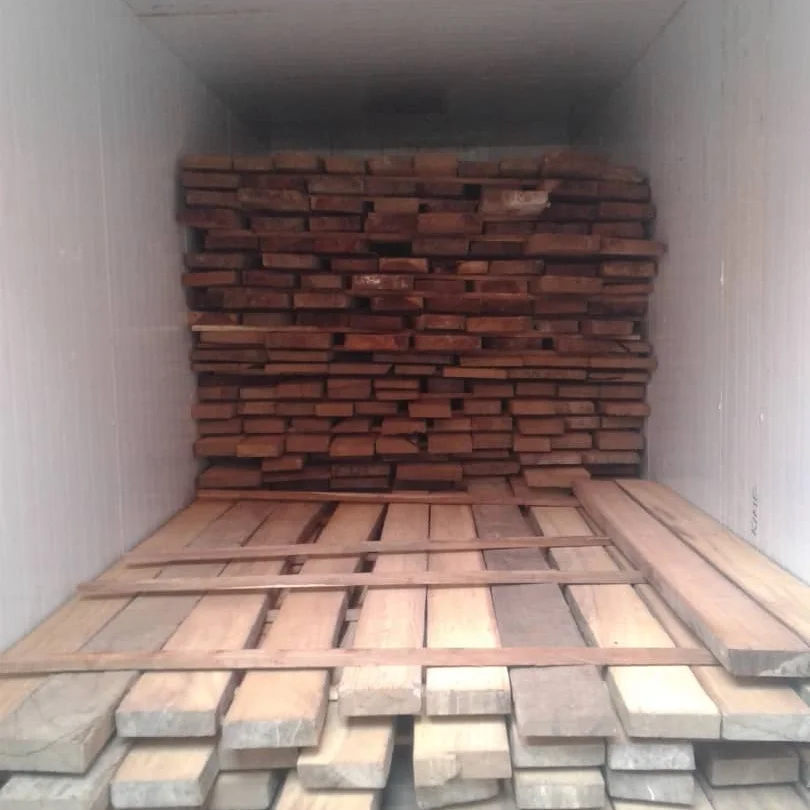

Wood drying processing
Generally, Wood drying adopts top air supply more evenly and quickly to complete the drying work. Start the heat pump dryer to supply heat to the drying room. The temperature is set between 40 ℃ -50 ℃.The temperature cannot rise too fast, otherwise the wood will crack.
Equipment core components
The compressor:adopts the well-known brand Emerson Copeland compressor to provide more heat.
The compressor:adopts the well-known brand Emerson Copeland compressor to provide more heat.
electrical accessories:adopt the well-known brand Schneider Electric accessories to make the quality replacement more stable.
The control system:adopts the best drying controller of Xingluo Electronics in the industry with complete functions. stable quality.
Heat recovery device: extra-large heat exchange core, anti-corrosion setting, energy-saving and power-saving.
The control system:adopts the best drying controller of Xingluo Electronics in the industry with complete functions. stable quality.
Heat recovery device: extra-large heat exchange core, anti-corrosion setting, energy-saving and power-saving.
Products application:
Heat pump drying equipment is suitable for drying fruit, wood, seafood,agriculture product,tea and sludge in many field. The working principle of Heat pump drying machine
* In the dryer system,hot and dry air at the exit of condenser is allowed to pass through the drying chamber where it gains latent heat from the material. The humid air at dryer exit then passes through the evaporator where condensation of moisture occurs as the air goes below dew point temperature. Then drain the condenser water.
Product features
1.Safety & Environment protection：The low-temperture drying process below 80°c is fully suitable for drying.It adopts low temperture （40-80°c）fully enclosed drying mode ,no odor overlow ,no need to install complex deodorizing device.
2.Energy saving & Efficient: Using heat pump recoery technology, the closed drying mode dose not have any waste heat discharge.
3.Intelligent & Operating easily: Fully automatic operation, PLC+touch screen intelligent control,which temperature and humidity can be controlled in different time.
Detailed Images
With powerful compressor
The use of Emerson Copeland compressors 12% higher than other compressors, strong performance and stable operation for a long time.Heavy industry quality, more power saving.
Axial flow fan
The powerful swirling wind wheel circulates fast dehumidification.Super silent, wear resistance, high efficiency,large air volume.True material,strong performance.
Remote control by mobile phone
Intelligent operation, stable system, open the phone anytime and anywhere, easy to grasp the drying situation.
Size Information
Recommend Configuration
Model | Capacity | Drying room size | Trolley qty | Drying room size can be customized under your requirements. |
One unit YK-72RD | 100KG/batch | 4000*2400*2400mm | 4 | |
Two units YK-72RD | 300KG/batch | 8000x2400x2400mm | 8 | |
One unit YK-120RD | 150KG/batch | 4000*2400*2400mm | 4 | |
Two unit YK-120RD | 400KG/batch | 8000x2400x2400mm | 8 | |
One unit YK-145RD | 600KG/batch | 5000x3000x2400mm | 8 | |
Two units YK-145RD | 1000KG/batch | 8000x3000x2400mm | 12 | |
One unit YK-240RD | 800KG/batch | 6000x3000x2400mm | 8 | |
Two unit YK-240RD | 1600KG/batch | 10000x3000x2400mm | 16 | |
One unit YK-290RD | 1000KG/batch | 8000x3000x2400mm | 12 | |
Two units YK-290RD | 2500KG/batch | 12000x3000x2400mm | 20 | |
One unit YK-360RD | 1200KG/batch | 8000x3000x2400mm | 12 | |
Two units YK-360RD | 3500KG/batch | 12000x3000x2400mm | 20 |
Related Products
Model:YK-290RD
Click on me!
Model:YK-72RD-CH
Click on me!
Model:YK-240RD
Click on me!
Model:YK-145RD
Click on me!
Model:Yk-480RD
Click on me!
Model:YK-24E
Click on me!

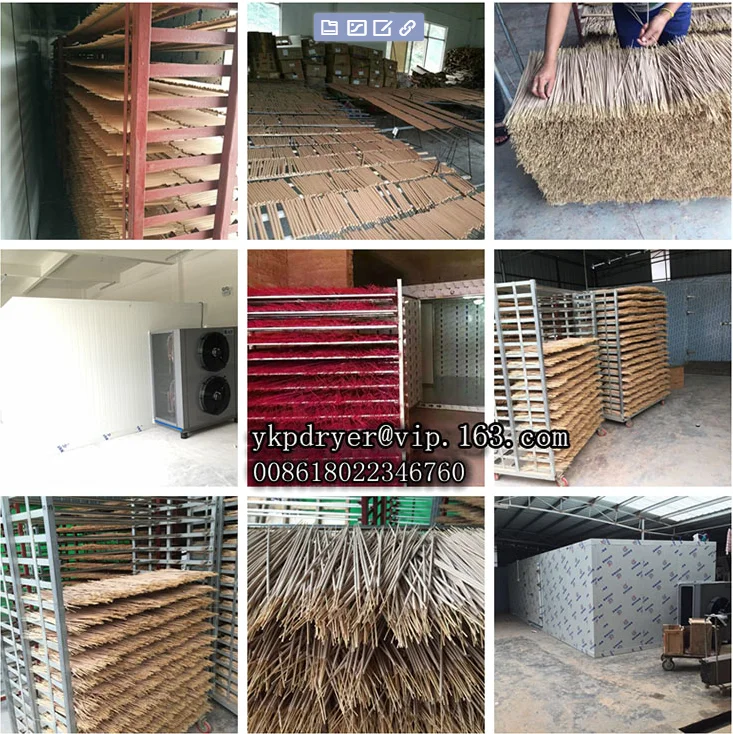

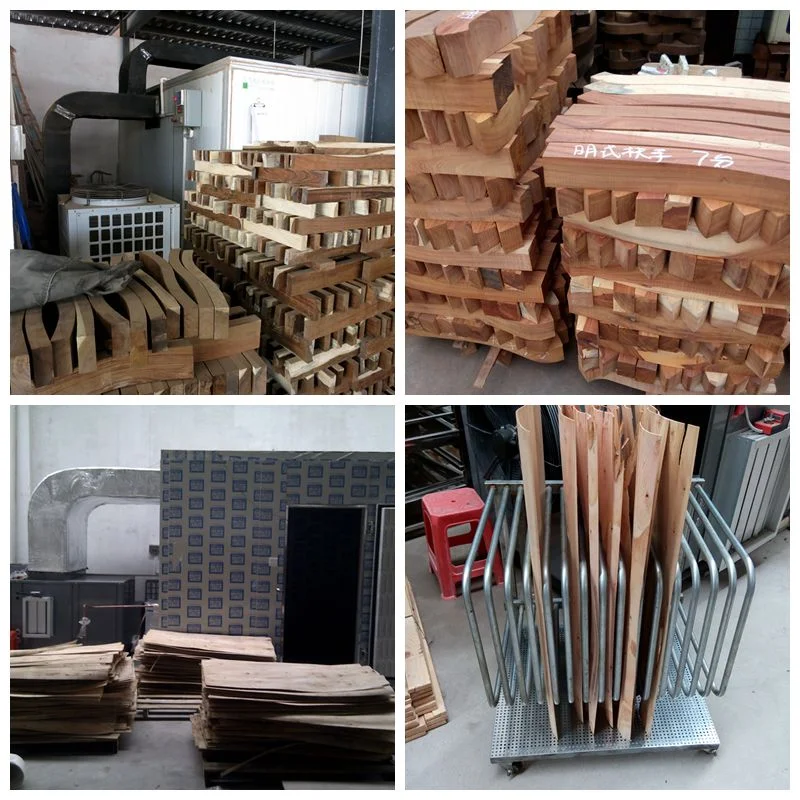

Successful cases
Packing&Shipping
Packing: Unit packed in plywood cases.
Certifications
After Sales Service
Before arrival of machines:
* Inquiry and consulting support WITHIN 24 HOURS
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After deliver the machines:
* Technical support to instal,operate and maintain the machine
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
