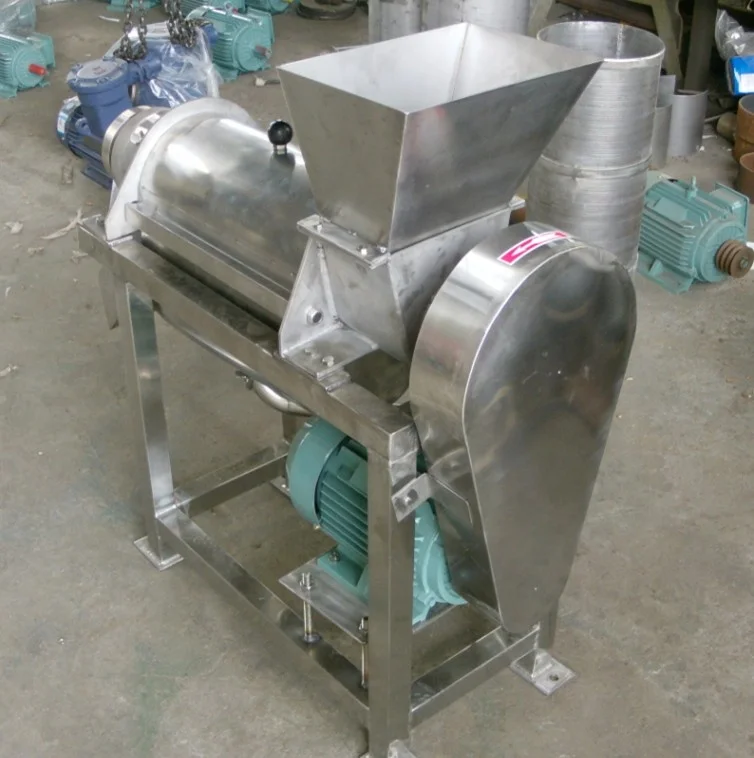

JY Automatic orange juicing machine / lemon juice extractor / grape fruit squeezer
- Category: >>>
- Supplier: Luohe Juyou Commercial & Trading Co. Ltd.
Share on (62434497611):
Product Overview
Description
JY Automatic orange juicing machine / lemon juice extractor / grape fruit squeezer
Introduction:
1.The juice crusher and juicer machine appearance is stainless steel, all parts connect with food are stainless steel.
2. The apple juicer machine with crusher can process orange , lemon ,apple ,pear and other kinds of fruits .it is widely used in the fruit processing industry.
3.The juice crusher and juicer machine uses globally proven technology with excellent product quality,it can well meet your low investment ,high yield goal.
4.We also have capacity:2/5t/h and 5t/h for the juice machine, this juicer machine is very convenient, no need crush the fruit and vegetables into small parts in advance, 5. 5.This machine has crushing function, it can crush fruits and vegetables into small parts automatically, then flow to the juice part to juice.
Working principle:
When the raw materials are added into the material feeding hopper, firstly crush into different size, then they receive pressure under the boosting of the spiral and the extracted juices will flow into the juice container through the filter screen, and the waste materials will be discharged through the ring interval formed between the spiral and the pressure adjusting taper part.
The movement towards the axial direction by the pressure adjusting head can adjust the size of interval so as to adjust the juice extracting rate.
Technical parameter
Model | JU-PLZ-0.5 | JU-PLZ-1 | JU--PLZ-1.5 |
Capacity | 500KG/H | 1000kg/h | 1500Kg/H |
Screw diameter | Φ88mm | φ125mm | φ175mm |
Crushing rotary speed | 1000r/min | 1000r/min | 1000r/min |
Screw rotary speed | 380r/min | 380r/min | 380r/min |
Filter screen hole size | 0.6mm | 0.6mm | 0.6mm |
Crusher motor | 0.75kw | 1.1kw | 1.5kw |
Juicer motor | 1.5kw | 2.2 | 4kw |
Diameter | 1200*380*1300mm | 1500*480*1450mm | |
Net weight | 115kg | 215kg | 285kg |

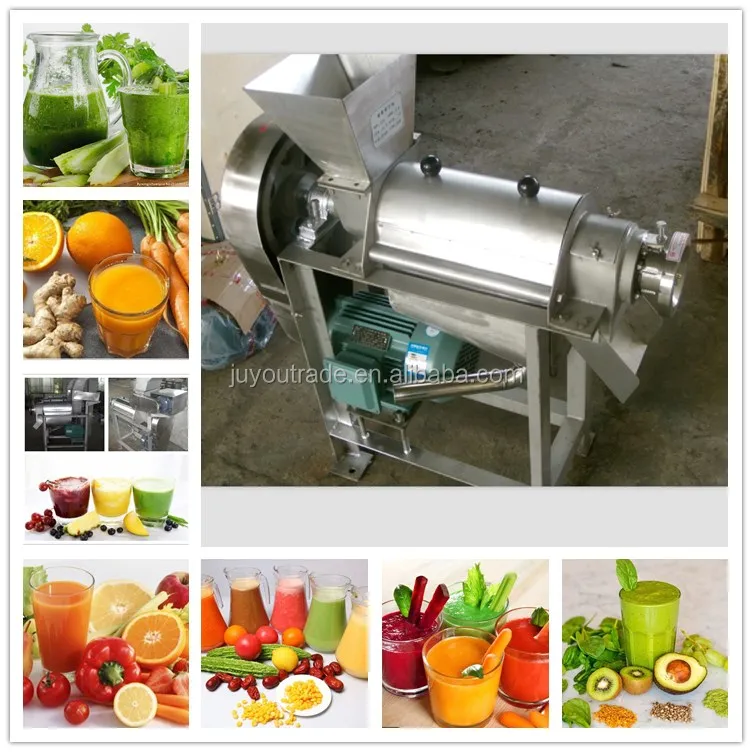

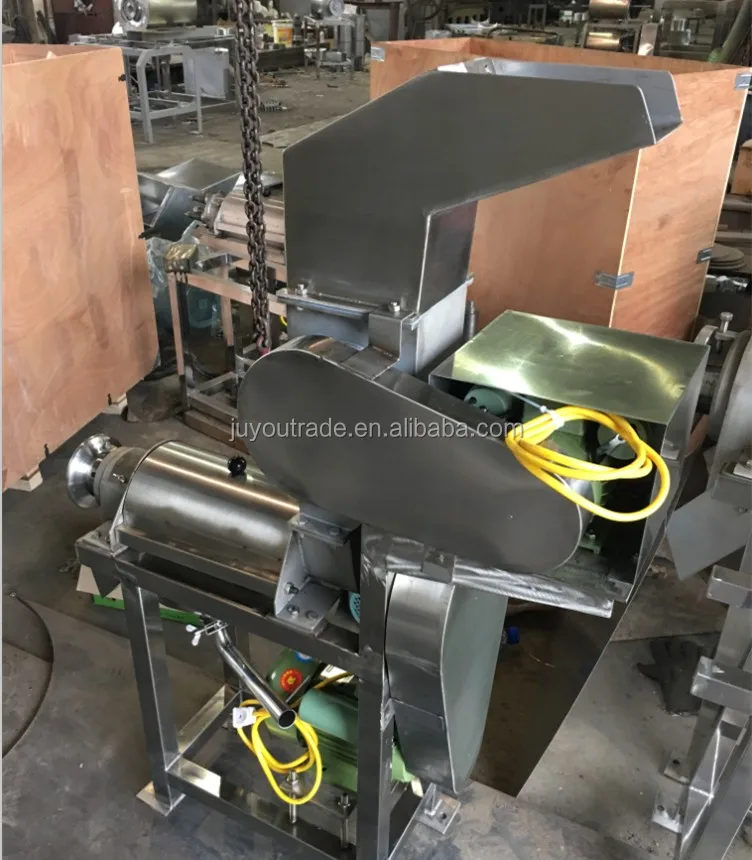

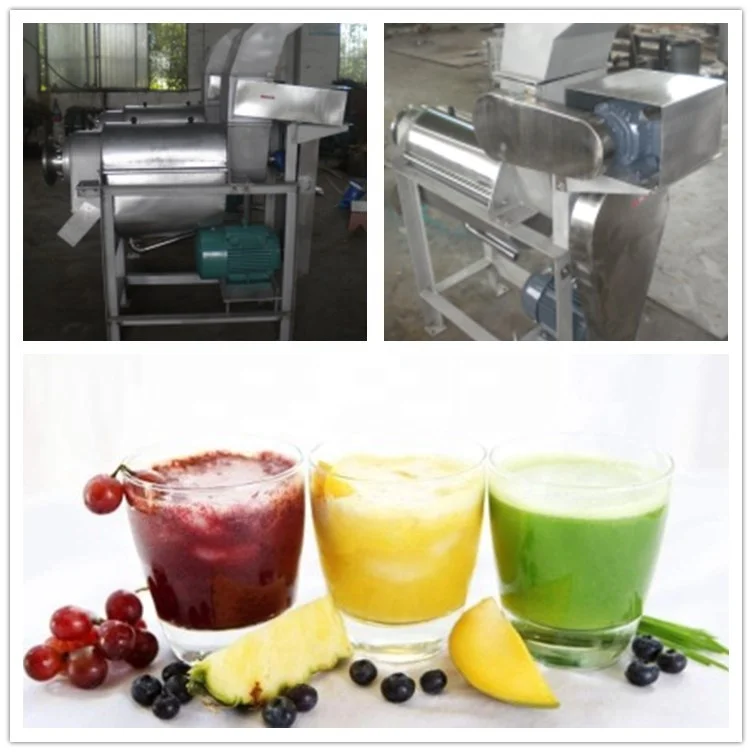

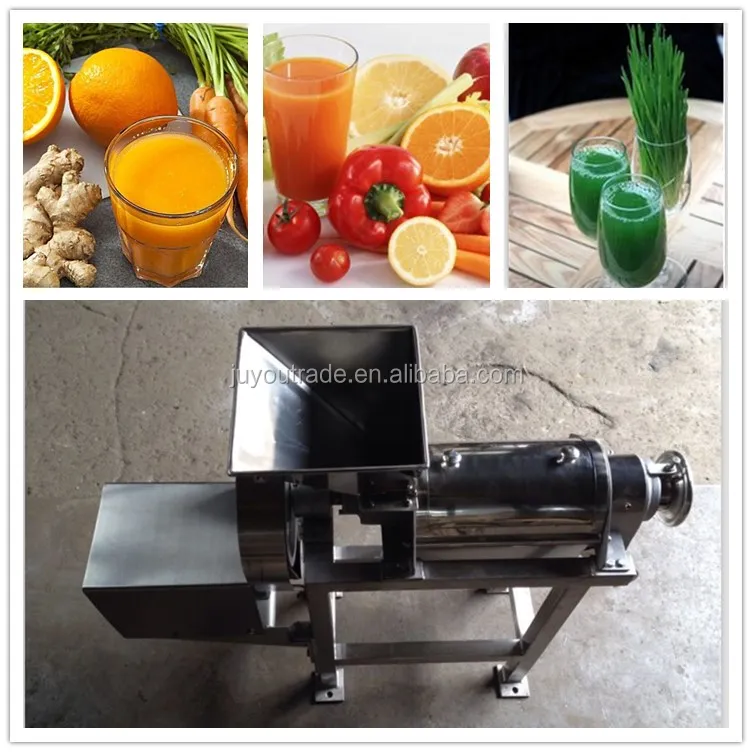

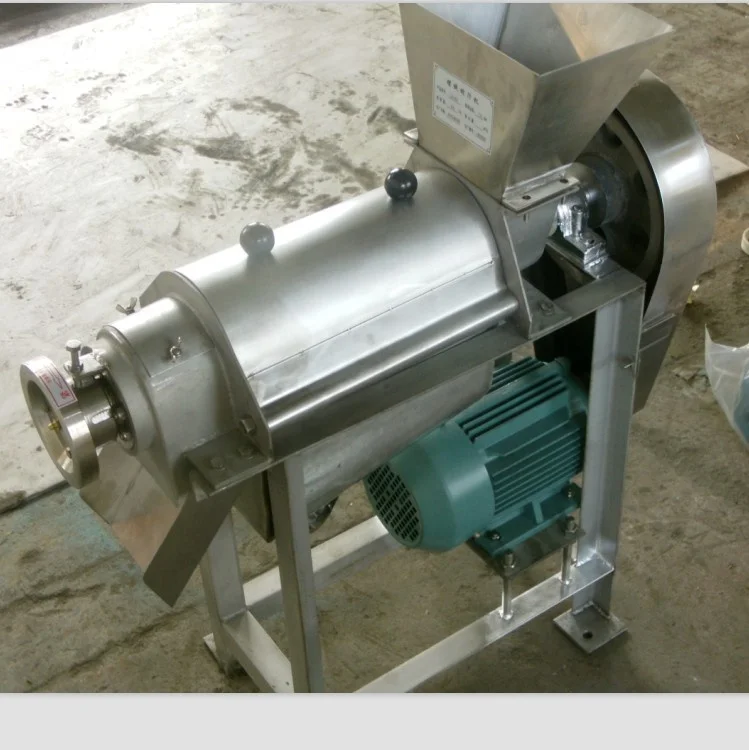

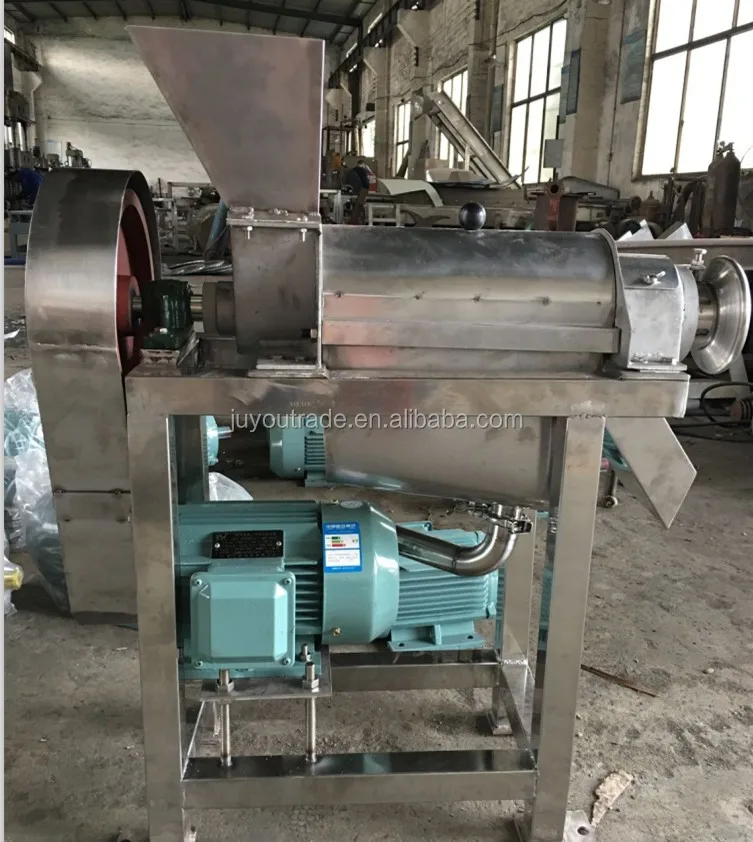

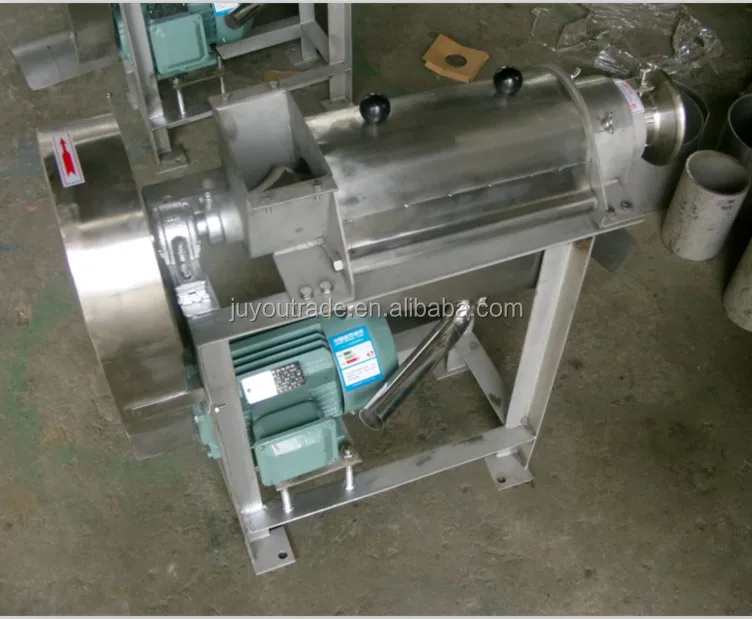

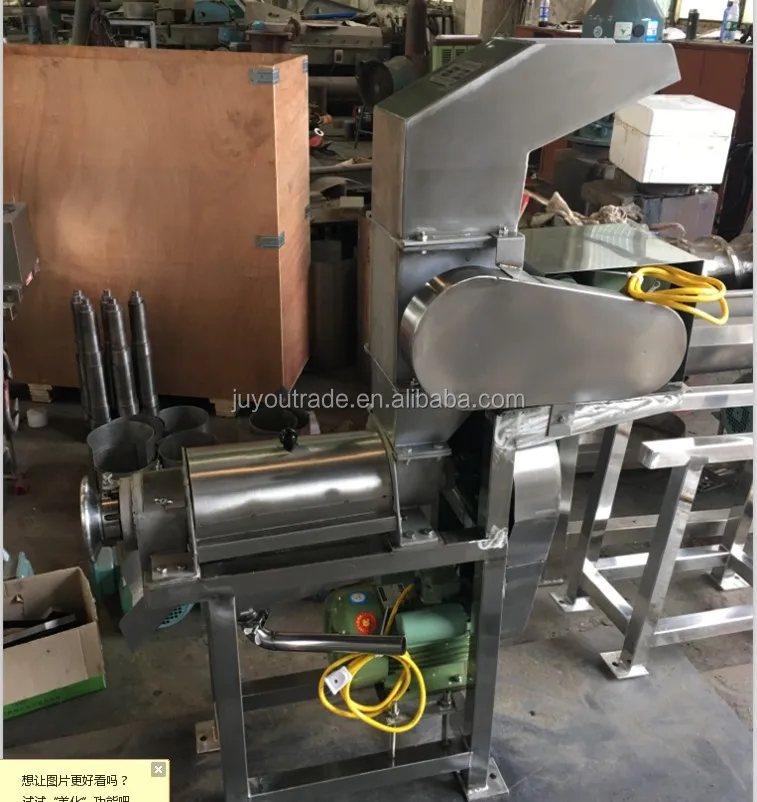

Product Display
If you want more information about the machine, welcome to connect us freely.
