Product Overview
Description
Products Description
PerMix Advantages & Services: | ||||||||
● PerMix machines are designed and manufactured as “tailor-made” ones to meet our customers’ individual requirement. | ||||||||
● Since 1954, PerMix has been building our know-how in mixing and processing with our design team located in both Israel and China. | ||||||||
● PerMix has been setting up a global network of agents and representatives to serve our worldwide customers locally and on time. | ||||||||
● PerMix has a lot of experience to sub-contract mixers for well-known equipment suppliers in Europe and USA, and we build the machines to fulfil the highest standard. | ||||||||
● PerMix has its workshop located in Shanghai area, China; where there is a complete and endless production capability at a reasonable price. | ||||||||
● PerMix mixers price is competitive compared with the quality of the same level. | ||||||||
● PerMix offers a comprehensive range of industrial mixing equipment in the market. | ||||||||
● Applications of PerMix industrial mixers cover wherever there is a need for mixing, including but not limited to chemicals, food, cosmetics, rubber, plastics, pharmaceuticals. | ||||||||
INTRODUCTION:

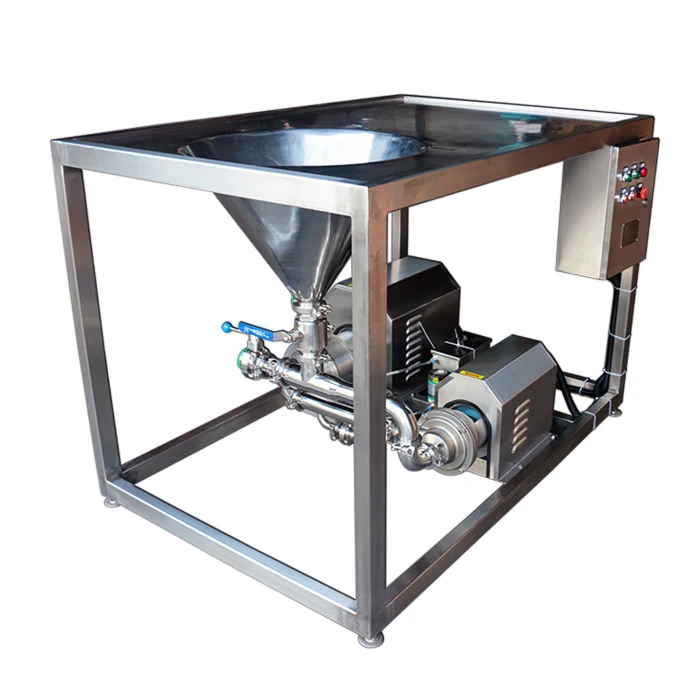

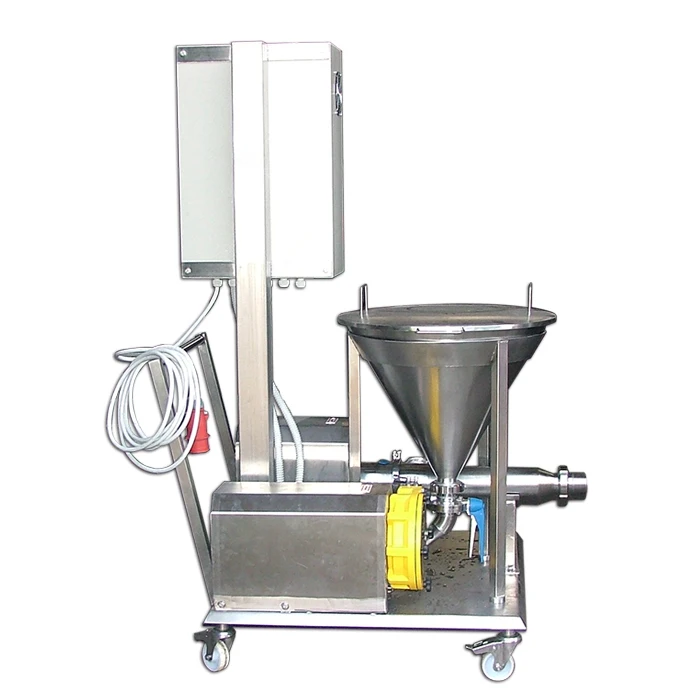

The PerMix PT-C Series Powder Liquid Mixer is a family of equipment which are designed for mixing powder into liquid in an efficient way. By a selection of different rotating element, PT-C Powder Liquid Mixer is able to provide various functions of:
1.High volume powder induction,
2.Dispersing of "difficult-to-wet" powder,
3.Handling the fine dusty powders,
4.Homogenizing,
5.Emulsifying, etc.
PerMix offers four (4) types of Powder Liquid Mixer, covering the common product range in the market:
(1) PT-C/Q (Double Wall Design)
(2) PT-C/Y (Special Stator Rotor)
(3) PT-C/F (Two Pumps Design)
(4) PCH (Shear Pump)
With its many distinguished features and options, PerMix PT-C Powder Liquid Mixers are widely used in mixing of almost all kinds of powdery products by a variety of industries, e.g. food and beverage, dairy care, pharmaceutical, chemical.
2.Dispersing of "difficult-to-wet" powder,
3.Handling the fine dusty powders,
4.Homogenizing,
5.Emulsifying, etc.
PerMix offers four (4) types of Powder Liquid Mixer, covering the common product range in the market:
(1) PT-C/Q (Double Wall Design)
(2) PT-C/Y (Special Stator Rotor)
(3) PT-C/F (Two Pumps Design)
(4) PCH (Shear Pump)
With its many distinguished features and options, PerMix PT-C Powder Liquid Mixers are widely used in mixing of almost all kinds of powdery products by a variety of industries, e.g. food and beverage, dairy care, pharmaceutical, chemical.
HOW IT WORKS:
The four types of powder liquid mixer share similar working principle, but with some difference:
(1) PT-C/Q (Double Wall Design)
The PerMix PT-C/Q powder liquid mixer is the most common type which is also called Tri-blender. It has two key parts, a casing pipe and a stator rotor system.
The casing pipe is built vertically and coaxially into the stator rotor system inlet. This double-wall design prevents the powder going through the casing pipe contacting the liquid and forming lumps before they both arrive at the stator rotor system.
As the rotor running at high speed during operation, liquid enters into the chamber and a water ring is created. Vacuum is generated at the center which causes suction of the powder from the hopper above the chamber.
A valve at the bottom of the hopper is used to regulate the falling rate of the powder. As soon as the powder gets in contact with the liquid, it is wetted and dispersed into the liquid by the turbulence and later high shear force when the mixture goes through the precise machined clearance between the stator and rotor, and radiated out through the stator openings.
By choosing different types of stator rotor, it can provide various functions of powder wetting, homogenizing, etc. PerMix provides high shear stator/rotor, low shear stator/rotor; and in some cases where the powder is easily being dissolved into the liquid, only a regular centrifuge pump impeller is used without a stator, and it provides higher volume flowrate and bigger powder induction rate.
(2) PT-C/Y (Special Stator Rotor)
PerMix PT-C/Y series Powder Liquid Mixer has a very specially designed stator/rotor, which works by the principle of a water ring pump, that is able to produce relatively high vacuum; this vacuum makes the PT-C/Y mixer able to suck the powder through a hand-held wand from a bag or other container at ground level. The powder can also be incorporated from a vertical hopper by gravity at a much higher powder sucking rate.
(3) PT-C/F (Two Pumps Design)
The PT-C/F Powder Liquid Mixing System is designed with the combination of a self-priming pump and an inline homogenizing mixer. The self-priming pump draws the liquid from an external container, and when the liquid passes through a venturi pipe which is located at the bottom of a powder hopper, vacuum is generated there and sucks the powder from above. The powder/liquid mixture will first pass through the self-priming pump, and later get further sheared and dispersed at the inline homogenizing mixer.

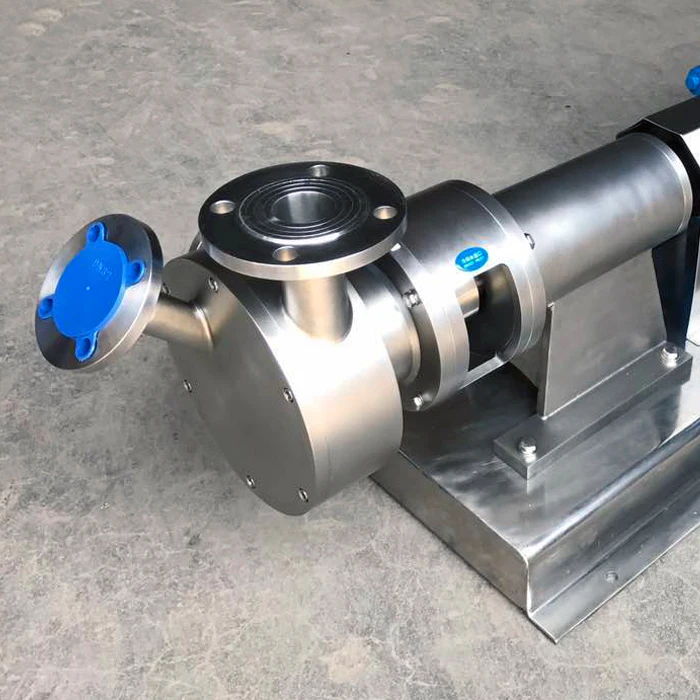

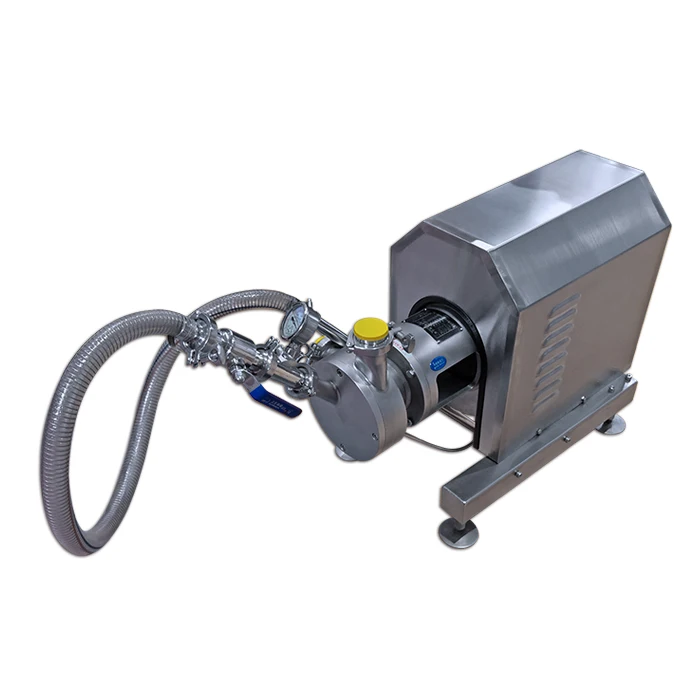

(4) PCH (Shear Pump)
By adding a hopper at the inlet of the liquid, our PCH shear pump can be converted to a powder liquid mixer, to provide perfectly good sucking performance for dry and free flowing powders, for example, milk powder, dry flour, etc. Due to the relatively simple and compact design and full stainless steel construction, the PCH is popular in many hygienic applications.
(1) PT-C/Q (Double Wall Design)
The PerMix PT-C/Q powder liquid mixer is the most common type which is also called Tri-blender. It has two key parts, a casing pipe and a stator rotor system.
The casing pipe is built vertically and coaxially into the stator rotor system inlet. This double-wall design prevents the powder going through the casing pipe contacting the liquid and forming lumps before they both arrive at the stator rotor system.
As the rotor running at high speed during operation, liquid enters into the chamber and a water ring is created. Vacuum is generated at the center which causes suction of the powder from the hopper above the chamber.
A valve at the bottom of the hopper is used to regulate the falling rate of the powder. As soon as the powder gets in contact with the liquid, it is wetted and dispersed into the liquid by the turbulence and later high shear force when the mixture goes through the precise machined clearance between the stator and rotor, and radiated out through the stator openings.
By choosing different types of stator rotor, it can provide various functions of powder wetting, homogenizing, etc. PerMix provides high shear stator/rotor, low shear stator/rotor; and in some cases where the powder is easily being dissolved into the liquid, only a regular centrifuge pump impeller is used without a stator, and it provides higher volume flowrate and bigger powder induction rate.
(2) PT-C/Y (Special Stator Rotor)
PerMix PT-C/Y series Powder Liquid Mixer has a very specially designed stator/rotor, which works by the principle of a water ring pump, that is able to produce relatively high vacuum; this vacuum makes the PT-C/Y mixer able to suck the powder through a hand-held wand from a bag or other container at ground level. The powder can also be incorporated from a vertical hopper by gravity at a much higher powder sucking rate.
(3) PT-C/F (Two Pumps Design)
The PT-C/F Powder Liquid Mixing System is designed with the combination of a self-priming pump and an inline homogenizing mixer. The self-priming pump draws the liquid from an external container, and when the liquid passes through a venturi pipe which is located at the bottom of a powder hopper, vacuum is generated there and sucks the powder from above. The powder/liquid mixture will first pass through the self-priming pump, and later get further sheared and dispersed at the inline homogenizing mixer.
(4) PCH (Shear Pump)
By adding a hopper at the inlet of the liquid, our PCH shear pump can be converted to a powder liquid mixer, to provide perfectly good sucking performance for dry and free flowing powders, for example, milk powder, dry flour, etc. Due to the relatively simple and compact design and full stainless steel construction, the PCH is popular in many hygienic applications.
SPECIFICATION:
Model | Watts, kW | RPM, @50Hz | Max. Liquid Capacity, Ton/hr | Max. Powder Capacity, Kg/min |
PT-C/Q-80HS | 1.5 | 3,000 | 1.5 | 5 |
PT-C/Q-100HS | 2.2 | 3 | 10 | |
PT-C/Q-120HS | 4 | 4 | 15 | |
PT-C/Q-140HS | 5.5 | 5 | 20 | |
PT-C/Q-165HS | 7.5 | 8 | 30 | |
PT-C/Q-180HS | 11 | 12 | 50 | |
PT-C/Q-185HS | 15 | 18 | 80 | |
PT-C/Q-200HS | 22 | 25 | 120 | |
PT-C/Q-210HS | 37 | 35 | 220 | |
PT-C/Q-230HS | 45 | 50 | 250 | |
PT-C/Q-245HS | 55 | 75 | 300 | |
PT-C/Q-260HS | 75 | 90 | 400 | |
PT-C/Q-280HS | 90 | 110 | 500 | |
PT-C/Q-290HS | 132 | 130 | 600 |
1) Actual liquid and powder capacity will vary depending on the material characters and stator rotor type.
2) The machine is with one (1x) pair of stator rotor.
3) PerMix offers special model according to customer requests.
4) PerMix reserves the right to modify the design without notice.
2) The machine is with one (1x) pair of stator rotor.
3) PerMix offers special model according to customer requests.
4) PerMix reserves the right to modify the design without notice.
APPLICATIONS:
Some typical applications can be:
1.Preparation of syrup, sorbitol, glucose, lactose, etc.
2.Reconstitution of powdered milk, whey, protein, etc.
3.Dissolution of CMC, Xanthan gum, etc
4.Preparation of flour and starch slurries
5.Preparation of brines
6.Pre-mixtures of yogurt and other milk-based desserts
7.Suspension of bentonites, TiO2 in pigment
8.Preparation of pesticides and fertilizers
1.Preparation of syrup, sorbitol, glucose, lactose, etc.
2.Reconstitution of powdered milk, whey, protein, etc.
3.Dissolution of CMC, Xanthan gum, etc
4.Preparation of flour and starch slurries
5.Preparation of brines
6.Pre-mixtures of yogurt and other milk-based desserts
7.Suspension of bentonites, TiO2 in pigment
8.Preparation of pesticides and fertilizers
OPTIONS:
A lot of options are available for the PT-C Powder Liquid Mixer:
1.Powder hand-held hose assembly
2.Variable speed motor; Frequency converter
3.Multi-row, multi-stage stator & rotor
4.Metal part to be SS 316L or others
5.Gasket sealing of FPM, FFPM, etc.
6.Hopper of 50°, 60°, etc.
7.Hopper vibrator or Air sweeper
8.Single or double mechanical seals
1.Powder hand-held hose assembly
2.Variable speed motor; Frequency converter
3.Multi-row, multi-stage stator & rotor
4.Metal part to be SS 316L or others
5.Gasket sealing of FPM, FFPM, etc.
6.Hopper of 50°, 60°, etc.
7.Hopper vibrator or Air sweeper
8.Single or double mechanical seals
Product Details
More Products
Our Advantage
Company Information
Our Customers
Packaging & Shipping
FAQ
Q: What is your price level compared with European suppliers and local Chinese suppliers?
A: Depending on the machine type and size, our price level is 30%-60% less than the European suppliers and 5-15% higher than the big local suppliers.
Q: Are you able to provide tailor-made design and production for the mixers?
A: Yes, in fact more than half of our mixers are tailor made, which is one of our strong points.
Q: Are you able to design and produce other processing equipment?
A: We are open to discuss about it.
Q: Can you provide machines to OEM customers, meaning to label their brands on the machines.
A: Yes we are doing it a lot. We have several OEM partners in the USA.
Q: Do you have agent network out of China?
A: Yes we do have agents but only in some countries, for example in USA, Germany, Poland, Spain, Denmark, Turkey, Argentina, etc.We are still looking for more agents because we believe to work with agents is the best way to do business.
Q: What is your delivery lead time of the mixing equipment.
A: Depending on the size and level of customization, but usually it is from 6-14 weeks.
Q: How do you pack and ship the mixing machines?
A: For machines don't require full container loading, we will pack them in wooden case. For FCL (full container loading) shipment,we will just wrap the machines in plastic films and fix them in the container. The shipment can be either by air or by sea.
A: Depending on the machine type and size, our price level is 30%-60% less than the European suppliers and 5-15% higher than the big local suppliers.
Q: Are you able to provide tailor-made design and production for the mixers?
A: Yes, in fact more than half of our mixers are tailor made, which is one of our strong points.
Q: Are you able to design and produce other processing equipment?
A: We are open to discuss about it.
Q: Can you provide machines to OEM customers, meaning to label their brands on the machines.
A: Yes we are doing it a lot. We have several OEM partners in the USA.
Q: Do you have agent network out of China?
A: Yes we do have agents but only in some countries, for example in USA, Germany, Poland, Spain, Denmark, Turkey, Argentina, etc.We are still looking for more agents because we believe to work with agents is the best way to do business.
Q: What is your delivery lead time of the mixing equipment.
A: Depending on the size and level of customization, but usually it is from 6-14 weeks.
Q: How do you pack and ship the mixing machines?
A: For machines don't require full container loading, we will pack them in wooden case. For FCL (full container loading) shipment,we will just wrap the machines in plastic films and fix them in the container. The shipment can be either by air or by sea.
