360 Rotate Lighting Long Flight Time Electric Powered Heavy Lift 6 Spirals Wing Drone

Product Overview

Description

360 Rotate Lighting Long Flight Time Electric Powered Heavy Lift 6 Spirals Wing Drone



Use Background
In the construction process of many power lines, it is often restricted by terrain and environmental characteristics. For example, the wiring process must cross some rivers, lakes, industrial and commercial areas, residential areas, roads, railways, or hills, canyons, forestry. Seedlings and so on. These factors have led to a geometric increase in construction costs, construction schedules have to be delayed or even interrupted, and construction quality cannot be guaranteed. Power lined drones can effectively protect crops and seedlings from deforestation. Residential buildings do not need to be demolished and demolished. Construction workers no longer travel long distances and overcome obstacles, saving a large number of economic compensation due to them, and greatly speeding up construction progress. To reduce wire surface damage. The 8-wing power lined drone technology has reached a stage of full maturity. It has achieved thousands of aerial wiring operations and has rich experience in aerial wiring.

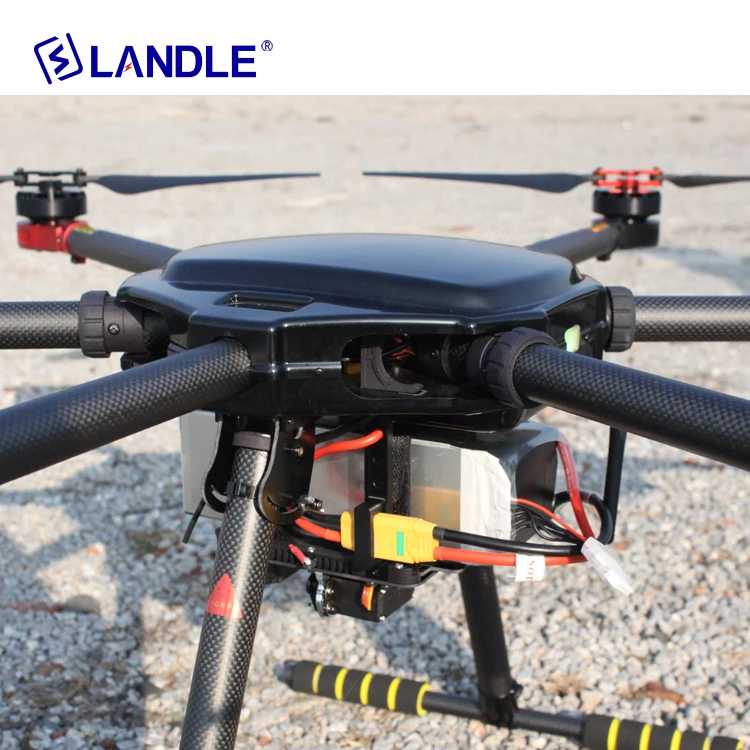

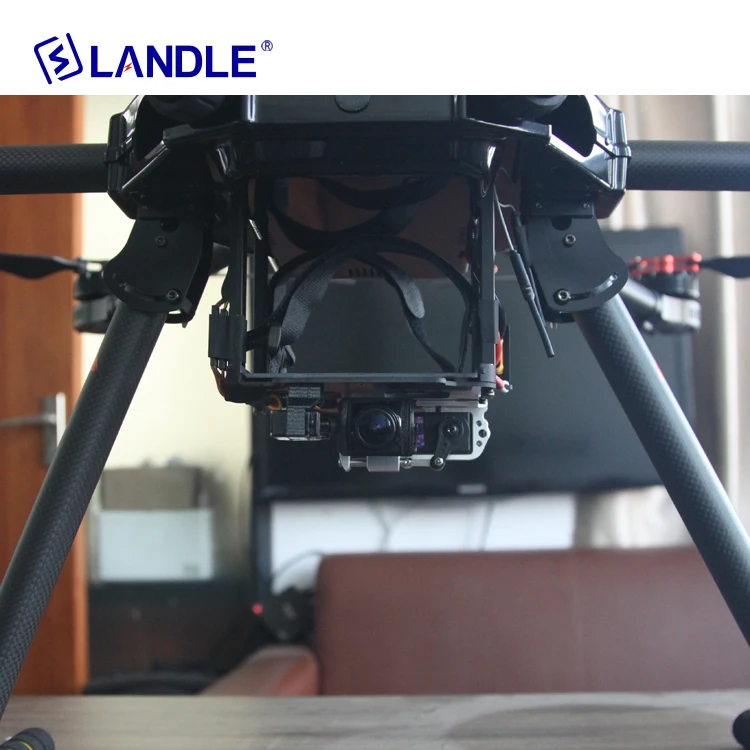

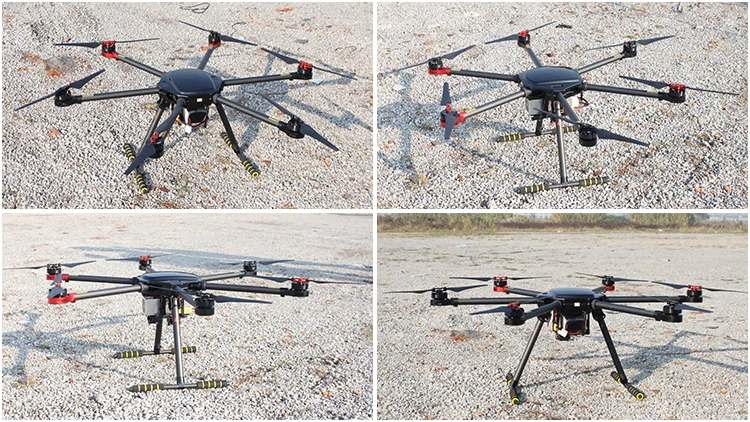

Power line drone- HYPLD-6
Simple design.
Integrated parts for easier maintenance and durability.
The wire never leaks out.
Durable, safe and secure.
Efficient and easy to use.

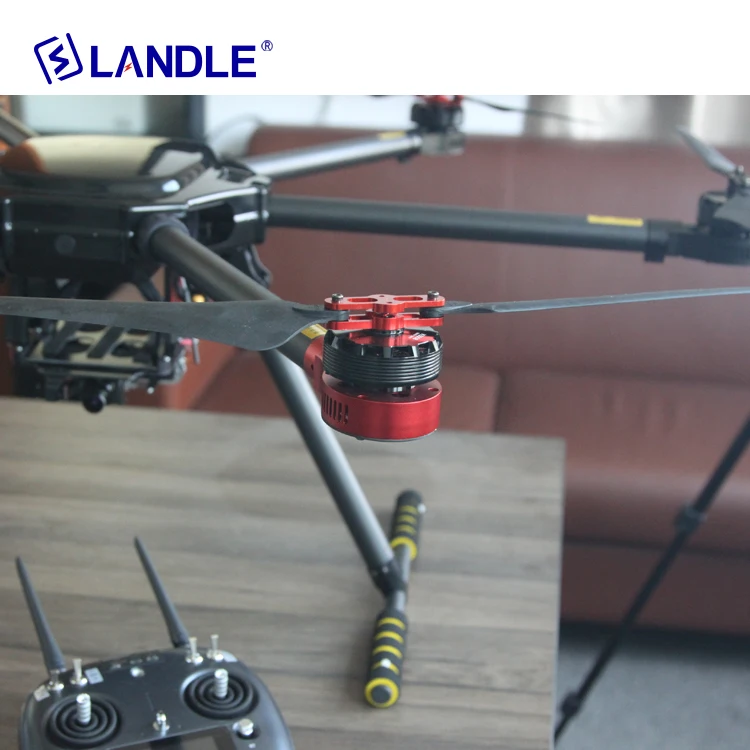

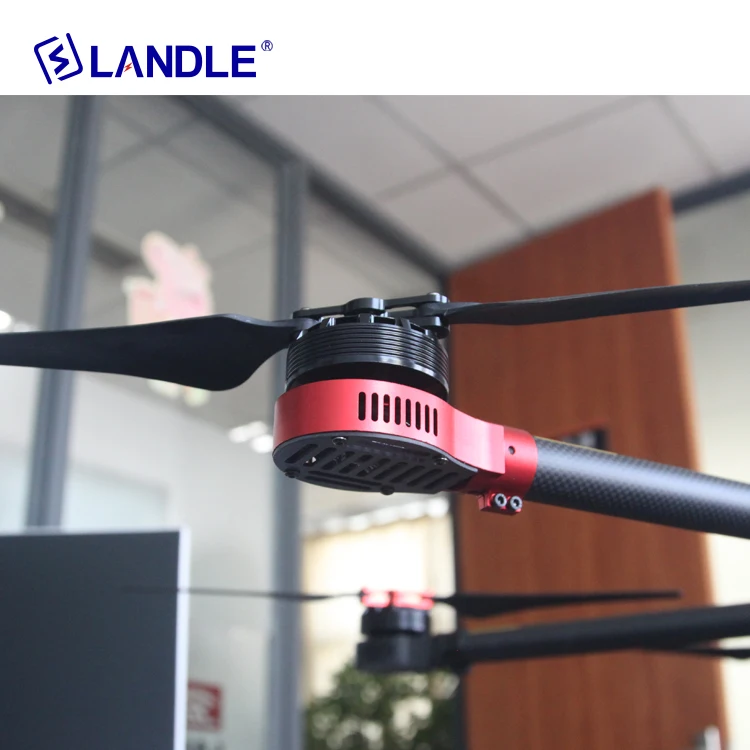

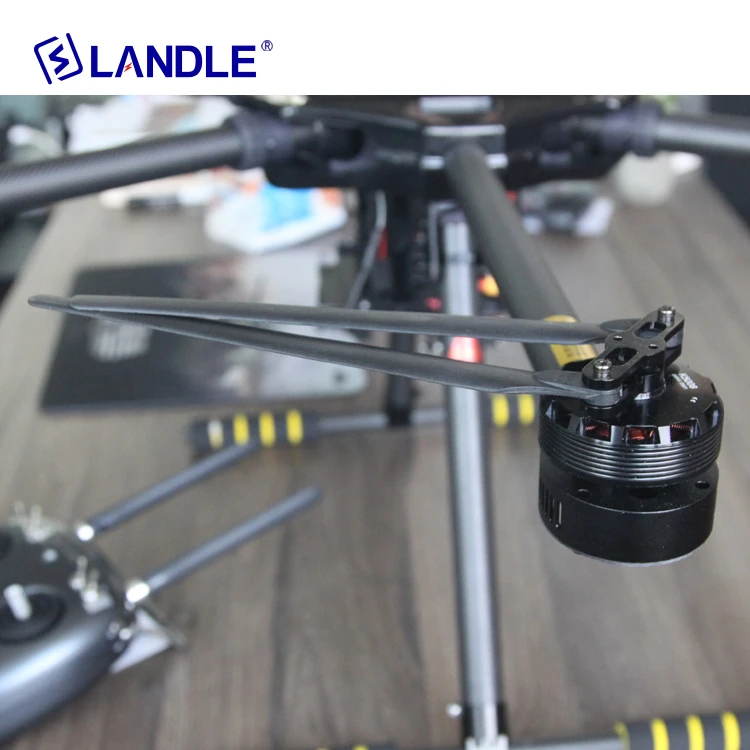

Self-locking paddle, more convenient to install paddle, enclosed dust-proof and waterproof motor is more durable, enclosed motor holder protects ESC.
Built-in power display



Model	HYPLD-8H	HYPLD-6	Model	HYPLD-8H	HYPLD-6
Axle distance	1080mm	960mm	Height	450mm	400mm
Fail-Safe	with		GPS	with
Maximum tension	8kg	5kg	No-load endurance	25-30min
Maximum take-off weight	14kg	10.4kg	Load endurance	12-18min	12-15min
Flying speed	0.15m/min		Flight mode	Manual control; ATT; GPS
Empty weight	4kg	3.4kg	Battery	16000mAh 6S
Maximum flight distance	2-4km		Flight height	0-1000m (adjustable)
Working Temperature	-5℃---50℃		Diameter of traction rope	2-4mm
Functions: GPS positioning, full-auto return, semi-auto return, runaway protection, headless mode, heading lock, low-voltage protection alarm, battery power backhaul, national exclusive high beam function, OSD flight data real-time backhaul, etc.

		HYPLD-8H	HYPLD-6

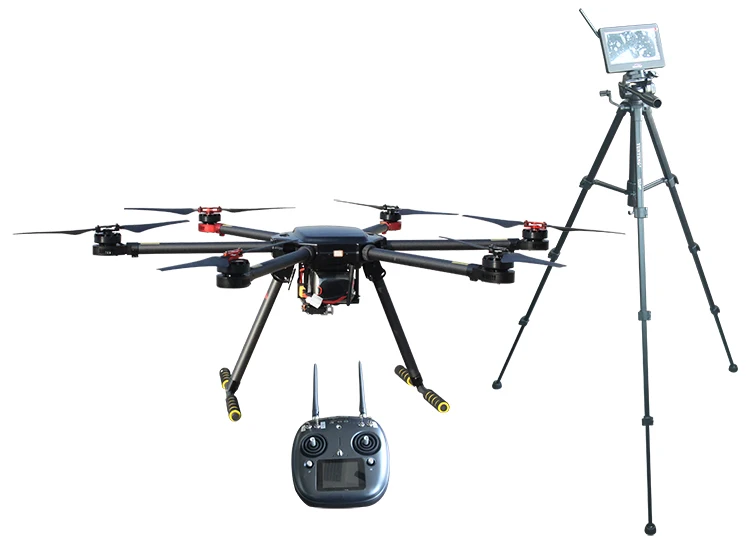

1	Drone	1 set	1 set
2	High power multi kinetic energy charger	1 set	1 set
3	Professional remote control	1 set	1 set
4	16000mah high quality battery	2 pcs	2 pcs
5	2200mah remote control battery	2 pcs	2 pcs
6	Battery voltage capacity checker	1 set	1 set
7	Tool kits	1 set	1 set

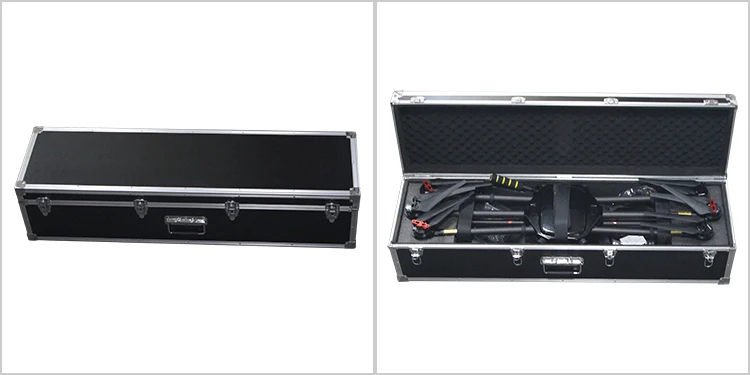

8	Aviation aluminum box	1 pcs	1 pcs
9	Spare screws	1 pack	1 pack
10	Backup battery strap	4 pcs	4 pcs
11	Spare propeller	8 pcs	6 pcs

Drone for power line project

It has two type, Easy to carry around.

The battery warranty lasts for 3 months, the motor warranty lasts for 6 months, the ESC warranty lasts for 6 months, and the unmanned aerial vehicle warranty lasts for one year if no artificial damage is caused to other electronic products.





Application

1.The trees in the virgin forests often encounter bushes, virgin forests, etc. during the construction of the national grid. This will definitely affect the progress of the construction. When passing through the virgin forest, the trees cannot be felled. This undoubtedly adds a lot of difficulty to the construction of the project, and with the lined drone, it is easy to fly over the trees and cast a guide rope to the ground.
2.In the traditional wire-laying operation on the Yangtze River, the tow rope can only be towed by the tugboat over the water surface. The construction water surface must be sealed first. The closure of the navigation will also cause many economic losses to the country and the construction party. The personnel stood on the ship and remotely dragged the helicopter of the guide rope so that the guide rope could fly over the Yangtze River and avoid sealing.
3.In the construction will also encounter swamps, lakes, farmland, highways, mountains, etc., when people are unable to achieve the construction of the line, the line of drones also show their talents, complete the task.

4.The situation of charging across the power usually exists in the process of circuit reconstruction. It is necessary to straddle a new line on the basis of a power-on line. In order to ensure the safety of construction workers, traditional construction can only be used first. After the line is powered off and then constructed, the overhead drone can be used to avoid power outages.
