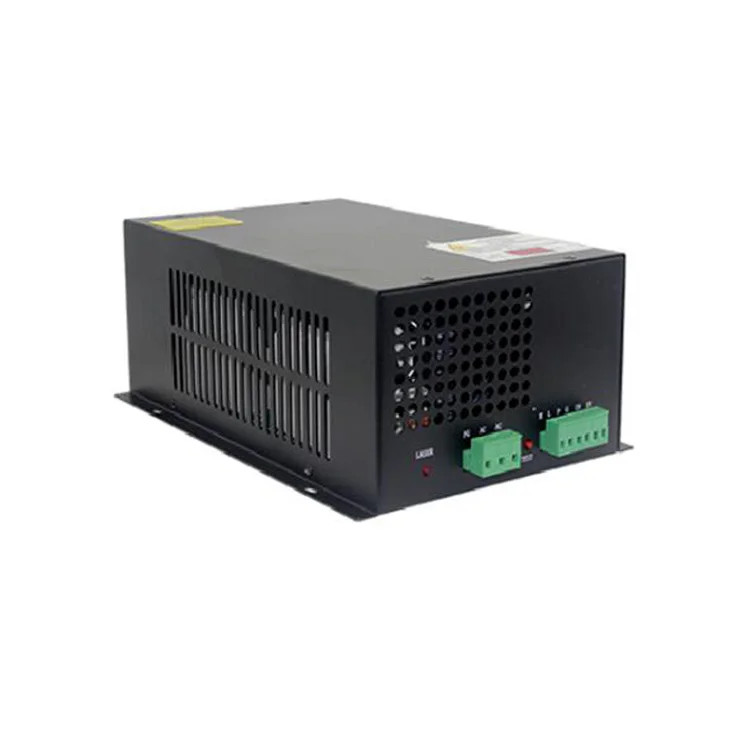

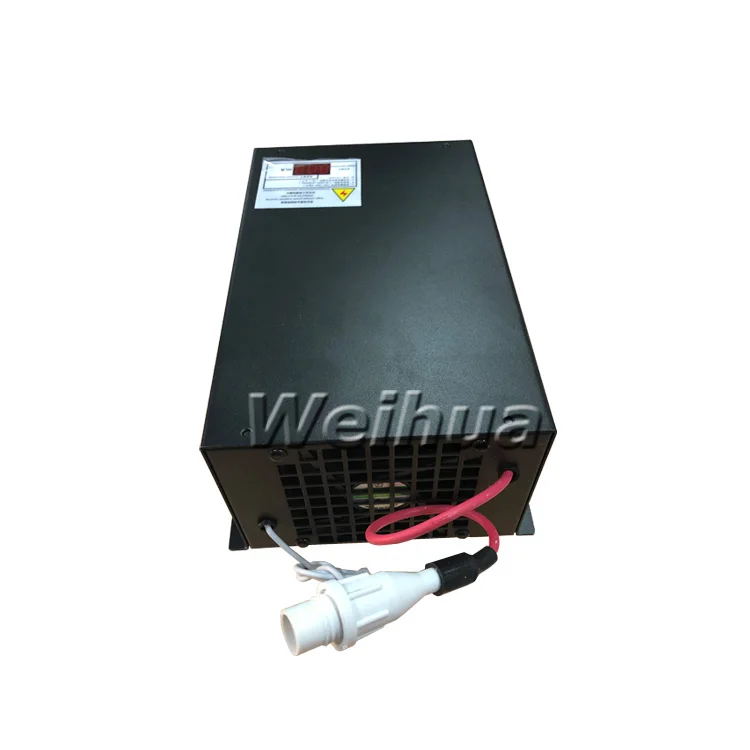

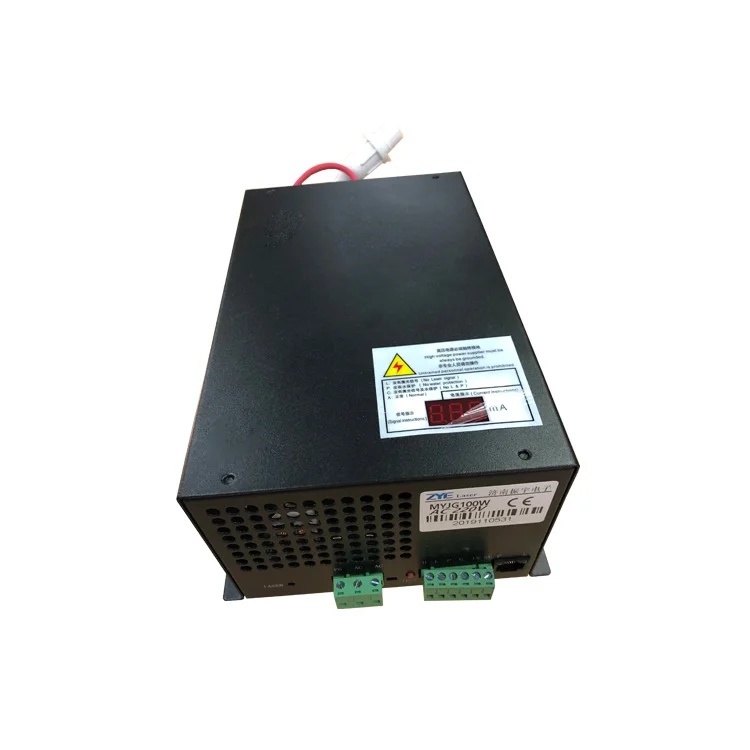

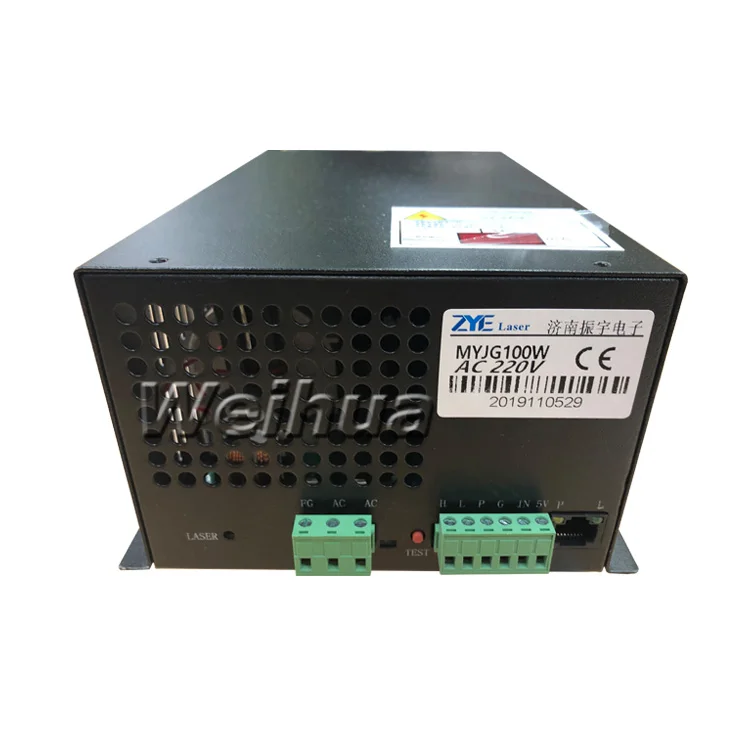

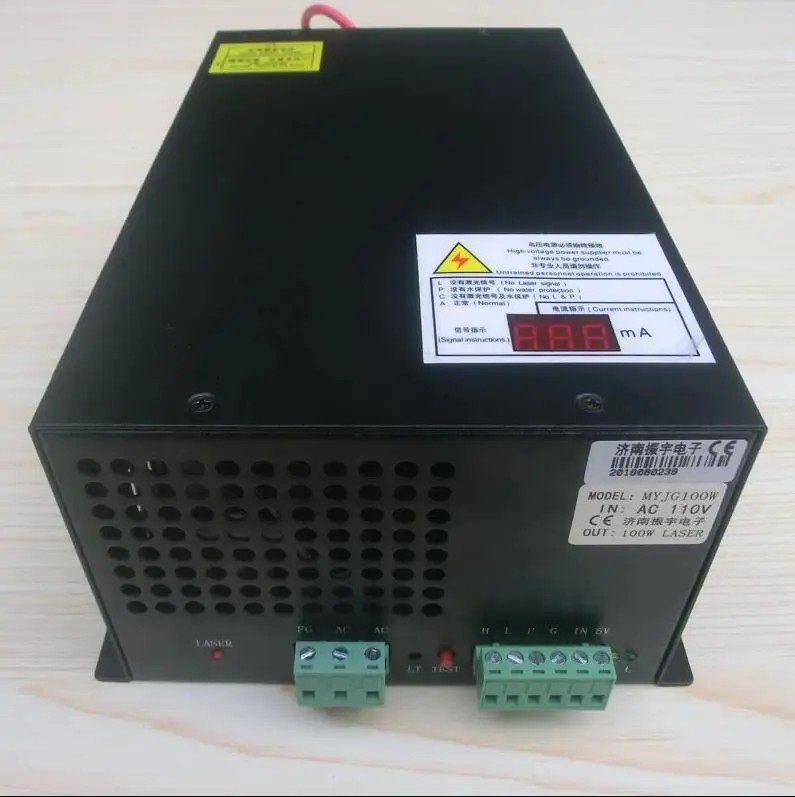

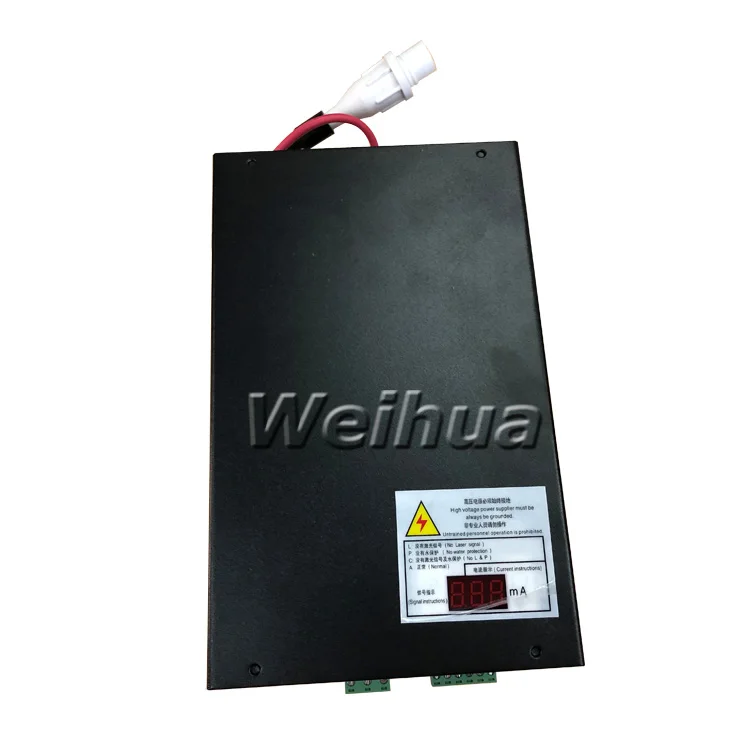

Myjg 60w efr laser power supply for laser tube

Product Overview

Description

Myjg 60w efr laser power supply for laser tube







Application:

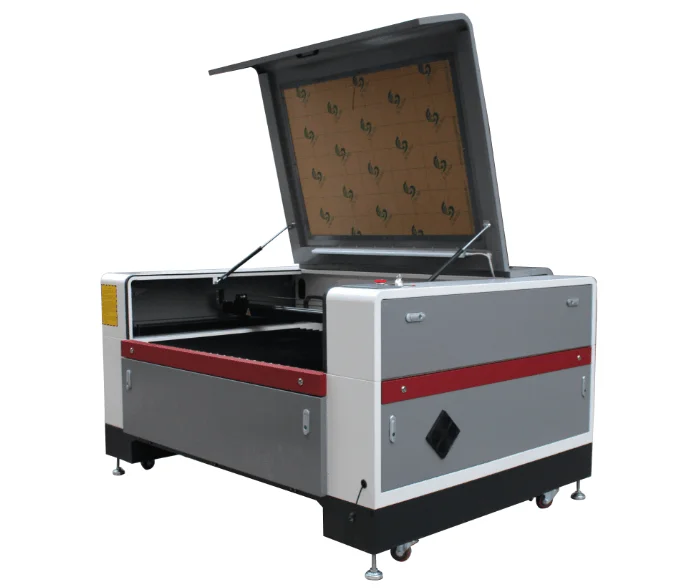

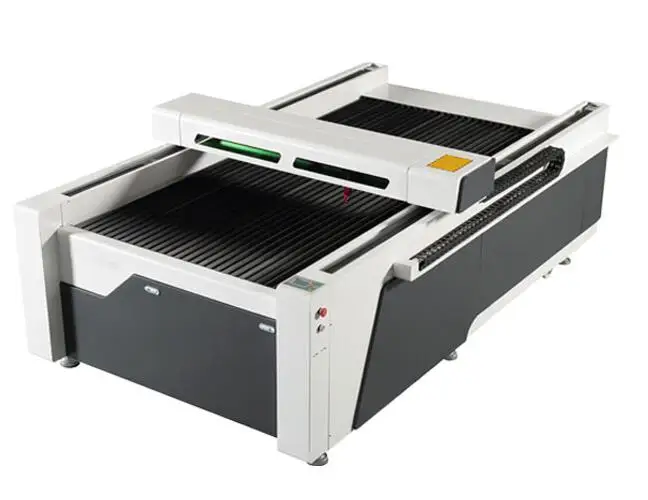

his CO2 laser power supply is an imporant parts for CO2 laser engraving cutting machine. supply power for laser source, glass laser tube.







 Feature of MYJG Serials of co2 laser power supply

* High-efficiency, high-frequency, high-speed CO2 laser power supply;

* Small size, light weight, easy operation, and good matching performance with the laser, which can be directly connected to the laser, eliminating the heavy and severe ballast resistance;

* This power supply can make the CO2 laser easy to start, make full use of the performance of the CO2 laser, improve the conversion efficiency, and extend the life of the  CO2 laser tube;



Technical Parameter  of CO2 laser power supply

Item		MYJG-50W	MYJG-60W	M Y J G -8 0W	MYJG-100w	MYJG-130W	MYJG-150W
Input	AC input voltage	AC220V/AC110V
	AC input frequency	47~440Hz
Output	Maximum voltage output	22KV	24KV	26KV	28KV	30KV	31KV
Max dimension	L*W*H (mm)	171*161*91	197*161*91	197*161*91	230*161*91	305*161*91	305*161*91
Weight	kg	1.5	2.1	2.1	2.8	3.6	3.6
Color	Black
Efficiency	91%
Protection	130%x Max current			Over current protection
	Open circuit protection			yes(short time)
Structure	Exhaust fan
Work environment	-30℃+65℃
Relative Humidity	20~85%RH(No condensation)
Insulation resistance	≥50MΩ(DC500V)
Vibration resistance	Amplitude 0.5mm Frequency 10~55Hz3 Dimensional direction 2 hours
Trouble free time	≥30,000hours
Full load 60 ° C high temperature test time	12 hours
7 second start and stop power test	500 times





AC110V or AC220V two stypes are accepted, please tell us your voltage when order and inquiry.









DHL , FEDEX , UPS , EMS and other shipment are accepted, but please let us know your detailed address and postal code, then we cheack the courier freight for you.







Payment Term:



Bank transfer TT (Telegraphic Transfer),western union paypal, Trade assurance

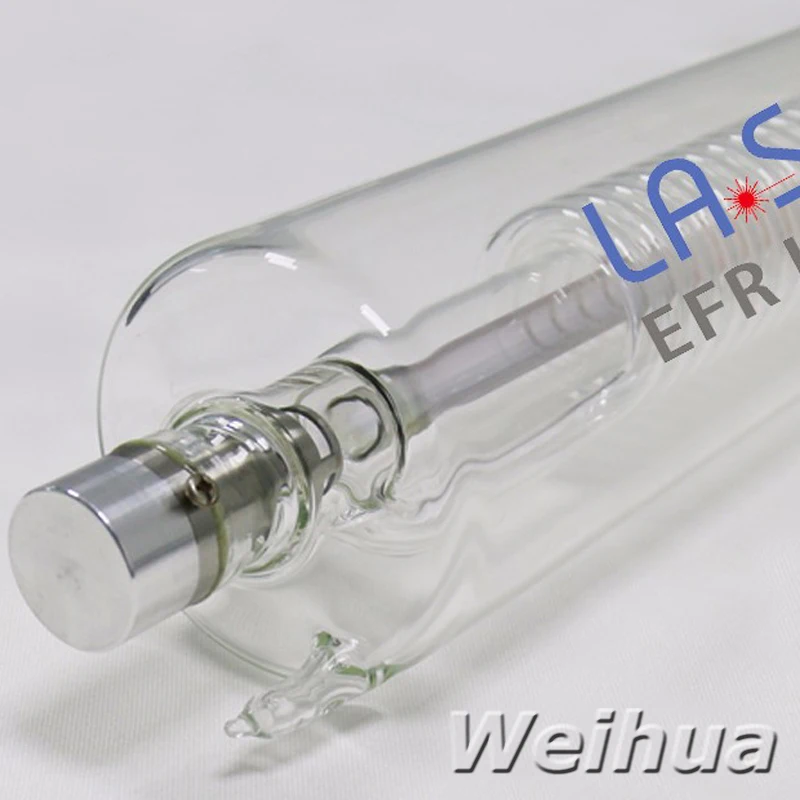

EFR Laser tube
