● Instructions: Fetal Monitor can real-time acquire FHR, TOCO and FMOV, which can provide reference data for clinical use. It can be used individually or connected with central monitoring system in obstetrical department to form a network monitoring system. Function 1.Compact design, it can be placed horizontally or hung on the wall. 2.Color LCD, 60° convertible screen 3.Display monitoring curve and data clearly 4.Area mark for normal FHR(120 BPM~160 BPM). 5.Manual record for fetal movement. 6.Alarm for abnormal FHR 7.Real-time monitoring for continuous 24 hours. 8.Storage, playback and print the monitoring curve for continuous 12 hours. 9.Optional interface languages: Chinese and English. 10.Optional twins monitoring. 11.9-crystal and broad beam transducer. 12.Extra long-life and high-resolution built-in thermal printer. 13.Communicate with central monitoring system by the built-in RJ45.
● Specification:

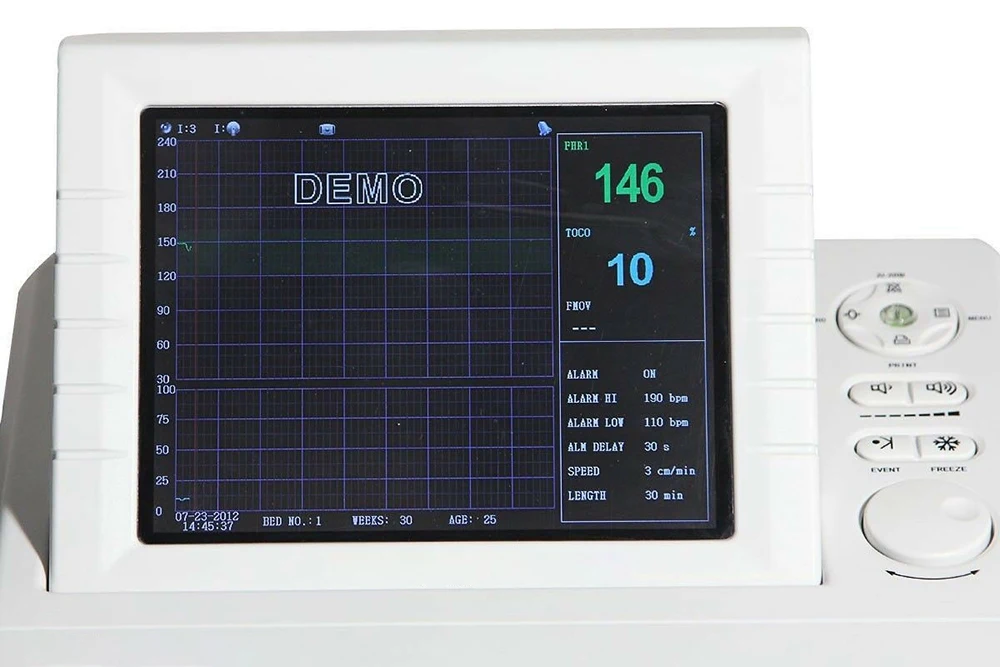

Safety Type of protection against electric shock: Class Ⅰ Degree of protection against electric shock: Type B applied part Working Voltage: AC 100 V~240 V Frequency: 50 Hz/60 Hz P＜60 VA Fuse: T1.6AL250V Print Record paper: Z-fold paper Print width: 112 mm Valid print width: 104 mm Paper speed: 1 cm/min, 2 cm/min, 3 cm/min(optional) Network interface: RJ 45 Ultrasound probe Nominal Frequency: 1.0 MHz Work Frequency: 1.0 MHz±10% Negative peak sound pressure : p_<1 MPa Output beam intensity : Iob<20 mW/cm2 The peak time space peak intensity: Ispta<100 mW/cm2 The average time space peak intensity: Isata<10 mW/cm2 FHR Range: 50 BPM~240 BPM Resolution: 1 BPM Accuracy: ±2 BPM TOCO Range: 0~100% Resolution: 1% Nonlinear error: ≤±10% RZ way: manual Fetal Marking Manual button
Please consult us for more details and discounts, we'll provide sincere service for you :)
Specification
Type of protection against electric shock：
Class Ⅱ
Degree of protection against electric shock ：
Type B applied part
Working Voltage ：
AC 100 V~240 V

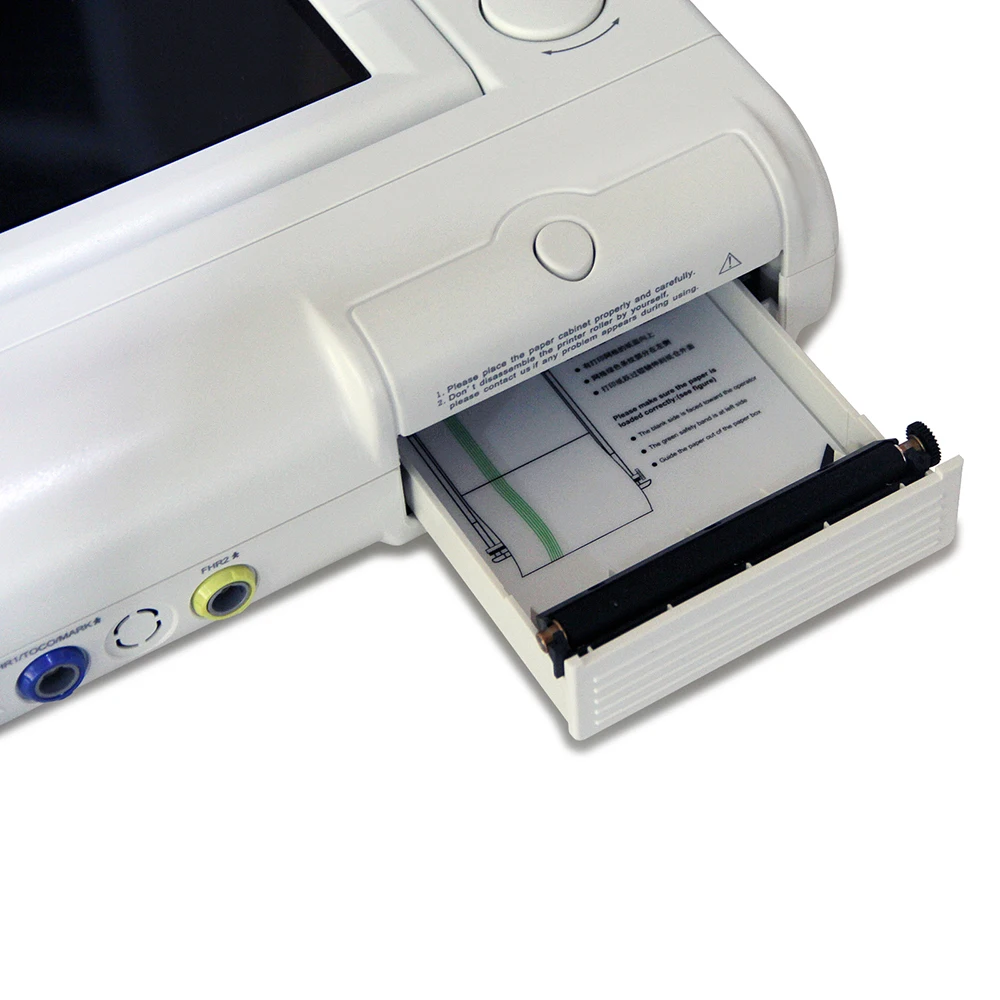

Frequency ：
50 Hz/60 Hz
Record paper ：
Z-fold paper
Network interface ：
RJ 45
Nominal Frequency ：
1.0 MHz
Work Frequency ：
1.0 MHz±10%
Range ：
50 BPM~240 BPM
Packing & Delivery
● Physical Characteristics: Dimension: 320 mm (L) × 260 mm (W) × 80 mm(H) Weight: about 3 Kg

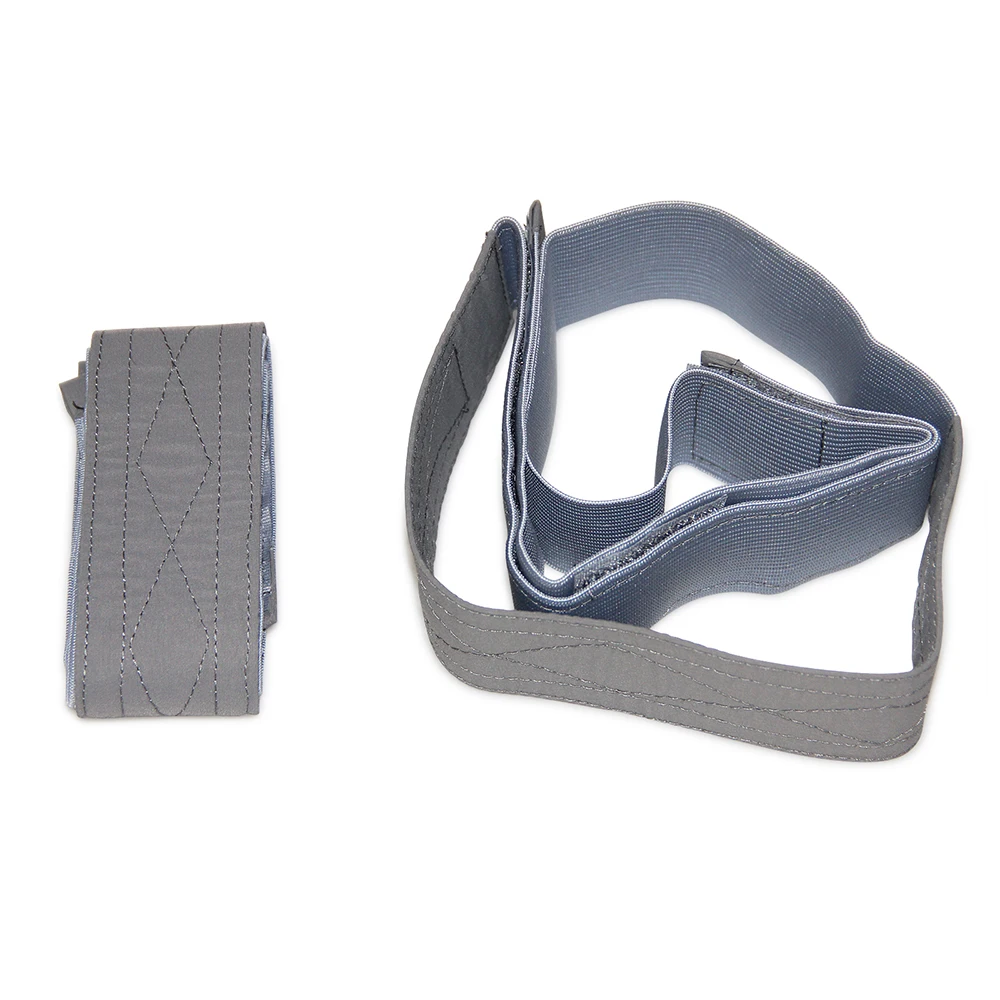

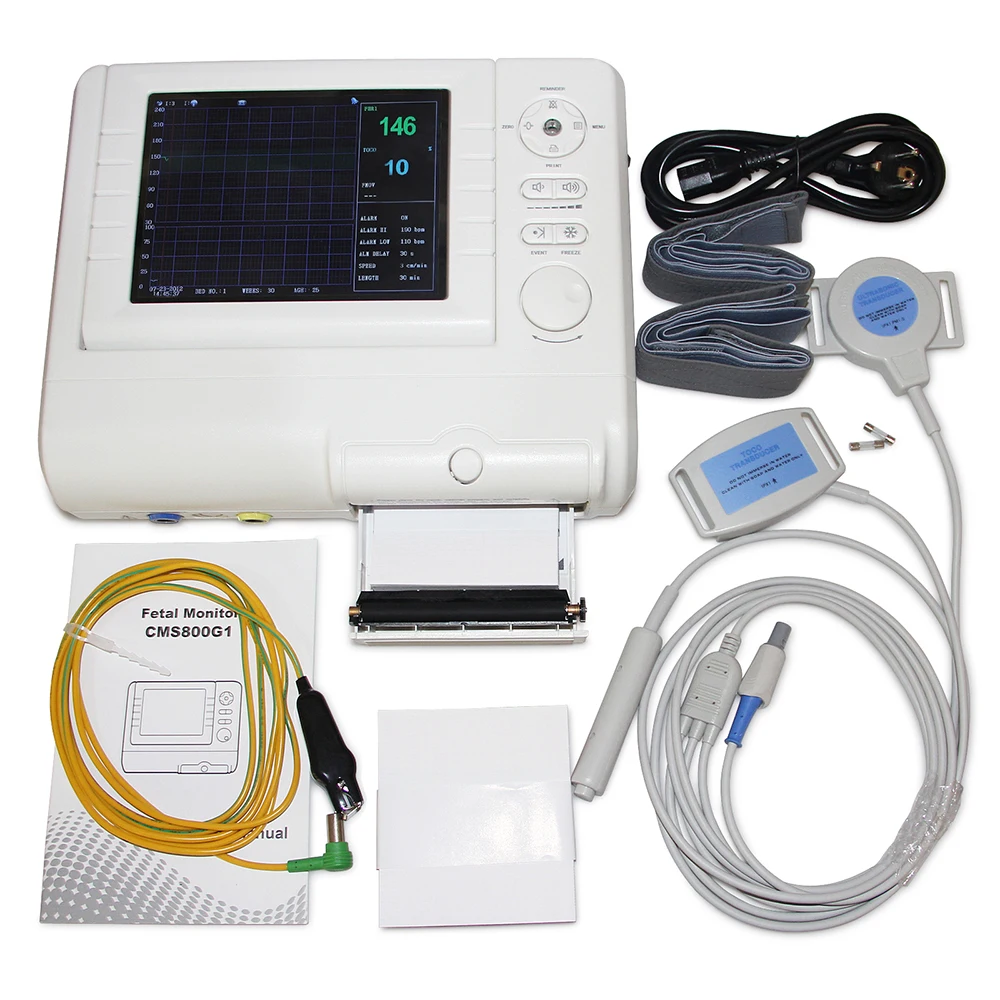

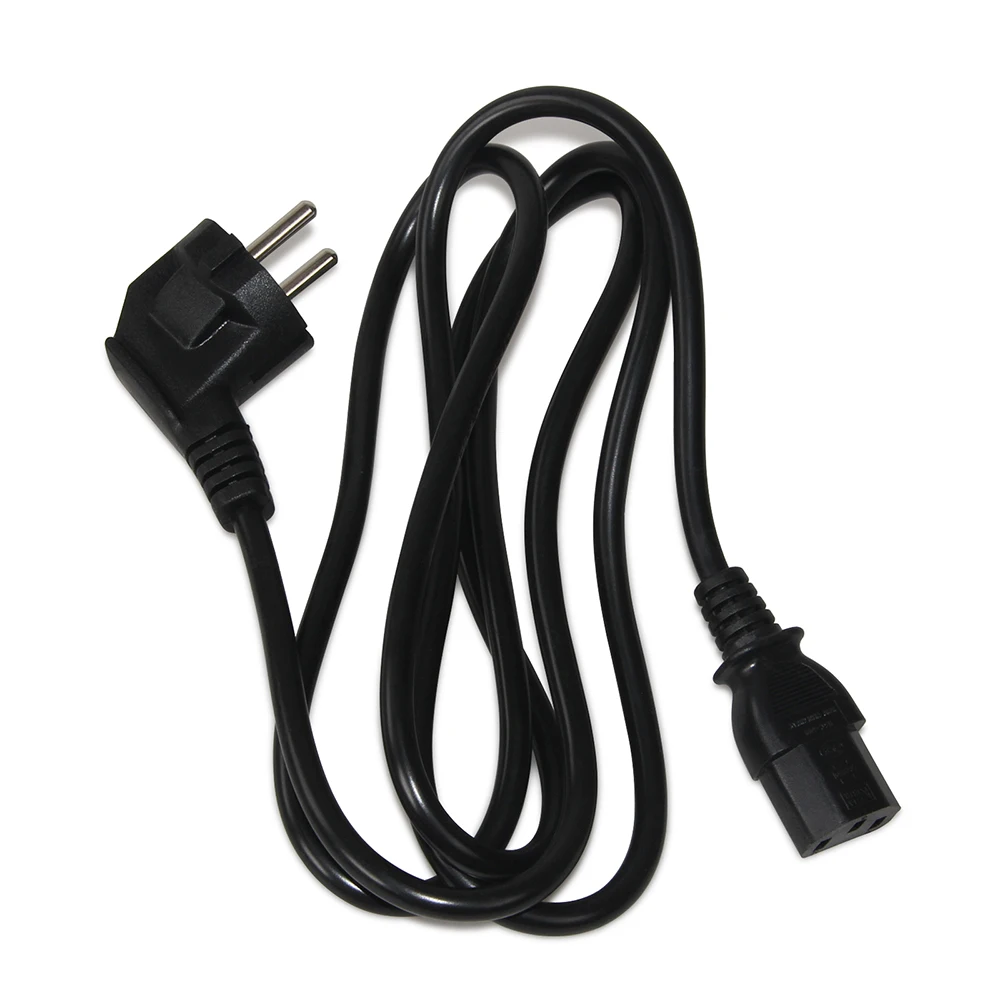

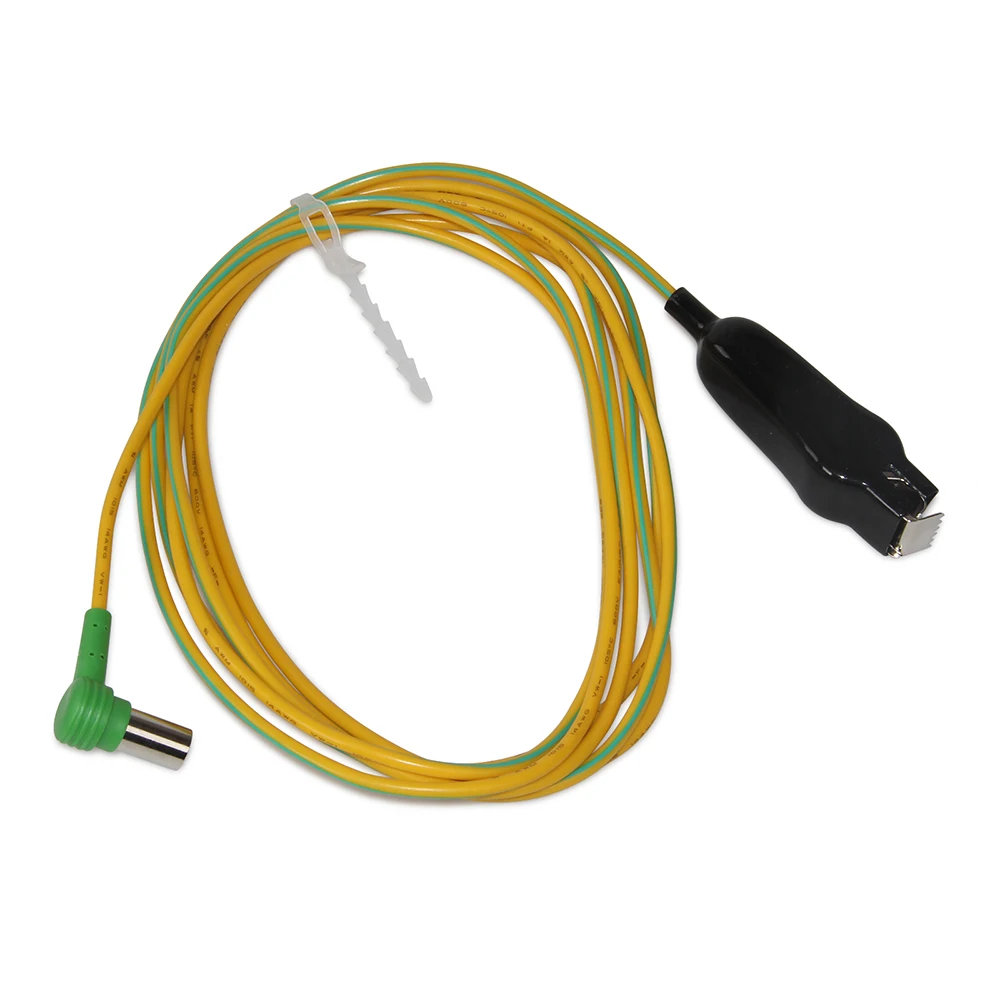

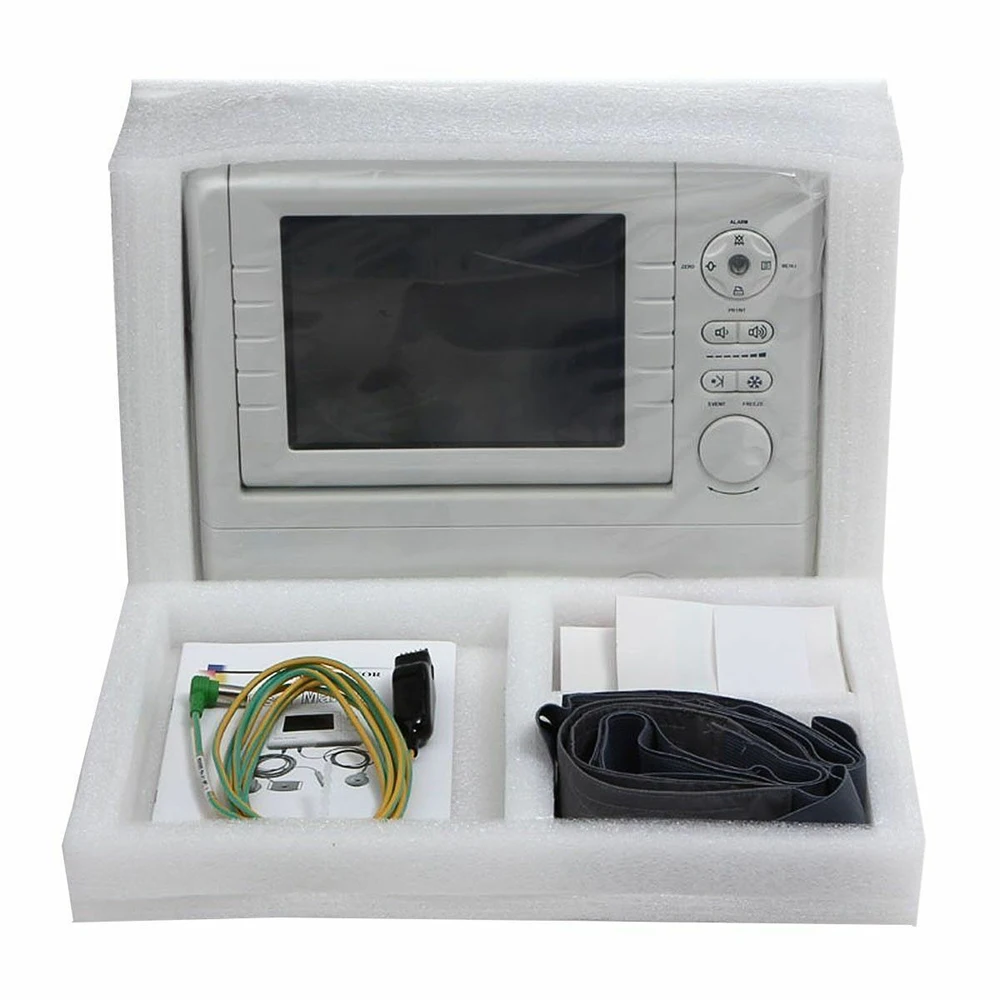

● Package included: 1X CMS800G Fetal Monitor 1X 3 in 1 Transducers(Ultrasound TransducerⅠ, TOCO Transducer, Remote Marker) 2X Abdomen belts 1X Earth line 1X Power cord 2X Fuses 2 setsX Record paper 1X User Manual
