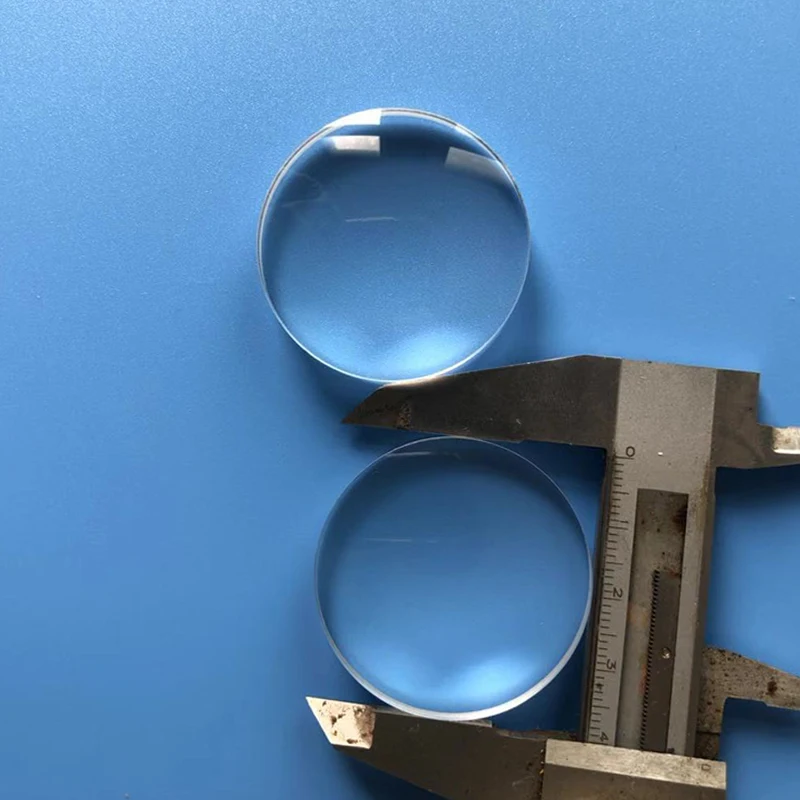

Kingopt оптический объектив с диаметром 40 мм и фокусным расстоянием 123 мм

Product Overview

Description

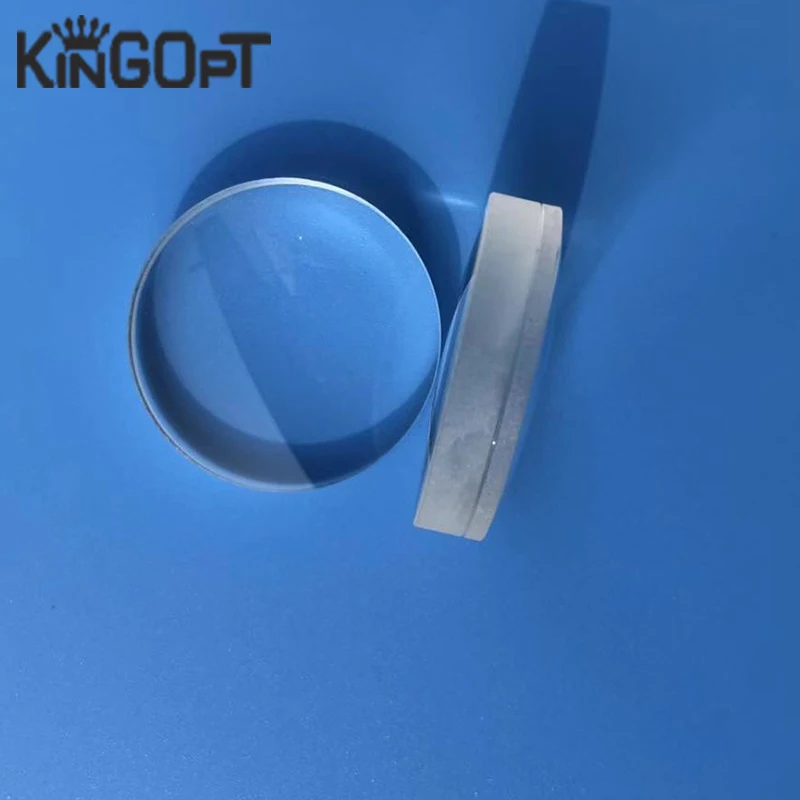

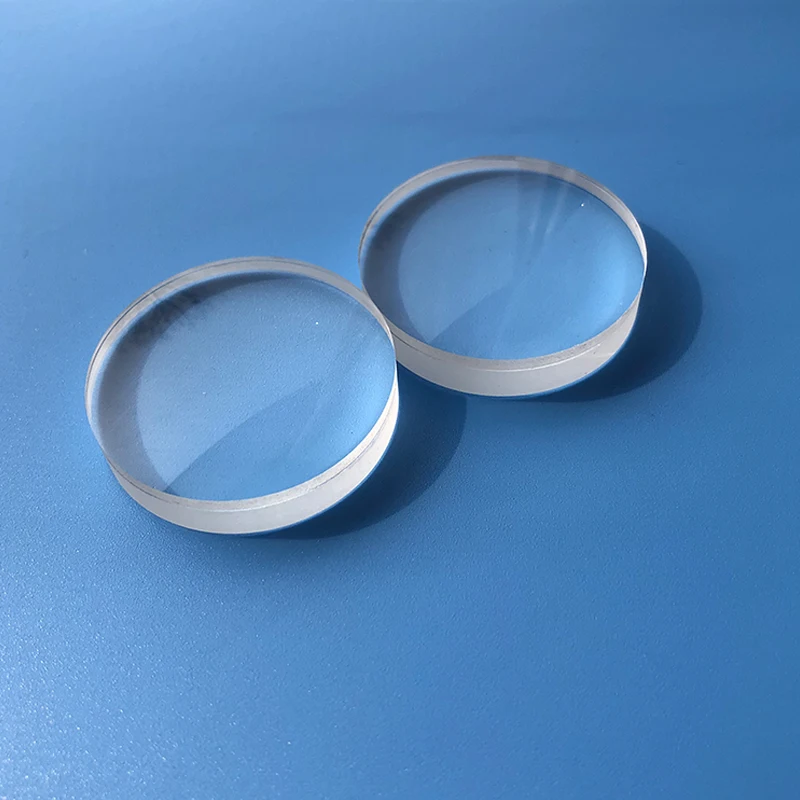

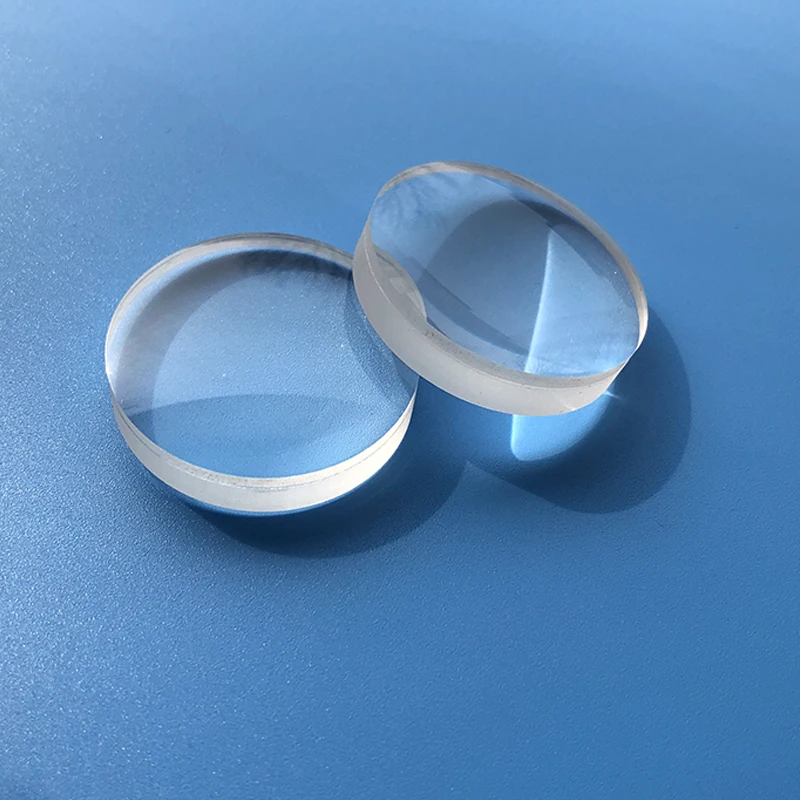

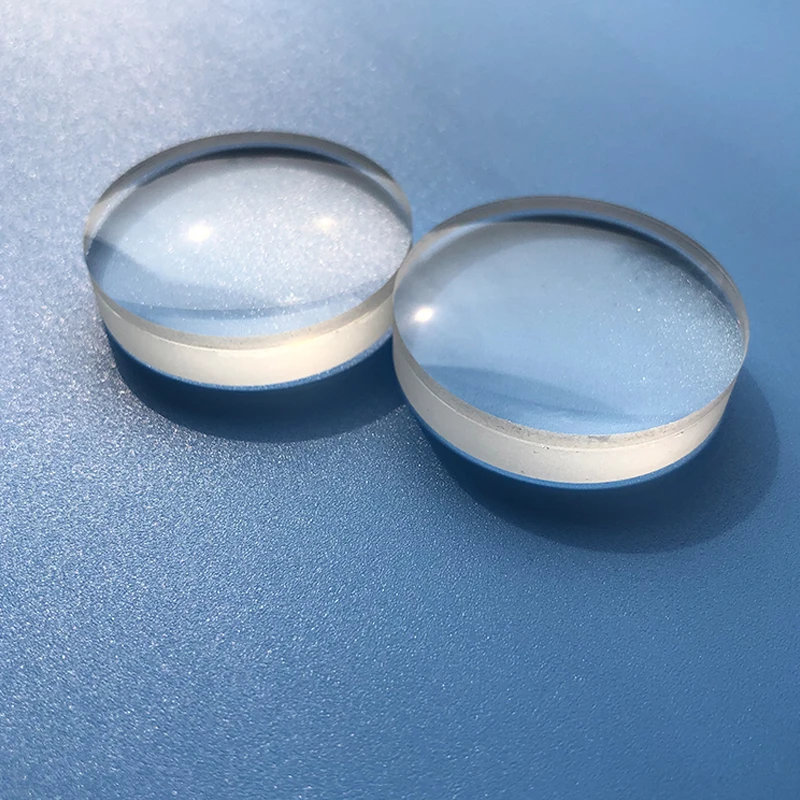

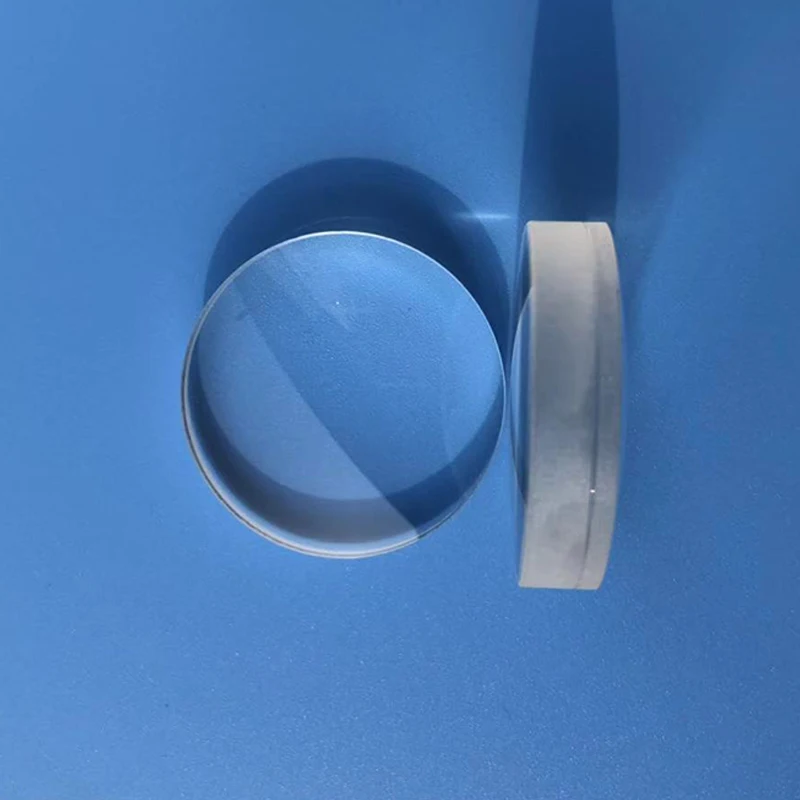

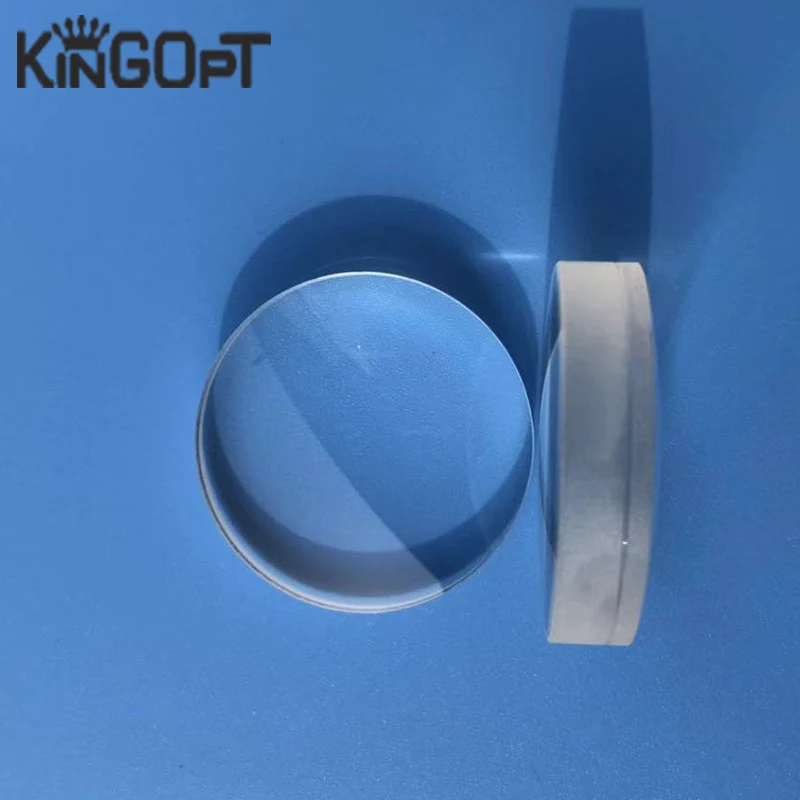

Kingopt diameter 40mm with 123mm focal length Doublet Achromatic Objective Lens

Materials	All kinds of high quality optical glass, quartz and crystal
Diameter	40mm (accept customize)
Focal Length	123mm
Radius	R 1.5mm-∞
Center thickness tolerance	±0.01mm
Diameter tolerance	±0.005mm
Surface quality	20/10--80/50
Surface accuracy	<1λ
Irregularity	λ/10
Decenter	15"
Coating	Upon request

Lenses have many applications ranging from the simple collection of the scanning of laser beams to precise imaging

and image transfer. Plano Convex Lens, Plano Concave Lens, Double Convex Lens, Double Concave Lens, Achromatic

Lens, Cylindrical Lens and Meniscus Lens with a wide range of sizes from dia3.0mm to dia300mm and materials including

N-BK7, Fused Silica,N-SF5, Sapphire, CaF2, Silicon, Germanium, etc.





Description:

1. Raw material of Optical lens: Pyrex, Optical glass. Crystal glass

2. Techniques of Optical lens: by Molding, Grinding, Polishing

3. Shape of Optical lens: Plano lens,bi convex lens,bi concave lens, ball lens,Spherial lens

4. Inside quality of Optical lens: clear and transparent, no mold marks, no inside bubble and dirts,

5. Function of Optical lens : Lighting splitting,magnifying etc.



According to the different applications, we can manufacture:

Plano—convex lens

Plano—concave lens

Biconvex lens

Biconcave lens

Meniscus lens

CaF2 Lens

Achromatic lens

Ball lens

Other Optical Lenses



Equipment	Qty	Made in
Processing machine	6sets	China
Out cutting machine	4sets	China
Milling machine	50sets	China, Korea
Grind machine	80sets	China, Korea
Polishing machine	260sets	China, Japan, Korea
Centering machine	80sets	China, Japan, Korea
coating machine	26sets	China, Korea
Ultrasonic cleaning machine	12sets	China
Painting machine	12sets	China, Japan
Inner cutting machine	22 sets	China
illumination machine	12 sets	China, Germany



Inspection equipments and toolings	Qty(set)	Made in
Interferometer	12	China, Japan
Spectrophotometer	6	China, Japan
Centering instrument	28	China, Japan
Goniometer	6	China
Spherometer	2	China
Coating film destruction inspection	1	China
Coating film hardness inspection	50	China, America
Micrometer	110	China, Japan
Collimator	4	China
Distinguishes	10	China, Korea
UV intensity instrument	2	Japan
UV Fluorescence	4	Japan
MIL Standard paper	10	America
The collimation instrument of the measurement instruments	8	China, Japan

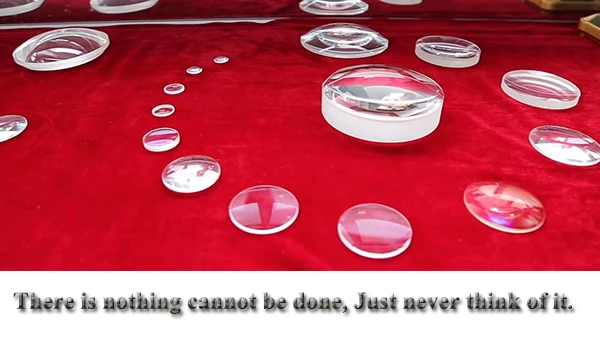

There is nothing cannot be done, Just never think of it.

                                        ---------------------Kingopt are good at the Optics Lens and Prism.





1>If your required with the high accurancy, pls provide the details with drawing.

2>If your required is the normal usage,without highly accurancy. then it is better with the specifications:

Material,diameter,Radius,Center thickness.....(it is better with more specifications)

3>If you only want to borrow from on-the-shelf models, feel free to leave with us your details and application.



If you require or want in the optics lines, We Kingopt all can met with your requirement.

We Factory are doing well in this area.

Thanks for inquirying.                                     -------------------------Shellman from Kingopt
