Water Cooling System 140c Computer Liquid Radiator Water Cooling System For Pc
- Category: >>>
- Supplier: Qingdao YTeng Electronic Technology Co. Ltd.
Share on (62434838732):
Product Overview
Description
Product Description
Product Name | Water cooling |
Material | Copper fin and flat tube |
Usage | Water cooling is a popular choice for high end computer systems far quieter than fans and also 5 times more efficient in conducting heat. In additional, these kinds of radiators are widely used in medical equipment\\beauty machine\\3D printing machine\\laser machine\\projectors\\computer\\the avaiation industry and so on so forth. |
Features | Single-pass parallel-flow configuration utilizing high-flow tubes for up to 50% increase in internal flow rates. Custom compressed core width to maximize airflow and enhance heat exchange. Optimized custom 20 FPI (Fins Per Inch) . Built-in 7mm deep plenum for equalized core air pressure distribution. M3 Threaded Screw Holes for easier mounting and greater adaptability. Standard G 1/4 female threaded fittings. Full high-temper brass structural construction for weight reduction and superior corrosion resistance. High performance compact radiator compatible as an upgrade to the most 120mm fan form factor radiators. Uses 100% Non-corrosive water-soluble fluxing process. Fully RoHS compliant. Matt Black Finish. Patent Pending Design. All radiators are cleaned to removed solder flux. Both hydraulic and pneumatic tests(1.5bar and 30 seconds) |
Product performance description
Radicooler water cooling are made strictly in accordance with the highest industry standards, all products using the new raw material to produce, have the best penetrability, excellent resistance to high temperature performance, high grade appearance quality, industry the most demanding of mark scratches control roundness standard and dimension control standards, especially for the strict control to ensure the size tolerance and the joint effect of the best match, put an end to the elliptical tube caused by leaking problem.
Payment Terms
1.T/T is regular rule.
2.Trade Assurance by alibaba is acceptable for both rights.
3. Make sure that you have completed all your detailed information like Address, contact person and telephone number when you filling in the buyer's information.
2.Trade Assurance by alibaba is acceptable for both rights.
3. Make sure that you have completed all your detailed information like Address, contact person and telephone number when you filling in the buyer's information.
Installation precaution
If you use only a fan with 25 mm height, please use 30 mm long M3 screws.
Always double-check the screw length before installation, or you might poke a hole in the radiator water channels.

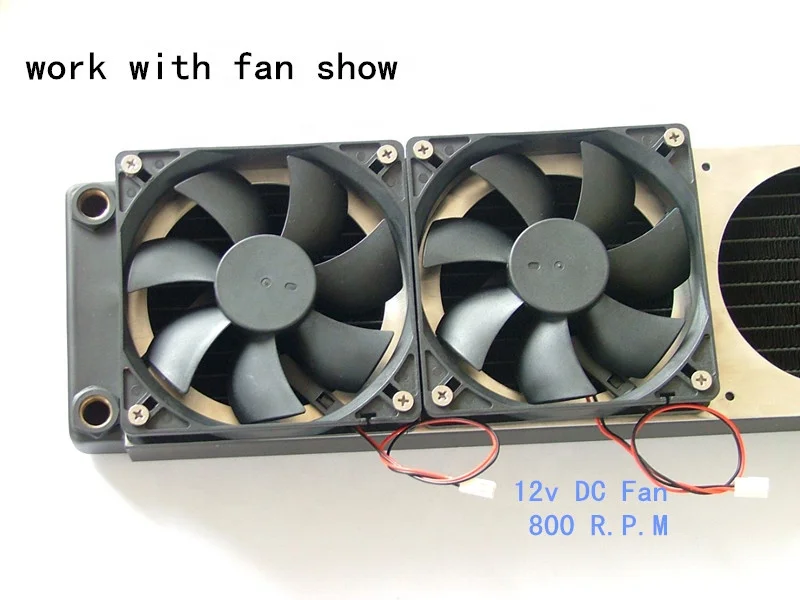

120mm × 120mm fans are advised to be installed with the radiator.
Always double-check the screw length before installation, or you might poke a hole in the radiator water channels.
120mm × 120mm fans are advised to be installed with the radiator.
Packing&Shipping
20pcs/carton
After inspection the radiators are packed in plastic bag then carefull put into carton. Inclduing long screws and short screws in the carton for your mounting.
After inspection the radiators are packed in plastic bag then carefull put into carton. Inclduing long screws and short screws in the carton for your mounting.
Shipping Method
All shipping method aim to supply the most convenient for you.
By sea or by air is most suitable for large order.
By express like DHL,FEDEX,TNT is ok for trial order or sample confirmation.
Any other request method can adjust.
By sea or by air is most suitable for large order.
By express like DHL,FEDEX,TNT is ok for trial order or sample confirmation.
Any other request method can adjust.
