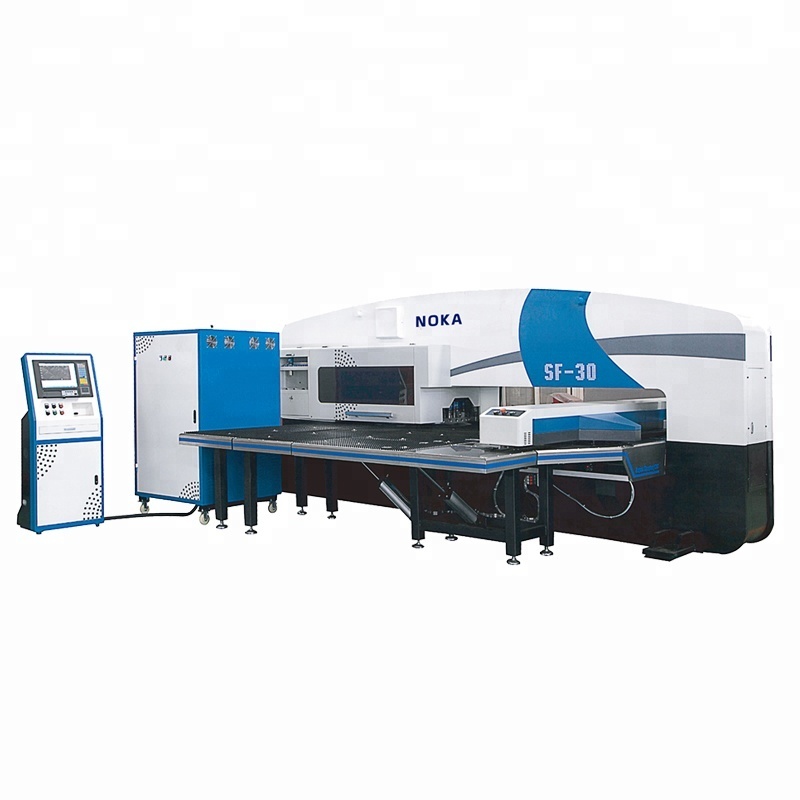

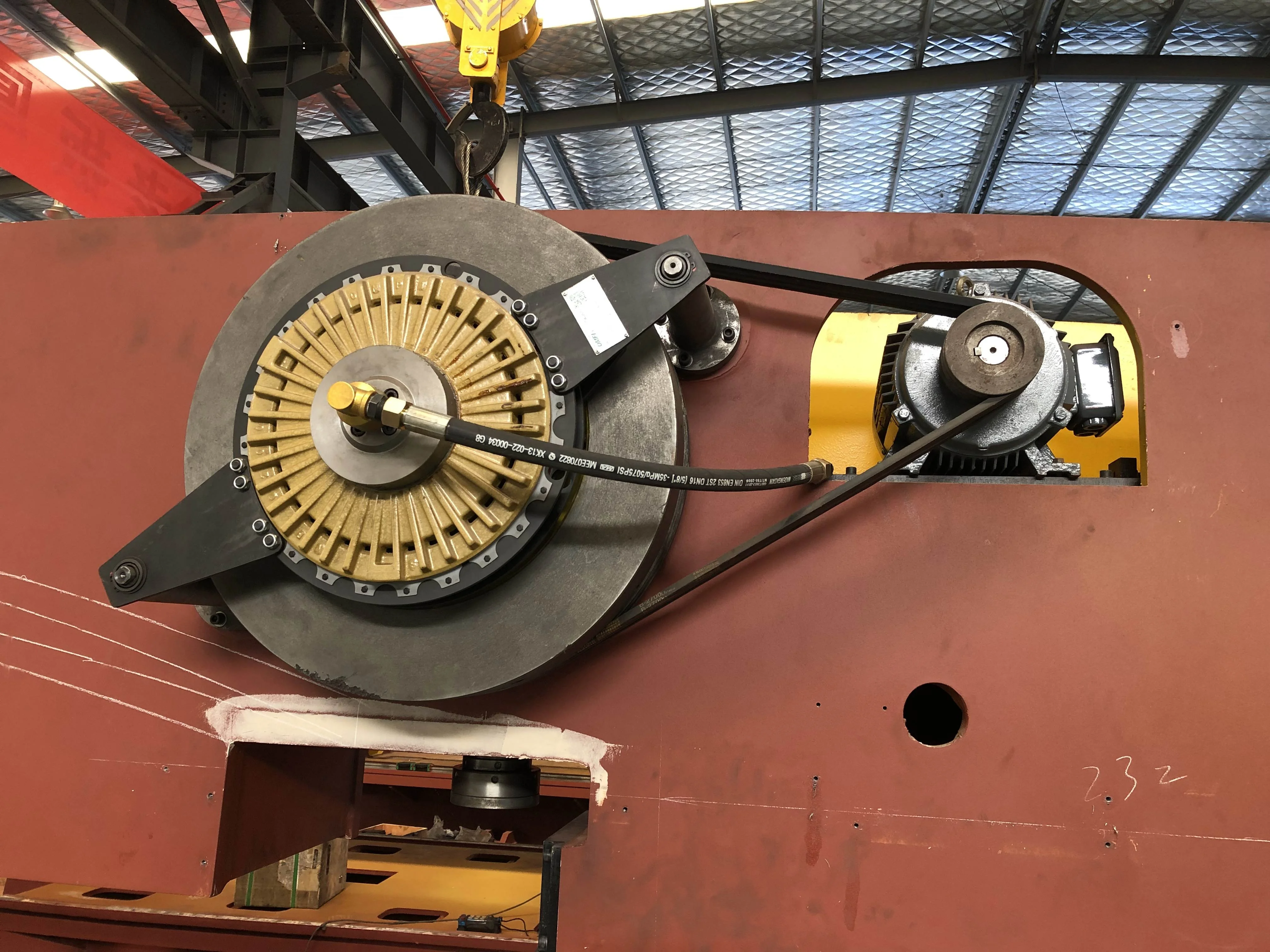

CNC Turret Punching Press Machinery Used for Metal Sheet

NOKA high-efficient turret punch presses are produced as a closed type rigit Steel construction into a rigit structure, the structure is exquisite, the reliability is high, and the use is convenient. Under the premise of retaining the main structure of the original turret punching machine, the visual inspection technology is used to conveniently detect the wear condition of the mold, and the mold can be quickly changed after the test, and has a pole. High degree of automation. NOKA turret punch presses has 2 models with 27 station/700 stroke and with 33 station/900 stroke which helps to finish all the work at onces even on very complicated sheet products. So NOKA turret punch presses provides a complete solution with optimum cost.

• High precious positioning possibility with linear sledge system on all axis

• Multi head Plazma and multi head oxy fuel cutting possibilities
• Platform type on bridge side or Portable CNC control panel
• CNC control outputs/inputs for vacum table & filtering unit
• High vacuming capability with lower energy consaption
• Independent cutting table system

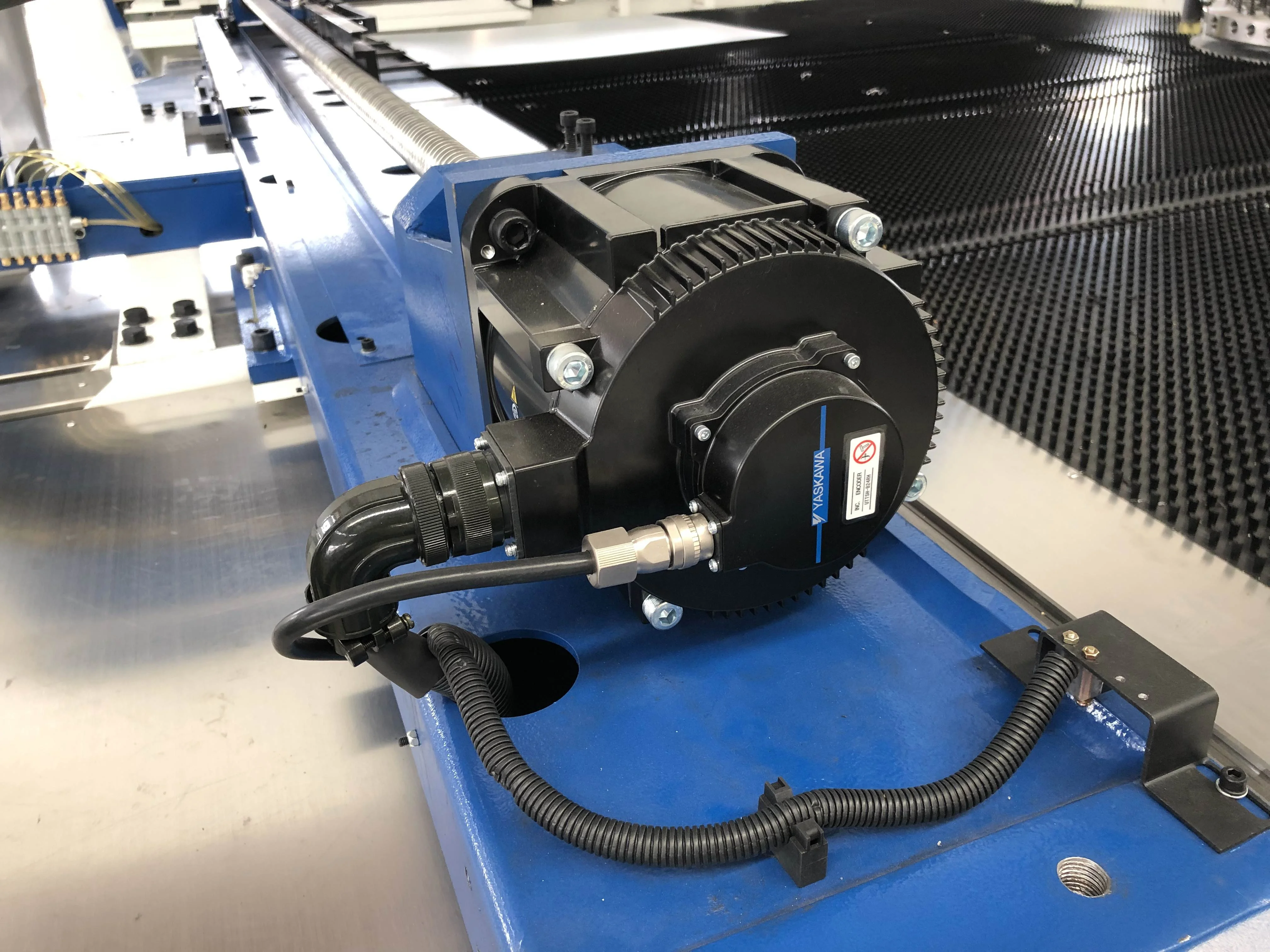

• Siemens AC servo motors on all axis
• +/- 0.01 mm positioning accuracy
• +/- 35m/min positioning speed

Name	Parameter	Unit	Remarks
Punching pressure	300(30)	KN(T)
Rack structure	O closed- type servo drive	mm	Electric furnace tempering
Maximum processing sheet size	X-axis 2500 Y-axis 1250	mm	Secondary positioning can process 5000mm
Maximum processing sheet thickness	6	mm
Maximum diameter of one punch	Φ88.9	mm	Non-standard
Highest punching frequency	800	times/min
The number of control axis	5(X,Y,Z,T,C)	PCs
Form of mold	Long guide 85 series international standard mold
Turret station distribution	A,B,C,D	Standard	Non-standard
Processing life of mold	500,000	times
Repositioning cylinder	2	set
Maximum feeding speed	X-axis 80 Y-axis 80	m/min
Workbench structure	Seamless brush / Universal steel ball table		Stainless steel edging
Maximum turret speed	40	rpm
Re- positioning accuracy	±0.02	mm
Maximum load weight	150	Kg
Maximum output power	16	KW
Air pressure	0.55	MPa
Voltage	380±5%	V
Overall dimension	Length × width × height 5000×5000×2100	mm

Main Features

- 'O' Frame design tested by Finite Element Analysis software, precisely machined and stress relieved to ensure high precision
- Hydraulic punching with indexable tool station through 360° in increments of 0.003°
- Punching, cutting and forming processes subject to optional tooling fitted -controlled by the CNC according to material
- Capable of producing not only 2D components but when fitted with special tools can create 3D forms which wouldn't be possible when using a profiling process
- High nibbling rate of 550 hits per minute in 1mm pitch
- High capacity motors and precision guides on all axes able to reach high operational speeds
- Rigid beam with fitted with two sheet clamps capable of positioning sheets of up to 9mm thickness
- Very accurate repeatability of 0.03mm
- Clamping force adjusted by CNC from 100kg to 1000kg
- Repositioning feature
- High processing speeds and data transfer rates

Certifications

Detailed Images

Machine Parts

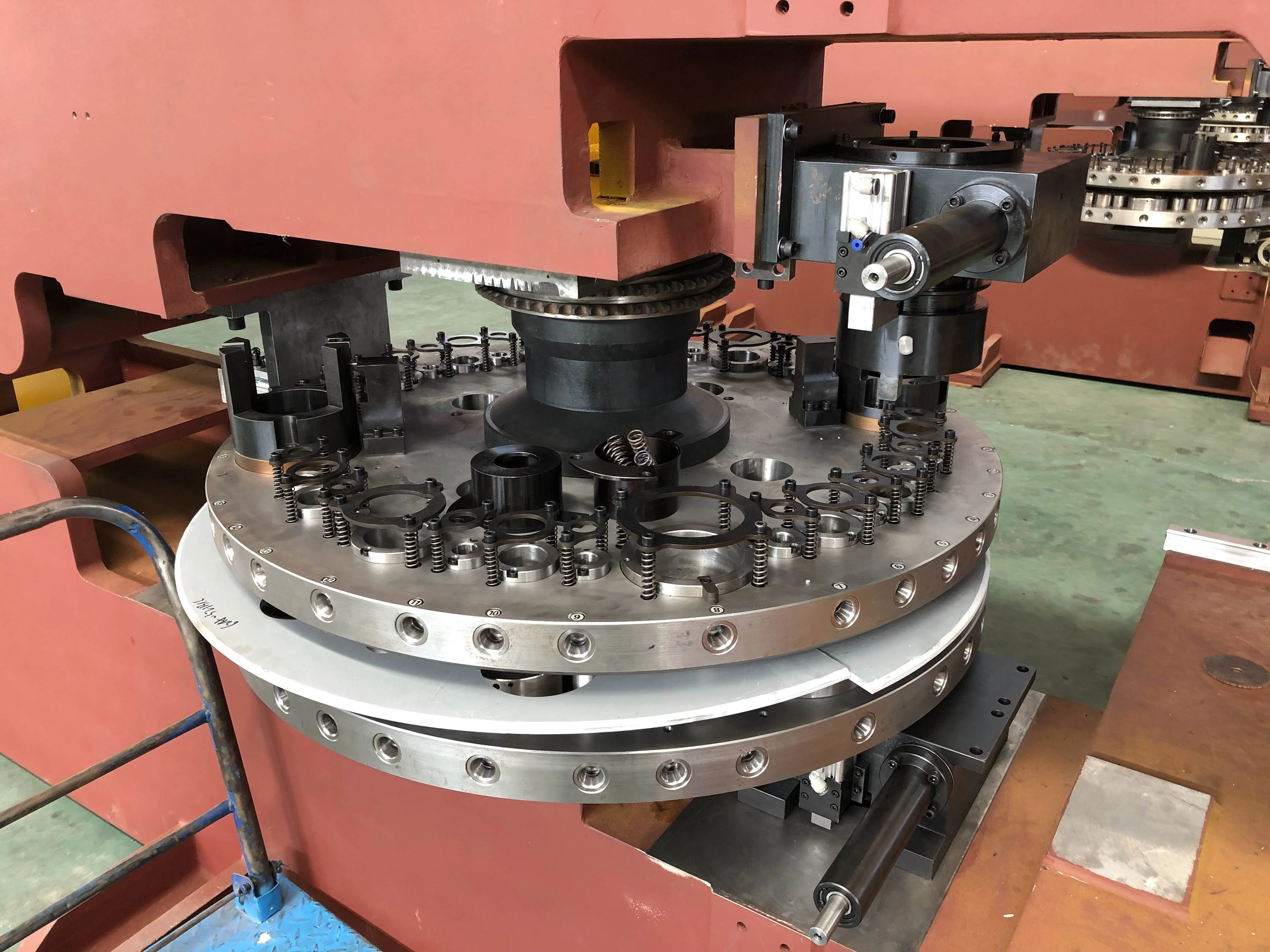

Name: Mold Turntable

The die hole and the side positioning hole on the turntable are formed at one time, which ensures the positioning index of the side hole and the precision of the die hole on the turntable punch turntable.

Machine Parts

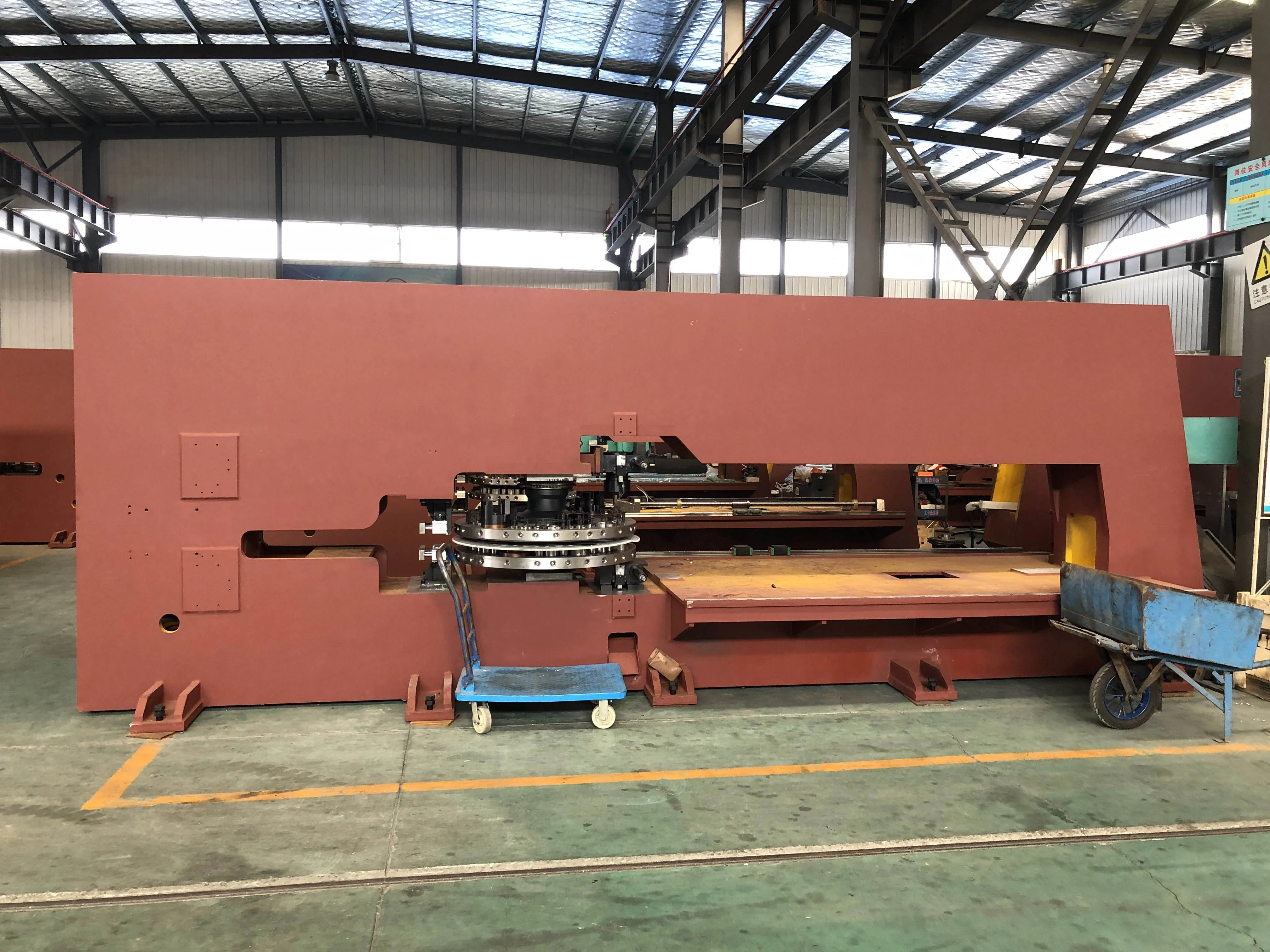

Name: Frame Construction
Finite element analysis which is on high performance computers is used in the design process. The concept consists of two fully enclosed box fabrications that are welded put under high load and stress relieved. The result is reduced vibration and deflection under full loads providing greater part precision, reduced tool wear and noise.

Machine Parts

Name: Programmable Sheet Clamps
The position of the sheet clamps are automatically set by standard program information. Contact sensors automatically stop the machine if these sensors detect any movement of the sheet while it is clamped.

Machine Parts

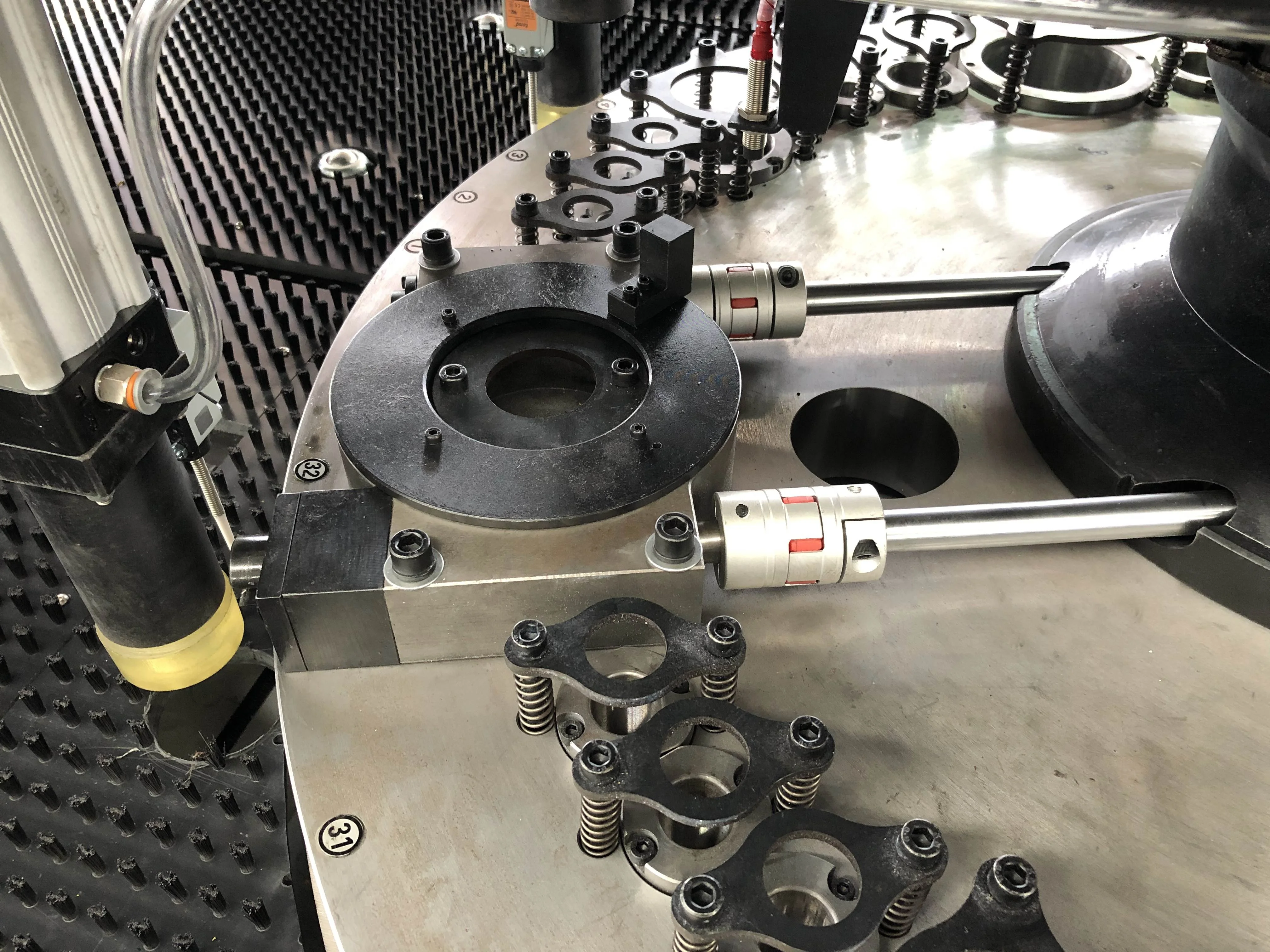

Name: Indexable Multi-Tools
3,6,8 and station indexable multi-tools reduce tool changes and increase flexibility. Programmable to .02° with no upper and lower mechanical connections provides perfect alignment of the upper and lower tool. Even defects or worn tools can be offset.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Company Profile

NOKA Machinery Manufacturing Co., Ltd. was established in 1994, located in the ancient capital of Nanjing, the steel city
Maanshan junction point to see a lot of industrial parks.
The company specializes in CNC machine tools, forging machinery, mechanical blade molds, mechanical parts, mechanical presses,
hydraulic presses, hydraulic presses, ironwork, mechanical bending and so on.

Here, NOKA has a long and strong engineering experience, and hopes to become a quality-oriented professional machinery
manufacturing company that serves the industry.

Customer Photos

Packing & Delivery

Packaging
Size	5000 (L) * 5000 (W) * 2100 (D)
Weight	16 T
Packaging Details	The normal package is wooden box. If export to european countries,the wooden box will be fumigated.All the spare parts of the machine were covered by some soft materials.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Before the machine is shipped, the mould will be coated with antirust oil. Special and effective packing. The machine is
transported by standard container, and the common ones are 40 OT / 20 OT / 40 HQ / 40 GP / 20 GP. Inside the container, there will
be more wire rope and multiple angle fixing machines.

We will also make videos to let you know how the equipment is loaded into the container.

Please contact our sales consultant for the best shipping plan and accurate quotation
