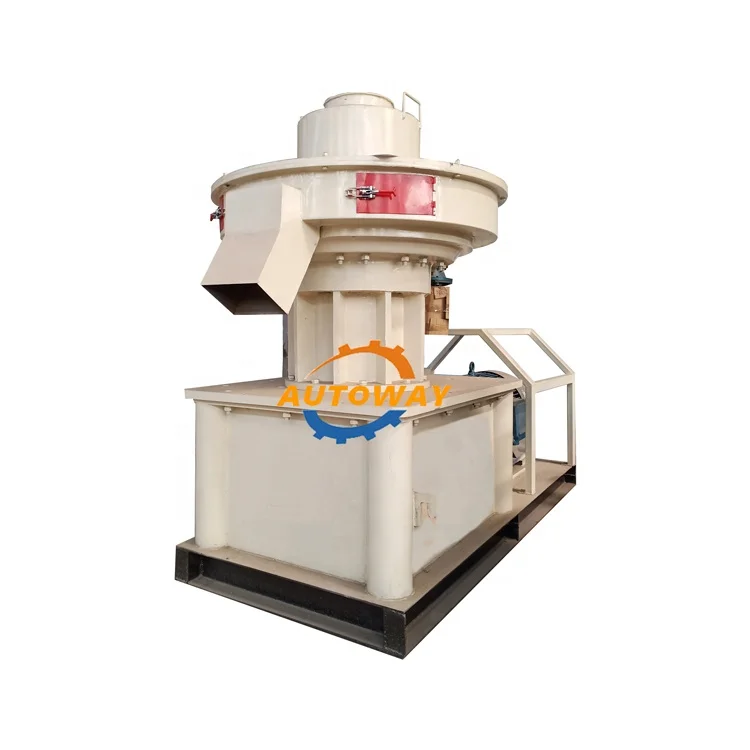

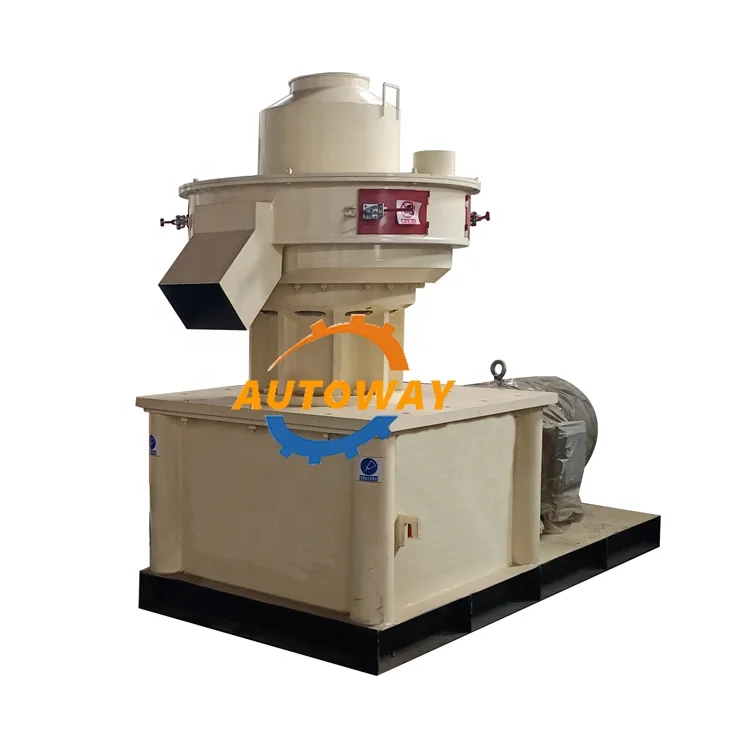

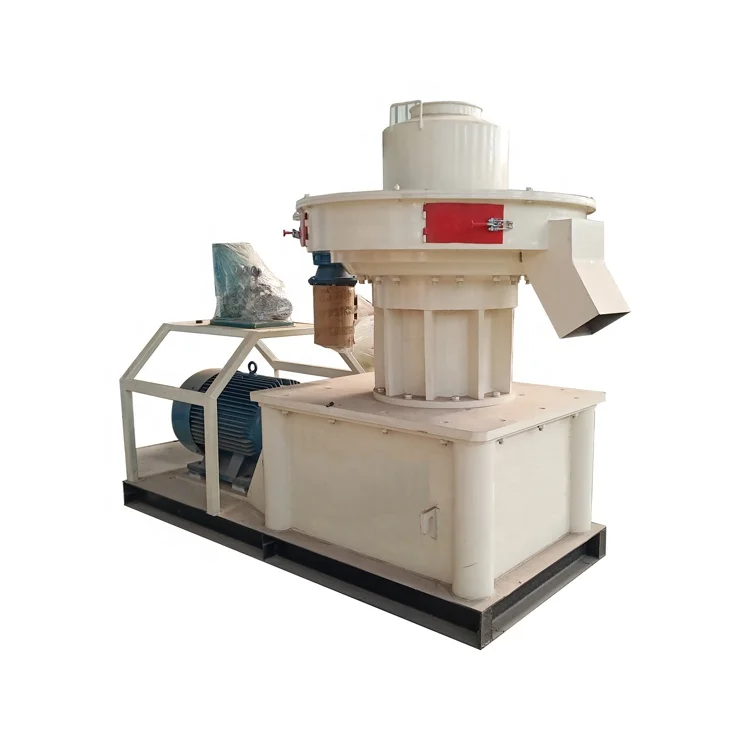

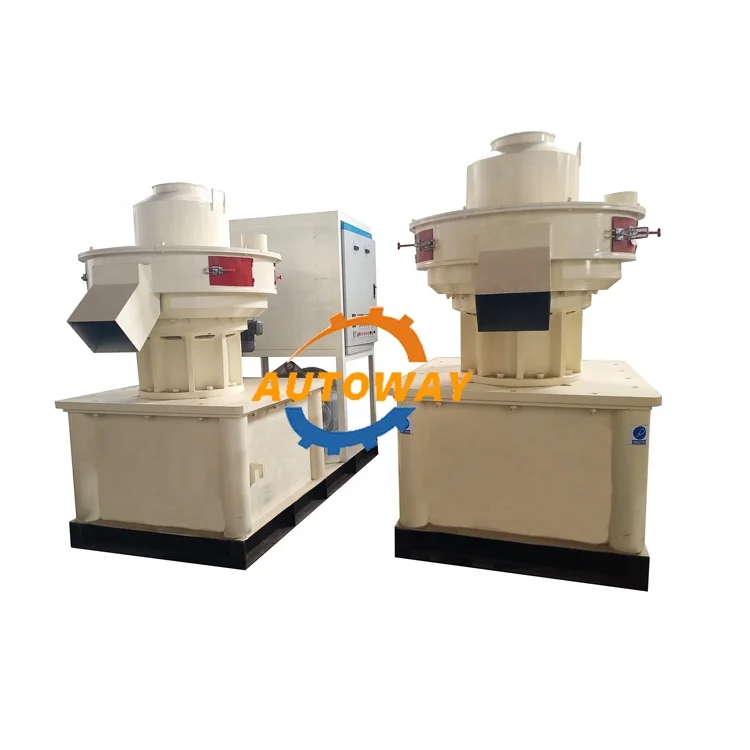

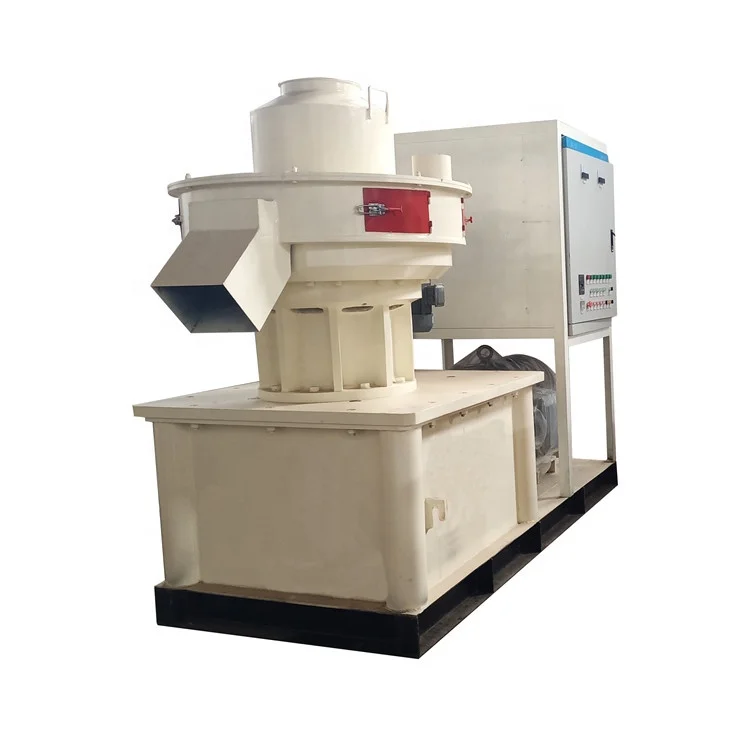

Advanced durable fine agriculture waste produce widely wood pelleting machine to make wood pellets

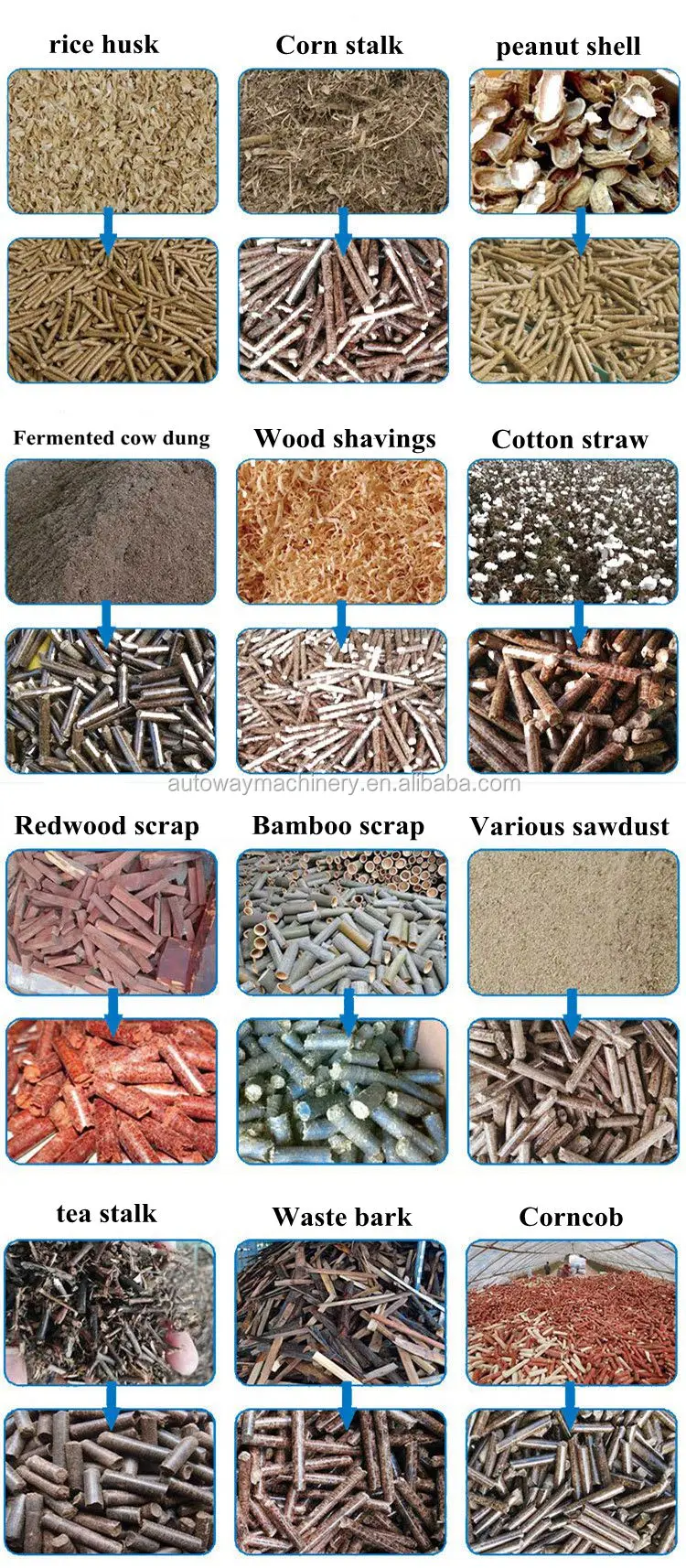

Wood pellet machine, also known as biomass pellet machine, rice husk pellet machine, wood powder granule machine. It is a machine that presses crushed trees, wood boards, bark, wood shavings, scraps furniture and other raw materials into pellet with a diameter of 8-12 mm by physical extrusion. The whole production process includes: crushing, drying, pelleting, screening, cooling, packaging and so on.The extruded pellets are high-density fuels, which can be used as fuel instead of coal. Compared with coal and natural gas fuels, wood pellets have high calorific value energy and less pollution, which can save energy and reduce emissions.

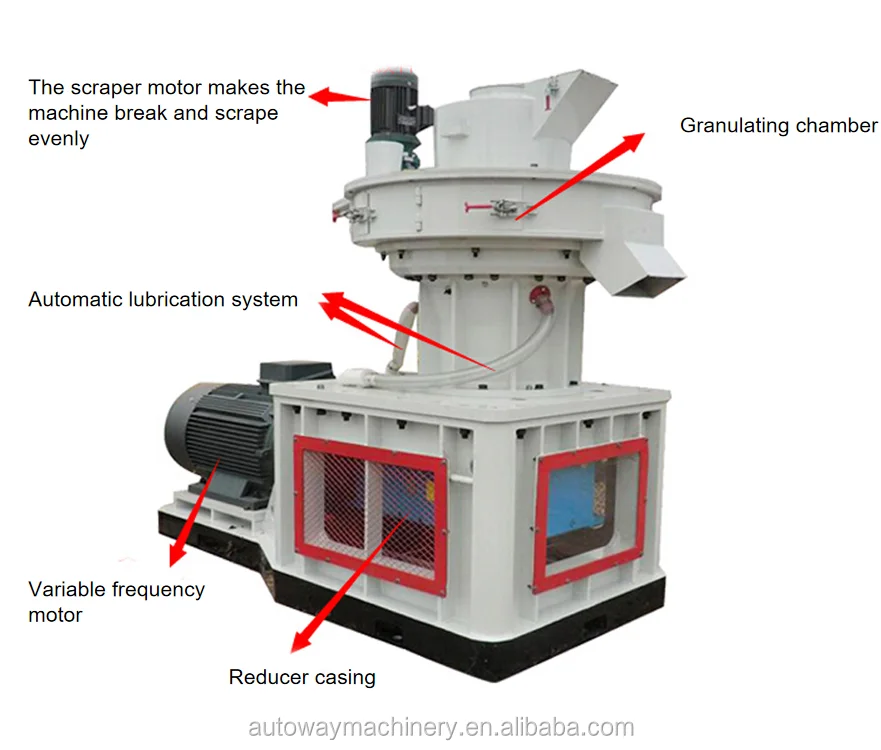

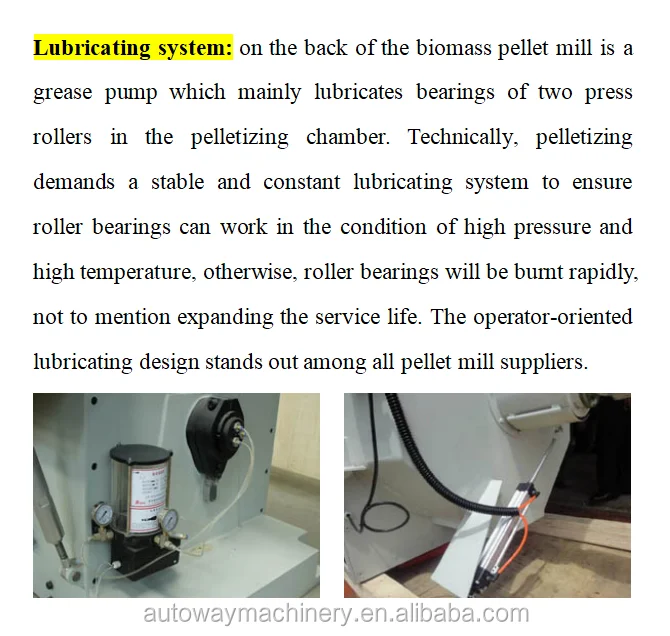

Feature of biomass wood pellet making machine ♦Screw conveyor feed to the silo with frequency adjust motor. ♦Pellet forming area: Ring die, vertical structure, cooling easily. Die double layer, two life time. Die static, two roller rotating, and material centrifugal, evenly around. Roller assembly adopt high alloy wear resistant material. ♦Automatic lubrication pump, lubricate two roller and main shaft automatically with timming time, make sure pellet machine can work continuously more than 20 hours.
Specification
Parameters of biomass wood pellet making machine
Model
LGX700A
LGX600A
LGX600
LGX560
LGX450
Power
(kw)
Machine
160
132
110
90
55
Scraper
2.2
1.5
Spindle drive
Electric oil pump
0.37+0.65
0
0.37
Rotate Speed (r/min)
1450
Supply Voltage (v)
380v, 3 phase (Customized)
Pellet Size(mm)
4-12
Granulating Temperature (℃)
40-80
The Raw Materials Moisture (%)
15-25
Weight (t)
8
7
6.5
5.6
2.9
Dimension (mm)
2460*1400*2000
2200*1200*1750
3100*1300*2100
2300*1250*2000
2160*1000*1850
Ring Die Inner Diameter (mm)
700
600
600
560
450
Capacity (t/h)
2.5-3
2-2.5
1.8-2
1.2-1.5
0.8-1

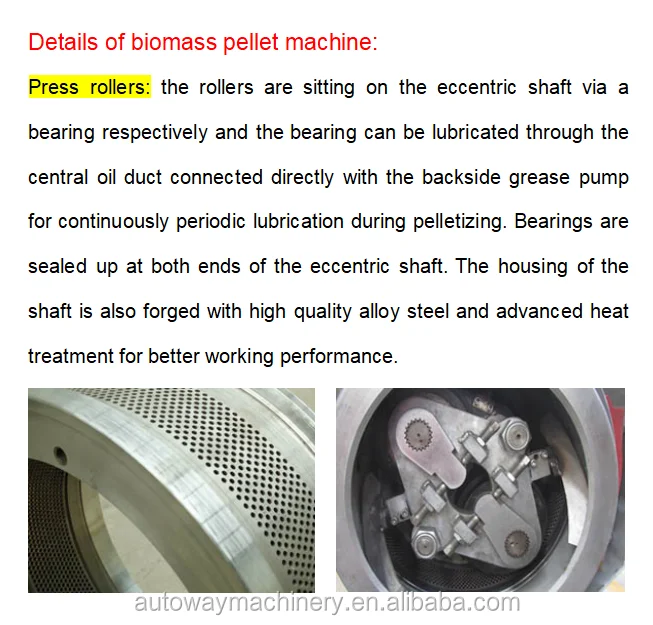

Detail images

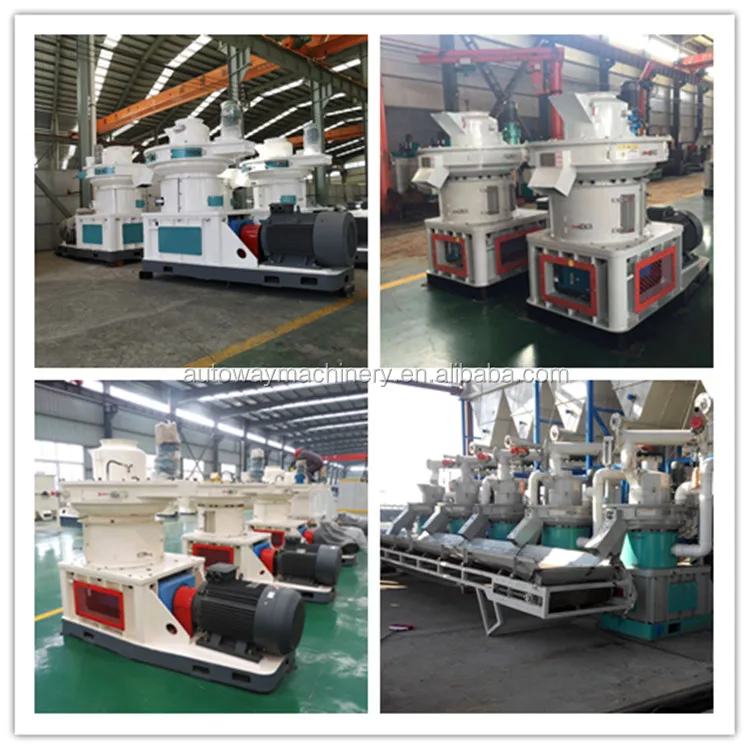

Detail images of biomass wood pellet making machine
Company Profile
Our Service
(1)Pre-sales service a. Technicians will propose suitable production plan. b. Technicians analyse and design special molds for you. c. Pick you up at airport, arrange hotel-booking. d. Other travel arrangements.
(2)After-sales service a. Assist you build up factory and production line. b. Install and maintain machines. c. Training your workers to achieve skillful operation. d. Offer technical support through telephone or online videos at any time.

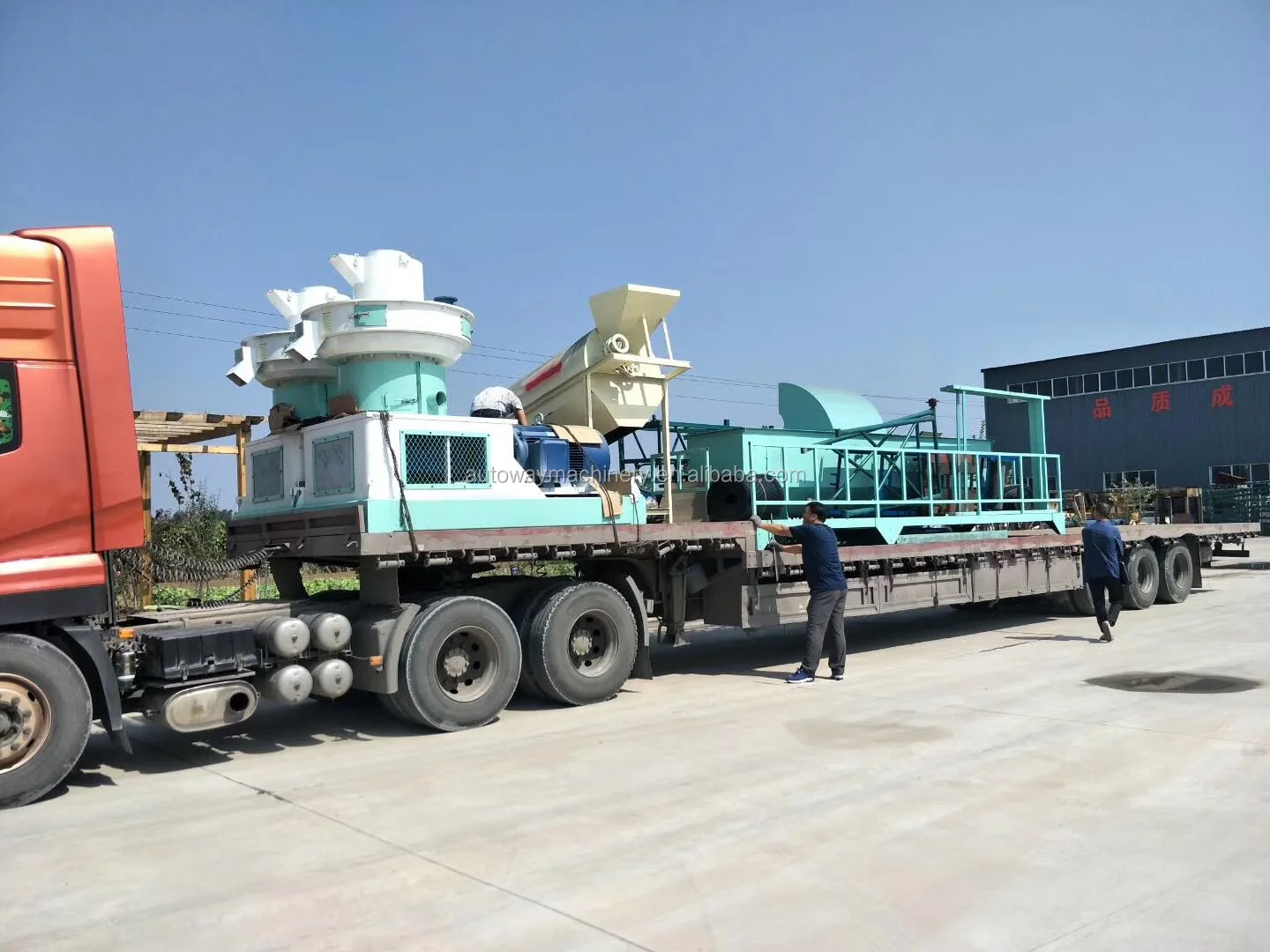

Packing & Delivery
Packing of Biomass Pellet Machine Inner packing of Biomass Pellet Machine: plastic packing Outer packing of Biomass Pellet Machine: wooden box or the container Delivery of Biomass Pellet Machine Delivery of Biomass Pellet Machine: within 15 days after receiving the deposit by sea
