JIAKANG Ultrasonic Distance Sensor Water Level Detector 200kHz
- Category: >>>
- Supplier: Zhejiang Jiakang Electronics Co. Ltd.
Share on (62435007188):
Product Overview
Description
You are here:Home >> Piezoelectric UltrasonicTransducer > Piezoelectric Ultrasonic Senser
Waterproof 200kHz Ultrasonic Sensor Distance Meter

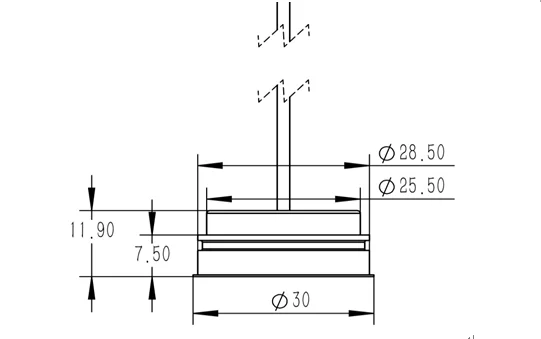

Dimensions (Unit: mm)
ELECTRICAL SPECIFICATIONS
Items | Unit | Content |
Center Frequency(Fr) | kHz | 200±10 |
Static Capacitance(CP) | pF | 580±20% |
Signal Sensitivity( excitation signal 20Vp-p, transmission distance 70mm,7pulses) | mV | ≥30 |
TEST
Test Conditions
Parts shall be measured under a condition (Temp.:25℃±3℃, Humidity: 40%~70% R.H).
Test Methods
Item | Test Methods |
Frequency(Fr) | Measuring radial vibration mode,Agilent 4294A Impedance analyzer |
Static Capacitance(CP) | Digital Electric Bridge (at 1KHz/1V) |
Standard signal source:Tektronix3021C Oscilloscope:Tektronix3034 |
PACKAGE
Each package has 4 inner boxes, each box has 20 pieces of ultrasonic sensors
Advantages:
1.Produce transducers from raw material(ceramic powder) to finished products
2.Our own material and product institution
3.Factory area is over 109,700M2
4.Monthly capability of transducers is 600K pcs.
Ceramic ultrasonic transducer, the core element of ultrasonic flow meters, is a liquid-medium sensor. It can be used in liquid flow meter, or as liquid level sensor. Products are made from the piezoelectric ceramic developed by ourselves, has the advantages of better temperature stability and superior piezoelectric effect. We have been in the research and development of PZT materials and products nearly 30 years.We are director of Piezoelectric Ceramic Device Specialized Committee, in charge of drawing China’s “The 11th Five-year Plan” and “The 12th Five-year Plan” for development of piezoceramics. Chooosing us will make your developping process earlier and faster. |
Customer praise
Our products are praised by customers from different countries, and the praises are true.
FAQ
Q1:Are you a manufacturer or a trading company?
A1: We have been specialized in the piezo ceramic related products manufacturing for 31 years.
Q2:Where is your factory located?
A2: Factory address: No.1188,Jiahang Road,Jiaxing City , Zhejiang Province,China.
Q3: What's your company MOQ?
A3: Small quantity also available.
Q4: What's the payment way?
A4: T/T, western union, credit card etc.
Q5: Can you send a sample for us to test ?
A5: Yes, most samples are available for free. For samples whose cost is very high, the sample fee will return back in future order.
Q6:What is your shipping way?
A6: We support DHL, UPS, FedEx, EMS.
