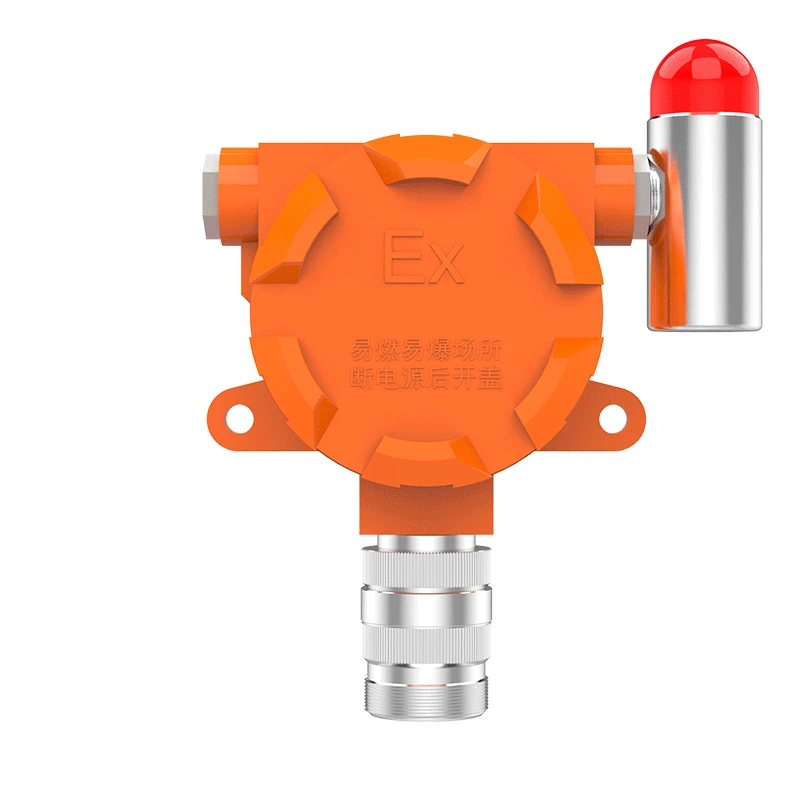

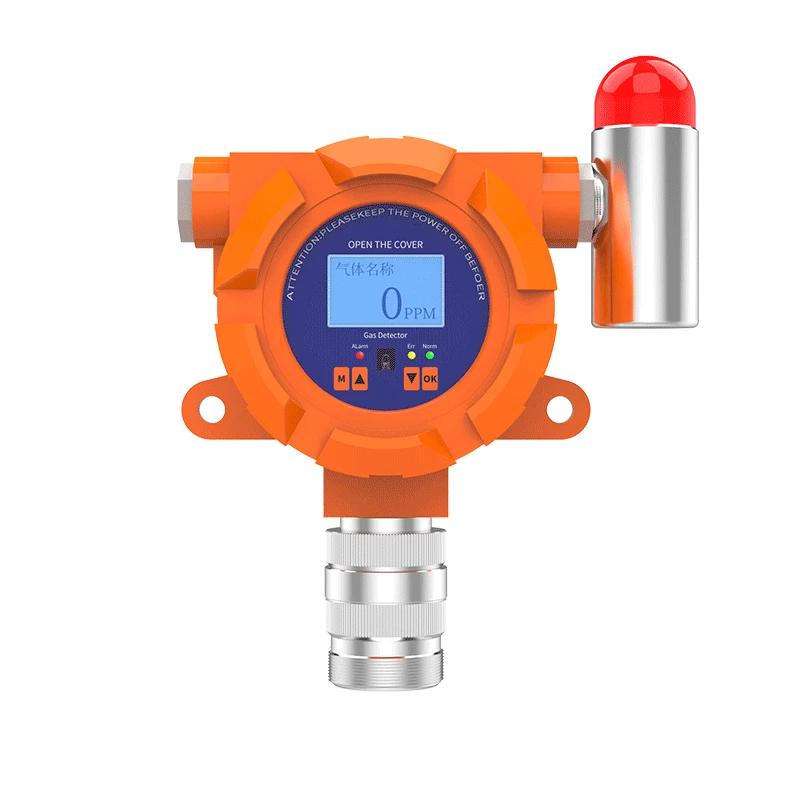

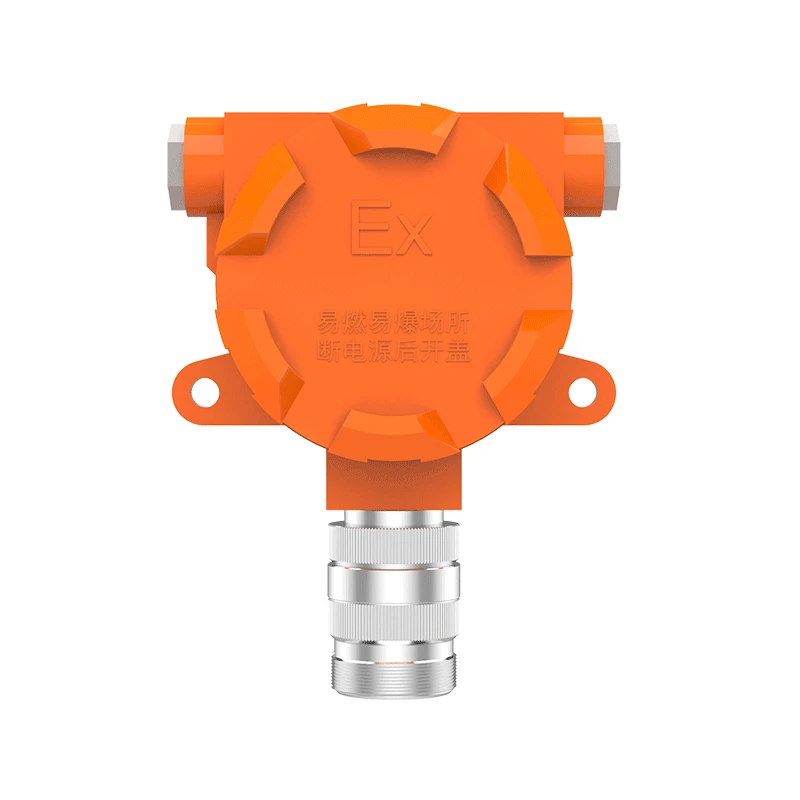

PLT119 series gas detector (hereinafter referred to as detector) collects the corresponding gas concentration through the sensor, converts the target gas concentration into phase, the corresponding current or voltage signal, transmits it to the signal acquisition and processing circuit for filtering and amplification, then carries out ad conversion, and finally sends it to the CPU unit for various operations, finally obtains the gas concentration to be measured, and displays the operation results And control the corresponding unit module to realize the output and control of various signals.
note：An additional $21 is required for audible and visual alarm
Wall;Pipe type (pipe type, tube type, pipe type external thread: M45* 1.5mm, optional pipe transfer screw joint, weldable)
indication error
≤±3%FS
repeatability
≤±1%
zero drift
≤±1%（FS/year）
response time
≤±20S(T90)(Higher requirements according to sensor performance)
recovery time
≤±10S(Higher requirements according to sensor performance)
power supply
12~30VDC
power
≤2.5W（DC24V）
environmental pressure
80KPA~120KPA
environmental temperature
-20℃~+60℃(Typical values) -40℃~+80℃(Limit value),(Higher temperatures are customizable)
environmental humidity
10%~95%RH(No condensation)
main material
1. Shell: ADC12 aluminum alloy 2. Air chamber: aluminum profile
