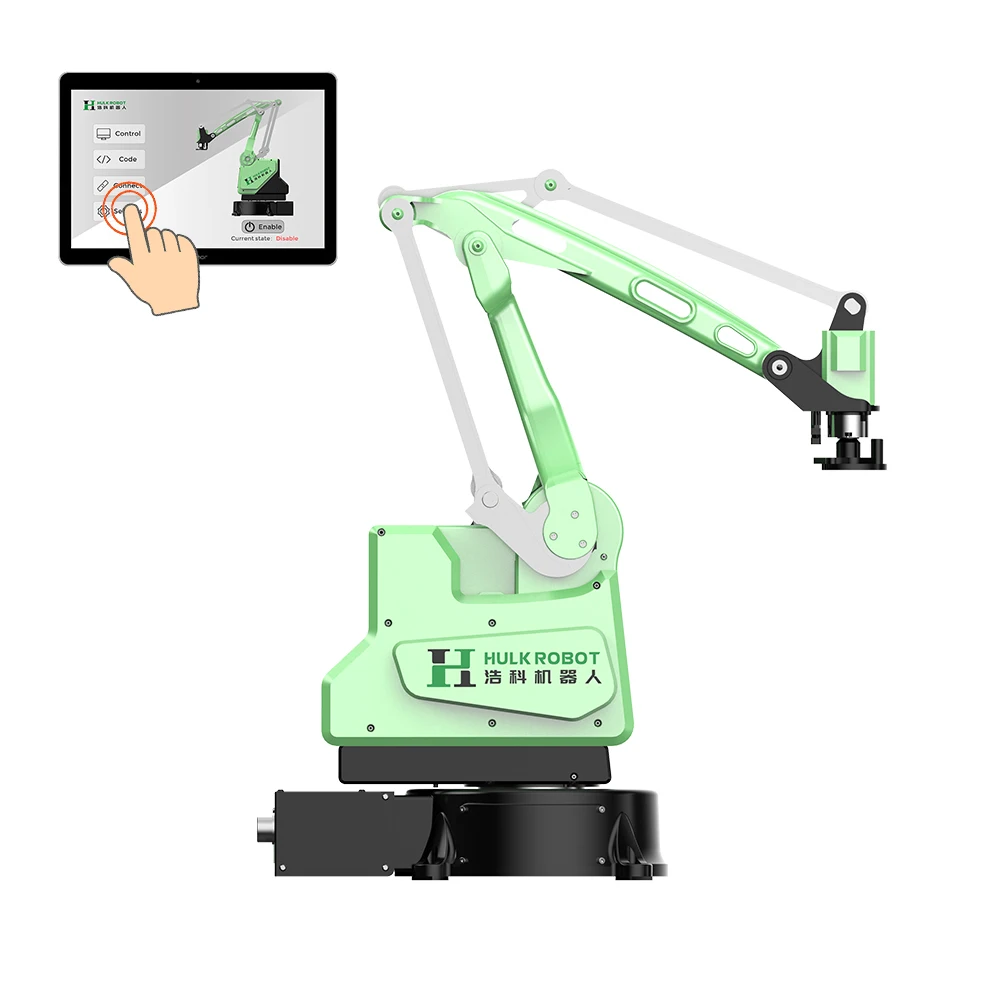

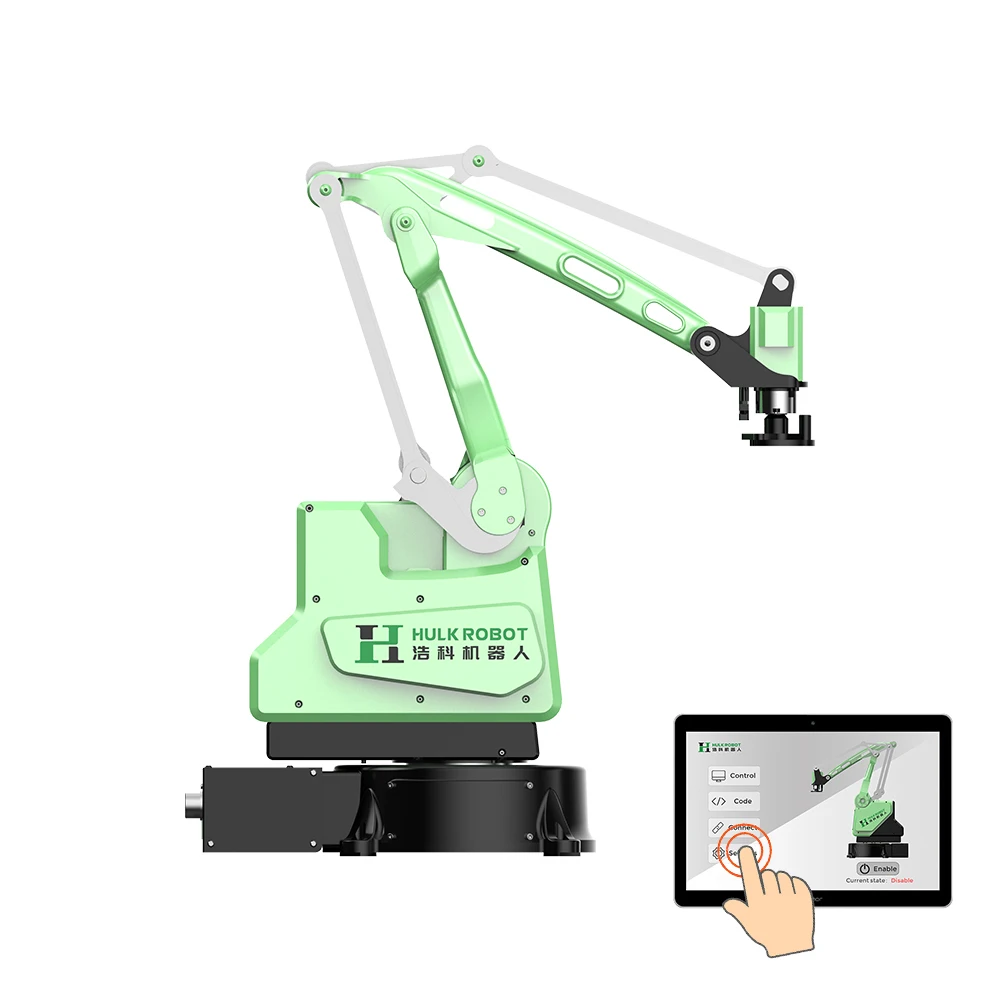

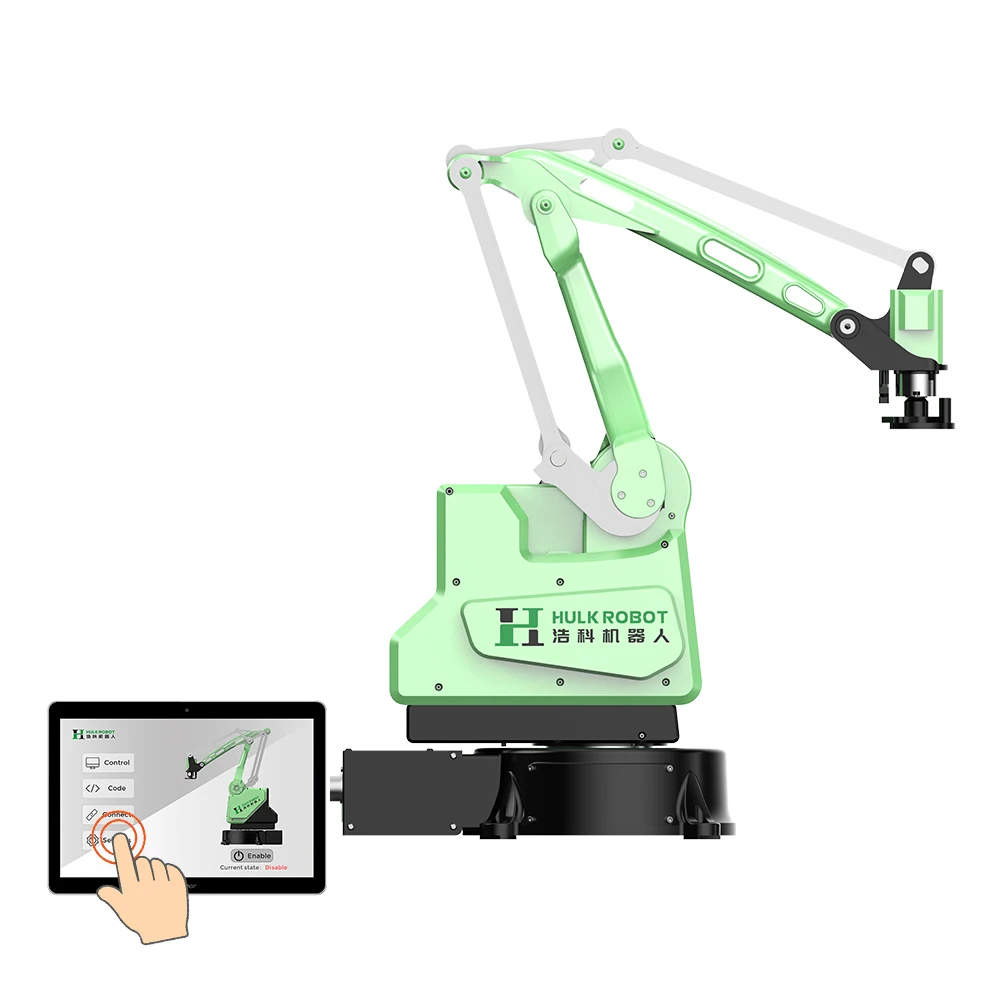

New design mini Industrial app controlled industrial robot cnc lathe machine robotic handling machine

Product Overview

Description

New design mini Industrial app controlled industrial robot cnc lathe machine robotic handling machine

Model	HK5404
Working radius	540mm
Number of axis	3 Axis/4 Axis
Installation	floor
N.W.	13kg
Repeat Positioning Accuracy	±0.05mm
Maximum load	1kg
Power Consume	0.4KVA
Power supply	Input:Single phase 110V-240V  50Hz    Output:DC 24V(400W)
Voltage rating	220V
External communication	WIFI/Ethernet

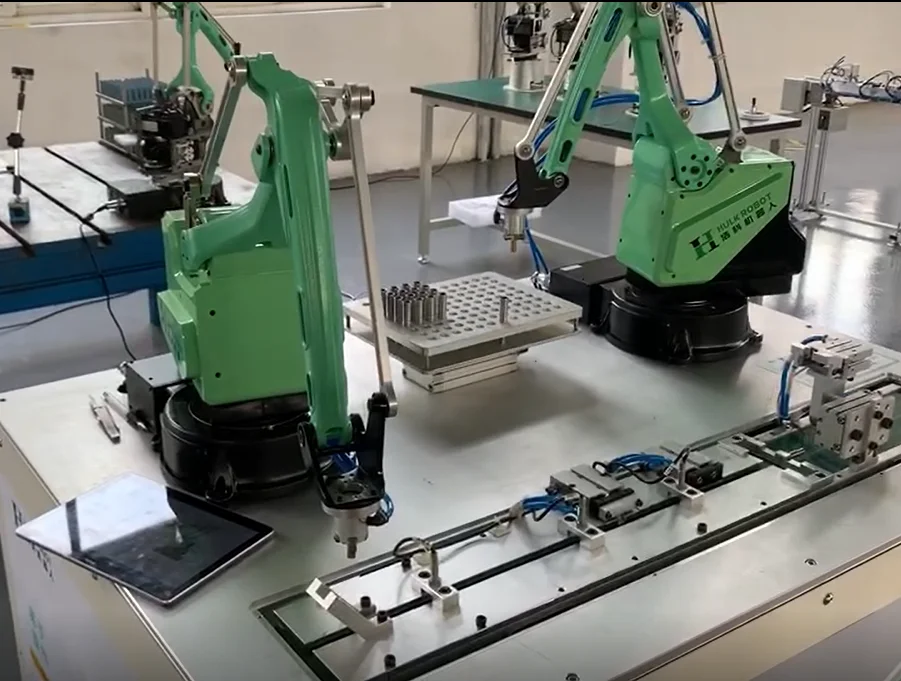

Application	Picking, Loading, Casting, Polishing Etc
Safety standard	ISO 9001-2015
Control software	Hulkbot Studio
Drive System	Steper motor
Working condition	-10°C~60°C
I/O	Input 5/Output 5



Axis	Working Range	Max Speed
Axis 1	±160°	360°/s
Axis 2	-42°~85°	360°/s
Axis 3	-20°~100°	360°/s
Axis 4	±165°	500°/s







Q1: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.



Q2: How long is your lead time?
A: Normally, it is about 15 working days. If we have robots in stock, we can send out immediately.



Q3: Can your robots work with vision system?
A: Yes. Our robots can work very well with vision system.



Q4: Can you provide a technical document?
A: Yes. we do. And it’s in English.



Q5: Which language does your system support?
A: The user interface is in English.



Q6: How to solve the problems when using the product?
A: We provide free online support, if not solved, will return to the factory for maintenance.
