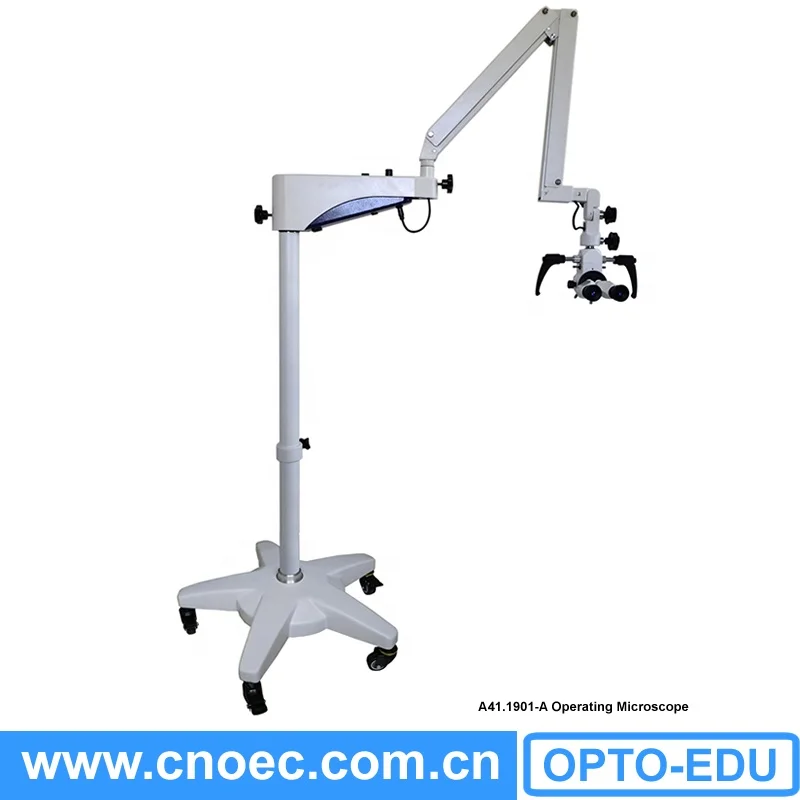

OPTO EDU A41.1901 A 2.4X 12X operating prices ent microscope surgical
- Category: >>>
- Supplier: Opto-Edu (Beijing) Co. Ltd.
Share on (62435347334):
Product Overview
Description
Products Description
A41.1901 Series Operating Microscopes use fibre-optic cable for coaxial illumination and have different working distance and
magnification. They are featured for flexible handling and easy operation. They have found wide application in ophthalmology,
gynecology, ear-nose-throat, surgery and orthopedics etc..
magnification. They are featured for flexible handling and easy operation. They have found wide application in ophthalmology,
gynecology, ear-nose-throat, surgery and orthopedics etc..

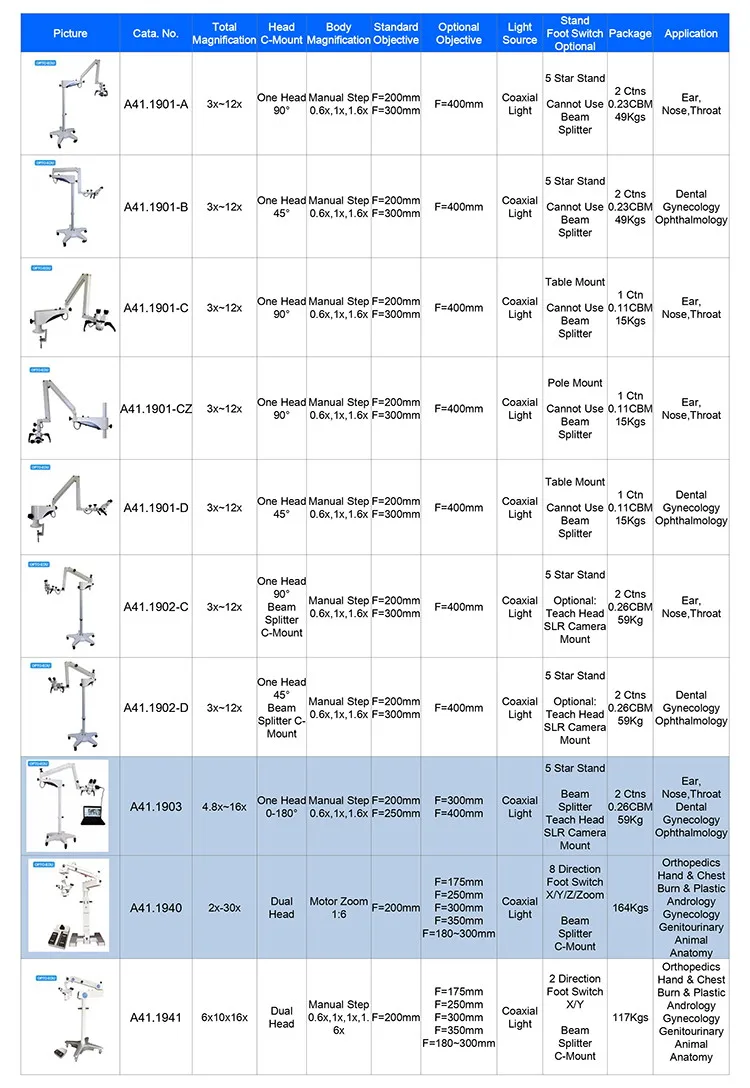

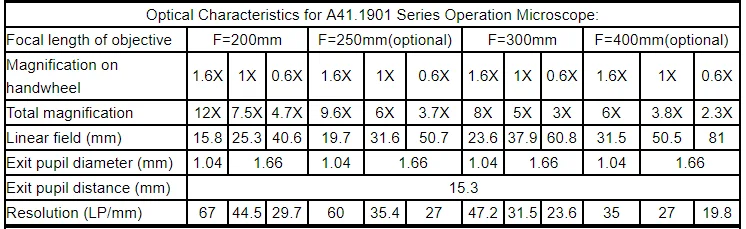

A41.1901 Series Of Operation Microscope Specification | ||||||||||

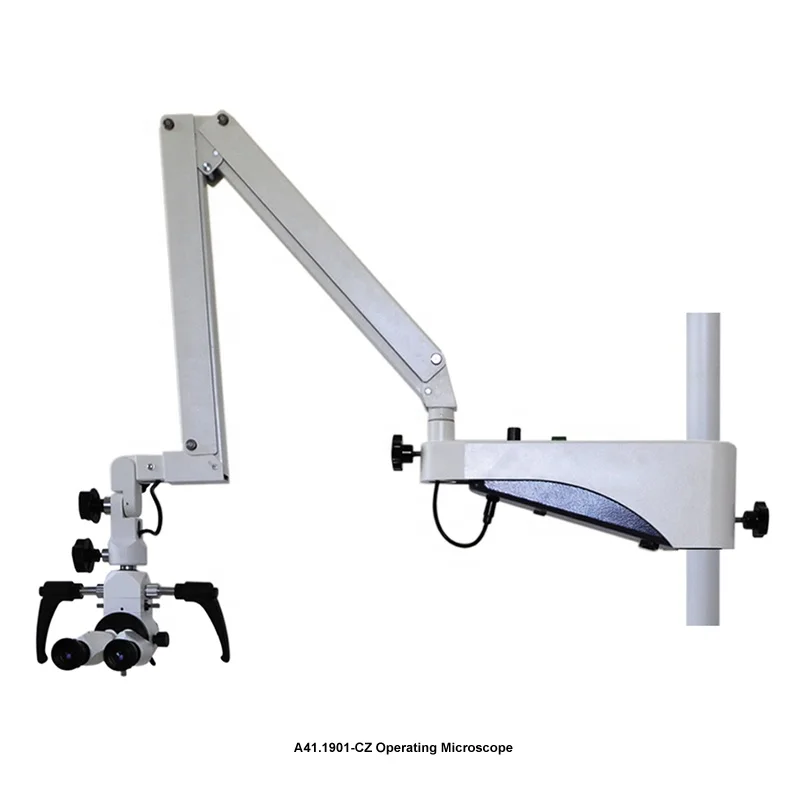

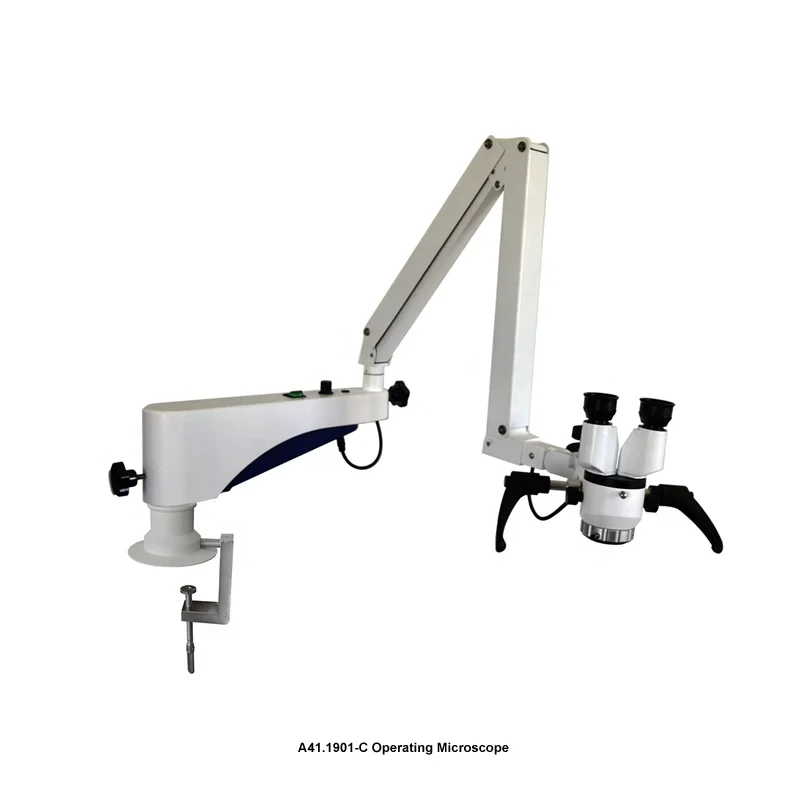

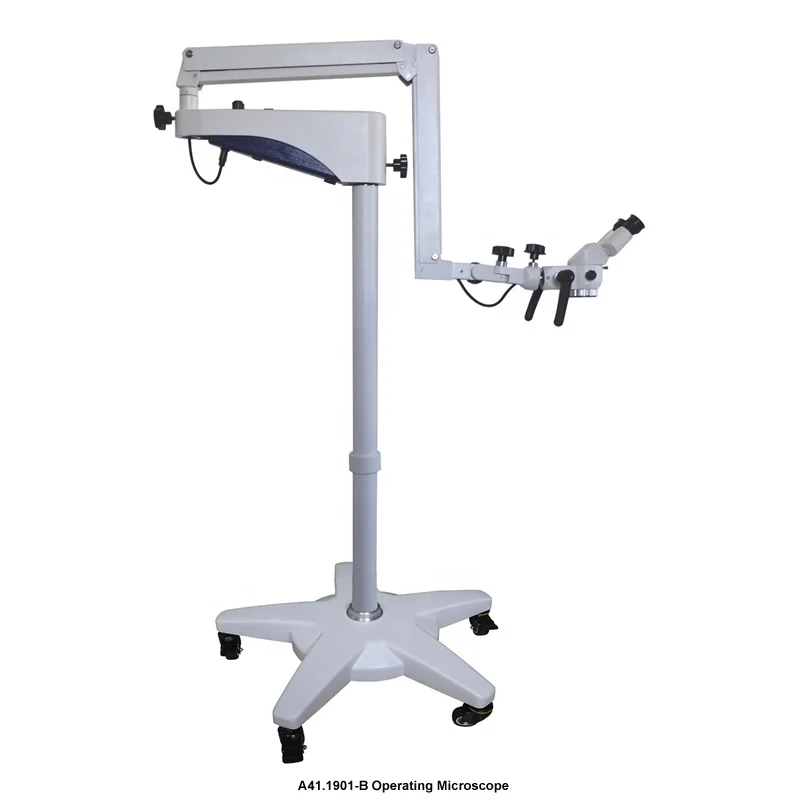

Model | A41.1901-A | A41.1901-B | A41.1901-C | A41.1901-CZ | A41.1901-D | |||||
Binocular observation | Straight | 45º Tilted | Straight | 45º Tilted | ||||||
Magnification of binocular | 6X | |||||||||
Interpupillary distance | 50mm-80mm | |||||||||
Diopter | ±5D | |||||||||
Magnification changer | 3-step magnification change: 0.6X,1X,1.6X | |||||||||
Focal length of objective | Two objectives: F=200 & F=300mm (M45x0.75mm) | |||||||||
Total magnification | 3X, 5X, 8X, 4.7X, 7.5X, 12X | |||||||||
Linear field | 60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm | |||||||||
Beamsplitter | No | |||||||||
Digital camera adapter | ||||||||||
Fine focusing range | 10mm | |||||||||
Filter | Built-in green and yellow filters | |||||||||
Balancing arm | 2-part arm with universal joints | |||||||||
Illumination system | Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx | |||||||||
Customization power supply unit | NO | Connect to the column of ENT unit | No | |||||||
Stand | 2-part column fitted on the five-star base with casters | Table mount clamp | ||||||||
Power supply | AC100V-AC240V | |||||||||
Optional Accessories | ||||
Objective Lens | Objective F=250mm | A52.1901-25 | ||
Objective Lens | Objective F=400mm | A52.1901-4 | ||
Wall Mount Bracket | A41.1901-C | |||
