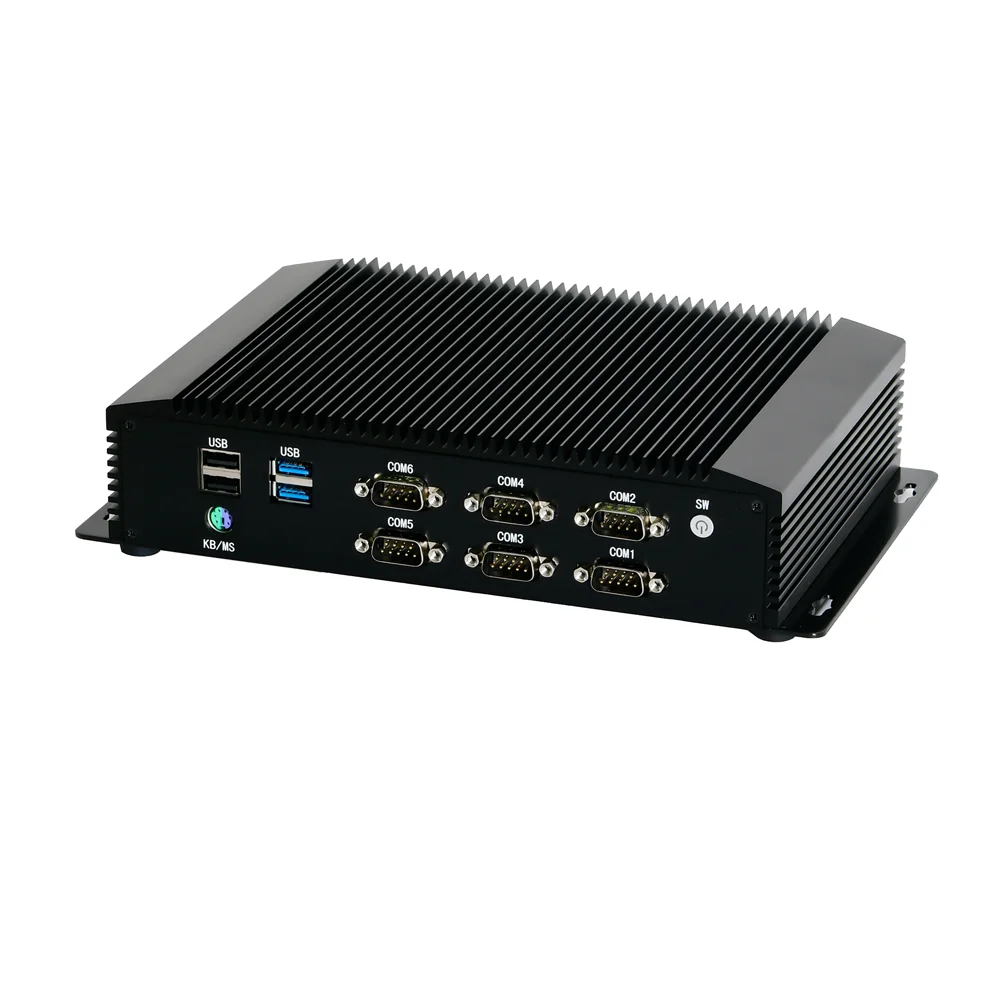

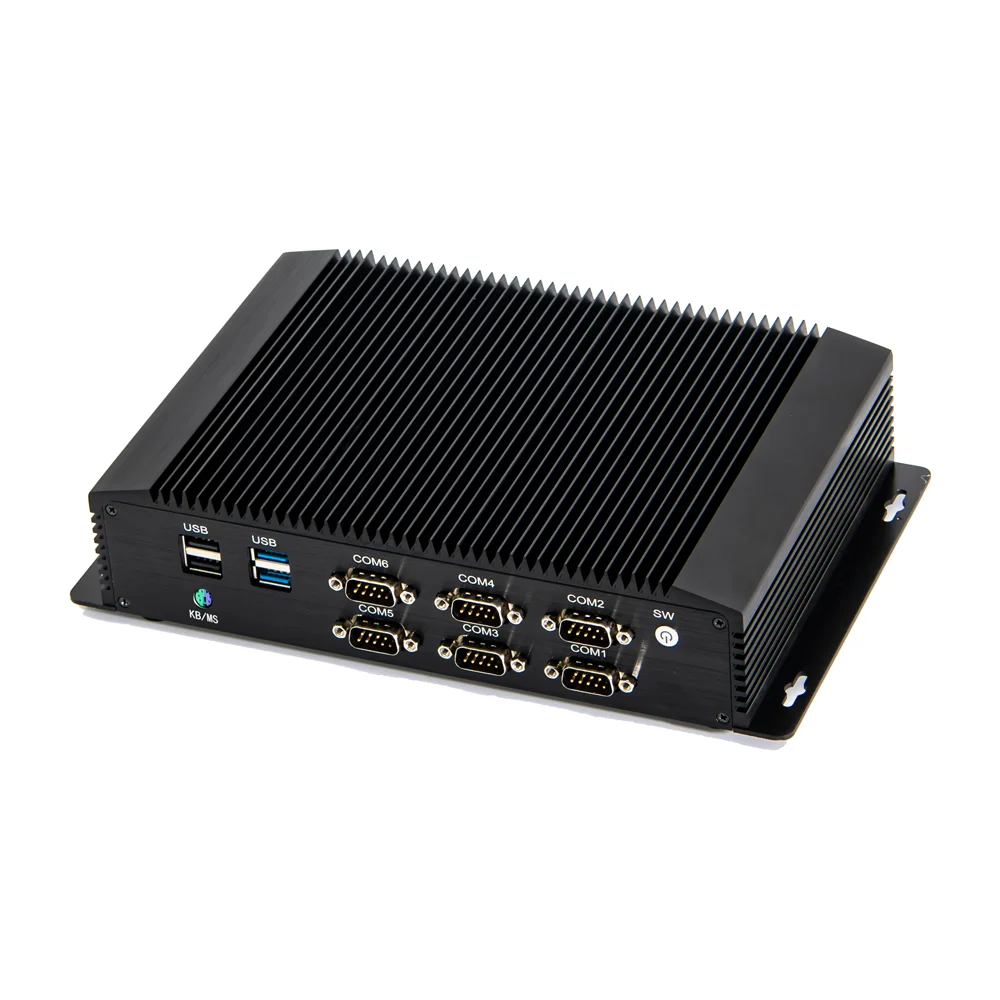

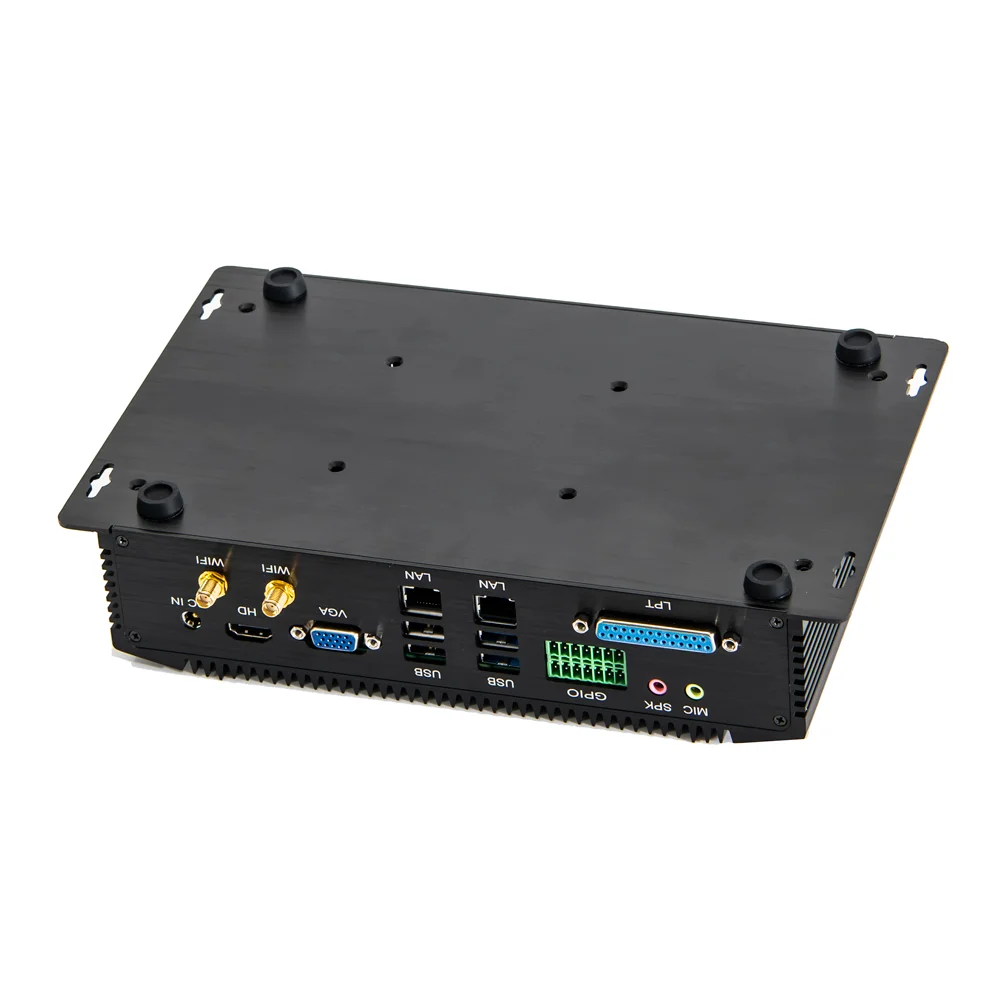

8Th Gen i7 8550U Fanless Mini PC CPU 12V Industrial Embedded Computer Rugged Tiny PC 2 Ethernet Linux Win10 Din Rail Mount RS485

8Th Gen i7 8550U Fanless Mini PC Intel CPU 12V Industrial Embedded Computer Rugged Tiny PC 2 Ethernet Linux Win10 Din Rail Mount

1. Main characteristics

190mm x 150 mm custom structure;
Intel 8th/7th/4th/5th -U FCBGA1168 package CPU;
Support single channel DDR4 SODIMM memory;
1 x VGA interface, 1 x HDMI interface, 1 x dual channel 24 bit LVDS(Optional);
Provide 4 x USB 2.0 interface;
Provide 4 x USB 3.0 interface;

Provide 1 x PS2 interface for Mouse / Keyboard;
Provide 1 x SATA 2.0 interface;
Provide 6 x RS232 serial port;
Support mSATA SSD solid state drive;
Provide 2 x Gigabit Ethernet interface;
Provide a Mini-PCIE slot;
Support onboard motherboard diagnostics;
Support 12V DC power supply, DC power supply has reverse connection protection function, the power supply will not cause damage to the motherboard and external power supply.

2. Working environment
Working temperature: -10 ° C ~ +60 ° C
Storage temperature: -20 ° C ~ +85 ° C
Working humidity: 10% ~ 90%
Storage humidity: 5% ~ 95%, no condensation

Item Specifications

Main advantages
- Small size: all Adeli fanless mini pcs smaller than A4 paper, some of the small size pc only 3.5-inch size, just like the HDD sized using it traditional fat computers. Most of that small size fanless mini pc can be mounted to the backside of monitor, and takes almost no space of your desk, make your desk more clear and smart.

- Durability: all those fanless mini pcs are highly integrated, fanless design makes it runs silent and no need extra maintenance like normal fat computers. And most of them using aluminum alloy computer case, very durable.

- Low power: all the Adeli fanless mini pcs using 12V power supply, most of them power consumption from 15W to 30W, compare to 150W traditional pc's consumption, it helps saving more than 80% energy.

- Universal performance: Adeli fanless mini pcs compatible with almost all popular operating systems, such as Win10, Linux. You can use this mini computer as personal computer at home, or use it as HTPC to built your own home theater center, and also you can use it in offices, training centers, factories, internet cafe and everywhere that require computers.

- Silent operation: fanless mini pc also name as silent computer, quiet mini pc or silent desktop pc. As there is no fan inside, the pc runs totally silent all day long, make sure you can keep wholehearted in to your work.

What can this mini computer do?

- Office work: Office, Skype, yahoo, outlook and all other office requirement support and runs perfect;

- Design work: Photoshop, CorelDraw, Dreamweaver, iIIustrator, Flash, InDesign and all others

- Game playing: support most online games and PC games, like War craft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games.

- Entertainment: support ultra HD 4K resolution, support XBMC and others program that support Windows and Linuxs

- Used as server, used at industrial machine, hospital, etc

Item Details View:

Shenzhen Dechao Electronics Technology Co., Limited is an officially registered and approved large-scale resource-based enterprise, focusing on research and design, producing, processing, marketing and distribution. Main products cover mini PC, HTPC, embedded PC, vehicle computers, industrial computers, fanless systems, aluminum cases, ITX motherboards, DC power boards, hardware and computer-related accessories.

Shenzhen Dechao Electronics Technology Co., Limited has established cooperation with lots of enterprises, rely on its strength, reasonable price, excellent service, over 10 years rich experience in R&D and producing. Products are popular at home and abroad. Its OEM/ODM services have already covered many countries in South East Asia, Middle East, Europe, America, South Africa etc.

Shenzhen Dechao Electronics Technology Co., Limited controls all the processes, from design, producing, processing, assembly, quality inspection to packing and delivering; and holds the advantage of leading technique and more competitive price.

1. Can you put my brand name (logo) on these products?
Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.

2. What payment method do you accept?
T/T, Western Union, PayPal, Escrew, Alibaba Trade Assurance order payment; Money Gram, Cash, L/C, etc.

3. What is the Minimum Order Quantity (MOQ)?
We can sell one piece of sample for your testing.

4. What is the lead time of your products?
1-3 days for one sample, 15 working days for a large quantity.

5. How many years for the product warranty?

3 years, we have a professional team work for after-sales services, please kindly feel free to contact us if any questions.

6. What are the shipping methods for it?

We can ship by International express, like DHL, UPS, Fedex, TNT, etc; or by Air/ Sea, etc.

7. What kinds of customization can you do?

We can do the products as per your configuration of CPU, RAM, hard disks, WiF, I/O ports, color, size, customized OS, logo, etc.

8. Can you equip the devices with related products or services?

Yes, we can offer you mouse and keyboard combo, HDMI cable, genuine Windows 10 license, external CD-ROW, USB Hub, Bluetooth dongle, etc.

9. What is HS code of Adeli mini pc?
8471504090

Any more questions, please feel free to contact us, will reply you soonest. Thanks.
