Saving energy self ignite charcoal wood log carbonizing stove
Application of carbonization furnace:
Wood, log,branch, sawdust briquette,bamboo, coconut shell, nuts shell, palm nut shell, walnut shell, macadamic nutshell, and other hard raw material etc.

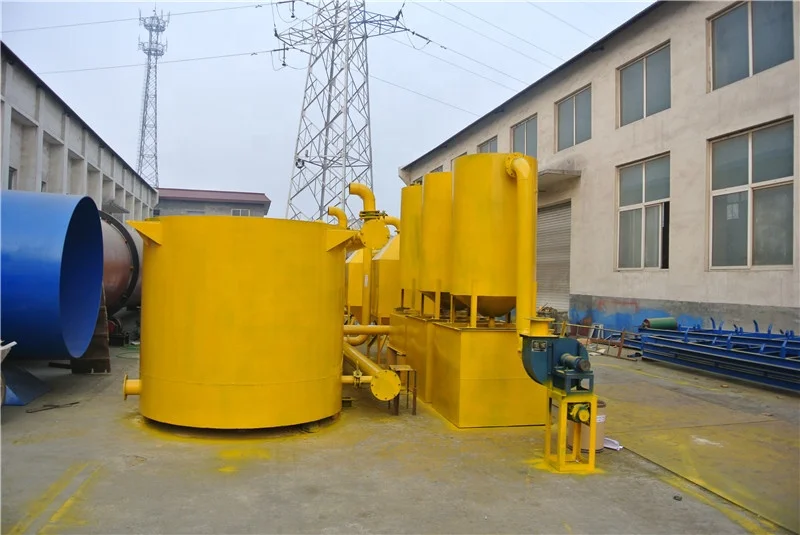

Description of wood log carbonizing stove:

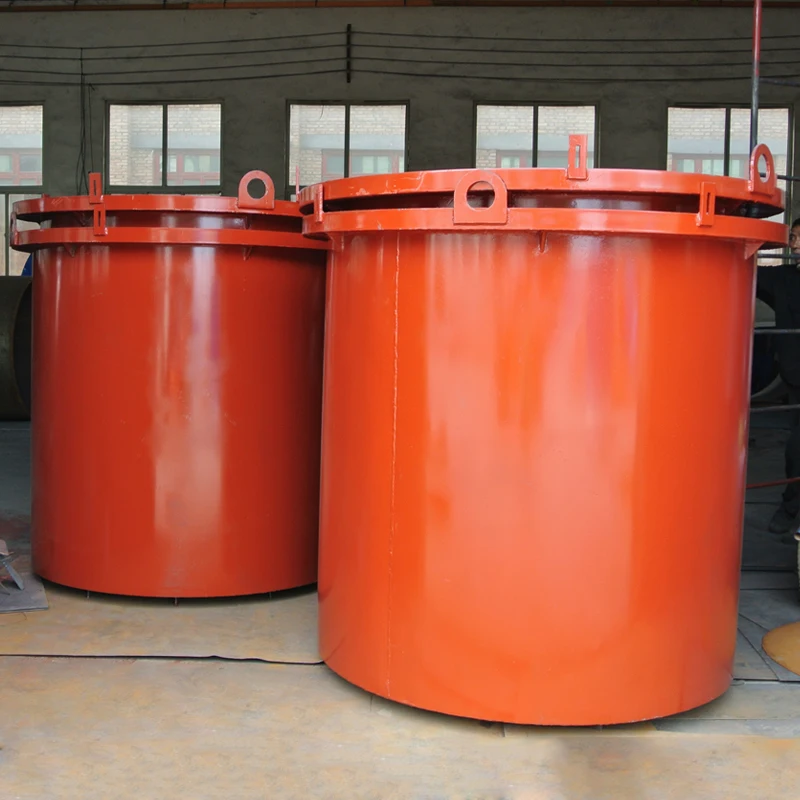

Wood log charcoal making machine include three inner stove, when one inner stove are finished, it can be hoisted outside,. And when the first inner stove are cooling ,the other inner stove can be carbonized at the same time, in this way the cooling time can be reduced much, thus, the productive efficiency increase a lot .
This type of wood log carbonizing stove adopts the structure of unique air storage chamber, to fully reuse the smoke produced during the process of carbonization. And the redundant smoke can be used in drying and carbonizing, saving much fuel during the whole process.
Technical parameters of wood log carbonizing stove:
TECHNICAL DATA
Model
Power
Weight
Capacity
Whole machine include
QHL-1(single type)
0.22kw
3.3t
2.5-3t/24h

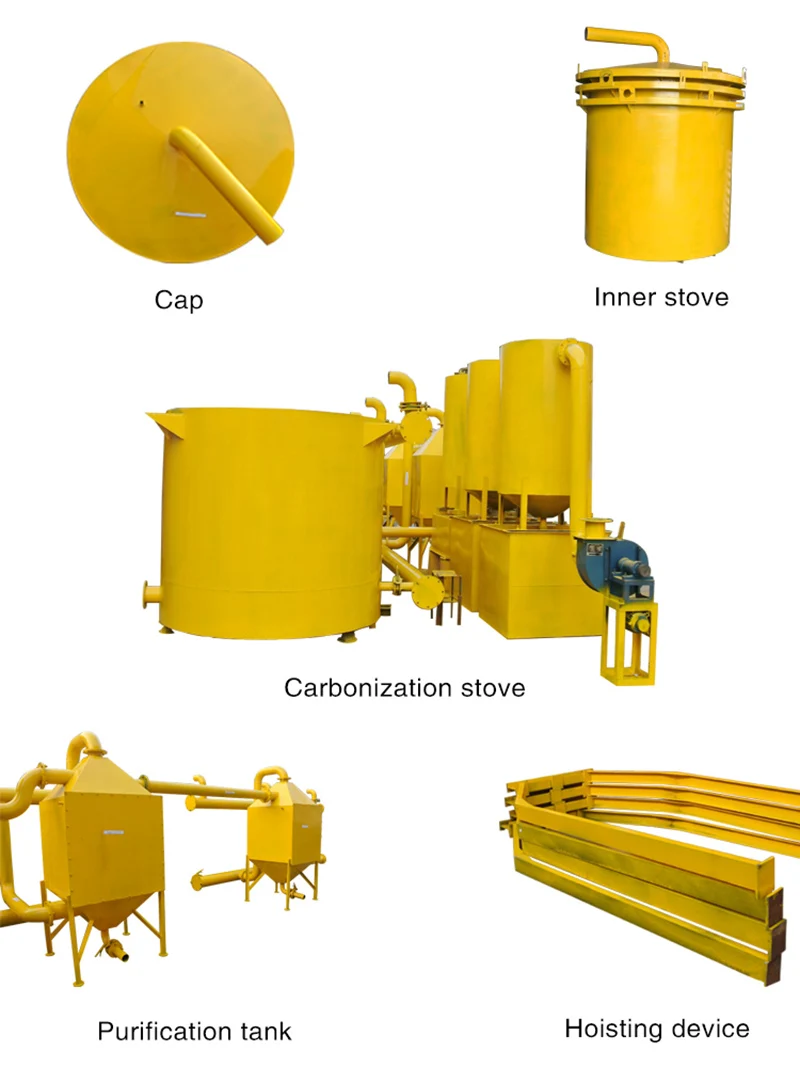

1outer stove, 3inner stoves with 3 caps, 1 3ton lifting device, 1smoking tank
QHL-2( two-connected type)
0.22kw
6.8t
5-6t/24h
2 outer stove, 6 inner stoves with 6 caps, one 5-ton hoisting equipment with e-motor, 2smoking tank
QHL-3 (three-connected type)
0.22kw
10.5t
7.5-9t/24h
3 outer stove, 9 inner stoves with 9caps, one 5-ton hoisting equipment with e-motor,3smoking tank
QHL-4 (four-connected type)
0.22kw
11.6t
10-12t/24h
4 outer stove, 12 inner stoves with 12caps, one 5-ton hoisting equipment with e-motor,4smoking tank
The features of wood log carbonizing stove:
1.New type of carbonization equipment, production higher than general furnace, fast speed, high carbon, simple operation.
2.With smoke purification device,can store tar,no leakage,long service life.

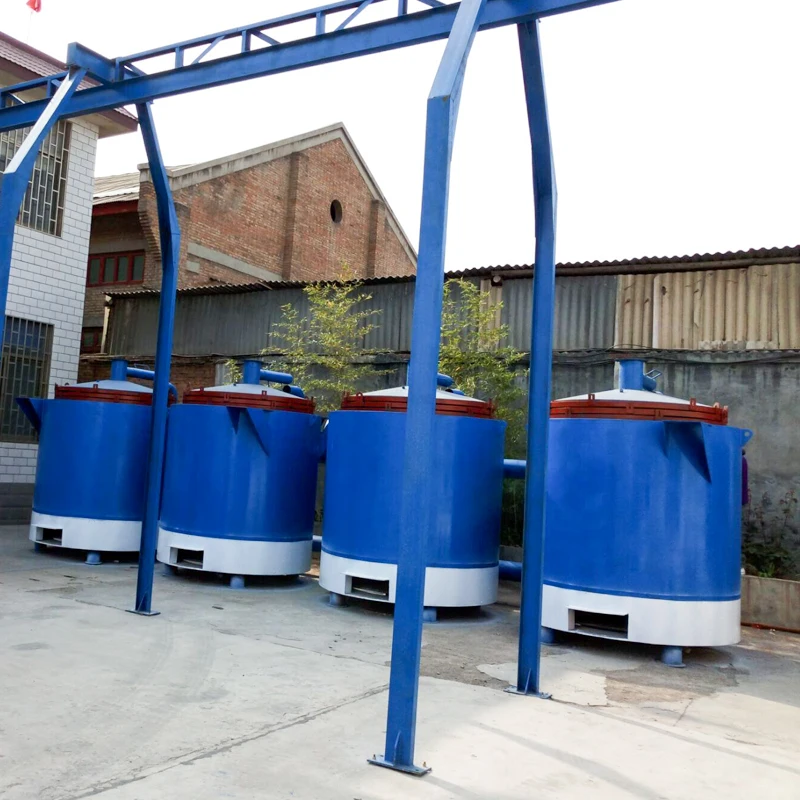

3.Easy to cooperate,Using hoisting system operate the wood log carbonizing stove.
4.With gasifier device, the smoke can be self used and can also be recycled for heating, cooking, drying.
Working principle of wood log carbonizing stove:

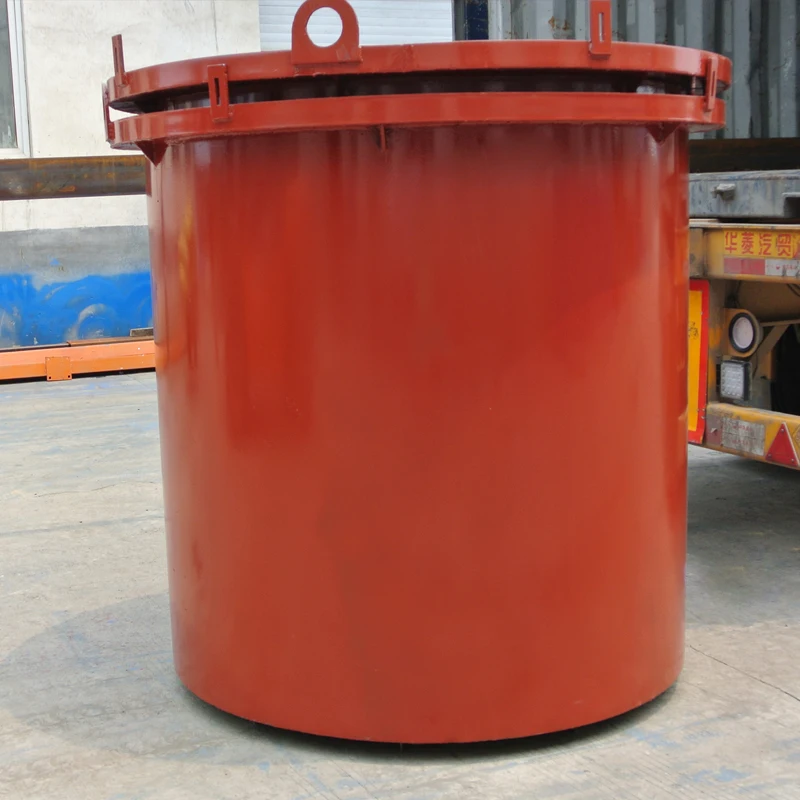

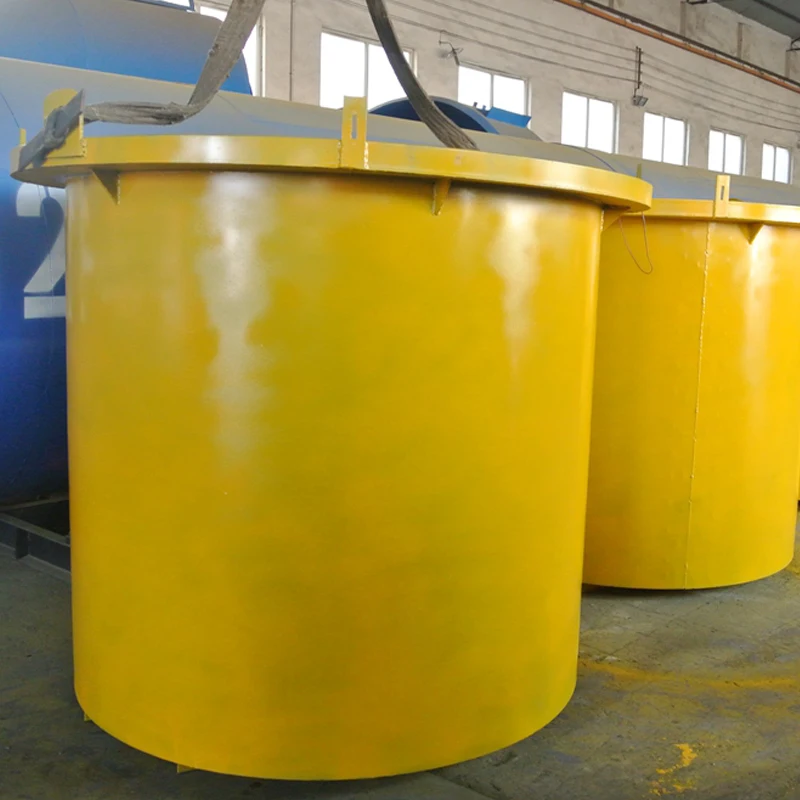

A: Prepare the raw material and pack them in the inner stove;

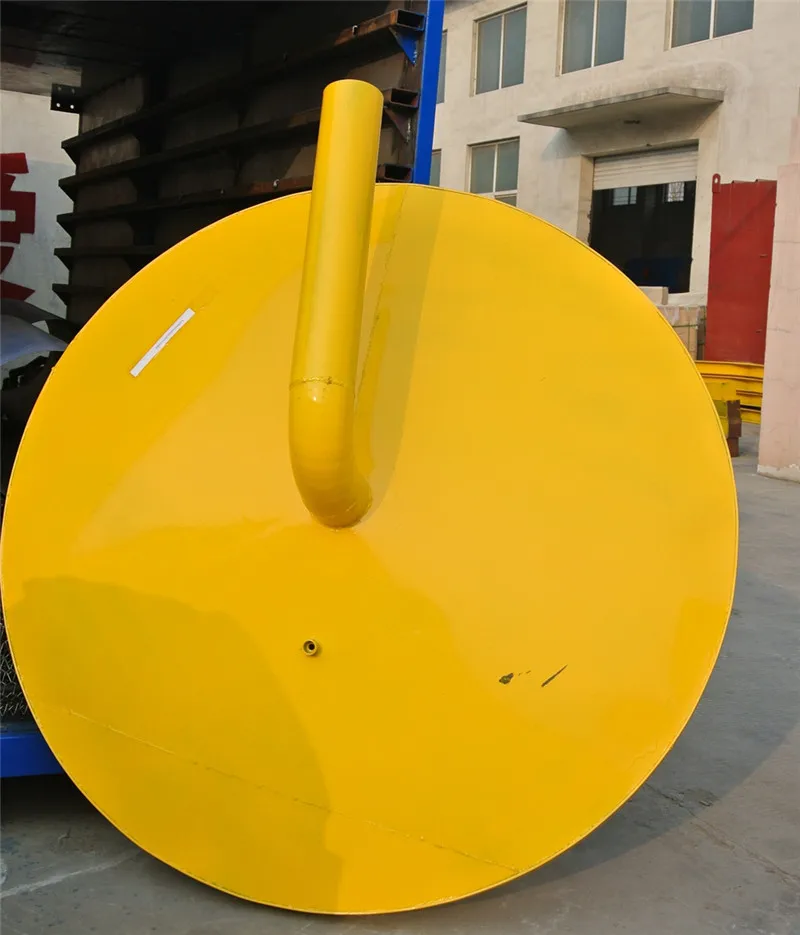

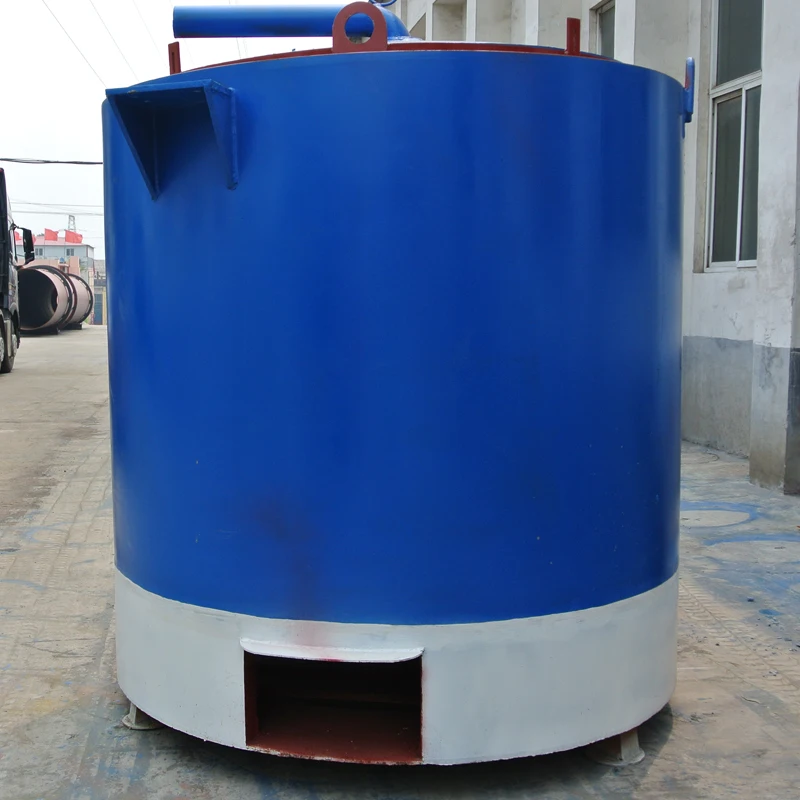

B: Use the hoist to hang the inner stove to the outer stove, and then cover the cap; then connect the cap and inner stove and seal them;
C: then fire the outer stove, and use the purification tank to collect the smoke from wood log carbonizing stove;
D: when it produce the fuel gas, you can use the fuel gas to carbonzie the raw material which save a lot of fire material.
E: when finish the carbonization, use the hoist to hang the inner stove out to the ground, and then use the hoist to hang another inner stove to carbonize again.

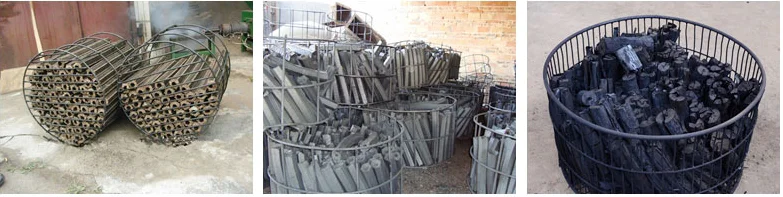

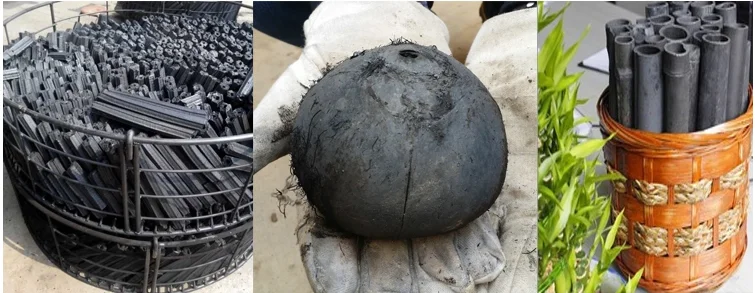

Finished charcoal from wood log carbonizing stove:
The customers visit our factory to check wood log carbonizing stove:
If you are interested in our wood log carbonizing stove, please contact with us.
Karry Zhang
Cell phone/whatsapp/wechat:+8618703672811
Remarks: Our factory also produce continuous carbonization furnace, briquette machine,crusher,drying machine. So we can supply you whole processing line.
